Connection to Active Directory, "Didn't find the ldap server!"

Pete · November 27, 2024, 4:04pm

Hi,
I’m struggeling with this one…

For testing purposes I installed NethServer 8 and TrueNAS Scale on Proxmox.
On NS8 I setup a DC with AD (Samba) according
https://docs.nethserver.org/projects/ns8/en/latest/user_domains.html

Now I try to connect TrueNAS Scale to the AD, but I get the error

[2024/11/27 13:22:48] (WARNING) ActiveDirectoryService.ipaddresses_to_register():111 - Reverse lookup of fd0b:59a:8dc2:0:be24:11ff:fef3:7c35 failed, omitting from list of addresses to use for Active Directory purposes.
Traceback (most recent call last):
  File "/usr/lib/python3/dist-packages/middlewared/plugins/activedirectory_/dns.py", line 87, in ipaddresses_to_register
    result = await self.middleware.call('dnsclient.reverse_lookup', {
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/main.py", line 1626, in call
    return await self._call(
           ^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/main.py", line 1457, in _call
    return await methodobj(*prepared_call.args)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/schema/processor.py", line 179, in nf
    return await func(*args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/schema/processor.py", line 49, in nf
    res = await f(*args, **kwargs)
          ^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/plugins/dns_client.py", line 214, in reverse_lookup
    results = await asyncio.gather(*[
              ^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/plugins/dns_client.py", line 35, in resolve_name
    ans = await r.resolve_address(
          ^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/dns/asyncresolver.py", line 152, in resolve_address
    return await self.resolve(
           ^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/dns/asyncresolver.py", line 120, in resolve
    (answer, done) = resolution.query_result(response, None)
                     ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/dns/resolver.py", line 768, in query_result
    raise NoAnswer(response=answer.response)
dns.resolver.NoAnswer: The DNS response does not contain an answer to the question: 5.3.c.7.3.f.e.f.f.f.1.1.4.2.e.b.0.0.0.0.2.c.d.8.a.9.5.0.b.0.d.f.ip6.arpa. IN PTR

[2024/11/27 13:23:01] (ERROR) middlewared.job.run():503 - Job <bound method accepts.<locals>.wrap.<locals>.nf of <middlewared.plugins.activedirectory.ActiveDirectoryService object at 0x7f4bf7e7bbd0>> failed
Traceback (most recent call last):
  File "/usr/lib/python3/dist-packages/middlewared/plugins/activedirectory.py", line 418, in do_update
    domain_info = await self.domain_info(new['domainname'])
                  ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/schema/processor.py", line 179, in nf
    return await func(*args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/schema/processor.py", line 49, in nf
    res = await f(*args, **kwargs)
          ^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/plugins/activedirectory.py", line 722, in domain_info
    raise CallError(netads.stderr.decode())
middlewared.service_exception.CallError: [EFAULT] ads_connect: No logon servers are currently available to service the logon request.
Didn't find the ldap server!

I suspect an issue with DNS, but TrueNas can reach the AD and the AD can reach TrueNAS (checked with ping <mydomain.de>)

I have no idea where to start to figure this one out?

Regards Pete

pmh · November 27, 2024, 11:28pm

Does TrueNAS use the DC as its DNS server? That’s more or less mandatory with AD. All AD domain member systems must use the DCs and the DCs only as their recursive name servers.

There are ways around that but they very much depend on all the details of your entire network infrastructure so let’s start with the simple way …

Pete · November 28, 2024, 7:51am

Yes, I set the IP of my DC as nameserver1 in the network settings.

pmh · November 28, 2024, 8:14am

And no nameserver2 or 3? Sorry for insisting, but this really is important.

Pete · November 28, 2024, 8:27am

Yes, nothing set there. The network settings are set like shown here

The IP 192.168.1.10 is the IP of my DC and 192.168.1.1 is the IP of my firewall.

pmh · November 28, 2024, 9:40am

Then I am out of ideas. I run AD on Windows. Definitely works with TN.

Pete · November 28, 2024, 12:13pm

I suspect the reason for this issue lies with NethServer.

However, thanks for your help.

Pete · November 29, 2024, 2:39pm

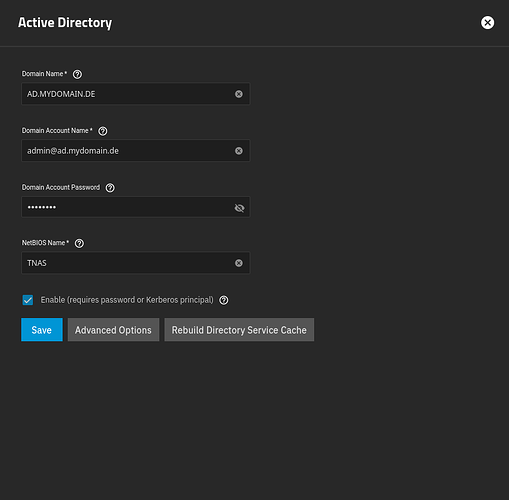

What should be set here?

Johnny_Fartpants · November 29, 2024, 2:49pm

My Domain Account Name doesn’t have @domainname in it so not sure if it matters but perhaps just try admin assuming an account named admin exists in your AD?

Also does the ‘admin’ account have permission of the TrueNAS Object you created in AD?

Pete · November 29, 2024, 2:57pm

I tried both with and without the domain part, no success either.

Do I have to create an object in my AD for TrueNAS?

Johnny_Fartpants · November 29, 2024, 3:00pm

Thats what I do. Depends on your AD config.

create object in AD
give join user full control over the object
join making sure the NetBIOS name is an exact match as my AD object.

pmh · November 29, 2024, 3:29pm

I simply used the “Administrator” account and the matching password. No creation of anything beforehand.

The password is only used once and not saved, so using the domain admin seems ok for me - as long as you trust TN at all.

Pete · November 29, 2024, 4:14pm

I tried the following users

domain user ‘ldapservices’ shown under Bind DN
‘Administrator’
‘admin’
with its corresponding passswords

I always get the error message

'User specified does not have administrator privileges'

Traceback (most recent call last):
  File "/usr/lib/python3/dist-packages/middlewared/job.py", line 488, in run
    await self.future
  File "/usr/lib/python3/dist-packages/middlewared/job.py", line 533, in __run_body
    rv = await self.method(*args)
         ^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/schema/processor.py", line 179, in nf
    return await func(*args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/schema/processor.py", line 49, in nf
    res = await f(*args, **kwargs)
          ^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/plugins/activedirectory.py", line 576, in do_update
    raise e
  File "/usr/lib/python3/dist-packages/middlewared/plugins/activedirectory.py", line 565, in do_update
    await self.__start(job)
  File "/usr/lib/python3/dist-packages/middlewared/plugins/activedirectory.py", line 607, in __start
    join_resp = await job.wrap(await self.middleware.call(
                ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/job.py", line 692, in wrap
    return await subjob.wait(raise_error=True)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/job.py", line 436, in wait
    raise self.exc_info[1]
  File "/usr/lib/python3/dist-packages/middlewared/job.py", line 488, in run
    await self.future
  File "/usr/lib/python3/dist-packages/middlewared/job.py", line 535, in __run_body
    rv = await self.middleware.run_in_thread(self.method, *args)
         ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/main.py", line 1364, in run_in_thread
    return await self.run_in_executor(io_thread_pool_executor, method, *args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/main.py", line 1361, in run_in_executor
    return await loop.run_in_executor(pool, functools.partial(method, *args, **kwargs))
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/concurrent/futures/thread.py", line 58, in run
    result = self.fn(*self.args, **self.kwargs)
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/utils/directoryservices/krb5.py", line 331, in check_ticket
    return fn(*args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/plugins/directoryservices_/join.py", line 244, in join_domain
    do_join_fn(job, ds_type, domain)
  File "/usr/lib/python3/dist-packages/middlewared/utils/directoryservices/krb5.py", line 331, in check_ticket
    return fn(*args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3/dist-packages/middlewared/plugins/directoryservices_/activedirectory_join_mixin.py", line 359, in _ad_join
    self._ad_join_impl(job, ad_config)
  File "/usr/lib/python3/dist-packages/middlewared/plugins/directoryservices_/activedirectory_join_mixin.py", line 285, in _ad_join_impl
    raise CallError(err_msg)
middlewared.service_exception.CallError: [EFAULT]  Current debug levels:
  all: 5
  tdb: 5
  printdrivers: 5
  lanman: 5
  smb: 5
  rpc_parse: 5
  rpc_srv: 5
  rpc_cli: 5
  passdb: 5
  sam: 5
  auth: 5
  winbind: 5
  vfs: 5
  idmap: 5
  quota: 5
  acls: 5
  locking: 5
  msdfs: 5
  dmapi: 5
  registry: 5
  scavenger: 5
  dns: 5
  ldb: 5
  tevent: 5
  auth_audit: 5
  auth_json_audit: 5
  kerberos: 5
  drs_repl: 5
  smb2: 5
  smb2_credits: 5
  dsdb_audit: 5
  dsdb_json_audit: 5
  dsdb_password_audit: 5
  dsdb_password_json_audit: 5
  dsdb_transaction_audit: 5
  dsdb_transaction_json_audit: 5
  dsdb_group_audit: 5
  dsdb_group_json_audit: 5
lp_load_ex: refreshing parameters
Initialising global parameters
rlimit_max: increasing rlimit_max (1024) to minimum Windows limit (16384)
INFO: Current debug levels:
  all: 5
  tdb: 5
  printdrivers: 5
  lanman: 5
  smb: 5
  rpc_parse: 5
  rpc_srv: 5
  rpc_cli: 5
  passdb: 5
  sam: 5
  auth: 5
  winbind: 5
  vfs: 5
  idmap: 5
  quota: 5
  acls: 5
  locking: 5
  msdfs: 5
  dmapi: 5
  registry: 5
  scavenger: 5
  dns: 5
  ldb: 5
  tevent: 5
  auth_audit: 5
  auth_json_audit: 5
  kerberos: 5
  drs_repl: 5
  smb2: 5
  smb2_credits: 5
  dsdb_audit: 5
  dsdb_json_audit: 5
  dsdb_password_audit: 5
  dsdb_password_json_audit: 5
  dsdb_transaction_audit: 5
  dsdb_transaction_json_audit: 5
  dsdb_group_audit: 5
  dsdb_group_json_audit: 5
Processing section "[global]"
doing parameter disable spoolss = True
doing parameter dns proxy = False
doing parameter load printers = False
doing parameter max log size = 5120
doing parameter printcap = /dev/null
doing parameter bind interfaces only = True
doing parameter fruit:nfs_aces = False
doing parameter fruit:zero_file_id = False
doing parameter restrict anonymous = 2
doing parameter winbind request timeout = 60
doing parameter passdb backend = tdbsam:/var/run/samba-cache/private/passdb.tdb
doing parameter workgroup = mydomain
doing parameter netbios name = TNAS
doing parameter netbios aliases =
doing parameter guest account = nobody
doing parameter obey pam restrictions = False
doing parameter create mask = 0664
doing parameter directory mask = 0775
doing parameter ntlm auth = False
doing parameter server multichannel support = False
doing parameter unix charset = UTF-8
doing parameter local master = False
doing parameter server string = TrueNAS Server
doing parameter log level = 1
doing parameter logging = file
doing parameter server smb encrypt = default
doing parameter server role = member server
doing parameter kerberos method = secrets and keytab
doing parameter security = ADS
doing parameter domain master = False
doing parameter preferred master = False
doing parameter winbind cache time = 7200
doing parameter winbind max domain connections = 10
doing parameter winbind use default domain = False
doing parameter client ldap sasl wrapping = seal
doing parameter template shell = /bin/sh
doing parameter allow trusted domains = False
doing parameter realm = AD.mydomain.DE
doing parameter ads dns update = False
Unknown parameter encountered: "ads dns update"
Ignoring unknown parameter "ads dns update"
doing parameter winbind nss info = template
doing parameter template homedir = /var/empty
doing parameter winbind enum users = True
doing parameter winbind enum groups = True
doing parameter idmap config mydomain : backend = rid
doing parameter idmap config mydomain : range = 100000001 - 200000000
doing parameter idmap config * : backend = tdb
doing parameter idmap config * : range = 90000001 - 100000000
doing parameter registry shares = True
doing parameter include = registry
doing parameter registry shares = yes
process_registry_service: service name global
pm_process() returned Yes
added interface enp6s18 ip=fd0b:59a:8dc2:0:be24:11ff:fef3:7c35 bcast= netmask=ffff:ffff:ffff:ffff::
added interface enp6s18 ip=fdb3:74c4:a1c6:0:be24:11ff:fef3:7c35 bcast= netmask=ffff:ffff:ffff:ffff::
added interface enp6s18 ip=192.168.1.18 bcast=192.168.1.255 netmask=255.255.255.0
Registering messaging pointer for type 2 - private_data=(nil)
register_msg_pool_usage: Registered MSG_REQ_POOL_USAGE
Registering messaging pointer for type 11 - private_data=(nil)
Registering messaging pointer for type 12 - private_data=(nil)
Registered MSG_REQ_DMALLOC_MARK and LOG_CHANGED
Registering messaging pointer for type 1 - private_data=(nil)
Registering messaging pointer for type 5 - private_data=(nil)
Registering messaging pointer for type 51 - private_data=(nil)
added interface enp6s18 ip=fd0b:59a:8dc2:0:be24:11ff:fef3:7c35 bcast= netmask=ffff:ffff:ffff:ffff::
added interface enp6s18 ip=fdb3:74c4:a1c6:0:be24:11ff:fef3:7c35 bcast= netmask=ffff:ffff:ffff:ffff::
added interface enp6s18 ip=192.168.1.18 bcast=192.168.1.255 netmask=255.255.255.0
libnet_Join:
    libnet_JoinCtx: struct libnet_JoinCtx
        in: struct libnet_JoinCtx
            dc_name                  : NULL
            machine_name             : 'TNAS'
            domain_name              : *
                domain_name              : 'AD.mydomain.DE'
            domain_name_type         : JoinDomNameTypeDNS (1)
            account_ou               : NULL
            admin_account            : 'smbadmin'
            admin_domain             : NULL
            machine_password         : NULL
            join_flags               : 0x00000023 (35)
                   0: WKSSVC_JOIN_FLAGS_IGNORE_UNSUPPORTED_FLAGS
                   0: WKSSVC_JOIN_FLAGS_JOIN_WITH_NEW_NAME
                   0: WKSSVC_JOIN_FLAGS_JOIN_DC_ACCOUNT
                   0: WKSSVC_JOIN_FLAGS_DEFER_SPN
                   0: WKSSVC_JOIN_FLAGS_MACHINE_PWD_PASSED
                   0: WKSSVC_JOIN_FLAGS_JOIN_UNSECURE
                   1: WKSSVC_JOIN_FLAGS_DOMAIN_JOIN_IF_JOINED
                   0: WKSSVC_JOIN_FLAGS_WIN9X_UPGRADE
                   0: WKSSVC_JOIN_FLAGS_ACCOUNT_DELETE
                   1: WKSSVC_JOIN_FLAGS_ACCOUNT_CREATE
                   1: WKSSVC_JOIN_FLAGS_JOIN_TYPE
            os_version               : NULL
            os_name                  : NULL
            os_servicepack           : NULL
            create_upn               : 0x00 (0)
            upn                      : NULL
            dnshostname              : NULL
            modify_config            : 0x00 (0)
            ads                      : NULL
            debug                    : 0x01 (1)
            use_kerberos             : 0x01 (1)
            secure_channel_type      : SEC_CHAN_WKSTA (2)
            desired_encryption_types : 0x0000001c (28)
            provision_computer_account_only: 0x00 (0)
            odj_provision_data       : NULL
            request_offline_join     : 0x00 (0)
Opening cache file at /var/run/samba-lock/gencache.tdb
sitename_fetch: Returning sitename for realm 'AD.mydomain.DE': "Default-First-Site-Name"
dns_rr_srv_fill_done: async DNS A lookup for dc1.ad.mydomain.de [0] got dc1.ad.mydomain.de -> 192.168.1.10
dns_rr_srv_fill_done: async DNS AAAA lookup for dc1.ad.mydomain.de returned 0 addresses.
saf_fetch: Returning "dc1.ad.mydomain.de" for "AD.mydomain.DE" domain
get_dc_list: preferred server list: "dc1.ad.mydomain.de, *"
resolve_ads: Attempting to resolve KDCs for AD.mydomain.DE using DNS
dns_rr_srv_fill_done: async DNS A lookup for dc1.ad.mydomain.de [0] got dc1.ad.mydomain.de -> 192.168.1.10
dns_rr_srv_fill_done: async DNS AAAA lookup for dc1.ad.mydomain.de returned 0 addresses.
sitename_fetch: Returning sitename for realm 'AD.mydomain.DE': "Default-First-Site-Name"
namecache_fetch: name dc1.ad.mydomain.de#20 found.
get_dc_list: returning 1 ip addresses in an ordered list
get_dc_list: 192.168.1.10
saf_fetch: Returning "dc1.ad.mydomain.de" for "AD.mydomain.DE" domain
get_dc_list: preferred server list: "dc1.ad.mydomain.de, *"
resolve_ads: Attempting to resolve KDCs for AD.mydomain.DE using DNS
dns_rr_srv_fill_done: async DNS A lookup for dc1.ad.mydomain.de [0] got dc1.ad.mydomain.de -> 192.168.1.10
dns_rr_srv_fill_done: async DNS AAAA lookup for dc1.ad.mydomain.de returned 0 addresses.
sitename_fetch: Returning sitename for realm 'AD.mydomain.DE': "Default-First-Site-Name"
namecache_fetch: name dc1.ad.mydomain.de#20 found.
get_dc_list: returning 1 ip addresses in an ordered list
get_dc_list: 192.168.1.10
create_local_private_krb5_conf_for_domain: wrote file /var/run/samba-lock/smb_krb5/krb5.conf._JOIN_ with realm AD.mydomain.DE KDC list:
		kdc = 192.168.1.10

sitename_fetch: Returning sitename for realm 'AD.mydomain.DE': "Default-First-Site-Name"
namecache_fetch: name dc1.ad.mydomain.de#20 found.
Connecting to 192.168.1.10 at port 445
socket options: SO_KEEPALIVE=0, SO_REUSEADDR=0, SO_BROADCAST=0, TCP_NODELAY=1, TCP_KEEPCNT=9, TCP_KEEPIDLE=7200, TCP_KEEPINTVL=75, IPTOS_LOWDELAY=0, IPTOS_THROUGHPUT=0, SO_REUSEPORT=0, SO_SNDBUF=87040, SO_RCVBUF=131072, SO_SNDLOWAT=1, SO_RCVLOWAT=1, SO_SNDTIMEO=0, SO_RCVTIMEO=0, TCP_QUICKACK=1, TCP_DEFER_ACCEPT=0, TCP_USER_TIMEOUT=0
cli_session_setup_spnego_send: Connect to dc1.ad.mydomain.de as smbadmin@AD.mydomain.DE using SPNEGO
GENSEC backend 'gssapi_spnego' registered
GENSEC backend 'gssapi_krb5' registered
GENSEC backend 'gssapi_krb5_sasl' registered
GENSEC backend 'spnego' registered
GENSEC backend 'schannel' registered
GENSEC backend 'ncalrpc_as_system' registered
GENSEC backend 'sasl-EXTERNAL' registered
GENSEC backend 'ntlmssp' registered
GENSEC backend 'ntlmssp_resume_ccache' registered
GENSEC backend 'http_basic' registered
GENSEC backend 'http_ntlm' registered
GENSEC backend 'http_negotiate' registered
Starting GENSEC mechanism spnego
Starting GENSEC submechanism gse_krb5
signed SMB2 message (sign_algo_id=2)
signed SMB2 message (sign_algo_id=2)
Bind RPC Pipe: host dc1.ad.mydomain.de auth_type 0, auth_level 1
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 52
check_bind_response: accepted!
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 32
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 236
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 32
signed SMB2 message (sign_algo_id=2)
saf_fetch: Returning "dc1.ad.mydomain.de" for "ad.mydomain.de" domain
get_dc_list: preferred server list: "dc1.ad.mydomain.de, *"
resolve_ads: Attempting to resolve KDCs for ad.mydomain.de using DNS
dns_rr_srv_fill_done: async DNS A lookup for dc1.ad.mydomain.de [0] got dc1.ad.mydomain.de -> 192.168.1.10
dns_rr_srv_fill_done: async DNS AAAA lookup for dc1.ad.mydomain.de returned 0 addresses.
sitename_fetch: Returning sitename for realm 'AD.mydomain.DE': "Default-First-Site-Name"
namecache_fetch: name dc1.ad.mydomain.de#20 found.
get_dc_list: returning 1 ip addresses in an ordered list
get_dc_list: 192.168.1.10
saf_fetch: Returning "dc1.ad.mydomain.de" for "ad.mydomain.de" domain
get_dc_list: preferred server list: "dc1.ad.mydomain.de, *"
resolve_ads: Attempting to resolve KDCs for ad.mydomain.de using DNS
dns_rr_srv_fill_done: async DNS A lookup for dc1.ad.mydomain.de [0] got dc1.ad.mydomain.de -> 192.168.1.10
dns_rr_srv_fill_done: async DNS AAAA lookup for dc1.ad.mydomain.de returned 0 addresses.
sitename_fetch: Returning sitename for realm 'AD.mydomain.DE': "Default-First-Site-Name"
namecache_fetch: name dc1.ad.mydomain.de#20 found.
get_dc_list: returning 1 ip addresses in an ordered list
get_dc_list: 192.168.1.10
create_local_private_krb5_conf_for_domain: wrote file /var/run/samba-lock/smb_krb5/krb5.conf.mydomain with realm AD.mydomain.DE KDC list:
		kdc = 192.168.1.10

sitename_fetch: Returning sitename for realm 'AD.mydomain.DE': "Default-First-Site-Name"
namecache_fetch: name dc1.ad.mydomain.de#20 found.
ads_try_connect: ads_try_connect: sending CLDAP request to 192.168.1.10 (realm: ad.mydomain.de)
Successfully contacted LDAP server 192.168.1.10
Connecting to 192.168.1.10 at port 389
Connected to LDAP server dc1.ad.mydomain.de
KDC time offset is 1 seconds
Found SASL mechanism GSS-SPNEGO
ads_sasl_spnego_bind: got OID=1.2.840.48018.1.2.2
ads_sasl_spnego_bind: got OID=1.2.840.113554.1.2.2
ads_sasl_spnego_bind: got OID=1.3.6.1.4.1.311.2.2.10
Starting GENSEC mechanism spnego
Starting GENSEC submechanism gse_krb5
ads_gen_add: AD LDAP: Adding cn=TNAS,CN=Computers,dc=AD,dc=mydomain,dc=DE
ads_print_error: AD LDAP ERROR: 50 (Insufficient access): acl: unable to get access to CN=TNAS,CN=Computers,DC=ad,DC=mydomain,DC=de

libnet_join_precreate_machine_acct: Failed to create machine account
libnet_DomainJoin: Failed to pre-create account in OU CN=Computers,dc=AD,dc=mydomain,dc=DE: Insufficient access
signed SMB2 message (sign_algo_id=2)
Bind RPC Pipe: host dc1.ad.mydomain.de auth_type 0, auth_level 1
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 52
check_bind_response: accepted!
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 32
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 32
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 40
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 32
rpc_api_pipe: host dc1.ad.mydomain.de
signed SMB2 message (sign_algo_id=2)
rpc_read_send: data_to_read: 32
signed SMB2 message (sign_algo_id=2)
signed SMB2 message (sign_algo_id=2)
libnet_Join:
    libnet_JoinCtx: struct libnet_JoinCtx
        out: struct libnet_JoinCtx
            odj_provision_data       : NULL
            account_name             : 'TNAS$'
            netbios_domain_name      : 'mydomain'
            dns_domain_name          : 'ad.mydomain.de'
            forest_name              : 'ad.mydomain.de'
            dn                       : NULL
            domain_guid              : 3c94e9a0-d8c1-46ed-bc42-7e1f402215ed
            domain_sid               : *
                domain_sid               : S-1-5-21-3826593470-3054354668-3598288492
            modified_config          : 0x00 (0)
            error_string             : 'User specified does not have administrator privileges'
            domain_is_ad             : 0x01 (1)
            set_encryption_types     : 0x00000000 (0)
            krb5_salt                : NULL
            dcinfo                   : *
                dcinfo: struct netr_DsRGetDCNameInfo
                    dc_unc                   : *
                        dc_unc                   : '\\dc1.ad.mydomain.de'
                    dc_address               : *
                        dc_address               : '\\192.168.1.10'
                    dc_address_type          : DS_ADDRESS_TYPE_INET (1)
                    domain_guid              : 3c94e9a0-d8c1-46ed-bc42-7e1f402215ed
                    domain_name              : *
                        domain_name              : 'ad.mydomain.de'
                    forest_name              : *
                        forest_name              : 'ad.mydomain.de'
                    dc_flags                 : 0xe00013fd (3758101501)
                           1: NBT_SERVER_PDC
                           1: NBT_SERVER_GC
                           1: NBT_SERVER_LDAP
                           1: NBT_SERVER_DS
                           1: NBT_SERVER_KDC
                           1: NBT_SERVER_TIMESERV
                           1: NBT_SERVER_CLOSEST
                           1: NBT_SERVER_WRITABLE
                           1: NBT_SERVER_GOOD_TIMESERV
                           0: NBT_SERVER_NDNC
                           0: NBT_SERVER_SELECT_SECRET_DOMAIN_6
                           1: NBT_SERVER_FULL_SECRET_DOMAIN_6
                           0: NBT_SERVER_ADS_WEB_SERVICE
                           0: NBT_SERVER_DS_8
                           0: NBT_SERVER_DS_9
                           0: NBT_SERVER_DS_10
                           1: NBT_SERVER_HAS_DNS_NAME
                           1: NBT_SERVER_IS_DEFAULT_NC
                           1: NBT_SERVER_FOREST_ROOT
                    dc_site_name             : *
                        dc_site_name             : 'Default-First-Site-Name'
                    client_site_name         : *
                        client_site_name         : 'Default-First-Site-Name'
            account_rid              : 0x00000000 (0)
            result                   : WERR_ACCESS_DENIED
return code = -1
Freeing parametrics:

Pete · November 29, 2024, 4:15pm

As far as I know the object will be created with first connection.

Johnny_Fartpants · November 29, 2024, 5:51pm

Pete · December 2, 2024, 4:39pm

I started with a new setup of NethServer8 from the scratch.
Now it worked by the first try. I used the default user names and set for the user ‘admin’ (the user which is used for login) and for the domain admin user ‘administrator’ the same password. Don’t know if it’s the reason, but I could connect TrueNAS to NS8 now.

Thanks everbody for your help to figure this one out.
Pete
