Encrypted dataset under unencrypted pool (or root dataset)

TrueNAS General
1

Hello,

I have two TrueNAS systems: one main (TrueNAS Core 13.0-U6.2) and a backup (TrueNAS Core 13.0-U6.7).

I have a replications tasks on the backup system to get the data from the main to the backup system.
The root dataset on the main system is encrypted and I have the encryption key. On the backup system, the root dataset is not encrypted.
On the replication task, I have the option “Include Dataset Properties” set. On the destination side, the “Encryption” check box is not set.

When I run the replication task I then get my dataset on the backup system. This dataset is encrypted as expected (with the “Include dataset properties” option), under a root dataset that is not encrypted.

So far so good. :slight_smile: That is exactly what I expect and want.

Then I thought, I’d unlock the dataset, so I use the key from the main system and unlock it and I can see the data. Perfect.

Now I restart the system and I still see the dataset unlocked and I can’t lock it.
I would have expect to see it locked and having to provide the key to unlock it again. Instead, it is unlocked and it seems that I can’t lock it.

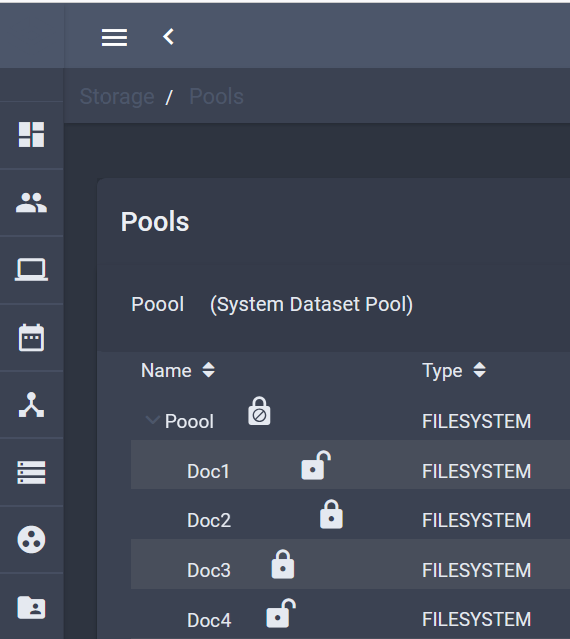

As you can see on the picture:

image570×639 25.4 KB

The root dataset “Poool” is unecrypted.
The “Doc1” dataset is encrypted and unlocked.
The “Doc2” dataset is encrypted and locked, and so on.

For the unlocked dataset, I see the option to unlock it in the “Encryption actions” but for the unlocked one, I have “Encryption options” and “Export key” but no “Lock” option (or as I would have expected it to be in lock state at system restart).

When I select “Export key”, the key I get is the same as the one from the main system (makes sense).

But then, why can’t I lock the dataset? Any idea what I’m missing here?

Thanks.

2

This is how TrueNAS does it. If you’re not using a passphrase, it will save the keystring on the boot-pool. It automatically loads the key (unlocks) the dataset on every reboot. TrueNAS doesn’t allow you to lock datasets that are using a keystring.

It’s for legacy reasons. I don’t see why they can’t improve this today.

1 Like
3

Thanks for the feedback and the clarification.

I thought maybe I missed something, so that’s good to know.

I’ll take some time later to play with it to try to get a better understanding of it. :slight_smile:
