How to RSYNC from TrueNAS to a SMB Share using Module

Apps and Virtualization
1

Hi Forum, seems things are overcomplicated - at least for me - so i kindly ask for help.

GOAL: RSYNC Data from TrueNasFolder to a SMB Share

Using the module i can configure a SMB Share however i dont know how to configure it to PUSH data to it.

Any pointers are welcome

2

Did you check this doc out?

Push vs Pull are set in the direction field

3

but how do i specify the SMB Share as a Target Location?

4

If you’ve already configured an rsync module to the location you want to target, you just need to create a task to push to it:

5

its still not clear how to configure the module.

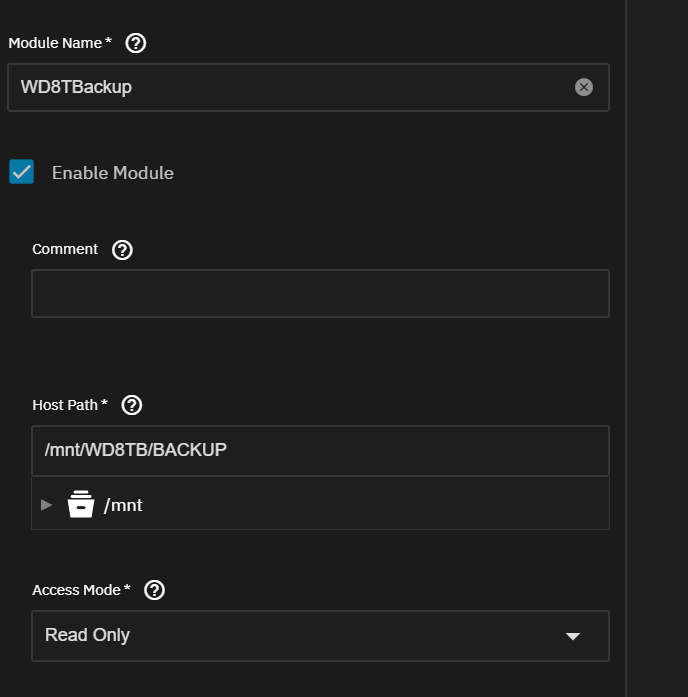

1.) Do i need to enable the module? as i would specify the same host path again as in the rsync task … which wouldnt make sense

image688×697 9.3 KB

Or can this remain be disabled as i only need the SMB Share?

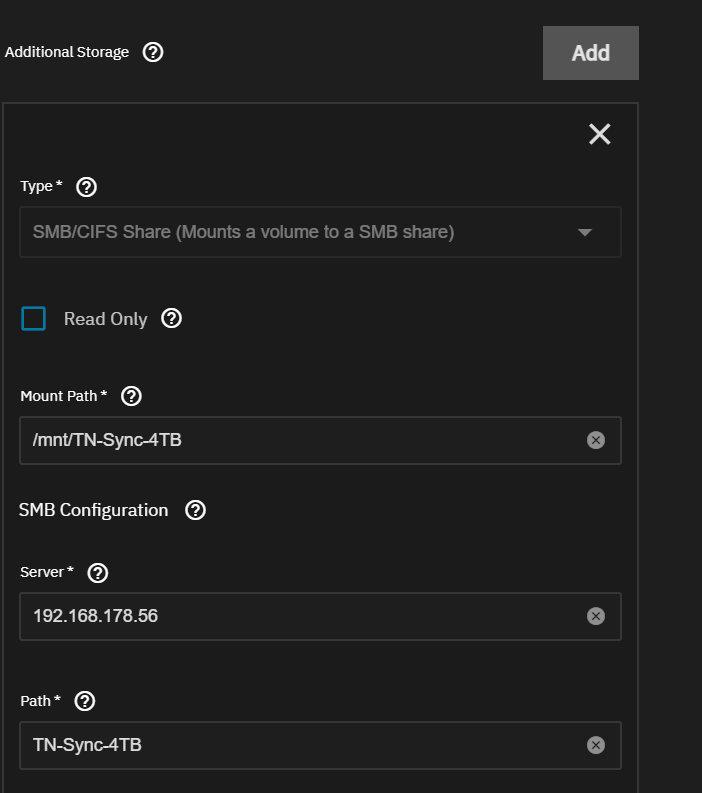

Which i configured as follows

image702×793 13.2 KB

edit: so i just got the error stating

At least one module must be configured and enabled

So in that case i guess the rsync module is not meant to push from local TrueNas to foreign SMB Client

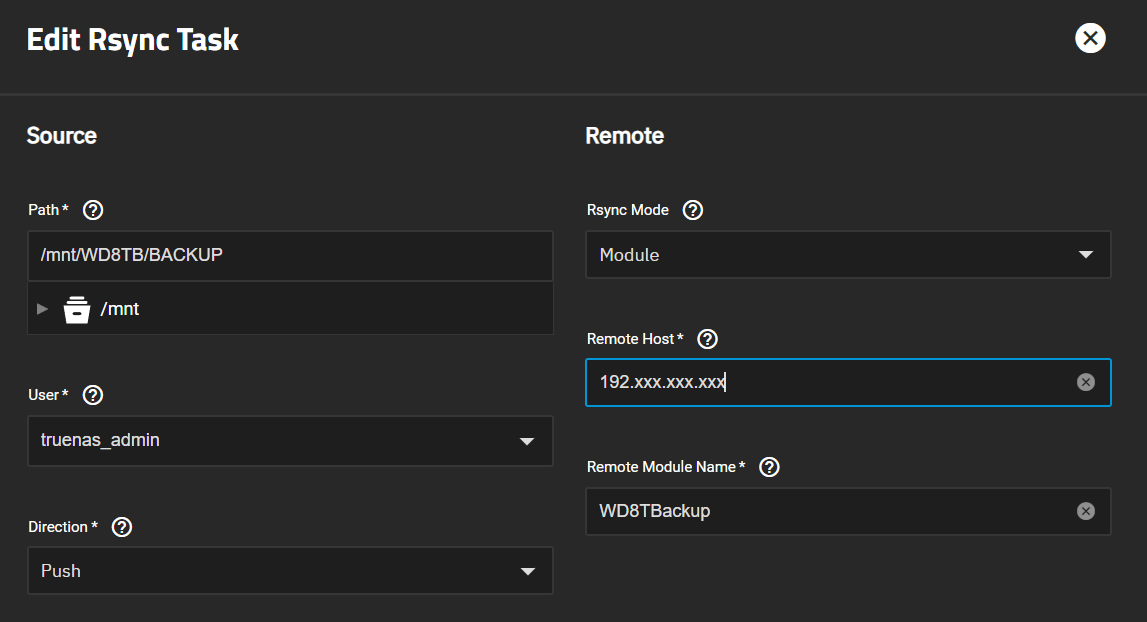

edit: so just for testing, i enabled the module and created a rsync task using the current TrueNas IP ( as remote )

image1147×622 23.9 KB

However, i will run into

rsync: [sender] failed to connect to 192.xxx.xxx.xxx (192.xxx.xxx.xxx): Connection refused (111)
rsync error: error in socket IO (code 10) at clientserver.c(139) [sender=3.2.7]

6

You would need to use Rsync to do a “local” transfer, which is not supported in TrueNAS, unless you do it manually with the command-line.

There was a feature request for this, I think.

1 Like
7

i raised that FR in Rsync Task should allow local 2 local synchronisation ( Local Destination Target ) - Feature Requests - TrueNAS Community Forums

But your comment gave me the correct idea. I’ve mounted the SAMBA Share via CLI and will do rsync test

truenas_admin@truenas[~]$sudo mount -t cifs -o username=‘user’,password=‘password’,domain=WORKGROUP //192.168.178.56/TN-Sync-4TB /mnt/smb

truenas_admin@truenas[~]$ sudo rsync -rh /mnt/WD8TB/BACKUP /mnt/smb --ignore-existing --delete --info=progress2
227.10M 1% 1.05GB/s 0:00:00 (xfr#1, ir-chk=1058/1082)

8

another observation that i am running with hgih CPU Utilisation. Any idea how to relax CPU … it seems the whole systme locks up

9

I couldn’t figure out how to configure Rsync Task to rsync between 2 datasets on same NAS or NAS → SMB share. I don’t think it’s supported via Rsync Tasks.

What I do is I run a cronjob that basically invokes rsync command.

1 Like
10

@bugacha doing the same manually on CLI. Can you please show me how to create a cron for this.

Also do you use any specific Flags for SMB?

11

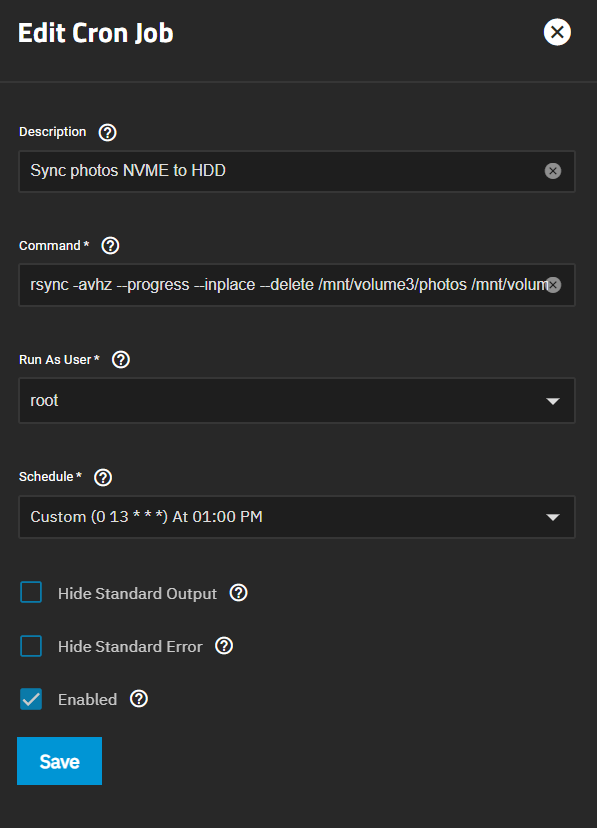

this is a job for local dataset sync

rsync -avhz --progress --inplace --delete /mnt/volume3/photos /mnt/volume1/

image597×828 17.2 KB

for SMB remote, I usually mount via something file this :

//nas3/photos /mnt/photos cifs credentials=/etc/smbcredentials,vers=3.0,_netdev,soft,nofail,noatime,actimeo=1800 0 0

1 Like
12

great thanks. i’ll give this a try. the issue with my CPU Load seems to be related to SMB Oplocks which is disabeld on the target and now it doesnt lock up nor consume lots of CPU

13

@bugacha can i somehow monitor the rsync process when using cron?

14

you can output stdout into a log file and tail it
