Plex container traffic on a dedicated network interface?

[dxun]

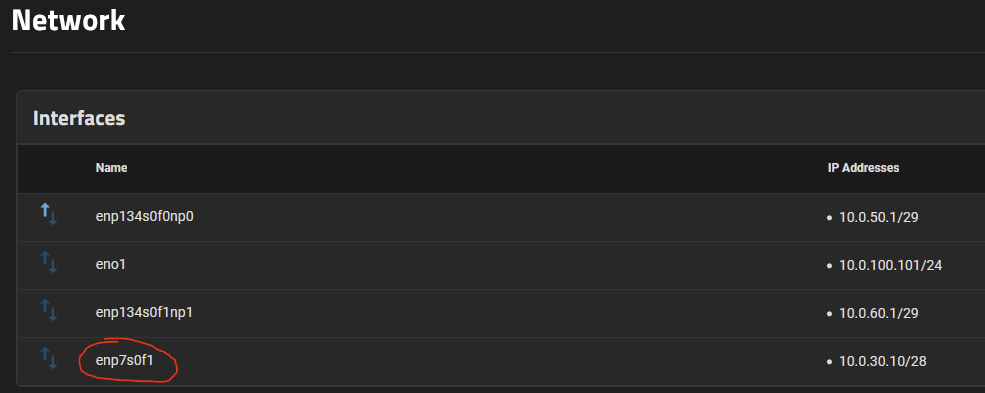

I’m trying to have container/apps traffic through a specific, single network interface. Here is my network interface configuration - the interface I would like to route the traffic through is the one marked with red.

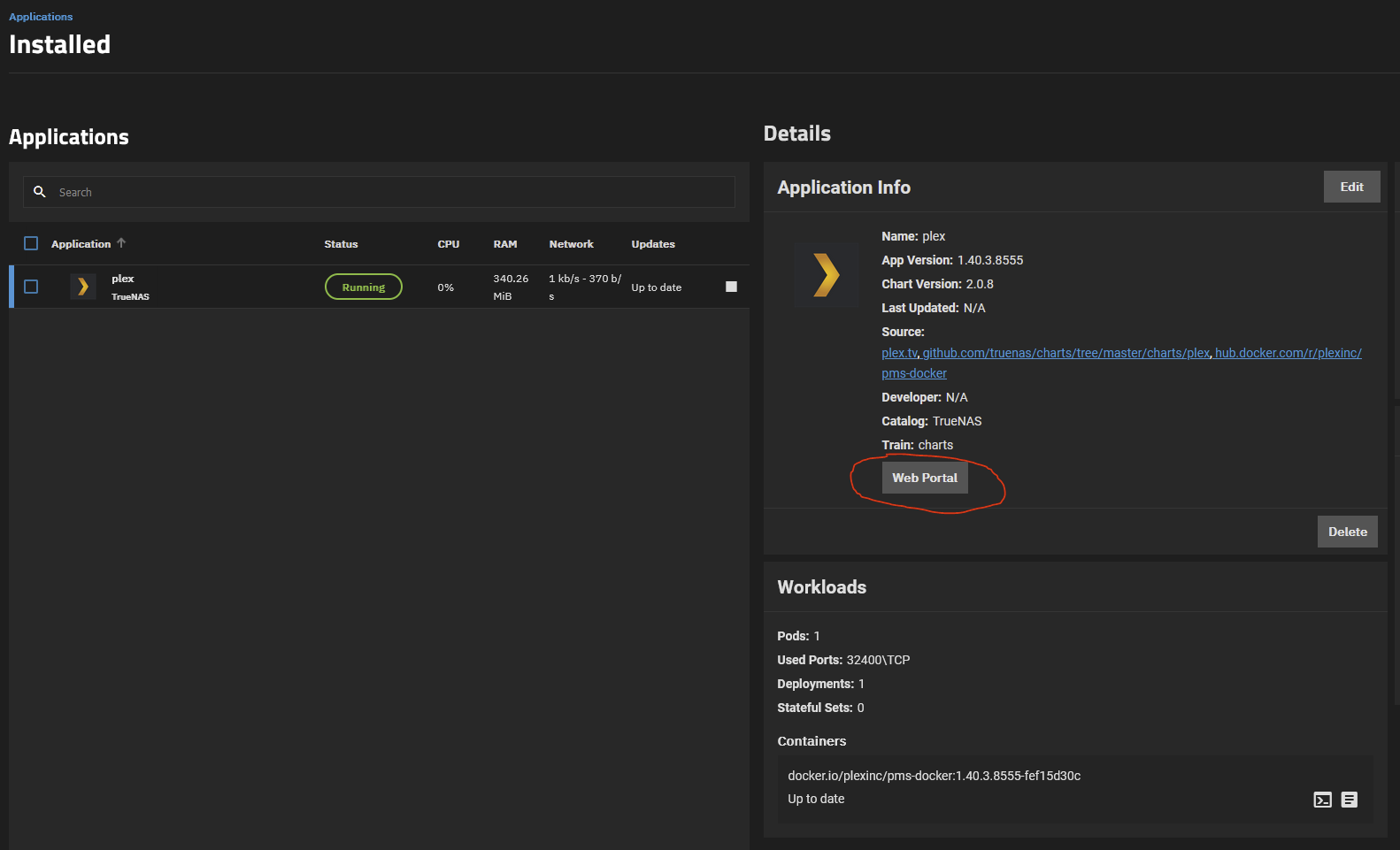

Here is my App network configuration - I expected the Route v4 interface to do this.

However, my Plex web-portal happens to open on 10.0.50.1:32400 which is not the interface/subnet (10.0.30.10:32400) I’d like the traffic to go through.

I’ve looked into enabling and configuring metallb dedicated K8s load balancer but that I can’t seem to find this in the App Catalog even after adding the Enterprise train.

Any suggestions how to best do this? I remember I was able to do this on Core via jail network config but I’d rather not go back to jails and sandboxes, if at all possible.

[dxun]

After some investigation, it turns out this actually behaves exactly as I would expect - the traffic is indeed routed through the chosen interface.

The mystery is still why did Plex App choose the 10.0.50.1 interface as its web portal…and how I could change this. I’ll keep looking.
