Pool size didn´t increase after HDD upgrade

TrueNAS General
1

I have a small NAS for Documents sharing running Dragonfish-24.04.2.2 on a Supermicro X9 with Intel(R) Xeon(R) CPU E3-1230 V2 @ 3.30GHz and 16G RAM.

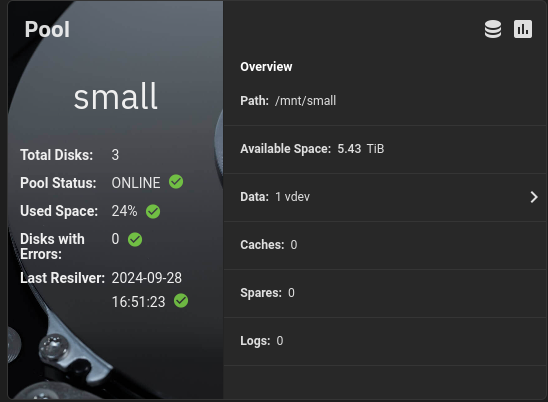

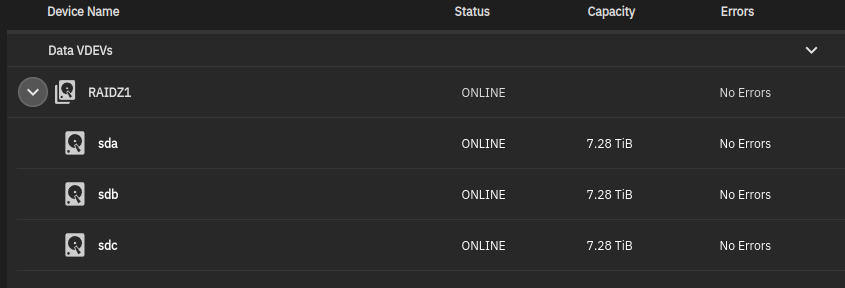

Initially built a 3x4TB Raidz1. Today off lined one by one and replaced them all, but the available space still unchanged.


image845×288 14.6 KB

Any ideas appreciated.

2

The output of lsblk in the shell will show if this is, again, the SCALE bug with partitions.

1 Like
3

I’m more a core kind of guy. Trying Scale to see if worth the move …

sda        8:0    0   7.3T  0 disk
└─sda1     8:1    0   3.6T  0 part
sdb        8:16   0   7.3T  0 disk
└─sdb1     8:17   0   3.6T  0 part
sdc        8:32   0   7.3T  0 disk
└─sdc1     8:33   0   3.6T  0 part
sdd        8:48   0 111.8G  0 disk
├─sdd1     8:49   0     1M  0 part
├─sdd2     8:50   0   512M  0 part
├─sdd3     8:51   0  95.3G  0 part
└─sdd4     8:52   0    16G  0 part
  └─sdd4 253:0    0    16G  0 crypt
sr0       11:0    1  1024M  0 rom

Interesting … so kill the pool and recreate? Can gparted be used to increase the partition? Starting rsync by the way :innocent:

4

Ouch. It partitioned 3.6 TiB out of your 7.3 TiB (“8 TB”) drives.

5

Scale kept the original partitions, as the original disks were 4TB. After finish my rsync, I’ll run gparted to increase the partitions and see if I can shot my foot or fix the problem. Any ways, IX should look into this, as I never had any issues with doing it with Core.

6

Yes, they should. They’ve had multiple bugs filed and said it’s fixed. I don’t know why they can’t get this right all of a sudden. Please file another.

Once you have, the command to fix the partition sizing would be, IIRC, parted /dev/sda 1 100%.

3 Likes
7

Will open another one.

Will try after my rsync finishes. So glad I upgraded all to sfp+ @ home …

@winnielinnie and @dan Thanks for your replies!

8

You can do it online; it won’t interrupt other tasks.

9

I know, just being myself and wanted to safeguard the data :slight_smile:

10

To do that with parted 3+:

  1. select the disk by running parted /dev/sdX, where X is your disk.
    i.e:
parted /dev/sda

You should see:

GNU Parted 3.5
Using /dev/sda
Welcome to GNU Parted! Type 'help' to view a list of commands.´'
  1. List the partition
(parted) print

The output in my case:

Disk /dev/sda: 8002GB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system  Name  Flags
 1      2097kB  4001GB  4001GB  zfs

My drive is a 8TB, so its using half of that.

  1. List the free space:
(parted) print free
Model: ATA WDC WD80EFPX-68C (scsi)
Disk /dev/sda: 8002GB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system  Name  Flags
        17.4kB  2097kB  2080kB  Free Space
 1      2097kB  4001GB  4001GB  zfs
        4001GB  8002GB  4001GB  Free Space

In this case shows 4TB free after the ZFS partition.

  1. To expand it:
(parted) resizepart 1 8002GB

Note that no output will be provided by parted, so I confirmed with:

(parted) print free
Model: ATA WDC WD80EFPX-68C (scsi)
Disk /dev/sda: 8002GB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system  Name  Flags
        17.4kB  2097kB  2080kB  Free Space
 1      2097kB  8002GB  8002GB  zfs
  1. Repeat for all impacted drive

Disclaims:
(1) Save your data first
(2) Use at your own risk

1 Like
11

File the bug.

Not sure how this can possibly still be an issue, but apparently it is.

1 Like
12

I did file.

2 Likes
