Hey Networking experts,
I am running TrueNas Scale 24.10 in a dell T20 and want to make some of the apps I have running on IT available remotely. Ihave Limited experience with Linux, TrueNas Scale and CLI. I prefer GUI based interfaces.
I allready Setup a VPN for a connection to the apps. Now i want to Change that and make some App (i.e. NextCloud) available through my Domain.
I have allready Setup the NGINX Proxy Manager App as a Reverse Proxy. I now have Access to NextCloud through https://NextCloud.mydomain.tld. The ssl certificates are from lets encrytp via nginx.
I know want to add 2FA with SSO for all apps. I First tried Authelia but couldn’t get the configuration right…mainly because of my lacking CLI skills.
I then switched to the Authentik App. Setting Up Authentik worked after initial struggles. Now I have Setup an a Provider (Proxy-Provider, …implicit-consent, Forward auth (single application), external host: https://nextcloud.mydomain.tld)), Application and added the Application to the Outpost.

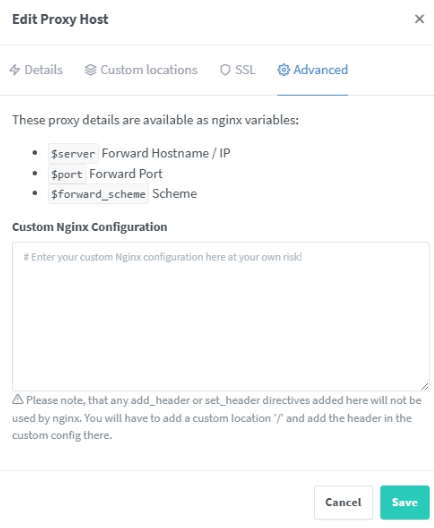

As shown in most tutorials I found I added the custom configuration in NGINX for my NextCloud Reverse Proxy (see below) as well as a new Reverse Proxy for Authentik.
As you can see in the the config below I have set location /{ proxy_pass to my local ip with the port for nextcloudand my location /outpost.goauthentik.io { proxy_pass to my local ip of with the http port of Authentik.
From my local network I get the expected behaviour: If I access https://Nextcloud.mydomain.tld I get redirected to Authentik (local ip), can log in and can than log into Nextcloud (local ip). Obviously this does not work remotly because I can not access the IPs over the web (it works with a VPN). One strange thing: although I speciefied port 30140 for Authentik I am redirected to port 30141. I assume this has something to do with the SSL certification. If i set
proxy_pass https://mylocalip:30141/outpost.goauthentik.io;
it works as well. Now I want to access this remotly using
https://authentik.mydomain.tld/
https://nextcloud.mydomain.tld/
And here is when everything breaks. I can only get server error 500. From what I read it may hav to do with SSL/Https certification issues (both domains/links from NGINX work fine on their own) and/or header issues (which I really do not understand).
I think this is an issue someone with more experience can solve easily but I am really stuck. I tried multiple, different solutions I found online but none worked (maybe again because of my lacking knowledge/skill to implement these correctly). I also tried to completely disable ssl/https in NGINX (removing certificats and setting scheme as http) but this did not help.
# Increase buffer size for large headers
# This is needed only if you get 'upstream sent too big header while reading response
# header from upstream' error when trying to access an application protected by goauthentik
proxy_buffers 8 16k;
proxy_buffer_size 32k;
# Make sure not to redirect traffic to a port 4443
port_in_redirect off;
location / {
# Put your proxy_pass to your application here
proxy_pass http://mylocalip:30027/;
#proxy_pass https://nextcloud.mydomain.tld/;
# Set any other headers your application might need
# proxy_set_header Host $host;
# proxy_set_header ...
##############################
# authentik-specific config
##############################
auth_request /outpost.goauthentik.io/auth/nginx;
error_page 401 = @goauthentik_proxy_signin;
auth_request_set $auth_cookie $upstream_http_set_cookie;
add_header Set-Cookie $auth_cookie;
# translate headers from the outposts back to the actual upstream
auth_request_set $authentik_username $upstream_http_x_authentik_username;
auth_request_set $authentik_groups $upstream_http_x_authentik_groups;
auth_request_set $authentik_entitlements $upstream_http_x_authentik_entitlements;
auth_request_set $authentik_email $upstream_http_x_authentik_email;
auth_request_set $authentik_name $upstream_http_x_authentik_name;
auth_request_set $authentik_uid $upstream_http_x_authentik_uid;
proxy_set_header X-authentik-username $authentik_username;
proxy_set_header X-authentik-groups $authentik_groups;
proxy_set_header X-authentik-entitlements $authentik_entitlements;
proxy_set_header X-authentik-email $authentik_email;
proxy_set_header X-authentik-name $authentik_name;
proxy_set_header X-authentik-uid $authentik_uid;
# This section should be uncommented when the "Send HTTP Basic authentication" option
# is enabled in the proxy provider
# auth_request_set $authentik_auth $upstream_http_authorization;
# proxy_set_header Authorization $authentik_auth;
}
# all requests to /outpost.goauthentik.io must be accessible without authentication
location /outpost.goauthentik.io {
# When using the embedded outpost, use:
#proxy_pass https://authentik.mydomain.tld/outpost.goauthentik.io;
proxy_pass http://mylocalip:30140/outpost.goauthentik.io;
# For manual outpost deployments:
# proxy_pass http://outpost.company:9000;
# Note: ensure the Host header matches your external authentik URL:
proxy_set_header Host $host;
proxy_set_header X-Original-URL $scheme://$http_host$request_uri;
add_header Set-Cookie $auth_cookie;
auth_request_set $auth_cookie $upstream_http_set_cookie;
proxy_pass_request_body off;
proxy_set_header Content-Length "";
}
# Special location for when the /auth endpoint returns a 401,
# redirect to the /start URL which initiates SSO
location @goauthentik_proxy_signin {
internal;
add_header Set-Cookie $auth_cookie;
return 302 /outpost.goauthentik.io/start?rd=$scheme://$http_host$request_uri;
# For domain level, use the below error_page to redirect to your authentik server with the full redirect path
# return 302 https://authentik.company/outpost.goauthentik.io/start?rd=$scheme://$http_host$request_uri;
}
