TrueNAS SCALE deduplicated pool showing wrong capacity?

Hello, everyone.

I have a nicely deduplicated SSD pool at 2.6x dedupe.

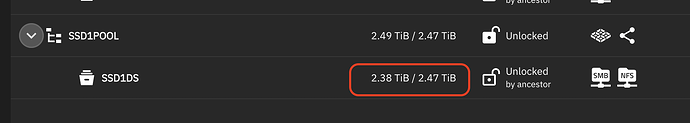

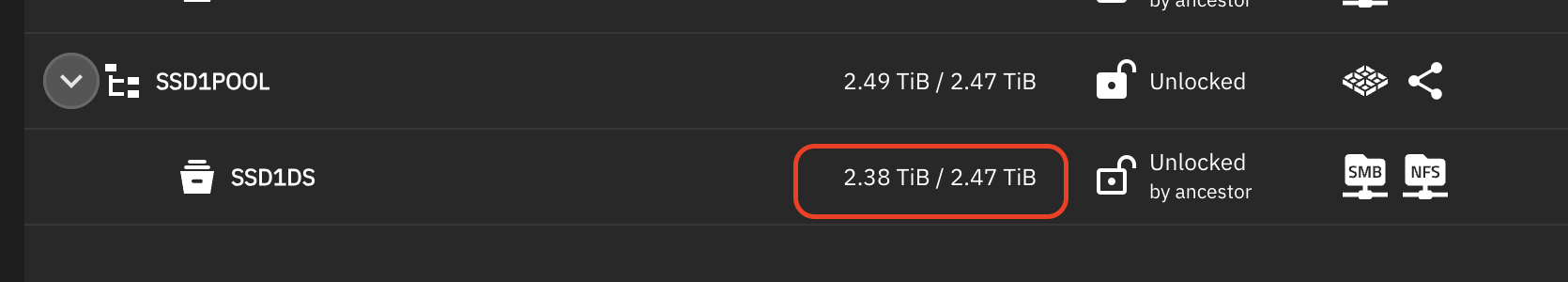

However, wherever I check the space consumed/available, I get the non-deduplicated value.
Whats the catch here?



Is this just wrong reporting? Does TrueNAS always report non-deduplicated consumption? What happens if the pool goes “full” in reported consumption but in reality is deduplicated many x times?

Anyone? Any ideas?

What does this report? You can’t go of what Windows reports.
zfs list -o space

Paste results back using preformatted text (</>) on toolbar

I recently stumbled across block cloning doing the same thing so wouldn’t be surprised at all if dedup is the same.

1 Like

The “space” command reports the same wrong value.

NAME                                                       AVAIL   USED  USEDSNAP  USEDDS  USEDREFRESERV  USEDCHILD
HDD1DS                                                     1.76T   348G        0B    294K             0B       348G
HDD1DS/HDD1                                                1.76T   348G        0B    348G             0B         0B
SSD1POOL                                                   2.50T  2.46T        0B    294K             0B      2.46T
SSD1POOL/.system                                           2.50T  2.20G        0B   1.47G             0B       755M
SSD1POOL/.system/configs-ae32c386e13840b2bf9c0083275e7941  2.50T  3.67M        0B   3.67M             0B         0B
SSD1POOL/.system/cores                                     1024M   281K        0B    281K             0B         0B
SSD1POOL/.system/netdata-ae32c386e13840b2bf9c0083275e7941  2.50T   749M        0B    749M             0B         0B
SSD1POOL/.system/nfs                                       2.50T   415K        0B    415K             0B         0B
SSD1POOL/.system/samba4                                    2.50T  1.21M        0B   1.21M             0B         0B
SSD1POOL/SSD1DS                                            2.50T  2.38T        0B   2.38T             0B         0B
SSD1POOL/ix-apps                                           2.50T   347M        0B    166K             0B       347M
SSD1POOL/ix-apps/app_configs                               2.50T   153K        0B    153K             0B         0B
SSD1POOL/ix-apps/app_mounts                                2.50T   153K        0B    153K             0B         0B
SSD1POOL/ix-apps/docker                                    2.50T  1.16M        0B   1.16M             0B         0B
SSD1POOL/ix-apps/truenas_catalog                           2.50T   345M        0B    345M             0B         0B

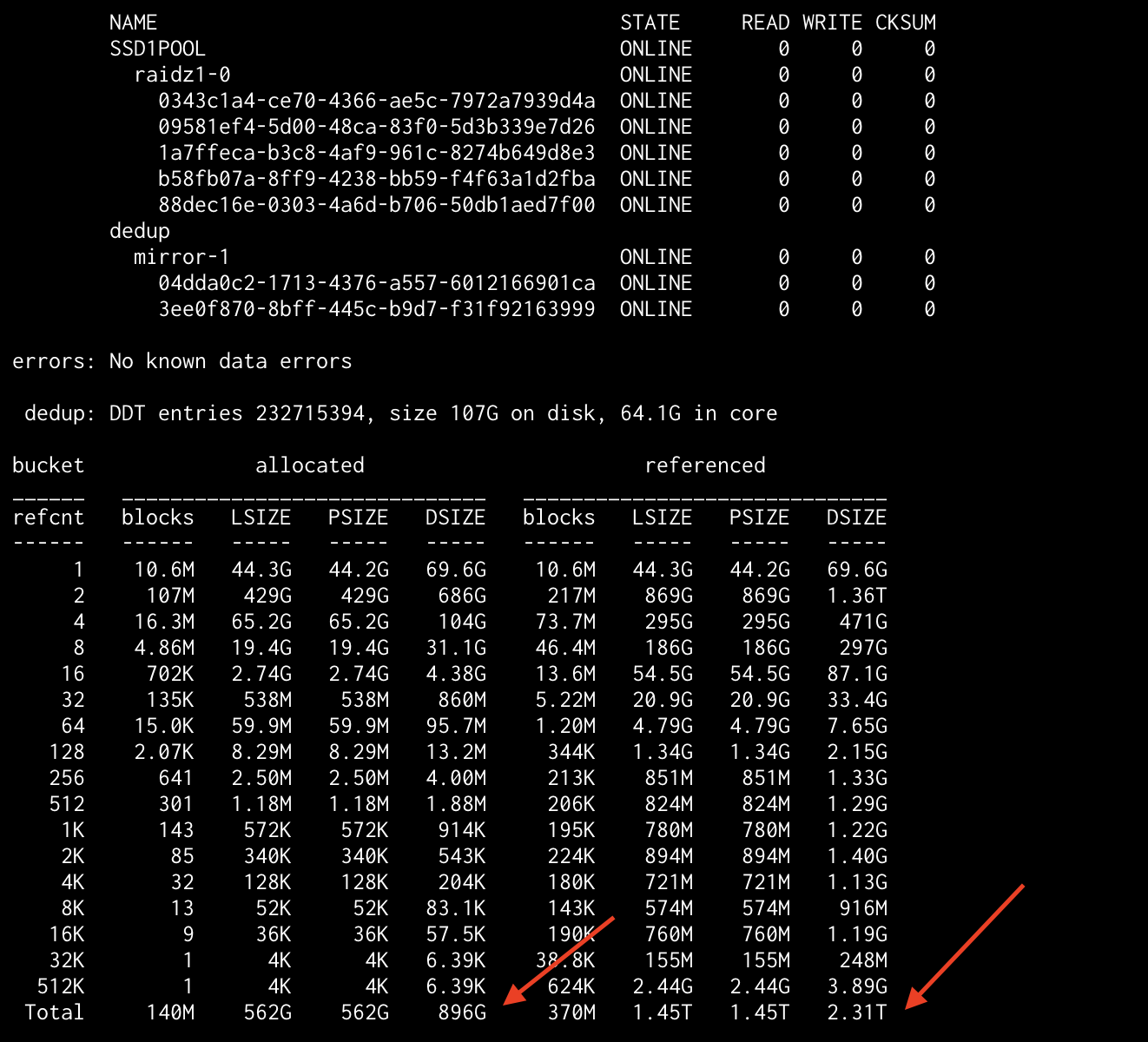

However the “zpool list” command show the deduplicated value.
Screenshot 2025-07-27 at 10.08.57

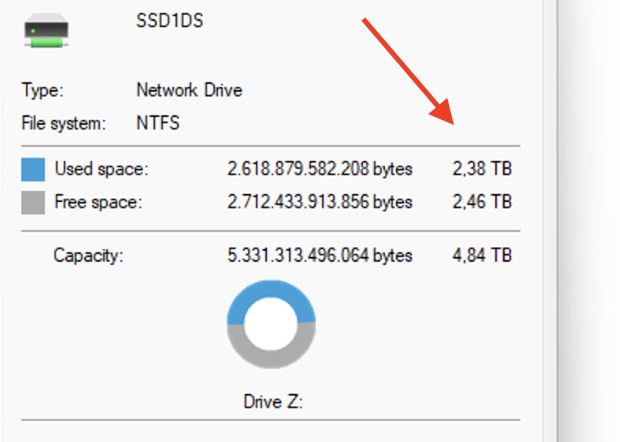

Please note its not only Windows. Mac shows the same wrong available space, so do NFS shares through Veeam…

Are we just looking at a space reporting bug here?

I think so. Bug might suggest it once worked but I’m not sure that’s true so could perhaps be a feature request if you have the time and energy. All I’d ask is if you do please include block cloning in the request also.

@Johnny_Fartpants

I can gladly assist. What would be the best avenue to take to report? Just straight from TruneNAS GUI or some other place?

No space reporting bug. I think you are give the full size intentionally. It makes more sense if you are moving or replicating data to know the full size.

I think the question is to figure out how to see the smaller size that the deduped data is taking up. I was hoping it would have been with the space command. I’m not sure how to pull it up as Dedupe has always been more of an Enterprise feature.

@HoneyBadger Can you or someone else explain how to figure this out?

I’d suggest via the forums under the Feature Request category as that allows users to up vote and hopefully build traction for the change.

1 Like

I see your point but that’s not currently how compression works. The post compressed values are currently reported in the UI.

Compression is not de duplication though. The space savings only exists while all copies of the data is the same on the pool with deduplication on. Back that pool up to a pool without dedup and it takes up the full space.

Agreed but also backup your data with compression to a different system without compression be it ZFS or not and you don’t have compression anymore.

The UI should probably report both values RAW and data reduction be it compression, dedup or block clone.

Most storage appliances crow about the space savings they’ve given to you. TrueNAS seems to be more modest :grin:

1 Like

My question here is if the non-dedupilicated available value is expressed to clients on purpuse, how do clinets know they could go past 100% usage?
If not it completely defeats the purpouse of deduplication.

In all dedupe appliances I’ve seen (StoreOnce for example), space values are represented, for example 20TB pool / 15TB used / 17TB available, implying deduplication. So this seems buggy to me.

We’re working on changes to the space accounting and reporting. Part of the challenge is being able to do this in a lightweight way - especially when dedup and bclone are involved, because we don’t want to have to walk metadata or tables every time the page is loaded.

I don’t know if there’s a “feature request” post on this yet, but creating one with these examples would be a good idea. :slight_smile:

2 Likes

Thanks, i was hoping for @HoneyBadger to sanity check the findings before I went “feature request”.

I will write up the request and post findings tomorrow.

Is this changes to the CLI and OpenZFS or it this just TrueNAS GUI on space accounting and reporting?
I would expect ZFS would have accurate reporting related to space and dedup since that is a stable feature that has been around a while.

I can’t imaging everyone not voting for accurate reporting for space. Does this even need a FR? Maybe TrueNAS the company should create Feature Request posts on items being worked on or for the future, make company comments and then lock it as upcoming or being worked on.

That’s actually very easy to imagine: We’re out of votes because the few we have are held forever on old FR which have not been reviewed and decided upon. Tactical de-voting only goes so far, and it’s hard to fight the feeling that this exercise is going nowhere…
