TrueNAS Web UI not loading with Nginx Proxy Manager

Apps and Virtualization
1

Hi there. I got TrueNAS Scale and Nginx Proxy Manager running because I want to use subdomains with ssl cert for all my coming home services.

My setup is like this:

  • TrueNAS WebUI running on ports http 180 and https 1443
  • Nginx Proxy Manager running on ports http 80, https 443 and webui 81

truenas3
truenas3932Ă—540 40 KB

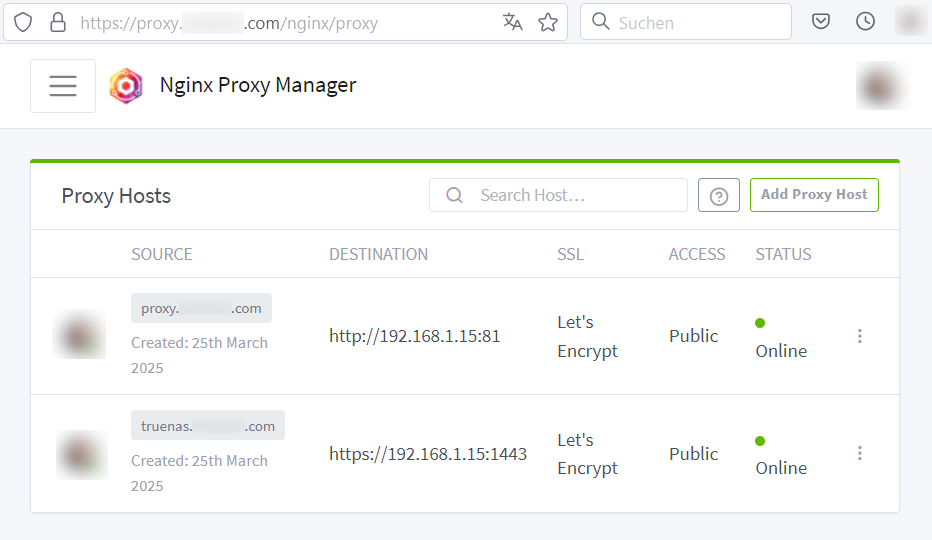

As you can see I have proxy.mydomain.com for Nginx webui and truenas.mydomain.com for TrueNAS. The Proxy manager webui loads fine when I use the proxy address.

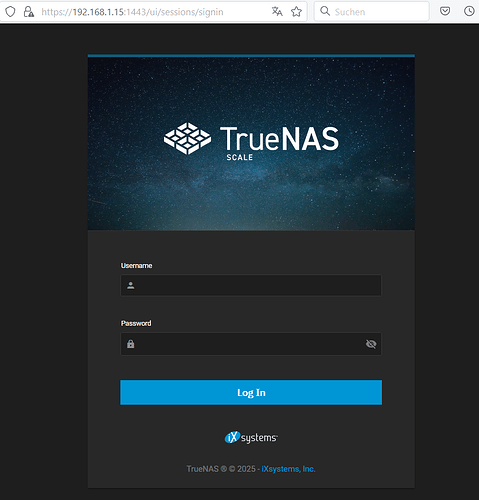

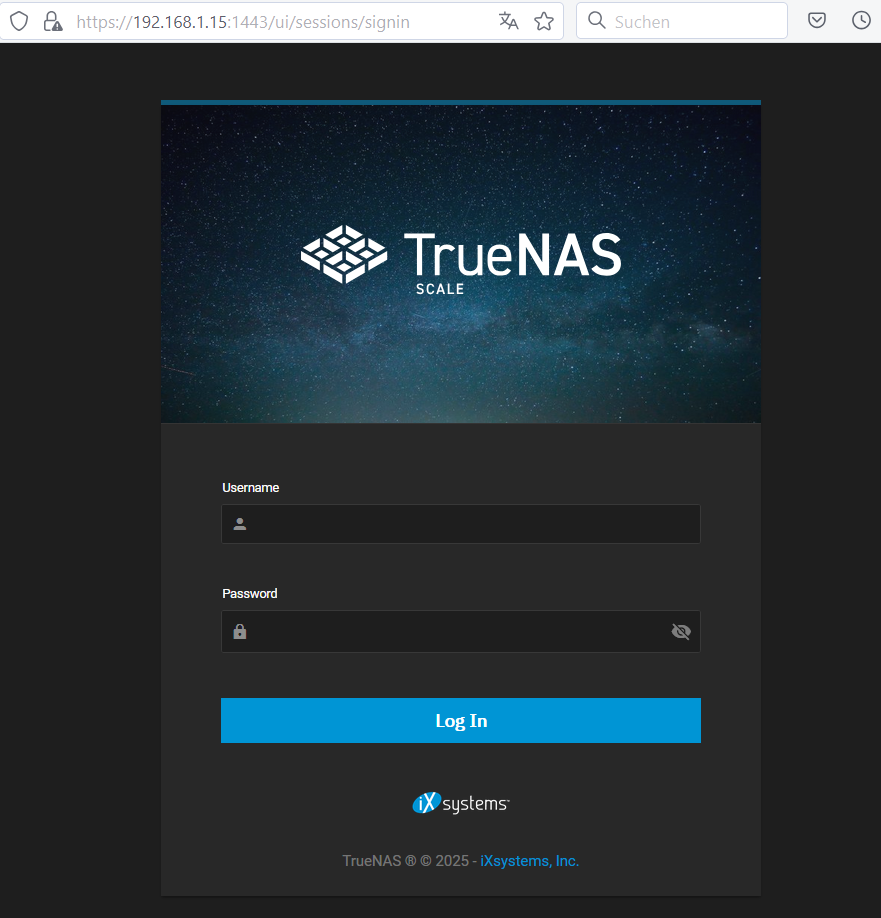

The weird thing is, that TrueNAS webui only loads when I use the ip

truenas1
truenas1881Ă—918 308 KB

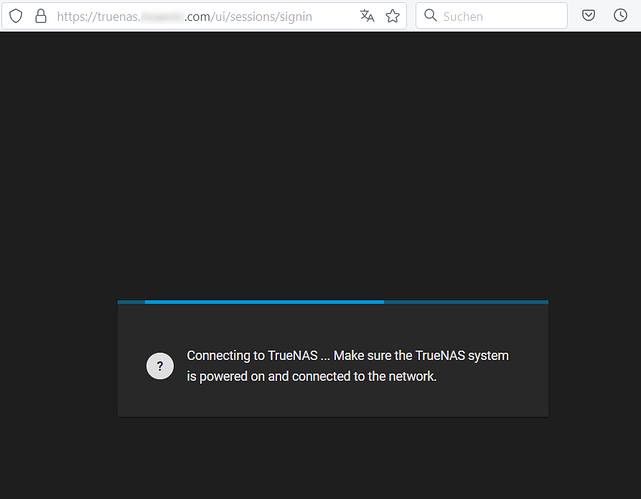

When I use the proxy address it “pretends” to be loading but it never finishes

truenas2
truenas2893Ă—696 14.8 KB

If the webui would throw an http error like 502 I could change my proxy config but I got no idea what kind of error this endless loading screen could be.

Do you have any ideas?

2

Did you turn on the switch for websockets?

1 Like
3

Wow lol that did the trick. I didn’t know the webui was using web sockets

4

The API does, and the UI talks to the API, so it was a good guess.
