Hello,
I have a virtualized TrueNAS on proxmox. The pool consists of 5 disks which are in good state. But today the disk containing the cache drive crashed. So now the pool shows offline in the frontend, but is not discoverable by zpool status. Any chance I can get the data back by somehow removing the cache drive in the TrueNAS config?
Thank you!
How do you have TrueNAS set up on Proxmox? You have to pass through the entire controller and, maybe, blacklist it in Proxmox.
Please post details of your entire setup. We can only go off what is posted. You can expand the âDetailsâ section under my posts to get an idea of info. Details on how TrueNAS is setup in Proxmox is important.
Thanks for your reply.

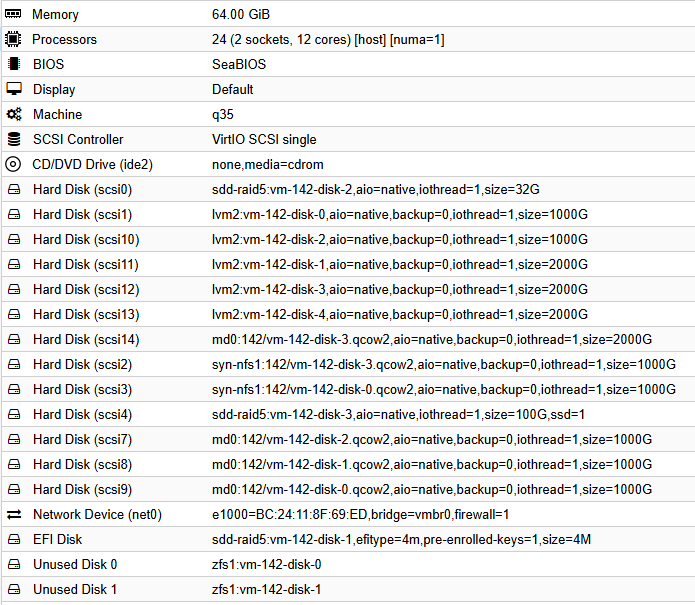

I have not passed through the controller. This is my proxmox config for the VM:
64 GB RAM
24 cores
SeaBios
q35
VirtIO SCSI Single Controller
scsi0: (boot disk) 32gb ssd
scsi1âŚ7: lvm2:âŚaio=native,backup=0,iothread=1,size=1000G
Unused Disk 0: zfs1:vm-142-disk-0
Unused Disk 1: zfs1: vm-142-disk-1

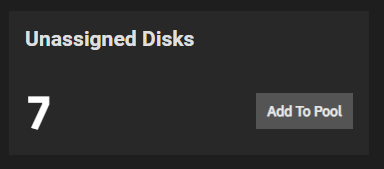

You see the last two disks (cache disks) were on the faulty proxmox ZFS. I am trying to get a new drive tomorrow to hopefully restore it. But if this is not possible, is there a way to let TrueNAS simply forget about the cache drives and get hold of the pool again? Currently it is showing me 7 available drives, on which the pool has been.
Oh boyâŚ
See what a sudo zpool import shows, post the result.
What do you mean by âcache diskâ? L2ARC, SLOG or Special VDEVs? L2ARC and SLOG are not required for a pool and can be removed. I am guessing you had set up an sVDEV or a mirror of them to the pool.
Special VDEV (sVDEV) Planning, Sizing, and Considerations
ZFS Primer describes L2ARC and SLOG
yes it was a Special VDEV. I replaced the drive now but I fear I am unable to restore the RAID from MegaRAID storage manager / Supermicro. So the only way would be to make TrueNAS forget about the Special VDEV or intoduce new ones as a replacement, if possible
it does not show the pool zfs1 as possibility. Even with -F -f -n no outputâŚ
Thatâs a lot of extra flags I didnât mention. Hopefully you didnât add your pool name as well. F can be destructive without the n.
nah luckily it is still there and I never ran -F without -n

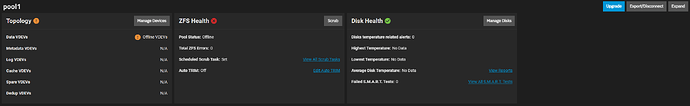

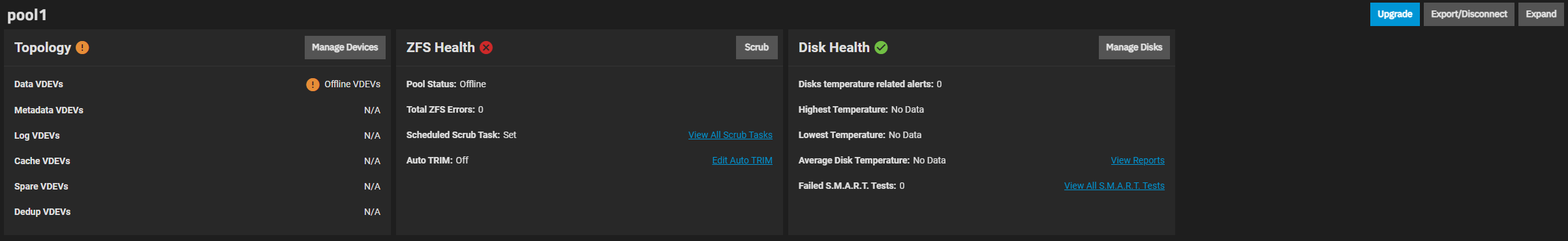

Maybe I meanwhile confused the zfs1 on proxmox and the pool1 on TrueNAS. The pool on TrueNAS shows the following currently:
If I am reading the output of your zpool import, you have a 6 disk RAID-Z1 vDev AND a single disk stripe that is UNAVAIL.
This is BAD.
Without that single disk, youâve lost your pool. Find it if you can, and restore it to your server.
To be clear, I could be wrong about the indenting of that last disk. Which would change your pool to a 7 disk RAID-Z1.
Further, other things are potentially just as bad:
TrueNAS and ZFS are not perfect. They were not intended to work with every possible combination of hardware, or in the case of ZFS, every combination of software.
Originally, ZFS was built for Enterprise Data Center hardware and software. The fact that it works for home users and small businesses is great. Just that ZFS is not perfect for all uses.
I will happily be corrected but, if thatâs indeed your only Special device then your pool has gone the way of the dodo, basically youâre SOL. Edit: Equally bad if itâs a single device VDEV striped as @Arwen suggestsâŚ
If you can somehow manage to make it available again you can salvage this. So check for reasons for the fault. Ideally you find something else causing the drive to be unavailable (that you can fix) instead of the actual drive being at fault.
OK I see what yo uare saying, the risk of being f***** is high. But please, 2 szenarios:
Szenario 1:
I am sure I had exported the pool1 some time ago. How would I import it again if possible?
Szenario 2:
I took a snapshot of the pool1 some time ago to migrate it to a bigger pool. But it seems cumbersome to find where to import a snapshot into the new pool. Could this be a possibility?
Thank you
If you lost the pool due to losing the Special VDEVs, you lost the snapshots to that pool unless they were stored in a separate pool entirely.
If the pool was currently exported, we should have seen it with the zpool import command.
Really, I think the pool and data is lost at this point.
Indeed, the only way to recover from this is if you magically manage to fix your faulted/UNAVAIL device.
Snapshots are for âooops, I deleted a file I shouldnât haveâ moments, not âuh oh, the pool has failedâ disasters, thatâs where backups save the day.
I think you are fundamentally misunderstanding some things here. Neither export nor snapshot is a backup. Snapshots arenât backups and are still part of the pool and if your pool is unreadable, so are the snapshots.
Snapshots are just a convenient lightweight way to âfreezeâ a portion of your pool in time so that any mutations done to it are done so relative to that point in time to make them space-efficient. They are not magic backups that defy space requirements.
ZFS does everything online. If the pool is exported as shown in your screen capture, then you have to âfixâ it so that it can be imported, (and made online). Otherwise, itâs potentially data recovery service time.
As others have said, if your snapshot is inside âpool1â, then it is worthless for recovery to import âpool1â.
If, on the other hand, you have used ZFS replication to send that âpool1â snapshot to a different, âbigger poolâ, then that is one way forward. Your âbigger poolâ has a backup.
Today, there is usable RAID-Zx expansion that does what people thought should be available. Itâs not perfect, free space calculations are not perfect after adding a disk.
My point is, while ZFS is used by MANY people, either with TrueNAS, Proxmox or others, it still requires planning and some knowledge if not using a plain vanilla configuration all from the GUI. (Even then, it is always helpful to know somethings about ZFSâŚ)
