I am expanding a RAIDZ2 pool from 4 to 5 disks on TrueNAS 24.10.0.2.
The expansion speed was ~55 M/s but I got it to ~110 M/s by increasing the raidz_expand_max_copy_bytes parameter:
admin@truenas ~ $ cat /sys/module/zfs/parameters/raidz_expand_max_copy_bytes
167772160
admin@truenas ~ $ echo $((10 * 167772160)) | sudo tee /sys/module/zfs/parameters/raidz_expand_max_copy_bytes
1677721600
/*
* Maximum amount of copy io's outstanding at once.
*/
static unsigned long raidz_expand_max_copy_bytes = 10 * SPA_MAXBLOCKSIZE;
Effectively 10 * 16MiB → 100 * 16MiB.
I’d be interested if you see the same gain just by doubling.
This is how it should be: Optimize RAIDZ expansion by amotin · Pull Request #16819 · openzfs/zfs · GitHub .
@mav do you know if this will be in Fangtooth? Or even earlier?
It will probably depend on OpenZFS… we prefer to use a standard version if possible.
I notice its been pushed to master now
Hello. So the value I have currently is:
root@truenas[~]# cat /sys/module/zfs/parameters/raidz_expand_max_copy_bytes
167772160 - which is the same as OP, 160MB.
OP increased it to 1,6 gigs and claims process got faster.
Can it be done mid-expansion?
If not, can the expansion be paused, the setting adjusted and applied, and expansion then resumed with the new increased parameter size?
It was explained to me thus:
It’s not exactly that ZFS polls for config updates, its more that you’re directly adjusting one of its tunable settings by poking the kernel module.
(/sys is a magical and auto-generated interface to system stuff pretending to be files and folders.)
So the zfs kernel parameters can be adjusted on the fly without interrupting the expansion process. It took a minute or two to see any changes and then disk speeds increased noticeably with the 1,6GB cache.
Now the process should be complete tomorrow instead of next Monday.
It did work for about 5 hours but then the expansion slowed down to the original speed. I tried *16 instead of *10, faster a few seconds then back to slow. As I have 256GB of RAM lets try *384 and it did work. The datasets in the vdev are media files, some with large video files, some with a lot of small images. Can it explain the speed drop?

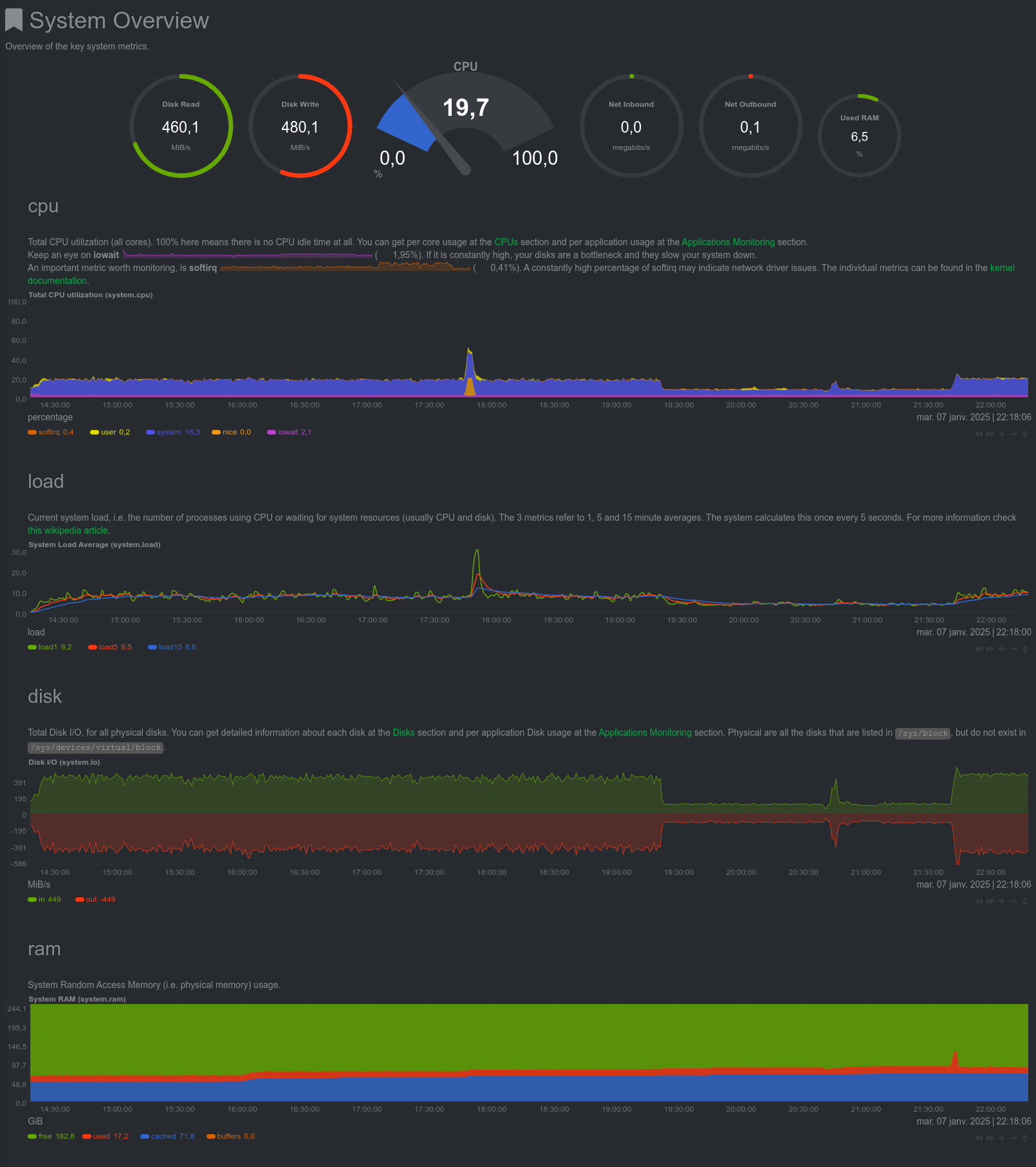

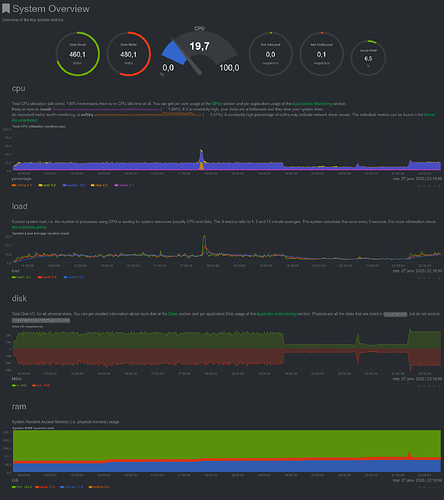

Screenshot of netdata:
So I thought this didn’t do anything, put it in place mid-expansion (with 3 drives queued up after it).
That mid-expansion drive finished…and holy cow it’s blowing through the other 3.
expand: expansion of raidz2-0 in progress since Mon Jan 6 17:17:07 2025
40.2T / 50.6T copied at 510M/s, 79.49% done, 05:55:37 to go
It’s nearly done 3 8TB drives in less time than it was taking to do 1.
