VM will not save with GPU selected. Please Help

dj-nic · July 28, 2024, 5:59pm

Hello everyone, since I couldn’t find a Topic mentioning this issue I create a new one here.
Like the Titels says I have a problem when adding my GPU (GTX 1050 TI) from the “Edit VM” sidebar and pressing the Save button, it won’t save properly or just infinitely shows the Top blue loading animation forever.
I also tried to add the GPU trough the Devices section what also won’t work.
Same thing for trying to create a fresh new VM and selecting the GPU at the end.
The GPU is also isolated in the settings.
I really hope someone can help me fix this here because I’m sitting here already for a week trying to get it to work.
Thanks in Advance!

Edit: I forgot to mention that I want to use the GPU for the VM because I want to use a NVR Software (security cameras) that can make use of a GPU for facial recognition and such things…

My Hardware:

CPU: AMD Phenom™ II X4 965 Processor
Mainboard: Asus M5A78L-M/USB3
RAM: 24GB DDR3
GPU: GTX 1050 Ti
Boot drive: PNY SSD

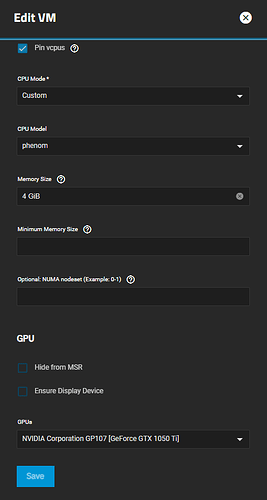

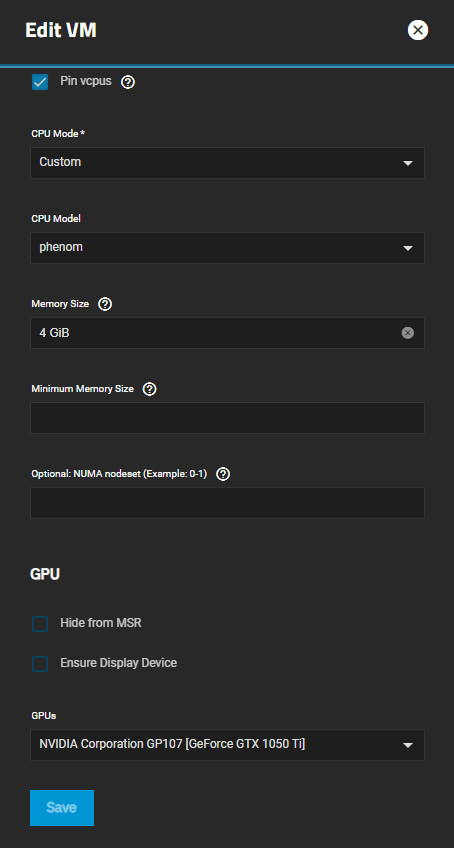

Edit VM section:

this bar that i mentioned is loading forever…

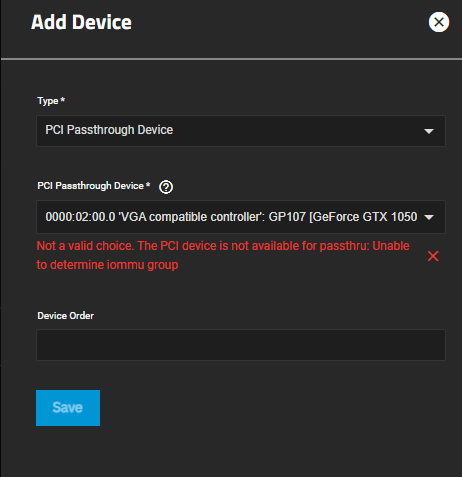

Edit Devices of the VM section:

this error also didn’t really help me solve the issue also with one other post here that already talked about this iommu group thingy

Farout · July 28, 2024, 6:26pm

For it to work, the GPU and the audio device needs to be in a discreet IOMMU group.

You can check by running this script:

#!/bin/bash
for d in /sys/kernel/iommu_groups/*/devices/*; do
  n=${d#*/iommu_groups/*}; n=${n%%/*}
  printf 'IOMMU Group %s ' "$n"
  lspci -nns "${d##*/}"
done

Save this script on your truenas as IOMMU.sh
Then run it with

bash IOMMU.sh

Fleshmauler · July 28, 2024, 6:28pm

I’m not actually sure if your motherboard supports pcie passthrough - looking at manual only mention I can find is SVM (Secure Virtual Machine), which is disabled by default. Uhh, see if enabling it does the needful? No clue if it is equivilant to AMD-V.

If that fails, I’m sad to say, that this is a very likely hardware limitation, not a TrueNAS issue as some quick google-fu shows multiple other folks unable to get IOMMU working on that motherboard.

dj-nic · July 28, 2024, 7:15pm

Farout:

For it to work, the GPU and the audio device needs to be in a discreet IOMMU group.

You can check by running this script:
#!/bin/bash
for d in /sys/kernel/iommu_groups/*/devices/*; do
  n=${d#*/iommu_groups/*}; n=${n%%/*}
  printf 'IOMMU Group %s ' "$n"
  lspci -nns "${d##*/}"
done
Save this script on your truenas as IOMMU.sh
Then run it with

bash IOMMU.sh

I saved the script and this was my output after executing it:

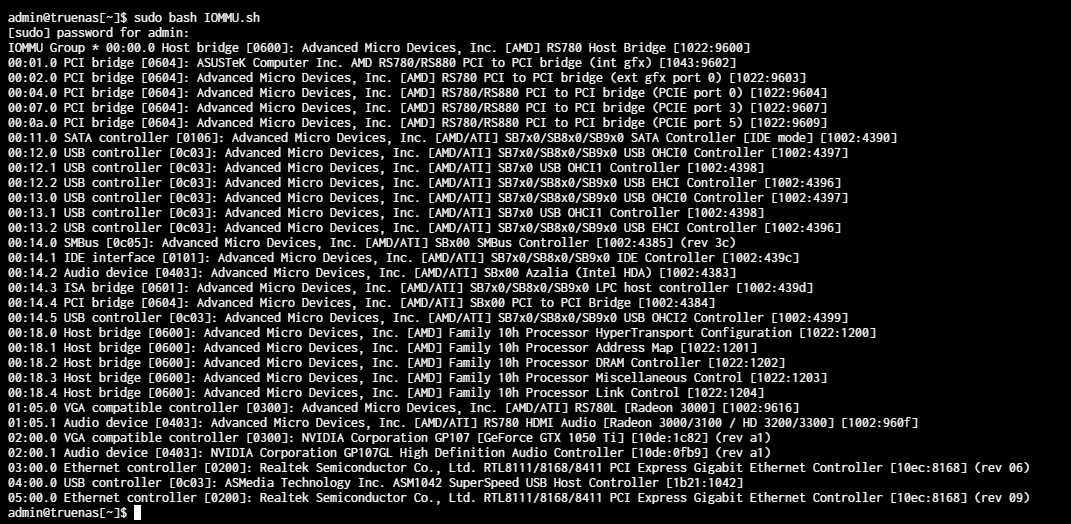

screenshot here as plain text:

admin@truenas[~]$ sudo bash IOMMU.sh
[sudo] password for admin:
IOMMU Group * 00:00.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] RS780 Host Bridge [1022:9600]
00:01.0 PCI bridge [0604]: ASUSTeK Computer Inc. AMD RS780/RS880 PCI to PCI bridge (int gfx) [1043:9602]
00:02.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] RS780 PCI to PCI bridge (ext gfx port 0) [1022:9603]
00:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] RS780/RS880 PCI to PCI bridge (PCIE port 0) [1022:9604]
00:07.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] RS780/RS880 PCI to PCI bridge (PCIE port 3) [1022:9607]
00:0a.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] RS780/RS880 PCI to PCI bridge (PCIE port 5) [1022:9609]
00:11.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 SATA Controller [IDE mode] [1002:4390]
00:12.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI0 Controller [1002:4397]
00:12.1 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0 USB OHCI1 Controller [1002:4398]
00:12.2 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB EHCI Controller [1002:4396]
00:13.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI0 Controller [1002:4397]
00:13.1 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0 USB OHCI1 Controller [1002:4398]
00:13.2 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB EHCI Controller [1002:4396]
00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD/ATI] SBx00 SMBus Controller [1002:4385] (rev 3c)
00:14.1 IDE interface [0101]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 IDE Controller [1002:439c]
00:14.2 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] SBx00 Azalia (Intel HDA) [1002:4383]
00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 LPC host controller [1002:439d]
00:14.4 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD/ATI] SBx00 PCI to PCI Bridge [1002:4384]
00:14.5 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI2 Controller [1002:4399]
00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 10h Processor HyperTransport Configuration [1022:1200]
00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 10h Processor Address Map [1022:1201]
00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 10h Processor DRAM Controller [1022:1202]
00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 10h Processor Miscellaneous Control [1022:1203]
00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 10h Processor Link Control [1022:1204]
01:05.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] RS780L [Radeon 3000] [1002:9616]
01:05.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] RS780 HDMI Audio [Radeon 3000/3100 / HD 3200/3300] [1002:960f]
02:00.0 VGA compatible controller [0300]: NVIDIA Corporation GP107 [GeForce GTX 1050 Ti] [10de:1c82] (rev a1)
02:00.1 Audio device [0403]: NVIDIA Corporation GP107GL High Definition Audio Controller [10de:0fb9] (rev a1)
03:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [10ec:8168] (rev 06)
04:00.0 USB controller [0c03]: ASMedia Technology Inc. ASM1042 SuperSpeed USB Host Controller [1b21:1042]
05:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [10ec:8168] (rev 09)

Idk if I did something wrong but sadly this did not help to get it working but thx

dj-nic · July 28, 2024, 7:19pm

I typed lscpu in shell and got the output with:

Is that what you meant?

The complete shell output for: lscpu

admin@truenas[~]$ lscpu
Architecture: x86_64
CPU op-mode(s): 32-bit, 64-bit
Address sizes: 48 bits physical, 48 bits virtual
Byte Order: Little Endian
CPU(s): 4
On-line CPU(s) list: 0-3
Vendor ID: AuthenticAMD
Model name: AMD Phenom™ II X4 965 Processor
CPU family: 16
Model: 4
Thread(s) per core: 1
Core(s) per socket: 4
Socket(s): 1
Stepping: 3
CPU(s) scaling MHz: 43%
CPU max MHz: 3400.0000
CPU min MHz: 800.0000
BogoMIPS: 6799.81
Flags: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp lm 3dnowext 3dnow
constant_tsc rep_good nopl nonstop_tsc cpuid extd_apicid pni monitor cx16 popcnt lahf_lm cmp_legacy svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch os
vw ibs skinit wdt nodeid_msr hw_pstate vmmcall npt lbrv svm_lock nrip_save
Virtualization features:
Virtualization: AMD-V
Caches (sum of all):
L1d: 256 KiB (4 instances)
L1i: 256 KiB (4 instances)
L2: 2 MiB (4 instances)
L3: 24 MiB (4 instances)
NUMA:
NUMA node(s): 1
NUMA node0 CPU(s): 0-3
Vulnerabilities:
Gather data sampling: Not affected
Itlb multihit: Not affected
L1tf: Not affected
Mds: Not affected
Meltdown: Not affected
Mmio stale data: Not affected
Reg file data sampling: Not affected
Retbleed: Not affected
Spec rstack overflow: Not affected
Spec store bypass: Not affected
Spectre v1: Mitigation; usercopy/swapgs barriers and __user pointer sanitization
Spectre v2: Mitigation; Retpolines; STIBP disabled; RSB filling; PBRSB-eIBRS Not affected; BHI Not affected
Srbds: Not affected
Tsx async abort: Not affected

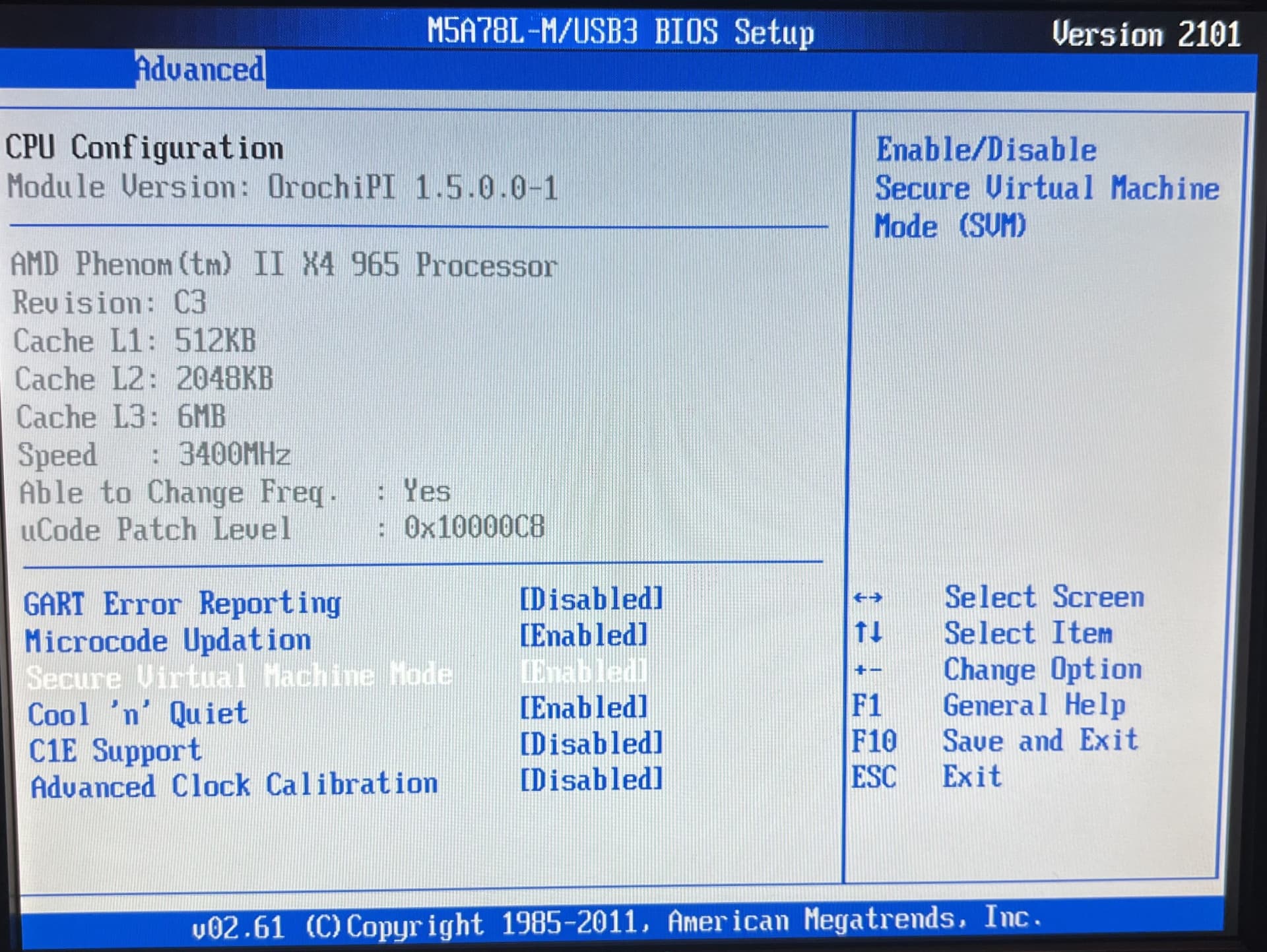

Checked the BIOS again and SVM was already enabled:

Fleshmauler · July 28, 2024, 7:49pm

Considering you got svm in your output I’m also gonna guess I’m partially wrong & that at least AMD-V is enabled.

Try running the following - it should flatout state if iommu is enabled:

dmesg | grep -e DMAR -e IOMMU

My Output for example

dmesg | grep -e DMAR -e IOMMU
[    0.011449] DMAR: IOMMU enabled
[    0.722017] pci 0000:00:00.2: AMD-Vi: IOMMU performance counters supported
[    0.723991] pci 0000:00:00.2: AMD-Vi: Found IOMMU cap 0x40
[    0.728320] perf/amd_iommu: Detected AMD IOMMU #0 (2 banks, 4 counters/bank).
[    1.035507] AMD-Vi: AMD IOMMUv2 loaded and initialized

Reasoning is that I’m concerned about iommu actually being a feature on your motherboard. For example here is my output of Farout’s script (notice how iommu groups are labelled & specifically group 31 has both the Nvidia VGA & Audio Device under the same group?)

My IOMMU Groups

IOMMU Group 0 00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482]
IOMMU Group 1 00:01.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge [1022:1483]
IOMMU Group 10 00:07.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] [1022:1484]
IOMMU Group 11 00:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482]
IOMMU Group 12 00:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] [1022:1484]
IOMMU Group 13 00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] (rev 61)
IOMMU Group 13 00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] (rev 51)
IOMMU Group 14 00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 0 [1022:1440]
IOMMU Group 14 00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 1 [1022:1441]
IOMMU Group 14 00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 2 [1022:1442]
IOMMU Group 14 00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 3 [1022:1443]
IOMMU Group 14 00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 4 [1022:1444]
IOMMU Group 14 00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 5 [1022:1445]
IOMMU Group 14 00:18.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 6 [1022:1446]
IOMMU Group 14 00:18.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 7 [1022:1447]
IOMMU Group 15 01:00.0 Non-Volatile memory controller [0108]: Sandisk Corp WD Black SN770 NVMe SSD [15b7:5017] (rev 01)
IOMMU Group 16 20:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Matisse Switch Upstream [1022:57ad]
IOMMU Group 17 21:01.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a3]
IOMMU Group 18 21:03.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a3]
IOMMU Group 19 21:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a3]
IOMMU Group 2 00:01.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge [1022:1483]
IOMMU Group 20 21:05.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a3]
IOMMU Group 21 21:06.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a3]
IOMMU Group 22 21:08.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a4]
IOMMU Group 22 2a:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:1485]
IOMMU Group 22 2a:00.1 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c]
IOMMU Group 22 2a:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c]
IOMMU Group 23 21:09.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a4]
IOMMU Group 23 2b:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51)
IOMMU Group 24 21:0a.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a4]
IOMMU Group 24 2c:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51)
IOMMU Group 25 23:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983 [144d:a808]
IOMMU Group 26 25:00.0 Ethernet controller [0200]: Aquantia Corp. AQC113CS NBase-T/IEEE 802.3bz Ethernet Controller [AQtion] [1d6a:94c0] (rev 03)
IOMMU Group 27 26:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
IOMMU Group 28 27:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
IOMMU Group 29 28:00.0 PCI bridge [0604]: ASPEED Technology, Inc. AST1150 PCI-to-PCI Bridge [1a03:1150] (rev 04)
IOMMU Group 29 29:00.0 VGA compatible controller [0300]: ASPEED Technology, Inc. ASPEED Graphics Family [1a03:2000] (rev 41)
IOMMU Group 3 00:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482]
IOMMU Group 30 2d:00.0 Serial Attached SCSI controller [0107]: Broadcom / LSI SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] [1000:0072] (rev 03)
IOMMU Group 31 2e:00.0 VGA compatible controller [0300]: NVIDIA Corporation GA106 [Geforce RTX 3050] [10de:2507] (rev a1)
IOMMU Group 31 2e:00.1 Audio device [0403]: NVIDIA Corporation GA106 High Definition Audio Controller [10de:228e] (rev a1)
IOMMU Group 32 2f:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function [1022:148a]
IOMMU Group 33 30:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:1485]
IOMMU Group 34 30:00.1 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP [1022:1486]
IOMMU Group 35 30:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c]
IOMMU Group 36 30:00.4 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller [1022:1487]
IOMMU Group 4 00:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482]
IOMMU Group 5 00:03.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge [1022:1483]
IOMMU Group 6 00:03.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge [1022:1483]
IOMMU Group 7 00:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482]
IOMMU Group 8 00:05.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482]
IOMMU Group 9 00:07.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482]

You on the other hand do not have any grouping at all, with the exception of “IOMMU Group *” (going to guess that means it ain’t present) at the very start. I’m still suspecting that your specific motherboard doesn’t support iommu as I couldn’t find any mention of it in bios. Still, it is worth exploring the bios fully & seeing

Farout · July 28, 2024, 7:53pm

Yeah i was also wondering about no IOMMU groups beeing present…

dj-nic · July 28, 2024, 7:56pm

Here is my Output that i got

Output

admin@truenas[~]$ dmesg | grep -e DMAR -e IOMMU
dmesg: read kernel buffer failed: Operation not permitted
admin@truenas[~]$ sudo dmesg | grep -e DMAR -e IOMMU
[sudo] password for admin:
[ 0.036560] DMAR: IOMMU enabled
[ 0.055403] AGP: Please enable the IOMMU option in the BIOS setup
[ 0.824496] PCI-DMA: using GART IOMMU.
[ 0.824528] PCI-DMA: Reserving 64MB of IOMMU area in the AGP aperture
[ 1.584797] AMD-Vi: AMD IOMMUv2 functionality not available on this system - This is not a bug.
admin@truenas[~]$

Edit: so I’m gonna gues it’s a hardware limitation?

Fleshmauler · July 28, 2024, 8:14pm

If you can’t find anything to do with iommu/pcie passthrough/whatever nonsense flavor of the year to toggle on in your bios - then yes, 100% hardware limitation.

But who knows, I only checked the pdf on asus’ website. Maybe it is out of date & a bios update unlocked the feature. Wouldn’t hold your breath though

Edit: once again I’d also at least try enabling “SVM (Secure Virtual Machine)” since some of these virtualization settings have some pretty stupid names & it was the only halfway relevant thing I could find. At worst you can disable it again afterwards if it was useless.

dj-nic · July 28, 2024, 8:30pm

Yeah I already had it enabled - and that’s not helping.
So I assume I’m hardware limited and the bios has already the latest version…

But still thank you for trying to help me <3

dj-nic · July 28, 2024, 8:39pm

TL:DR
I’m hardware limited by my Mainboard (Asus M5A78L-M/USB3) because of VM IOMMU stuff that’s not present.

Thanks to everyone who tried to fix my problem
