ACME challenge - TXT string?

[chb]

Hi all,
I’ve been banging my head against the wall for a few days trying to figure out DNS… I’m trying to use cloudflare and have set up an account but the crux of my issue seemed to be that there should be a string in the DNS TXT record which I’m not sure where to find, leading the ACME challenge to fail dns-01 challenge when attempting to create certificate via the wrench. I just don’t want to delete the localhost one because I’ve found this part quite confusing and would rather deal with the Untrusted Cert thing than have none at all… I’ve tried following the official guides but there is no mention of where the challenge phrase is given from what I could find.

EFAULT] Certificate request for final

order failed:

Authorization for identifier Identifier(typ=IdentifierType(dns),

value='RED.ddns.net') failed.

Here are the challenges that were not fulfilled:

Challenge Type: dns-01


Error information:

- Type: urn:ietf:params:acme:error:dns

- Details: DNS problem: NXDOMAIN looking up TXT for

_acme-challenge.RED.ddns.net - check that a DNS record exists for

this domain



Authorization for identifier Identifier(typ=IdentifierType(dns),

value='www.RED.ddns.net') failed.

Here are the challenges that were not fulfilled:

Challenge Type: dns-01


Error information:

- Type: urn:ietf:params:acme:error:dns

- Details: DNS problem: NXDOMAIN looking up TXT for

_acme-challenge.www.RED.ddns.net - check that a DNS record exists for

this domain

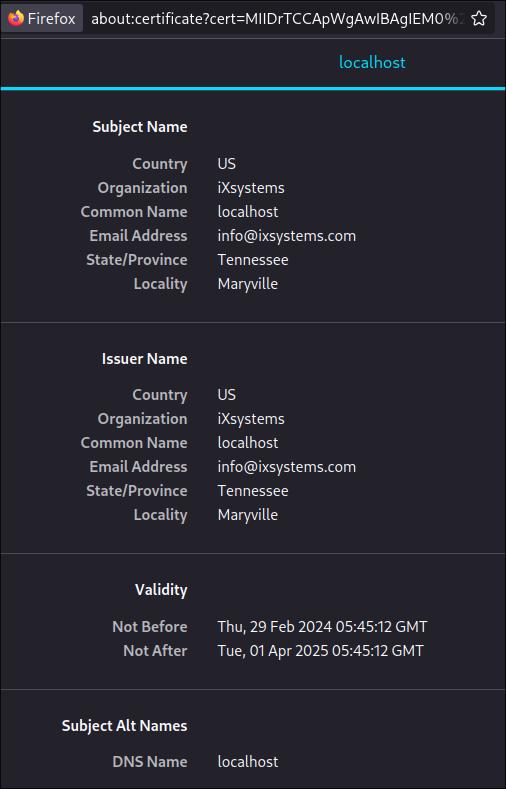

 The

certificate is self-signed. Users will receive a warning when accessing

this site unless the certificate is manually added as a trusted

certificate to their web browser. You can fix this error by buying a trusted SSL certificate

 None

of the common names in the certificate match the name that was entered

(RED.ddns.net). You may receive an error when accessing this site in a

web browser. Learn more about name mismatch errors.

Common name: localhost

SANs: localhost

Organization: iXsystems

Location: Maryville, Tennessee, US

Valid from February 28, 2024 to March 31, 2025

Serial Number: 860848886 (0x334f82f6)

Signature Algorithm: sha256WithRSAEncryption

Issuer: localhost

With that said, I think I somehow may have signed one or more correctly by accident lol, and it seems perhaps the localhost cert may be causing issues for the correctly signed ones.

I can access my apps via forwarded ports but I’d like to get rid of the ‘The website’s owner couldn’t be verified - Proceed (Accept the risk)’ thing… I was also getting I think it was SSL_too long…

In the first image the full red is the exact name, lighter is in caps, and lightest has a misspell, blue is just personal info.

In any case, I love my TrueNAS server so much and would love to make better use of it!

Kind regards to all and appreciate any assistance!

OS Version:TrueNAS-SCALE-24.10.1

Product:System Product Name

Model:Intel(R) Core™ i7-3770K CPU @ 3.50GHz

Memory:31 GiB

System Serial:System Serial Number

Theme: ix-dark
GUI SSL Certificate: truenas_default
Web Interface IPv4 Address: 0.0.0.0
Web Interface IPv6 Address: ::
Web Interface HTTP Port: 81
Web Interface HTTPS Port: 444
HTTPS Protocols: TLSv1.2, TLSv1.3
Web Interface HTTP → HTTPS Redirect: Disabled
Usage collection: Enabled
Show Console Messages: Disabled

[dan]

@chb

there should be a string in the DNS TXT record which I’m not sure where to find,

That string is generated with each challenge. Your ACME client (embedded into the TrueNAS software) creates a DNS TXT record with the appropriate value, completes the challenge, and then removes that record. The reason that you don’t see mention of this value in any of the guides you’ve found is that it’s, by design, impossible to predict.

Your problem, I think, stems from the fact that Cloudflare isn’t the DNS host for red.ddns.net; ddns.net is. You can update Cloudflare’s DNS all you want, but that isn’t where Let’s Encrypt is going to look for that TXT record. You’ll need to either (1) use a different domain, one which you can set to use Cloudflare’s DNS; or (2) use a different ACME client to get the cert, and then load it into TrueNAS.

[chb]

Bless you dan, I was so far up my own butt from chasing my own tail, and got lost in the sauce when I saw cf was one of the only options for the ACME-auth, plus their nice UI… For some reason I thought TXT records were a premium feature for noip domains. Hopefully it’s all the other stuff I’ve got going on in my life that made that obvious solution obscured, so forever karma to you for your patience - THANK YOU!

This is my first time being able to dive into self-hosted – I’ve only ever dealt with managed hosting until last year, and migrated to arch full time after the windows drivers for my ASUS PCE-AC88 started struggling with continence. Suffice to say lots of learning.

Looking at the noip guides it seems there isn’t a specific one for truenas and they suggest to just use openssl which appears to be installed already on the box.

So thank you again!

[chb]

It seems I was right about noip so I just bit the bullet and bought a domain with cf which seemed to auto-populate the TXT record in the cf dashboard, at which point it seemed I just had to copy that and create a new txt record, including that value in quotes as directed by the ui. now have an external signed cert!

i was also actually a bit confused by this forum’s UI and didn’t realise you’d replied days ago… i was sitting there looking at the automated notifications from the bot
