Bad Resilver problem and getting worse

[floz]

Can you connect the flaky drive to your motherboard’s SATA headers? Even if you have to disassemble the case on a bench, as a test. It eliminates a lot of variables. Sorry if this has already been suggested, I’ve searched the thread and did not see it.

[Fleshmauler]

@etorix

That can’t hurt. Note that you may run the test sin TrueNAS, even while the pool is working.

I thought it was best practice to NOT have smart tests run at same time as scrub/resilver? Not that it seemed to matter in this case, but wanted to double check my understanding.

@floz

Can you connect the flaky drive to your motherboard’s SATA headers

IMO best next step.

[Arwen]

@Max_Margreiter

First off I am terribly sorry if anything I wrote sounded entitled,

No, you did not come off badly. I simply wanted to review ZFS background. Both for you, and other readers now and in the future. Sorry if I sounded like a teacher, (I wrote computer documentation as part of my prior jobs…).

A simple cable disconnect of the drive trying to resilver. I’d do both power and data cables, just to isolate it completely.

As for ZFS scrubs every 4 weeks, that is mostly okay. Some people prefer every 2 weeks. And some want weekly, (which I think is excessive). Over 4 weeks I think is too long. So, 2 to 4 weeks is about right, unless there is older hardware, like used disks. Then closer to 2 week is probably better.

Make sure your disks get enough cooling during scrubs. They basically do non-stop seeks and reads until the scrub completes.

[etorix]

@Max_Margreiter

so seems to be P16; cables are either 50 or 75cm depending on location of drive, I need the 75cm ones to reach the last part of the backplane that’s just the way the Jonsbo N5 case is build

Firmware is good (there’s a P16.00.14.00 somewhere, but I think that beyond .10 it’s all about SSD behaviour). Is the additional power supply connected? (9300-16i typically have a 4-pin Molex).
75 cm should be within specs if backplane traces are short, but I’d be wary about these, especially if the problematic drives are behind these cables. I concur that using SATA cables from the motherboard could help.

@Fleshmauler

I thought it was best practice to NOT have smart tests run at same time as scrub/resilver?

If possible, yes indeed, as double duty will put maximal stress—and extend the duration of both operations, but it is possible.

@Arwen

Make sure your disks get enough cooling during scrubs.

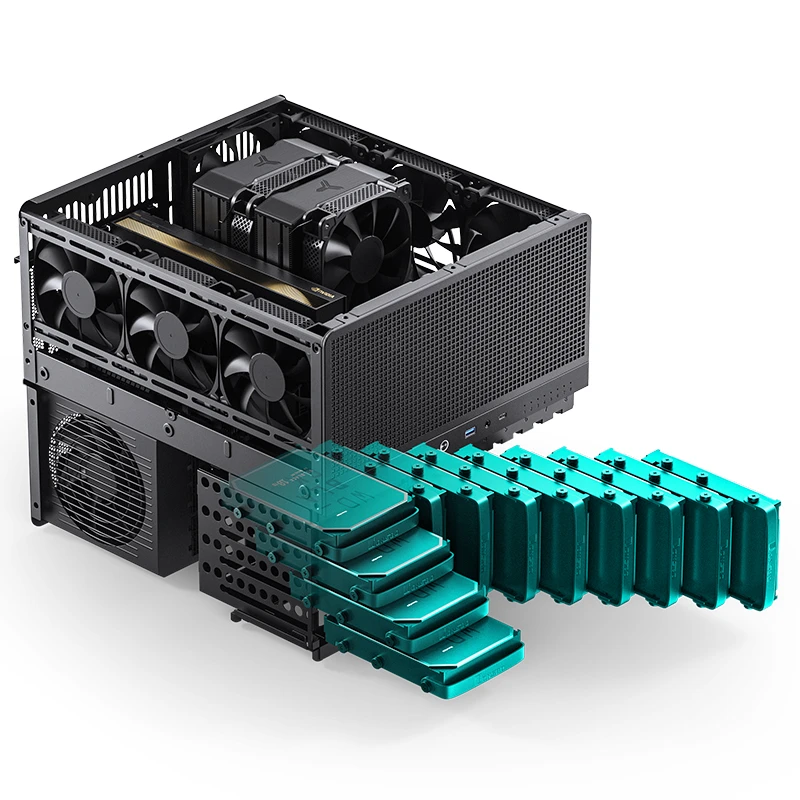

That, unfortunately, is NOT possible. Jonsbo N cases in general appear to have poor drive cooling due to the use of consumer style fans to try and pull air from behind a backplane, and the N5 puts the PSU behind 4 of the 12 bays so for the leftmost drives there really i no good path for air flow.

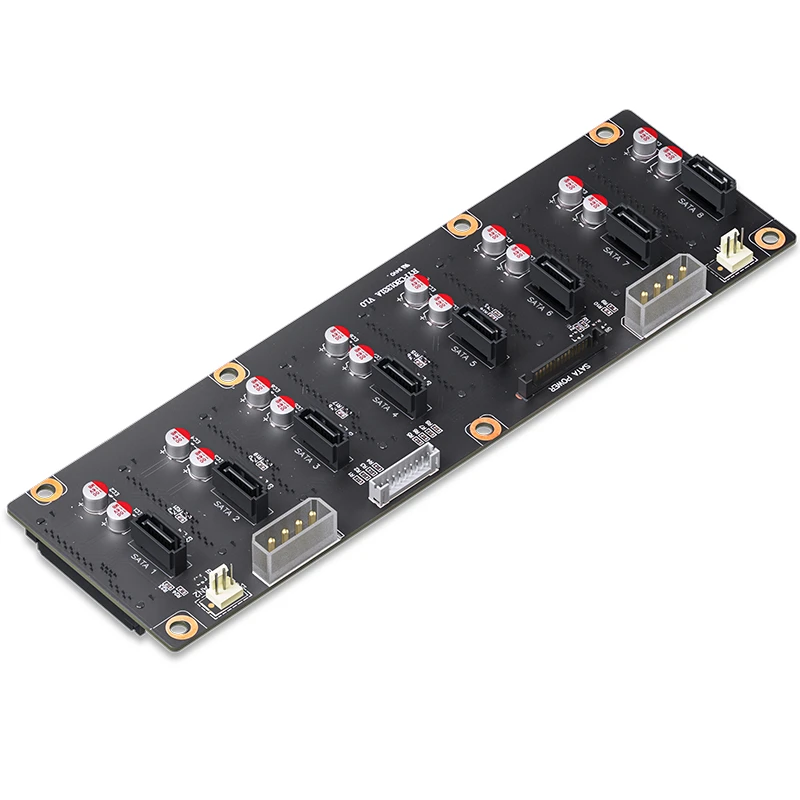

The 8 vertical drives behind the half-height backplane on the right may enjoy some air flow from the two 120mm fans:

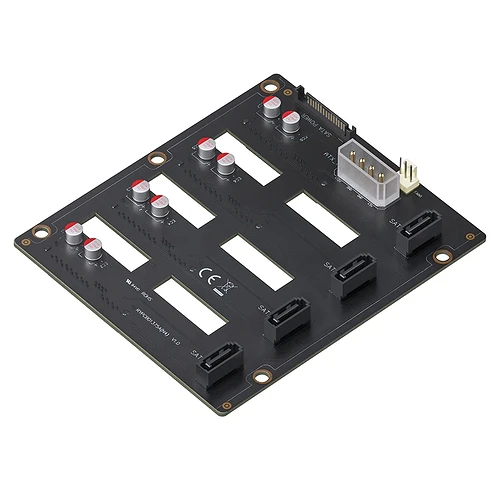

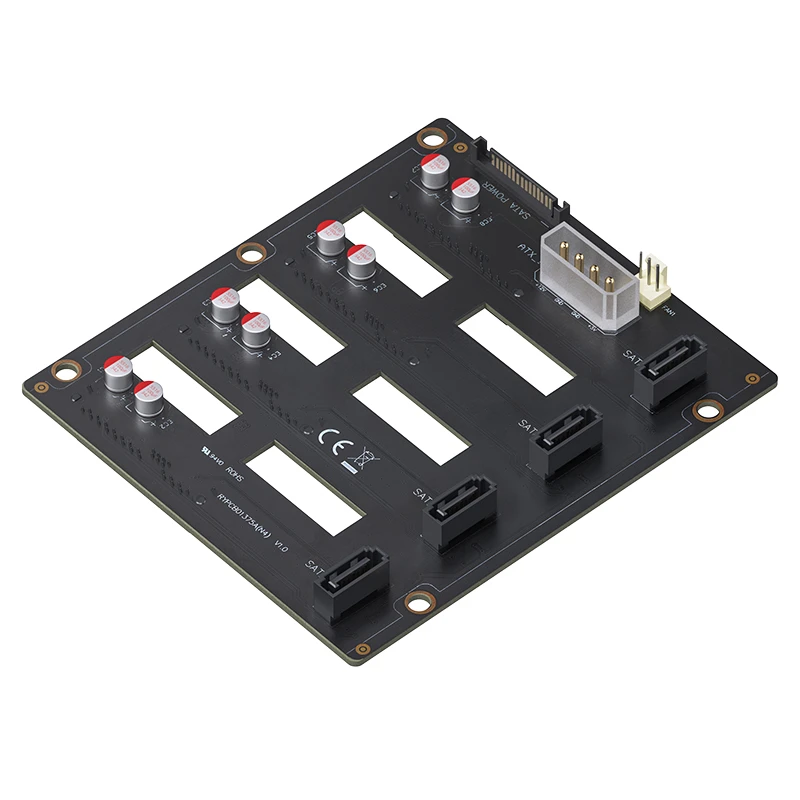

But the 4 horizontal drives can hardly have any joy through this, with the PSU just behind:

[Max_Margreiter]

@etorix

Is the additional power supply connected? (9300-16i typically have a 4-pin Molex).
75 cm should be within specs if backplane traces are short, but I’d be wary about these, especially if the problematic drives are behind these cables. I concur that using SATA cables from the motherboard could help.

No, it is not connected but I figured this should be fine as an LSI 9300-16i should not be drawing more than 30 watts roughly and the PCIE slot should be able to provide 75 watts if I’m not mistaken. I could as one possible trouble shooting step acquire for a reasonable sum a LSI 9400i - 16i or aLSi 9305-16i from the same reputable seller of refurbished server hardware as my original LSI 9300 - 16i, Should be at my door step in a few days

@etorix

If possible, yes indeed, as double duty will put maximal stress—and extend the duration of both operations, but it is possible.

I have now started running long Smart Tests on all 11 drives of the pool.using the using GSmartControl on the SystemRescue distort booted from an usb. I guess this will take at least 20 - 24 hours. I hope that all disks are passing this long Smart test.

@etorix

That, unfortunately, is NOT possible. Jonsbo N cases in general appear to have poor drive cooling due to the use of consumer style fans to try and pull air from behind a backplane, and the N5 puts the PSU behind 4 of the 12 bays so for the leftmost drives there really i no good path for air flow.

yes airflow is suboptimal and worse than I imagined when I decided on the case. I have two Noctua nf a12x25 in the back running at a 100%, drives are always at roughly 40-43 degrees and at roughly 50-52 while a scrub happens…. I think this is far from ideal but not absolutely terrible but I might be mistaken …

@etorix

The 8 vertical drives behind the half-height backplane on the right may enjoy some air flow from the two 120mm fans:

But the 4 horizontal drives can hardly have any joy through this, with the PSU just behind:

interestingly the physical placement of the drives doesn’t make such a big difference (as one would believe from the layout of the case) drives are normally all within 2-3 degrees of each other …. also all drives that reported errors were on the board with eight drives. To be precise the drive that originally faulted was in position 6. I added the replacement that I received from Seagate to the same slot. There this replacement also faulted as I described. Two times. The first time the resilver completed. The second time when I shut down the server to investigate the drives right next to it ( so position seven and eight) reported the errors I described. The drive that is being resilvered is now still in position 6 but has no longer reported any errors. The drive that now always reports errors was initially in position 7 (therefore sharing a cable to the HBA with positions 5,6,7,8) but I now moved it to position 1 and it shows the behaviour that I told you about and no longer shares a cable with 5,6,7,8 but with 1,2,3,4

[etorix]

@Max_Margreiter

No, it is not connected but I figured this should be fine as an LSI 9300-16i should not be drawing more than 30 watts roughly and the PCIE slot should be able to provide 75 watts

75 W is for a full x16 card. The 9300-16i is limited to 25 W and this is not enough for two LSI 3008 and a switch. Please connect additional power: It’s there for a reason.
A 9305 or 9400 would be fully powered from the PCIe slot, and run cooler, but this may not be necessary. (A plain 9300-8i supplemented by motherboard SATA ports would do as well.)

If the long SMART tests show no issues, we might have have nailed the hardware problem: Power to the HBA!

@Max_Margreiter

drives are always at roughly 40-43 degrees and at roughly 50-52 while a scrub happens…. I think this is far from ideal but not absolutely terrible

I’d say this is a fair assessment (50°C is still “within specs” for warranty purposes), but some here would not be happy with these numbers and want to see 10°C less to preserve their drives for longer.

[Max_Margreiter]

Once again I am very thankful for all of your help and making me understand the issues at hand.

@etorix

75 W is for a full x16 card. The 9300-16i is limited to 25 W and this is not enough for two LSI 3008 and a switch. Please connect additional power: It’s there for a reason.
A 9305 or 9400 would be fully powered from the PCIe slot, and run cooler, but this may not be necessary. (A plain 9300-8i supplemented by motherboard SATA ports would do as well.)

If the long SMART tests show no issues, we might have have nailed the hardware problem: Power to the HBA!

Ok, I understand, I had to search for the PCIe power cables of my power supply, and luckily found them. I now attached them to the LSI 9300-16i. Sadly, it didn’t fix my problem. The same behaviour as before continues. I completed my long SMART test on all drives of the pool — 10 of them finished and passed (including the new 18TB drive, which is being resilvered and which initially faulted two times). But the one that seems to be causing the problems, ST16000NM000H-3KW103 ZYD00P5Y, always gets interrupted after a few minutes. Here is the report.


json_format_version
0	1
1	0
smartctl
version
0	7
1	5
pre_release	false
svn_revision	"5714"
platform_info	"x86_64-linux-6.18.34-1-lts"
build_info	"(local build)"
argv
0	"smartctl"
1	"--health"
2	"--info"
3	"--get=all"
4	"--capabilities"
5	"--attributes"
6	"--format=brief"
7	"--log=xerror,50,error"
8	"--log=xselftest,50,selftest"
9	"--log=selective"
10	"--log=directory"
11	"--log=scttemp"
12	"--log=scterc"
13	"--log=devstat"
14	"--log=sataphy"
15	"--json=o"
16	"/dev/sds"
output
0	"smartctl 7.5 2025-04-30 r5714 [x86_64-linux-6.18.34-1-lts] (local build)"
1	"Copyright (C) 2002-25, Bruce Allen, Christian Franke, www.smartmontools.org"
2	""
3	"=== START OF INFORMATION SECTION ==="
4	"Device Model:     ST16000NM000H-3KW103"
5	"Serial Number:    ZYD00P5Y"
6	"LU WWN Device Id: 5 000c50 0e7fa6d6d"
7	"Firmware Version: EN01"
8	"User Capacity:    16,000,900,661,248 bytes [16.0 TB]"
9	"Sector Sizes:     512 bytes logical, 4096 bytes physical"
10	"Rotation Rate:    7200 rpm"
11	"Form Factor:      3.5 inches"
12	"Device is:        Not in smartctl database 7.5/5706"
13	"ATA Version is:   ACS-5 (minor revision not indicated)"
14	"SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)"
15	"Local Time is:    Tue Jun 23 21:39:53 2026 UTC"
16	"SMART support is: Available - device has SMART capability."
17	"SMART support is: Enabled"
18	"AAM feature is:   Unavailable"
19	"APM feature is:   Unavailable"
20	"Rd look-ahead is: Enabled"
21	"Write cache is:   Enabled"
22	"DSN feature is:   Disabled"
23	"ATA Security is:  Disabled, NOT FROZEN [SEC1]"
24	""
25	"=== START OF READ SMART DATA SECTION ==="
26	"SMART overall-health self-assessment test result: PASSED"
27	""
28	"General SMART Values:"
29	"Offline data collection status:  (0x82)\tOffline data collection activity"
30	"\t\t\t\t\twas completed without error."
31	"\t\t\t\t\tAuto Offline Data Collection: Enabled."
32	"Self-test execution status:      (  32)\tThe self-test routine was interrupted"
33	"\t\t\t\t\tby the host with a hard or soft reset."
34	"Total time to complete Offline "
35	"data collection: \t\t(  567) seconds."
36	"Offline data collection"
37	"capabilities: \t\t\t (0x7b) SMART execute Offline immediate."
38	"\t\t\t\t\tAuto Offline data collection on/off support."
39	"\t\t\t\t\tSuspend Offline collection upon new"
40	"\t\t\t\t\tcommand."
41	"\t\t\t\t\tOffline surface scan supported."
42	"\t\t\t\t\tSelf-test supported."
43	"\t\t\t\t\tConveyance Self-test supported."
44	"\t\t\t\t\tSelective Self-test supported."
45	"SMART capabilities:            (0x0003)\tSaves SMART data before entering"
46	"\t\t\t\t\tpower-saving mode."
47	"\t\t\t\t\tSupports SMART auto save timer."
