Cannot get Bookstack to work

Hi everyone, I´ve been using TrueNAS Scale as my trusted Homelab Server for 1,5 years now, and I´ve so far only been relying on official apps by TrueNAS (using the occasional Truecharts app a few months back and uninstalling them rather swiftly).
I´ve recently upgraded my system to ElectricEel-24.10.2 and wanted to get a knowledge-management tool to work similar to Confluence. From what I´ve seen so far, Bookstack meets my requirements for the most part.

I´ve never installed a custom app before and also have rather limited knowledge of Linux systems, so I´ve had some issues. I tried to get Bookstack to run for the past few days and now I really don´t know what I´m missing here. Maybe someone can help me out (and explain it to me like I´m 5 :slight_smile: ).

Afaik, I need MariaDB first for Bookstack, so I installed it from the official app list. But I´m not sure it´s configured properly.

But MariaDB is at least up and running.

So now I created the Custom App for Bookstack.

Now for my questions:

  1. Is MariaDB configured correctly?
  2. Is Bookstack configured correctly?

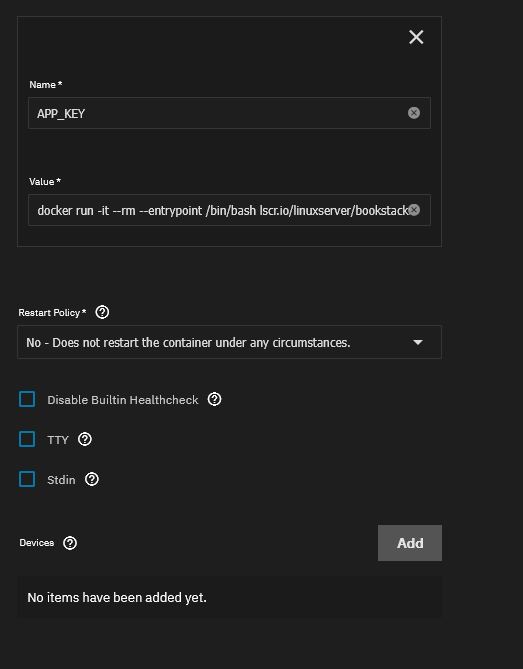

  3. One problem I had was with the Bookstack environment variable APP_KEY. In the Bookstack guide, it says that the session encryption key needs to be generated with docker run -it --rm --entrypoint /bin/bash lscr.io/linuxserver/bookstack:latest appkey . Do I run this in the Bookstack container shell? When I tried this, I get docker: not found.

The Bookstack App however is starting up, but I cannot access the WebGUI. Neither without reverse proxy (accessing via TrueNAS IP:Port15000) nor with reverse proxy Nginx (just showing 502 error - bad gateway).

Please help me get this running, would be most appreciated!

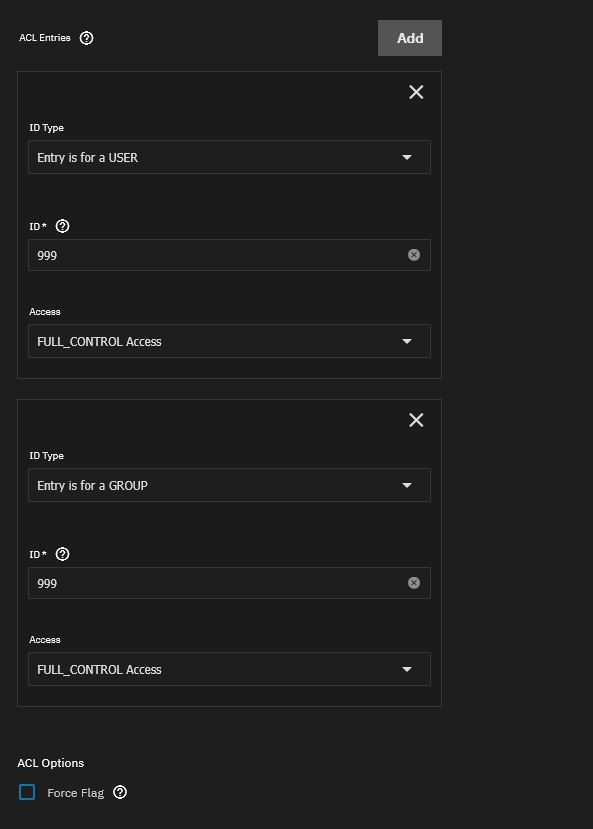

MariaDB Config:

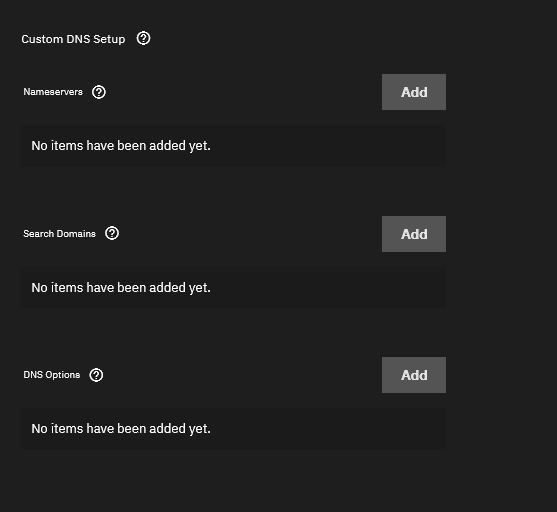

Bookstack Config #1:

Bookstack Config #2:

The way to use really any custom app is via a compose file, and the best way to handle those is through either Portainer or Dockge. But with that said, you should be able to use the built-in facility to install it too. You do not need any separate apps. Based on the instructions here:

…and the compose file here:

At your TrueNAS shell, run sudo docker run -it --rm --entrypoint /bin/bash lscr.io/linuxserver/bookstack:latest appkey. It will produce output like base64:BjPmlmNurOj/bRbPv/5LszyY6ctdrsy4mr0LD79HiMI=. Save this somewhere.

Then go to Apps, Discover, click the kebab menu, and select Install via YAML. Paste in the compose file I linked above, and make the following changes:

  • Change APP_KEY to match the value you generated above
  • Change APP_URL to http://truenas_ip:6875 (where, of course, truenas_ip is the IP address of your TrueNAS server)
  • Change the volumes for both bookstack and mariadb to match actual paths on your NAS where you want to store the data in question. An example might be - /mnt/tank/bookstack/bookstack_app_data:/config.

Click Save at the bottom and give it a moment to deploy. Then browse to http://truenas_ip:6875 and log in with the default credentials.

Thanks alot for the explanation, helped me get it up and running in no time!

May I ask one other question - I can access Bookstack locally now, but accessing it externally does not quite work.

I have a subdomain bookstack.mydomain.com targeted at my static IP, router portforwarding it to Nginx.

Just like my Nextcloud reverse proxy, it points to https://truenas_ip:6875

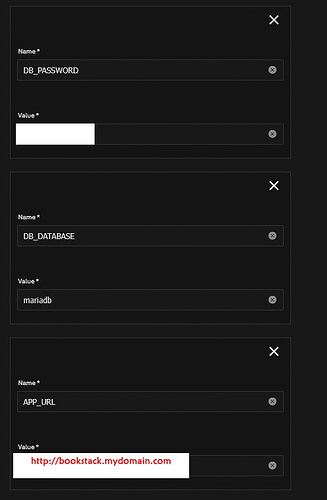

But I always get a 502 Bad Gateway error. Is there something I can change in the compose file? Change APP_URL to my subdomain?

That’d be my guess. I hadn’t touched Bookstack before this afternoon, so really can’t give much guidance about it.
