yeah i wasnt too sure how arc worked in regard to the swap issue. now i know thx :}
im going to have to study how to install these parts. i more or less know, but one area i might be blurry on is the psu wires
can i do raid z1 for 12tb x4?
i know raidz1 is fine for 4tb x4 (done this for raid5 for many years without issue). But iām new to 12tb
i do keep backupsā¦ so even if something did happen i would probably be alright.
This is what i normally use
https://magj.github.io/raid-failure/
the 12tb x12 exos seagate drive have a 10^5
so input 4 drives, raid5,
75%
seems ok
for 4tb drives it was 91%
and if that fails, there is always the backup. so raidz1? then i also get more usable space
Losing two drives in a Z2 vdev is incredibly unlikely to lose you an entire pool, but it might be enough to make existing on-disk corruption permanent: once you lose all parity, any remaining CSUMs are permanently unrepairable. Thatās unlikely to lose you the pool because metadata blocks are also stored redundantly, above and beyond device-level redundancy. But it can easily leave individual files permanently corrupt.
This is why regular scrubbing is so important. Without the scrubs, uncovering a vdev is vastly more dangerousā¦ especially to data you access rarely, but it still important.
https://www.reddit.com/r/zfs/comments/12aurgh/raidz1_queston/
12tb
32.7 tb (raid5)
21.8tb (raid6)
4tb
10.9 tb (raid5)
so instead of tripling my usable space, it will only double from my current setup.
i guess for my current storage needs thatās fine. iām just wondering though if raidz1 is possible with a 12tb x4 configuration. any horror stories with that setup?
I know the worse case scenario resilver fails, then ur expected to go to backup.
i know the rules for switching between z1 and z2 is, the more drives you use, and the higher the capacity drives u use, then go z2. but so far iāve been in the z1 zone so i never reached that point to know where the limit is
https://www.reddit.com/r/zfs/comments/12aurgh/raidz1_queston/
https://www.reddit.com/r/zfs/comments/xvt0uq/raidz1_vs_raidz2/
good explanation on the ecc situation. while doing my research i found this
https://www.reddit.com/r/truenas/comments/z38gc4/is_ddr5_ondie_ecc_enough_for_zfs/
that said the 32gb ddr5 kit was within my budget
KF560C30BBEK2-32
based on pcpartpicker the prices for it is lowest than before
few years back if u were trying to get a 32gb kit youād be crying blood
yes i know i should have tried for ecc ram but i couldnt get a good source for it or at a price i was willing to pay for. if it ever became available much later, then i can get that, then move this ram to my desktop pc. thats why i went this route ^^;
i almost went for corsair vengence. corsair brand when i had an issue, they shipped me replacement ram at no cost, no comments. very nice
It is hard to find this RAM in bulk at reasonable prices with a lifetime warranty claim. Supermicro is out of stock for 16GB tested name brand sticks. Similar named brand Hynix RAM is available on eBay in large qualities from tm_space for $63 per stick with no lifetime warranty claim. However, the price from NEMIX is currently $35 per stick on Amazon and Newegg and large batches can be purchased. OWC also provides equivalent RAM on Amazon for $39 per stick available in large batches. If OWC provides better customer service this is a path to consider (I may try a couple of these sticks). Several other sites that offer name brand RAM sticks do not have enough supply to satisfy my use case (if you find one please share).
this guy sells it but i heard there is no warranty. seems pricey too (maybe that is to be expected i guess). considering my past experience trying claim warranty from ebay, not too keen on that
https://www.ebay.com.my/str/tmgalaxy?_trksid=p4429486.m3561.l161211
omgā¦ just heard from 10gtek they r shutting down their shopee platform store. now ill have to order through their main website instead
no idea what happened there, o well. i can use the 2.5 nic temporarily, till i can order the sfp+ pcie part. i own 2 of those already and liked their performance reliability with my switches.
only downside, it doesnt have recoding like the fs.com transceivers (though this requires an additional purchase for their equipment to recode, and only makes sense if u plan to move transceivers to different switches often)
seems like i bought the last RM41-H08 in the store
alternative interesting nas cases. but reason i didnāt get something like that (no local availability, also i really wanted a rack case for my next nas build. this will be my first time by the way for this type of build)
Some quirks for the msi b650 tomahawk wifi
https://www.reddit.com/r/buildapc/comments/1alj6hk/msi_mag_b650_slow_boot_time_issue/
slow boot times roughly 90 seconds. someone even mentioned a 4minute boot which is nuts.
Booting on the Tomahawk took something like 90 seconds with 32 GB of Kingston Fury when I first set everything up, but after updating the BIOS and activating MCR this has been cut down to roughly 30 seconds, without any fast boot windows BS. Could it be faster? Sure. But not by much, really.
https://www.reddit.com/r/buildapc/comments/1alj6hk/msi_mag_b650_slow_boot_time_issue/
possible solution (you may also want to update to latest bios as well)
Enable Memory Context Restore in BIOS. If you run into issues after enabling or right before you want to swap out parts disable it or perform a CMOS Reset
Well, its well known fact that you donāt disable power down if enabling memory context restore. those two features works together, even was confirmed by amd employee on reddit long time ago.
Been running for a while now with zero issues with MCR. But it is allergic to Powerdown Off.
Either MCR On with Powerdown On
Or MCR Off with Powerdown OffBoot time is long enough that honestly MCR Off is kinda unworkable depending on what you do with the PC
just an fyi, since AsRock does have MCR enabled by default, and I have used custom timings that lostswede helped me with, just wanted to give you an update, I have had and still have 0 issues with my rig. So, apprently AsRock is the only manufacturer to figure out MCR? i know before you said to keep it disabled, and that probably does apply to other brands, but yeah just wanted to give you an fyi, my rig is still flawless. AsRock is the AM5 champion this round I guess
mix comments whether it helped or not.
so how do the other brands fare on boot times
based on what Iāve heard Gigabyte boards are the best for boot time in the 600 board series, Asus and Asrock are in the middle, and MSI is the slowest
anyway i donāt think this is a major issue for me. just pointing it out in case anyone followed my footsteps (which i donāt particularly recommend since there are probably better truenas builds out there). well i mentioned it
i did try looking for something from asrock first, but nothing quite fit. my 2nd pick was gigabyte, also same. then my third choice was the msi cause it met my requirements.
one big downside is it does not have a pcie x16 - 5 slot. instead 4. and afaik all the m.2 nvme were all gen4. this wasnāt a deal breaker for me, but it might be for someone else.
B650 tomahawk does not have a post code screen like higher end boards, instead it has debug led that is color coded: red (cpu), yellow (ram), white (gpu), green (OS).
The debug led colors are documented in the motherboard manual.
https://www.reddit.com/r/MSI_Gaming/comments/1fsyx4l/msi_b650_tomahawk_wifi_has_problems_with_ram/
Some possible gotchyas with that caseā¦ and ATX boards.
2 Likes
ty this is exactly what i need. all the steps for me to consider when install.
so he is using an atx motherboard, so that is a good reference. i did check the specs and it said it supported atx. now i have a clearer idea of the fit.
in one of the videos there was a wire for an alarm if someone opens the case. not planning to use that
off to a good start he almost body slammed that huge case onto the motherboard
there are the other 2 youtube references for installing for the case i ordered
these reference the case
this one is specifically covering the msi b650 tomahawk wifi motherboard
and this for psu (if i do this wrong and plug in wrong cable to motherboard etcā¦ boomā¦ )
For my psu, the pics to indicate which cable is for what, this helps. refer to your own psu site for similar help on this
https://seasonic.com/focus-gx/
so i have to go between these guides to get a clear idea
1 Like
Yeah, Iāve been figuring out if I want to go with EPYC 700[1-3], or a Sienna EPYC 8004.
Basically, 128 lanes or 96. Sienna is pretty much Zen 4c (ie 9004) in an SP3 sized socketā¦ (ie same as EPYC 7003)
I would like at least PCIe4 and faster single core clocks.
Or thereās ThreadRipper Pro
(which I think may actually be the sweet spot, with lanes and single core clock speed)
I was interested in that case, but it seems its too small to actually use with large boards.
With the ĀµATX boards I think I would go with the CS382.
Meanwhile, With RaidZ expansionā¦ You could add another 12TB laterā¦ Or use an M.2 SATA expansion card. I know they get a bad rep, but when you need to add just a handful of SATA ports, I think they can be a good solution.
2 Likes
Thereās been alot of discussion surrounding NVME in this thread. Iāve been foolinā with this stuff for a while now. Figured Iād post some musingsā¦
The PLX-chip based card with 4 Samsung 9A1 SSDs configured as 2xMirrors (No Compression No Dedupe) resulted in an average read of 1091 MB/s using my arbitrary FIO script. Going to 8 SSDs netted 2412 MB/s.
These results are from 2 years ago running in Bluefin.
But that testing was done with AMD Epyc Rome which has 8 memory channels. At ~25GB/s per channel (DDR4 3200) it has a maximum theoretical bandwidth of ~200GB/s. AM5 is faster per channel, but it has 2 memory channels. At DDR5 6000 weāre talking like ~45GB/s per lane or like 90GB/s.
More on the previous work Iāve posted on the topic of NVME
TrueNAS Scale NVME Performance Scaling | TrueNAS Community
Iām currently also doing a new build. Iāve begun repurposing my older AM4 gaming PC, Gigabyte Auorus Elite X570 board with a meager 32GB of (nonECC) DDR4 3200 RAM. I just performed a slight refresh to a 5600G so I could save a PCI-E slot that would have been wasted for a GFX card. I currently have 4 Optane 905Ps (mirrors) plugged into one of these cards Linkreal PCIE Gen3 PLX cards.
This system has SCALE on it and is primarily just a dumb block storage device that serves my desktopās āDā drive.
While not apples-to-apples with my old dataā¦ Itās clear that software has come a long way in the past 2 years.
Also gotta give AMD credit for better CPU IPC/single thread performance. Iām sure thatās at play hereā¦ Even with the 2-channel memory configuration of desktop platforms limiting me. bw=2399MiB/s
Using my same old arbitrary FIO script:
randrw: (groupid=0, jobs=16): err= 0: pid=428919: Thu Nov 7 23:38:34 2024
read: IOPS=19.2k, BW=2399MiB/s (2516MB/s)(141GiB/60112msec)
bw ( MiB/s): min= 604, max= 7947, per=100.00%, avg=2404.39, stdev=75.82, samples=1824
iops : min= 4828, max=63572, avg=19228.09, stdev=606.56, samples=1824
write: IOPS=19.2k, BW=2403MiB/s (2520MB/s)(141GiB/60112msec); 0 zone resets
bw ( MiB/s): min= 607, max= 7895, per=100.00%, avg=2408.09, stdev=75.82, samples=1824
iops : min= 4856, max=63158, avg=19257.83, stdev=606.52, samples=1824
cpu : usr=1.68%, sys=0.32%, ctx=633595, majf=0, minf=584
IO depths : 1=0.9%, 2=1.8%, 4=4.0%, 8=21.3%, 16=57.0%, 32=15.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=96.6%, 8=0.3%, 16=0.5%, 32=2.6%, 64=0.0%, >=64=0.0%
issued rwts: total=1153644,1155429,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=32
Run status group 0 (all jobs):
READ: bw=2399MiB/s (2516MB/s), 2399MiB/s-2399MiB/s (2516MB/s-2516MB/s), io=141GiB (151GB), run=60112-60112msec
WRITE: bw=2403MiB/s (2520MB/s), 2403MiB/s-2403MiB/s (2520MB/s-2520MB/s), io=141GiB (151GB), run=60112-60112msec
root@prod[/mnt]#
root@prod[/mnt]#
root@prod[/mnt]# zpool status optane_vm
pool: optane_vm
state: ONLINE
scan: scrub repaired 0B in 00:12:10 with 0 errors on Sun Oct 27 00:12:12 2024
config:
NAME STATE READ WRITE CKSUM
optane_vm ONLINE 0 0 0
mirror-0 ONLINE 0 0 0
0a3ec38c-61bc-4c92-989e-bb886b22c241 ONLINE 0 0 0
e33c70aa-009f-4032-8ae6-0465156ad9ca ONLINE 0 0 0
mirror-2 ONLINE 0 0 0
8a08efe1-8f61-4577-9180-0ed287029443 ONLINE 0 0 0
a9db22ec-c458-4e1e-b1f9-45b8667e07ec ONLINE 0 0 0
errors: No known data errors
Have fun with your builds
2 Likes
well let us know how that goes. would be a very interesting read
hope you tally your budget. my wallet is crying
but itās an investment for long term, o well.
iāve been gradually making progress for my homelab.
started out with a pc no backup (yes shocking. i didnt know better back then). To a nas (my first a ts-509) , to eventually a ts-877, to finally rack server for my switches > to sfp+ 10 fiber > to now adding a 4u nas case (where i am right now)
In all seriousness, TR 2950X/X399 sounds like an option to consider too, if you can find a good deal.
But EPYC Rome (and older TR) suffers in terms of single core performance, even when compared to my measly little 5600G
2 Likes
ill just chime in on this cauz i did some research on the subject.
5600g does not support ecc. but the 5000 series g PRO does. But if ecc isnāt needed then thatās fine. this comes with igpu yes?
then for am5, wendel recommended the 7900 which has lots of cores and threads if your not going xeon or epyc, but want ryzen instead. but the reason i didnāt go down that route, cauz my use case isnāt as much, so a 7600 is fine.
for xeon/epyc, no comment since i have no info on that
if u r chasing down a motherboard for ryzen with ipmi, they exist. etorix pointed out a Gigabyte MC12-LE0 (AM4, MATX).
and joe pointed out ASRock Rack B650D4U (AM4, MATX)
my case just arrived. the box is hugeā¦ was worried. but when open box, it actually is smaller. yes it fits for my rack
case in box was bubble wrapped to the tilt. no dents iām glad to report.
i unscrewed it open, everything looked alright. just waiting for the other parts to arrive before i can put it together.
before then i got to rewire, relocate my qnap nas thatās gonna be hell.
1 Like
60 lanes of PCIe3 though.
Probably the bare minimum of lanes that Iād consider, but PCIe4 is a minimum for me for t
There are 64 lanes of PCI ExpressĀ® Gen 3 connectivity in the AMD Ryzenā¢ Threadripperā¢ CPU. 4x lanes are reserved for communication with the AMD X399 chipset. Up to seven PCIeĀ® devices may be connected to the system (not to exceed 60 lanes); additional concurrent devices may be supported with a PCIeĀ® clkgen on the port or device. An additional 2x PCI ExpressĀ® Gen3 lanes within the AMD X399 chipset may be used by the motherboard vendor to provide an additional 4x SATA or 2x SATA Express connections
But I am thinking that 128 lanes is probably more than I need, and I know 40 lanes is not enough
So, sweet spot for me is probably somewhere between 60 and 96, will need to put some more thought into that
ā¦
I did build a bunch of Ryzen 3950x systems in the pastā¦ theyāve proven quite competitive
1 Like
This is true. But Iām not one who evangelizes ECC for every build. Iāve run many TrueNAS servers on old SFF corporate desktops that youāll often find for less than $100.
e.g.
Having good data hygiene and backup strategies is more important than ECC in my opinion. As an exampleā¦People forget, even Google had humble beginnings. Their first servers looked like thisā¦
And letās just say that modern DDR5 is probably far less likely to flip a bit than those monstrosities were xD
Homelab doesnt have to be enterprise grade.
1 Like
In my opinion, youāll find bottlenecks elsewhere in most systems that would render the extra bus speed of negligible performance difference in real-world use. Unless your use case isā¦more exotic than most. That, or weāre not talking about servers in your house
PCI-E 4 never got much wide spread adoptionā¦ and are an order of magnitude more expensive than their PCI-E 3 ancestors. PCI-E 5 is unobtanium unless youāre buying net-new storage servers, and even then Iād bet youāll still find PCI-E 3 parts in current generation products from many vendors. Storage servers donāt follow the same yearly cadence of release cycles that desktops do.

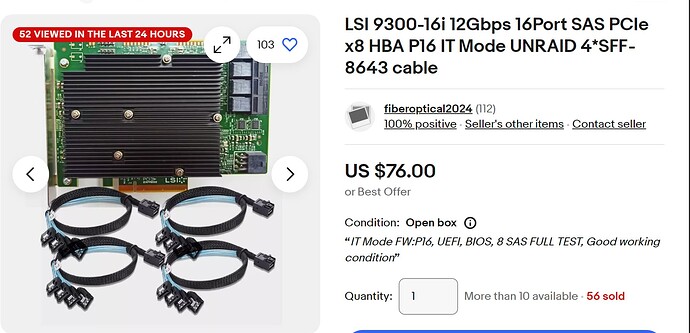

Shoot for most people the trusty 9211-8i is still very relevantā¦and thats Gen2
2 Likes
This.
I want to play with 25/100gbe
1 Like
gosh ordering from 10gtek from cost a bomb in shipping.
ordered from aliexpress instead. For me the shipping was way cheaper (your milleage may vary). probably because the logistics was fine from there.
Shame they shutdown local
*good news, my purchase went through. now just have to wait for the 10gtek
Looks nice in advertisement, but badly designed when you actually try to use it?
Thatās my experience with Silverstone cases. Never more.
Thanks for the information that their rackmounts are of the same breed than their desktops.
1 Like
in amazon review, someone posted a comment whats wrong with this case. ill just have to find out when i install. this will be my first time though
but tldr: he said the problem is no space to put the cables. so he shoved it somewhere near the psu. cause there is no where else for it. and the graphics card length limits to certain graphics cards that will fit.
he goes onto say the bay stuff isnāt removable. but when i watch another youtube they showed itās removable, just u have to go through a bunch of screws to do so. heck the left side can be replaced for more hotswap trays if you needed more hard drives for that (optional addon purchase though).
but when i look at his install, despite that, it looked fine even if what he said itās not as nice as some other cases in that regard.
anyway there is room for expansion with it to add more hdds or ssds assuming your mobo supports that. looked ok for my needs anyway.
realized i made a mistake. cpu cooler too tall. any suggestions for what will fit? preferably scythe brand or maybe noctua
Case
Limitation of CPU cooler
Height w/ expansion card retainer: 130mm
Height w/o expansion card retainer: 148mm
scythe mugen 6
Overall Dimensions (WxHxD) 132 x 154 x 132mm / 5.19 x 6.06 x 5.19 inch (incl. Fan)
no refundsā¦
found this
Noctua NH-L12Sx77
NH-L12S/NH-L12Sx77 general specifications
Fan dimensions: 120mm x 120mm x 15mm
Max rotational speed: 1850RPM
Max rotational speed with L.N.A.: 1400RPM
Min rotational speed (PWM): 450RPM
Max air flow: 94.2mĀ³/h
Max air flow with L.N.A.: 70.8mĀ³/h
Max noise intensity: 23.9dBA
Max noise intensity with L.N.A.: 16.8dBA
Supply power voltage: 12V PWM
Current: 0.13A
Rated power: 1.56W
Power supply interface: 4-pin PWM
SSO2 bearing
MTTF: 150,000hours
Package list: 1 x Cooler, 1 x Fan, 1 x Low Noise Adaptor (L.N.A.), 1 x Thermal paste, 1 x SecuFirm2ā¢ Mounting Kit, 1 set x Noctua Metal Case-Badge
