New build finalized after recovery

TrueNAS General
1

So here is the new build post recovery:
Hardware:

  • Intel i5 12th Gen processor
  • MSI 790 Pro motherboard
  • 16GB Crucial DDR4 ram
  • 2TB Sabrent NVME

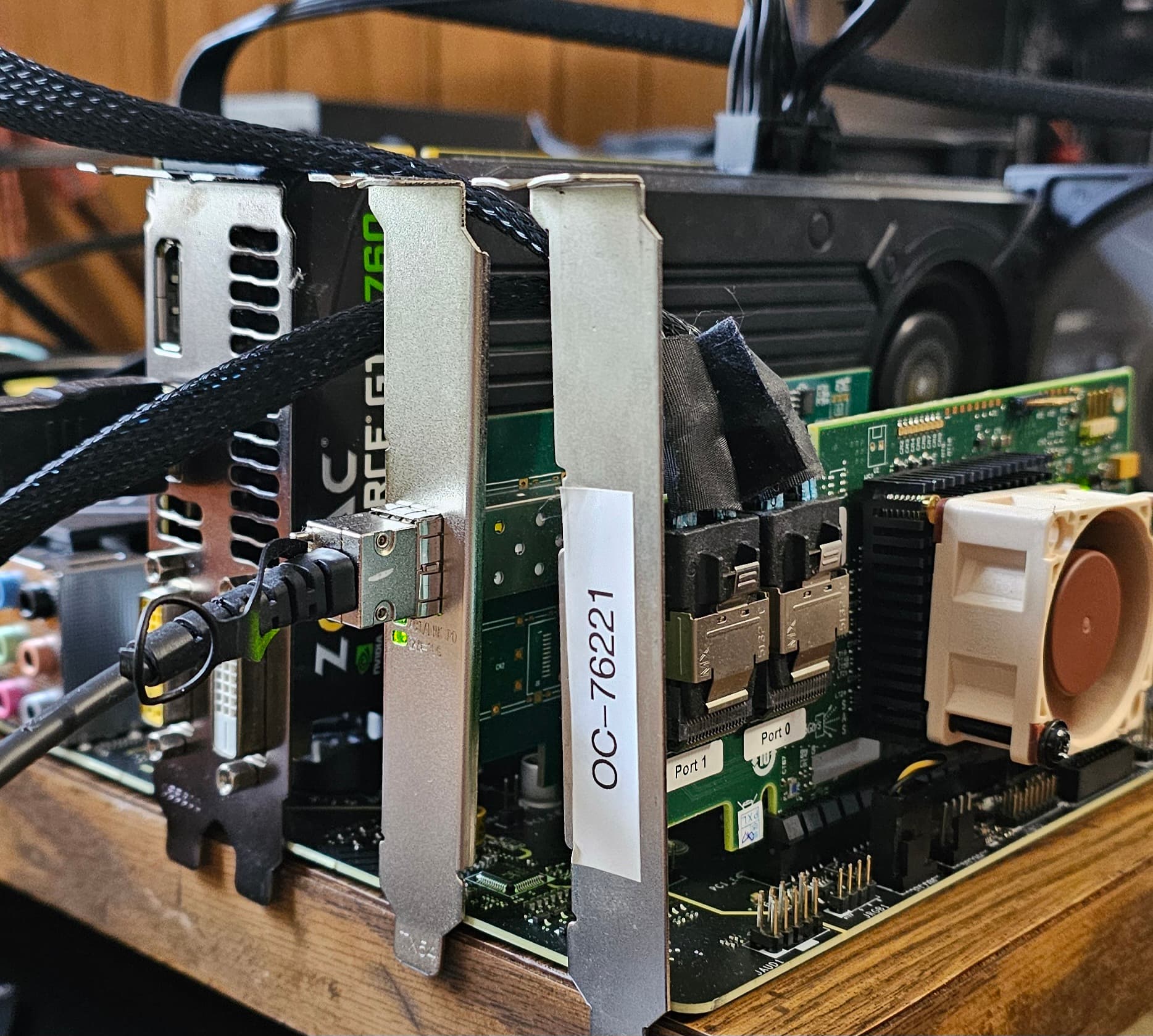

Adapters:

  1. Zotac GeForce 760
  2. Intel 520 Fiber 10GB adapter
  3. LSI SAS controller 2 port

Drive Backplane:
SuperMicro SAS825TQ Blackplane 8x SAS/SATA 3.5"
2 - power molex connectors
4 - SATA/SAS connected

LSI controller:

  • Port 0: SAS cable connector 3 drives connected - 3 drives EXOS renewed 12TB
  • Direct connected via 1 - 3 cables, port cable 4; SAS cable needs to be replaced

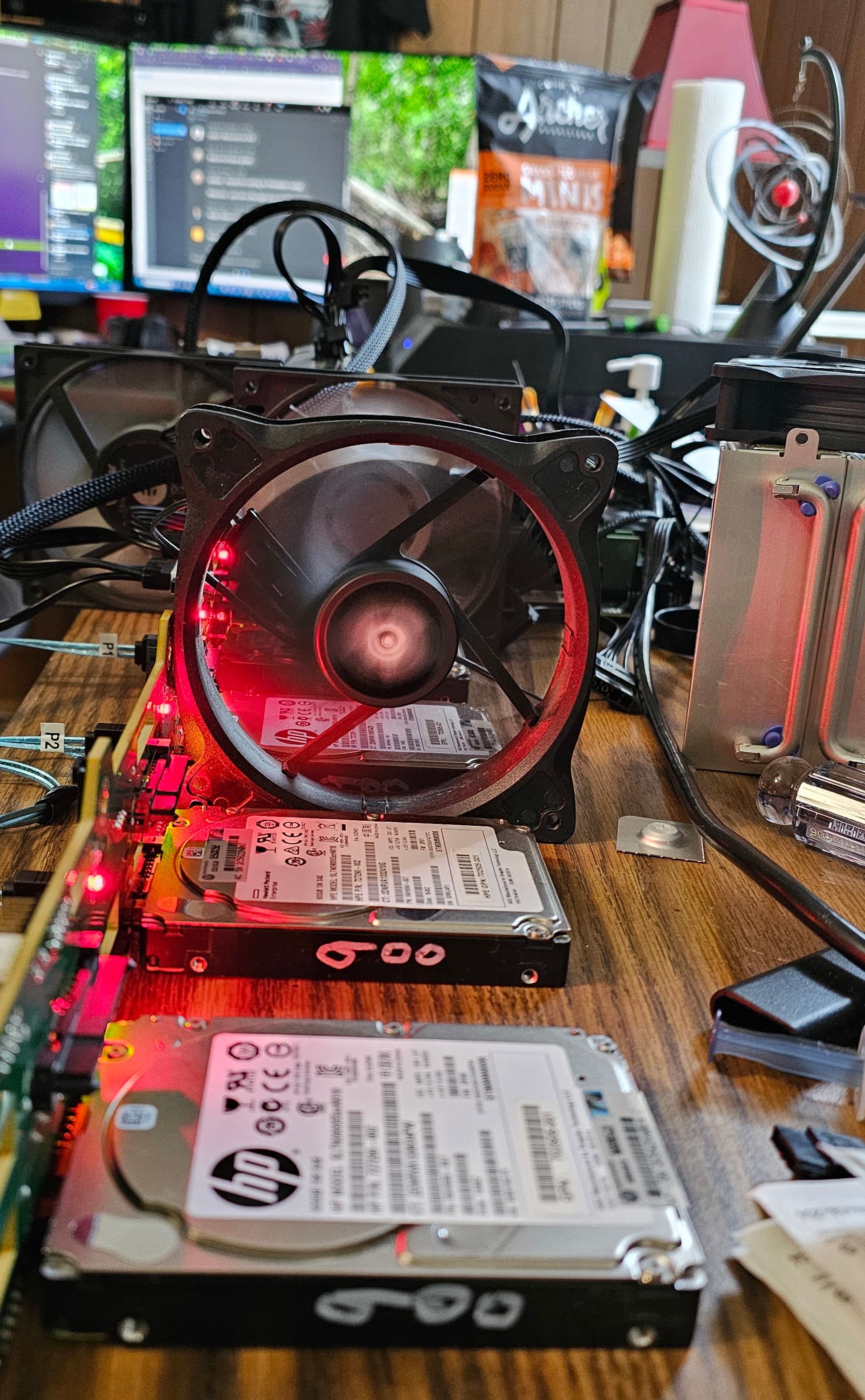

  • Port 1: SAS cable connected to 4 drives connected - 4 HP 900GB drives
  • All 4 drives connected to the backplane

Case is not built yet. I am going to water cool the system. I have pump, rad’s, fittings, block is in transportation. Does anyone see any issues with what i have in mind?

1000003382-drives-back-plane
1000003382-drives-back-plane1856×3004 607 KB

20250430_102341
20250430_1023411868×1679 357 KB

1000003372
10000033721920×1403 159 KB

2

What’s the point of the GTX 760?

Does your CPU not have iGPU?

3

Is your case custom fab? Looks like an ATX board? I would just watch your clearance of the fan sticking off the HBA, other then that, looks solid.

4

The CPU does not have a integrated GPU. I can use it for transcode in Jellyfin.

5

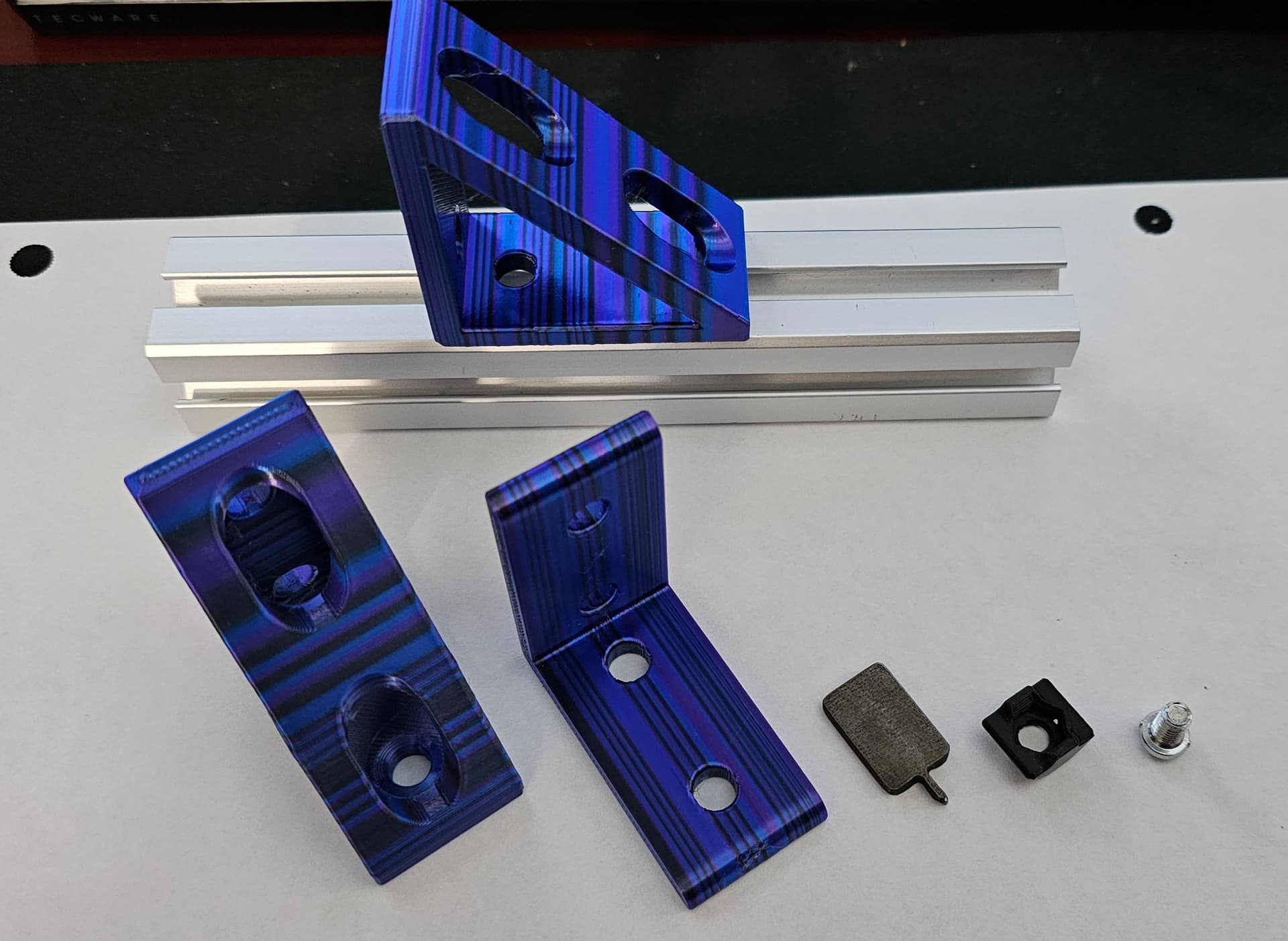

I have all 1010c (1" 80/20) styled material to build the case. It is a monster. It is 5U high, 28" inches deep, 17.5" wide and will fit in my rack with no problem.

It will be water cooled as well. Just waiting for time to complete making all the custom fasteners.

I will be adding a keep up with the build on a new blog and my Youtube channel, if I ever get time to record anything. Always too busy.
