Pool exported after power loss

ninedakom · August 1, 2025, 6:02pm

I had a power loss and due to a faulty ups my True Nas server crashed. I don’t have a fancy setup just

Plus 8 hard drives 4 are connected to a sata pcie adapter. No VM or anything like that. I’ve read forum posts for about a week before deciding to post and ask for help.

It shows that my hard drives are exported and any basic commands to import them back don’t work.

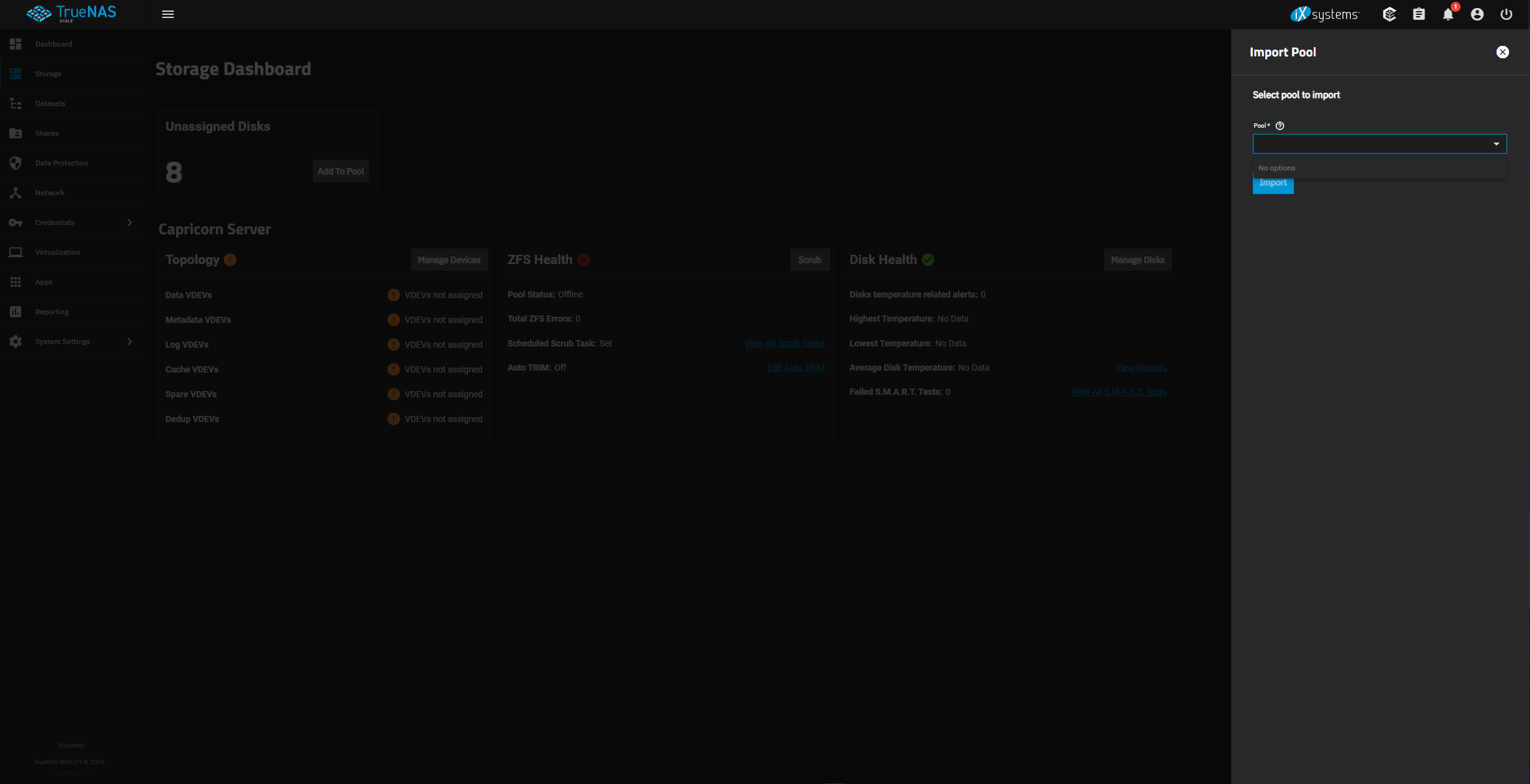

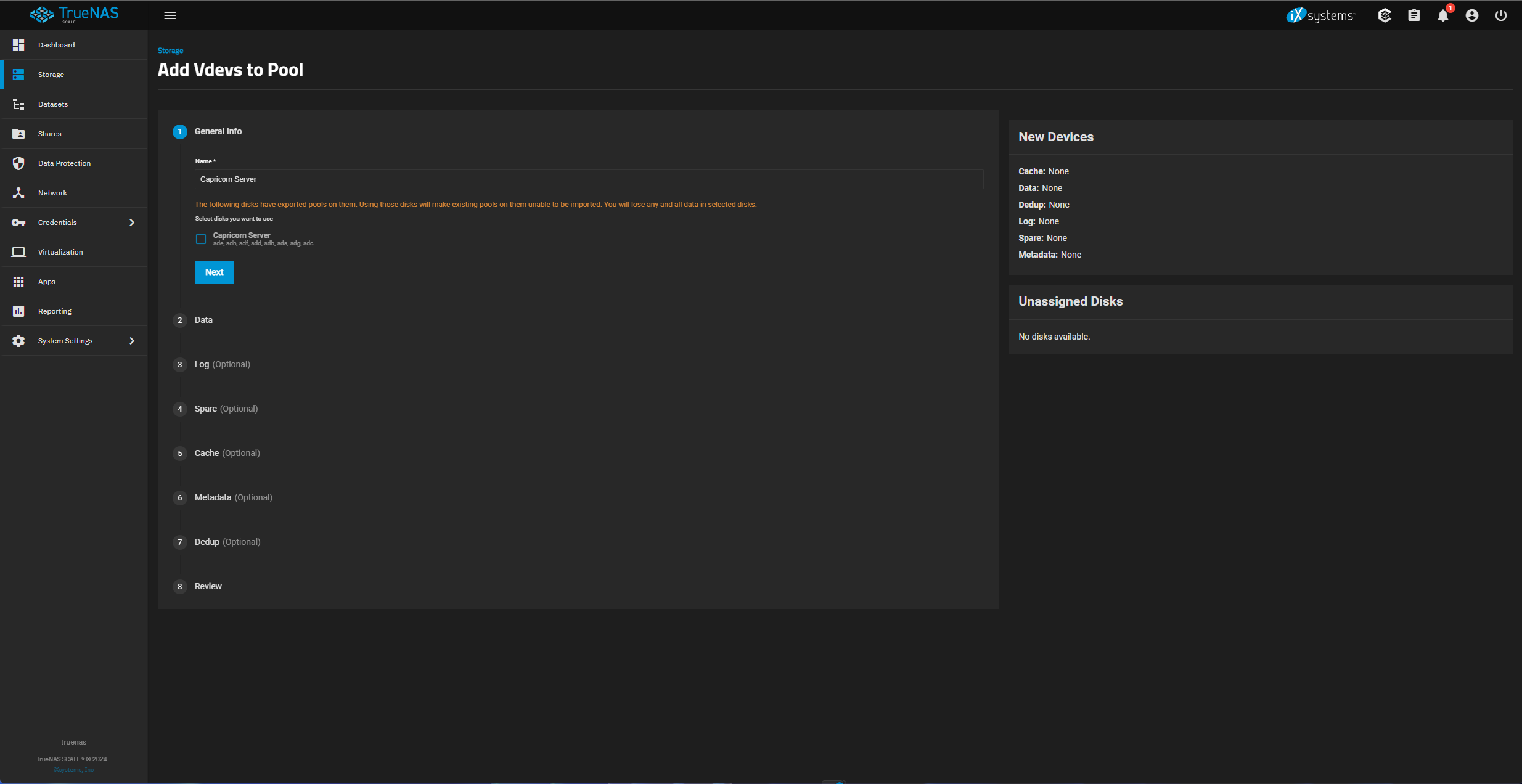

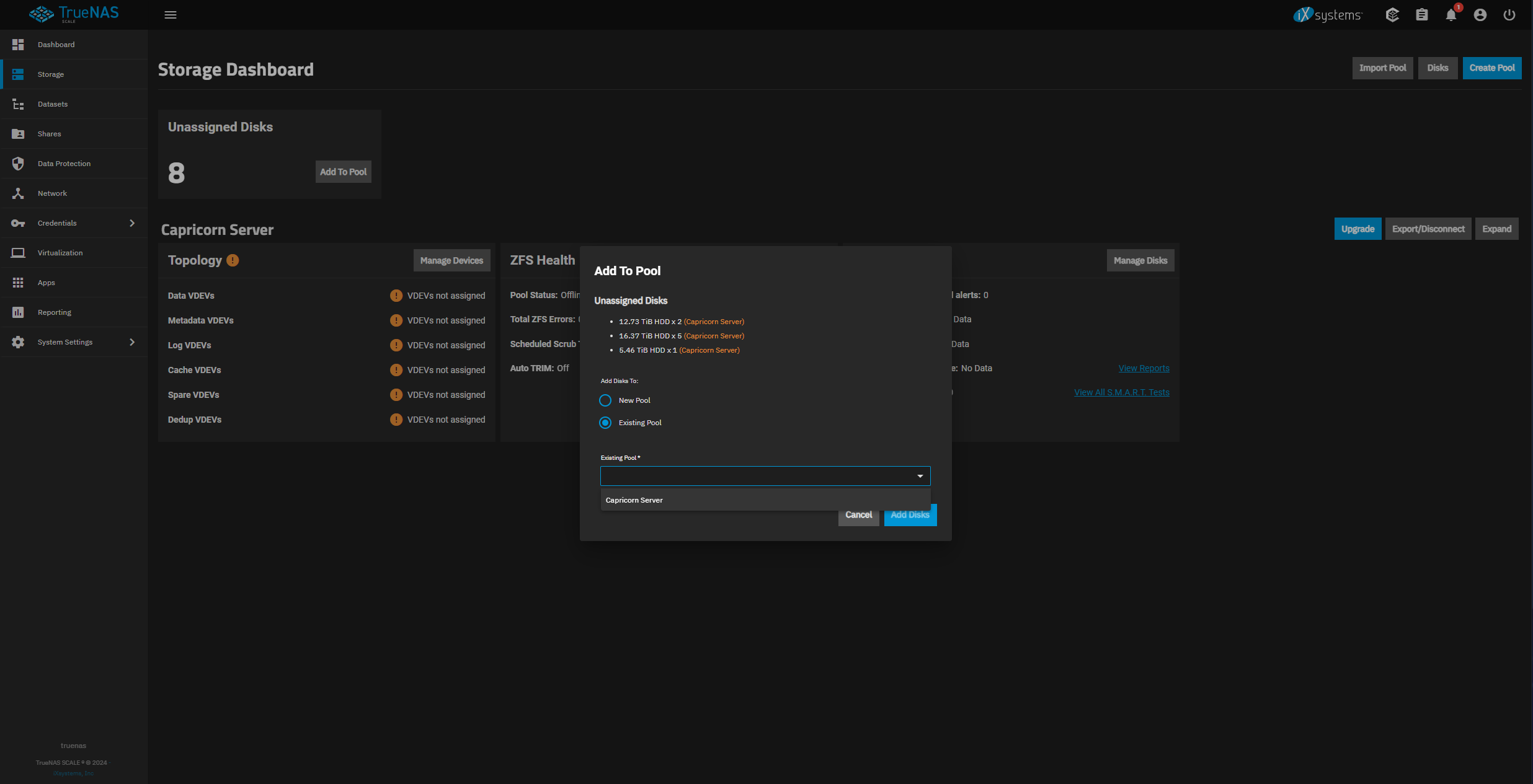

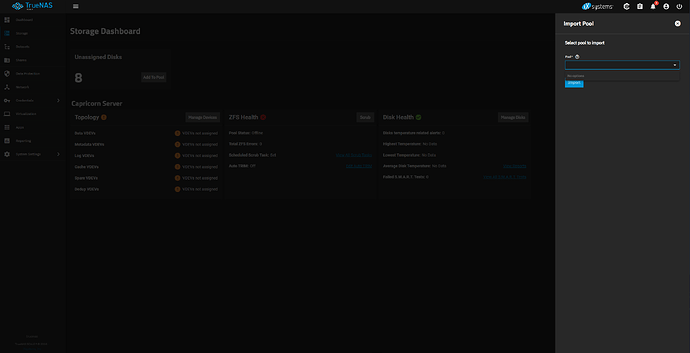

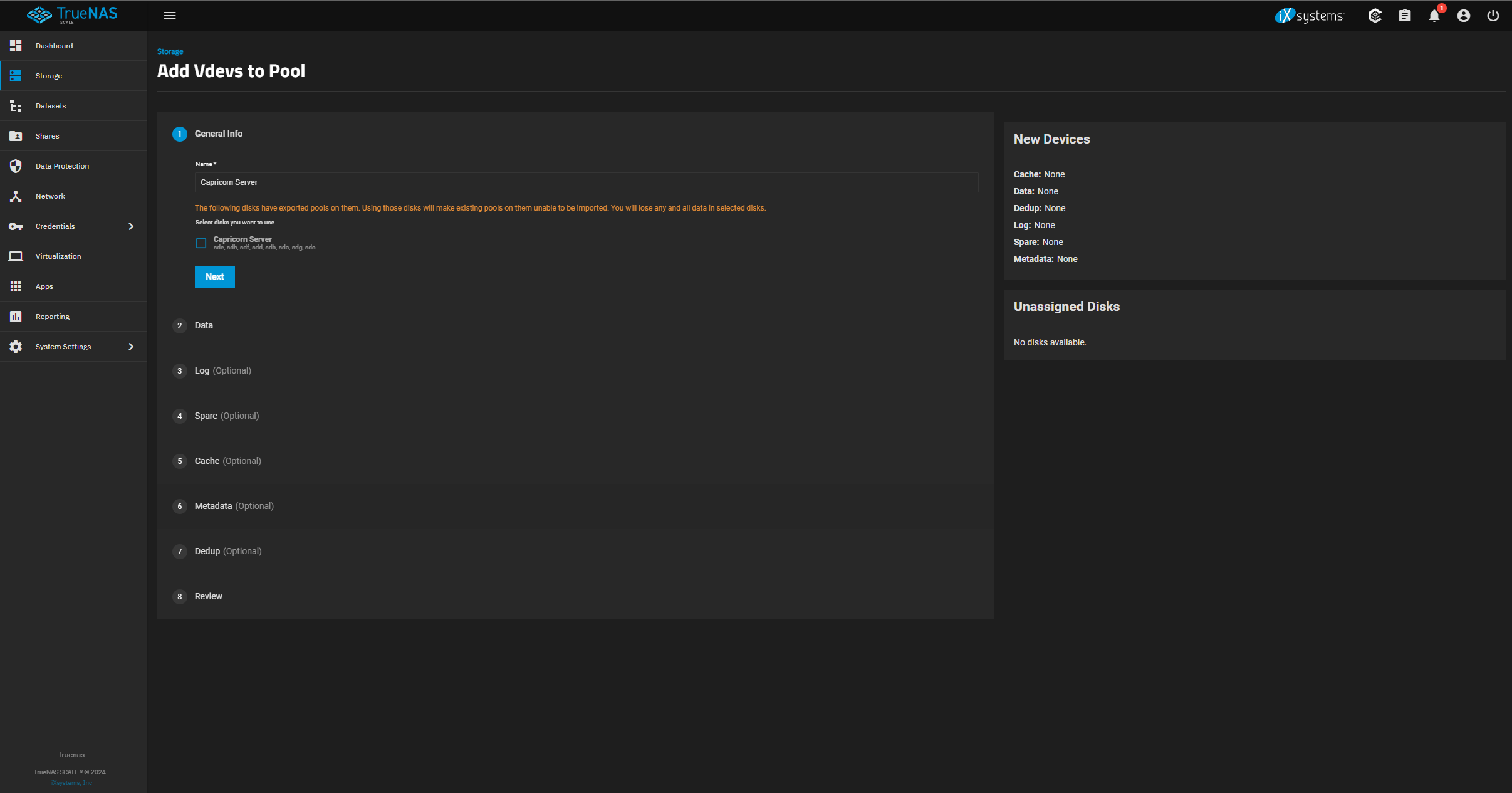

It doesn’t show up in the list to import pool under storage but it does show all my unassigned disk when i click add to pool. I didn’t want to lose the data so i didn’t go this route due to the prompt that says everything will be erased if I do.

I replaced the ups and hopefully there is an easy solution I’m overlooking to get things back up and running.

SmallBarky · August 1, 2025, 8:23pm

What ‘sata pcie adapter’.
Give us a detailed hardware listing and how you had the pools set up. You are showing a bunch of mixed drive sizes in the screenshot.

Please run the following in the Shell or Console and post the results of each command in a separate Preformatted Text window. </> on toolbar or Ctrl+e
I think this should cover most of the data and questions on your current system status.

lsblk -bo NAME,LABEL,MAJ:MIN,TRAN,ROTA,ZONED,VENDOR,MODEL,SERIAL,PARTUUID,START,SIZE,PARTTYPENAME

sudo ZPOOL_SCRIPTS_AS_ROOT=1 zpool status -vLtsc lsblk,serial,smartx,smart

sudo zpool import

sudo zpool status -v

lspci

ninedakom · August 1, 2025, 8:57pm

Here’s a link to the expansion card.
Pcie Expansion Card

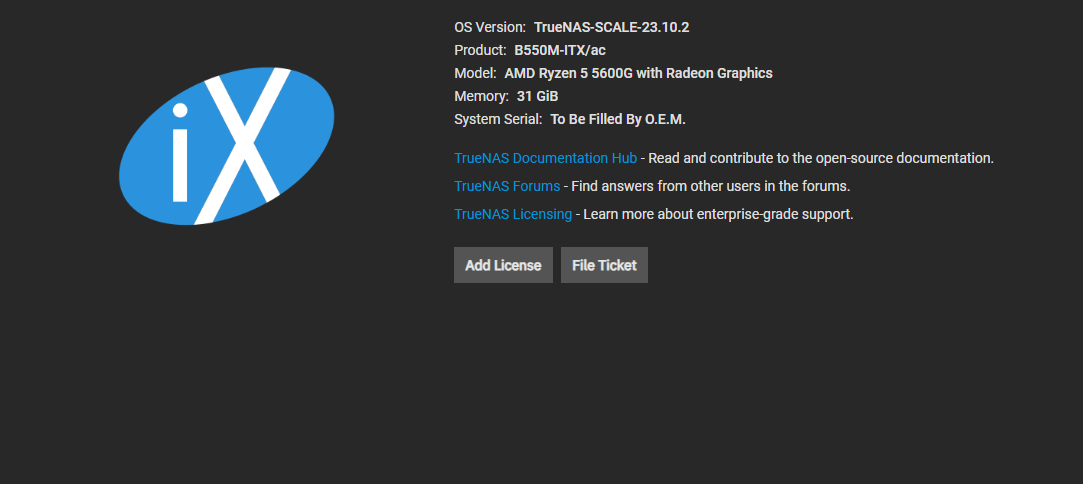

The specs of the system are:
AMD 5600G - CPU w/ Integrated Graphics
ASRock B550M - ITX Motherboard
32 GB of RAM
8 Hard Drives of varying sizes and brands
1 M.2 SSD

Pools were setup up as with no raid or anything of that nature. I call it JBOD from windows but I’m not sure if that carries over.

lsblk -bo
NAME,LABEL,MAJ:MIN,TRAN,ROTA,ZONED,VENDOR,MODEL,SERIAL,PARTUUID,START,SIZE,PARTTYPENAME

NAME          LABEL            MAJ:MIN TRAN   ROTA ZONED VENDOR   MODEL                 SERIAL          PARTUUID                                START           SIZE PARTTYPENAME
sda                              8:0   sata      1 none  ATA      WDC WUH721818ALE604   3FHZ58KT                                                      18000207937536
└─sda1        Capricorn Server   8:1             1 none                                                 05fa0e4b-dc1c-4710-8b9f-2ebbd11f1c98     4096 18000204792320 Solaris /usr & Apple ZFS
sdb                              8:16  sata      1 none  ATA      WDC WD60EDAZ-11U78B0  WD-WX42DC0ECPZP                                                6001175126016
└─sdb1        Capricorn Server   8:17            1 none                                                 e6129e1a-8bc9-4a0a-8b5b-cc4486aa4dbe     4096  6001172414976 Solaris /usr & Apple ZFS
sdc                              8:32  sata      1 none  ATA      WDC WUH721818ALE6L4   3GG28JYE                                                      18000207937536
└─sdc1        Capricorn Server   8:33            1 none                                                 4364e6d0-2fd3-44fe-b658-bdab575c6974     4096 18000204792320 Solaris /usr & Apple ZFS
sdd                              8:48  sata      1 none  ATA      WDC WUH721414ALE6L4   Y6G74MYC                                                      14000519643136
└─sdd1        Capricorn Server   8:49            1 none                                                 532b3a17-b33c-4746-b80a-b375b4c73c5c     4096 14000516497920 Solaris /usr & Apple ZFS
sde                              8:64  sata      1 none  ATA      WDC WD140EDGZ-11B2DA2 2CHXGJJJ                                                      14000519643136
└─sde1        Capricorn Server   8:65            1 none                                                 41a955b0-6261-43a0-ae9d-9a7b5c72bc93     4096 14000516497920 Solaris /usr & Apple ZFS
sdf                              8:80  sata      1 none  ATA      WDC WUH721818ALE604   2VG278NA                                                      18000207937536
└─sdf1        Capricorn Server   8:81            1 none                                                 d28168b5-1dcd-4198-b38d-52ac23246d92     4096 18000204792320 Solaris /usr & Apple ZFS
sdg                              8:96  sata      1 none  ATA      WDC WUH721818ALE604   3MGJ4LYU                                                      18000207937536
└─sdg1        Capricorn Server   8:97            1 none                                                 59c44bbc-3ecb-4cd4-b557-d1cdce077a96     4096 18000204792320 Solaris /usr & Apple ZFS
sdh                              8:112 sata      1 none  ATA      WDC WUH721818ALE604   5DKRTKGV                                                      18000207937536
└─sdh1        Capricorn Server   8:113           1 none                                                 092572ae-8e57-486f-ba5a-9d4ccad89452     4096 18000204792320 Solaris /usr & Apple ZFS
nvme0n1                        259:0   nvme      0 none           WD Blue SN570 500GB   222622818306                                                    500107862016
├─nvme0n1p1                    259:1   nvme      0 none                                                 317d1873-7704-4d7a-be5f-61ee7cb2d130     4096        1048576 BIOS boot
├─nvme0n1p2   EFI              259:2   nvme      0 none                                                 79f9213c-2f1c-4cbb-81b6-57e092387eed     6144      536870912 EFI System
├─nvme0n1p3   boot-pool        259:3   nvme      0 none                                                 21cd70d4-4fd4-410e-b397-a1cf7fa4691d 34609152   482387959296 Solaris /usr & Apple ZFS
└─nvme0n1p4                    259:4   nvme      0 none                                                 900e387b-c712-44a3-be6d-367dcdb4e235  1054720    17179869184 Linux swap
  └─nvme0n1p4                  253:0             0 none                                                                                                  17179869184

sudo ZPOOL_SCRIPTS_AS_ROOT=1 zpool status -vLtsc lsblk,serial,smartx,smart

  pool: boot-pool
 state: ONLINE
  scan: scrub repaired 0B in 00:00:04 with 0 errors on Thu Jul 31 03:45:05 2025
config:

        NAME         STATE     READ WRITE CKSUM  SLOW    size  vendor                model        serial  pwr_cyc  hours_on  health  temp  nvme_err
        boot-pool    ONLINE       0     0     0     -
          nvme0n1p3  ONLINE       0     0     0     0  465.8G       -  WD Blue SN570 500GB  222622818306      116     10063  PASSED    43         0  (untrimmed)

errors: No known data errors

sudo zpool import

   pool: Capricorn Server
     id: 9641403254372462585
  state: ONLINE
 action: The pool can be imported using its name or numeric identifier.
 config:

        Capricorn Server                        ONLINE
          d28168b5-1dcd-4198-b38d-52ac23246d92  ONLINE
          092572ae-8e57-486f-ba5a-9d4ccad89452  ONLINE
          41a955b0-6261-43a0-ae9d-9a7b5c72bc93  ONLINE
          532b3a17-b33c-4746-b80a-b375b4c73c5c  ONLINE
          e6129e1a-8bc9-4a0a-8b5b-cc4486aa4dbe  ONLINE
          indirect-5                            ONLINE
          05fa0e4b-dc1c-4710-8b9f-2ebbd11f1c98  ONLINE
          59c44bbc-3ecb-4cd4-b557-d1cdce077a96  ONLINE
          4364e6d0-2fd3-44fe-b658-bdab575c6974  ONLINE

sudo zpool status -v

  pool: boot-pool
 state: ONLINE
  scan: scrub repaired 0B in 00:00:04 with 0 errors on Thu Jul 31 03:45:05 2025
config:

        NAME         STATE     READ WRITE CKSUM
        boot-pool    ONLINE       0     0     0
          nvme0n1p3  ONLINE       0     0     0
errors: No known data errors

lspci

00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir/Cezanne Root Complex
00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe Dummy Host Bridge
00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge
00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe Dummy Host Bridge
00:02.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir/Cezanne PCIe GPP Bridge
00:02.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir/Cezanne PCIe GPP Bridge
00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe Dummy Host Bridge
00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir Internal PCIe GPP Bridge to Bus
00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 51)
00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Cezanne Data Fabric; Function 0
00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Cezanne Data Fabric; Function 1
00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Cezanne Data Fabric; Function 2
00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Cezanne Data Fabric; Function 3
00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Cezanne Data Fabric; Function 4
00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Cezanne Data Fabric; Function 5
00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Cezanne Data Fabric; Function 6
00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Cezanne Data Fabric; Function 7
01:00.0 SATA controller: ASMedia Technology Inc. ASM1166 Serial ATA Controller (rev 02)
02:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] 500 Series Chipset USB 3.1 XHCI Controller
02:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] 500 Series Chipset SATA Controller
02:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] 500 Series Chipset Switch Upstream Port
03:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43ea
03:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43ea
04:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 15)
05:00.0 Network controller: Intel Corporation Dual Band Wireless-AC 3168NGW [Stone Peak] (rev 10)
06:00.0 Non-Volatile memory controller: Sandisk Corp WD Blue SN570 NVMe SSD 1TB
07:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Cezanne [Radeon Vega Series / Radeon Vega Mobile Series] (rev c9)
07:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Renoir Radeon High Definition Audio Controller
07:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 10h-1fh) Platform Security Processor
07:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Renoir/Cezanne USB 3.1
07:00.4 USB controller: Advanced Micro Devices, Inc. [AMD] Renoir/Cezanne USB 3.1
07:00.6 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h/19h HD Audio Controller

SmallBarky · August 1, 2025, 9:05pm

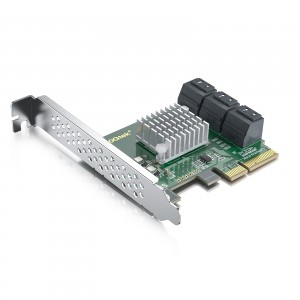

Is this the correct card from the 10Gtek website?

● It connects four 6 Gbps SATA3.0 SSD or HDD to your desktop computer with 6 SATA cable to improve your system performance and expand overall internal storage. (NO-Support Raid)
● The 6 ports SATA controller base on ASMedia ASM1166 chip, more stable and wider compatible. Port Multiplier Command-based switching supported.
● Compliant with SATA3.0 standards, backward compatible with SATA1.0 and SATA2.0. Support PCIe1.0, 2.0, 3.0 protocol on motherbaord PCIe X2, X4, X8, X16 slot.
● Full height and low profile bracket included.
● Supports Windows 7/8/10, Windows Server 2008 R2/2012 R2/2016/2019, RHEL/CentOS 6/7/8, Debian 9/10/11, Ubuntu 16/18/20/21, SUES 11/12/15, FreeBSD 11/12/13, VMware ESXi 5/6/7.
● NOT support hot swaping！

ninedakom · August 1, 2025, 9:15pm

yep thats it

etorix · August 1, 2025, 9:32pm

Far from optimal, but apparently without port multipliers.

This is indeed a stripe: Lose one drive, loose all. Are you aware of this risk?

Have you removed drives in this pool?

Anyway, the next step is to look at labels.
sudo zdb -l /dev/sda1
and repeat for all 8 drives sda through sdh
I fear that they are widely out of sync, as we’ve now seen too often with “dubious setups” and power losses.

ninedakom · August 1, 2025, 9:48pm

No I wasn’t aware, but I do have the most important files backed up.

I havent removed any of the drives.

sudo zdb -l /dev/sda1

    version: 5000
    name: 'Capricorn Server'
    state: 0
    txg: 5543776
    pool_guid: 9641403254372462585
    errata: 0
    hostid: 1643583074
    hostname: 'truenas'
    top_guid: 5252299547354410549
    guid: 5252299547354410549
    vdev_children: 9
    vdev_tree:
        type: 'disk'
        id: 6
        guid: 5252299547354410549
        path: '/dev/disk/by-partuuid/05fa0e4b-dc1c-4710-8b9f-2ebbd11f1c98'
        whole_disk: 0
        metaslab_array: 1038
        metaslab_shift: 34
        ashift: 12
        asize: 18000200073216
        is_log: 0
        DTL: 44270
        create_txg: 378952
        degraded: 1
        aux_state: 'err_exceeded'
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
        com.klarasystems:vdev_zaps_v2
        com.delphix:device_removal
    labels = 0 1 2 3

sudo zdb -l /dev/sdb1

    version: 5000
    name: 'Capricorn Server'
    state: 0
    txg: 5543776
    pool_guid: 9641403254372462585
    errata: 0
    hostid: 1643583074
    hostname: 'truenas'
    top_guid: 9889173737415368928
    guid: 9889173737415368928
    vdev_children: 9
    vdev_tree:
        type: 'disk'
        id: 4
        guid: 9889173737415368928
        path: '/dev/disk/by-partuuid/e6129e1a-8bc9-4a0a-8b5b-cc4486aa4dbe'
        whole_disk: 0
        metaslab_array: 769
        metaslab_shift: 34
        ashift: 12
        asize: 6001167695872
        is_log: 0
        DTL: 44273
        create_txg: 378927
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
        com.klarasystems:vdev_zaps_v2
        com.delphix:device_removal
    labels = 0 1 2 3

sudo zdb -l /dev/sdc1

    version: 5000
    name: 'Capricorn Server'
    state: 0
    txg: 5549194
    pool_guid: 9641403254372462585
    errata: 0
    hostid: 1643583074
    hostname: 'truenas'
    top_guid: 17612735908587550825
    guid: 17612735908587550825
    vdev_children: 9
    vdev_tree:
        type: 'disk'
        id: 8
        guid: 17612735908587550825
        path: '/dev/disk/by-partuuid/4364e6d0-2fd3-44fe-b658-bdab575c6974'
        whole_disk: 0
        metaslab_array: 12585
        metaslab_shift: 34
        ashift: 12
        asize: 18000200073216
        is_log: 0
        DTL: 910
        create_txg: 4051968
        degraded: 1
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
        com.klarasystems:vdev_zaps_v2
        com.delphix:device_removal
    labels = 0 1 2 3

sudo zdb -l /dev/sdd1

    version: 5000
    name: 'Capricorn Server'
    state: 0
    txg: 5543776
    pool_guid: 9641403254372462585
    errata: 0
    hostid: 1643583074
    hostname: 'truenas'
    top_guid: 4284948363490734459
    guid: 4284948363490734459
    vdev_children: 9
    vdev_tree:
        type: 'disk'
        id: 3
        guid: 4284948363490734459
        path: '/dev/disk/by-partuuid/532b3a17-b33c-4746-b80a-b375b4c73c5c'
        whole_disk: 0
        metaslab_array: 256
        metaslab_shift: 34
        ashift: 12
        asize: 14000511778816
        is_log: 0
        DTL: 44268
        create_txg: 4
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
        com.klarasystems:vdev_zaps_v2
        com.delphix:device_removal
    labels = 0 1 2 3

sudo zdb -l /dev/sde1

    version: 5000
    name: 'Capricorn Server'
    state: 0
    txg: 5543776
    pool_guid: 9641403254372462585
    errata: 0
    hostid: 1643583074
    hostname: 'truenas'
    top_guid: 13262476128012038854
    guid: 13262476128012038854
    vdev_children: 9
    vdev_tree:
        type: 'disk'
        id: 2
        guid: 13262476128012038854
        path: '/dev/disk/by-partuuid/41a955b0-6261-43a0-ae9d-9a7b5c72bc93'
        whole_disk: 0
        metaslab_array: 263
        metaslab_shift: 34
        ashift: 12
        asize: 14000511778816
        is_log: 0
        DTL: 44274
        create_txg: 4
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
        com.klarasystems:vdev_zaps_v2
        com.delphix:device_removal
    labels = 0 1 2 3

sudo zdb -l /dev/sdf1

    version: 5000
    name: 'Capricorn Server'
    state: 0
    txg: 5543776
    pool_guid: 9641403254372462585
    errata: 0
    hostid: 1643583074
    hostname: 'truenas'
    top_guid: 2808669083376524403
    guid: 2808669083376524403
    vdev_children: 9
    vdev_tree:
        type: 'disk'
        id: 0
        guid: 2808669083376524403
        path: '/dev/disk/by-partuuid/d28168b5-1dcd-4198-b38d-52ac23246d92'
        whole_disk: 0
        metaslab_array: 273
        metaslab_shift: 34
        ashift: 12
        asize: 18000200073216
        is_log: 0
        DTL: 44275
        create_txg: 4
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
        com.klarasystems:vdev_zaps_v2
        com.delphix:device_removal
    labels = 0 1 2 3

sudo zdb -l /dev/sdg1

    version: 5000
    name: 'Capricorn Server'
    state: 0
    txg: 5543776
    pool_guid: 9641403254372462585
    errata: 0
    hostid: 1643583074
    hostname: 'truenas'
    top_guid: 16475725672652332813
    guid: 16475725672652332813
    vdev_children: 9
    vdev_tree:
        type: 'disk'
        id: 7
        guid: 16475725672652332813
        path: '/dev/disk/by-partuuid/59c44bbc-3ecb-4cd4-b557-d1cdce077a96'
        whole_disk: 0
        metaslab_array: 1031
        metaslab_shift: 34
        ashift: 12
        asize: 18000200073216
        is_log: 0
        DTL: 44271
        create_txg: 378952
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
        com.klarasystems:vdev_zaps_v2
        com.delphix:device_removal
    labels = 0 1 2 3

sudo zdb -l /dev/sdh1

    version: 5000
    name: 'Capricorn Server'
    state: 0
    txg: 5543776
    pool_guid: 9641403254372462585
    errata: 0
    hostid: 1643583074
    hostname: 'truenas'
    top_guid: 6091225001542852778
    guid: 6091225001542852778
    vdev_children: 9
    vdev_tree:
        type: 'disk'
        id: 1
        guid: 6091225001542852778
        path: '/dev/disk/by-partuuid/092572ae-8e57-486f-ba5a-9d4ccad89452'
        whole_disk: 0
        metaslab_array: 268
        metaslab_shift: 34
        ashift: 12
        asize: 18000200073216
        is_log: 0
        DTL: 44269
        create_txg: 4
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
        com.klarasystems:vdev_zaps_v2
        com.delphix:device_removal
    labels = 0 1 2 3

etorix · August 2, 2025, 9:35am

Still, there is this indirect-5 and labels show nine children for eight drives.

sda has

        degraded: 1
        aux_state: 'err_exceeded'

and I don’t know what we can do about it.
All drives are at txg 5543776, except sdc which is at 5549194, 5418 txg ahead (7.5 hours!). No common überblock.

This looks bad. Maybe @HoneyBadger can have a better idea than trying to import at 5543776?

Edit You can check SMART reports for sda, and initiate a long test if none was excecuted recently.
sudo smartctl -x /dev/sda

SmallBarky · August 2, 2025, 2:04pm

Seven drives on and the same TXG and one 5418 TXG ahead. It almost looks like ZFS / TrueNAS messed up the TXG on power loss on the single drive. Like it burped 5418 ahead, into the future. I can’t see any way a striped pool like this would have it.

Is there a way to tie the TXG to actual time?

winnielinnie · August 2, 2025, 2:10pm

Not really. You can get an idea of it by comparing a snapshot’s TXG to its creation time, then estimate the time for a TXG that is newer or older than the snapshot.

ninedakom · August 4, 2025, 2:09am

My apologies we has two nas setups one true nas and one synology I thought our previous drive failure was on the synology nas but it was on the true nas 4-5 months ago. The drive was replaced the system was able to reintegrate the drive and we hadn’t had any issues with it until the power outage.

sudo smartctl -x /dev/sda

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  101) seconds.
Offline data collection
capabilities:                    (0x5b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        (1905) minutes.
SCT capabilities:              (0x003d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAGS    VALUE WORST THRESH FAIL RAW_VALUE
  1 Raw_Read_Error_Rate     PO-R--   100   100   001    -    0
  2 Throughput_Performance  P-S---   149   149   054    -    44
  3 Spin_Up_Time            POS---   082   082   001    -    373 (Average 366)
  4 Start_Stop_Count        -O--C-   100   100   000    -    384
  5 Reallocated_Sector_Ct   PO--CK   100   100   001    -    0
  7 Seek_Error_Rate         PO-R--   100   100   001    -    0
  8 Seek_Time_Performance   P-S---   140   140   020    -    15
  9 Power_On_Hours          -O--C-   098   098   000    -    14449
 10 Spin_Retry_Count        PO--C-   100   100   001    -    0
 12 Power_Cycle_Count       -O--CK   095   095   000    -    381
 22 Helium_Level            PO---K   100   100   025    -    100
192 Power-Off_Retract_Count -O--CK   100   100   000    -    1159
193 Load_Cycle_Count        -O--C-   100   100   000    -    1159
194 Temperature_Celsius     -O----   043   043   000    -    49 (Min/Max 19/68)
196 Reallocated_Event_Count -O--CK   100   100   000    -    0
197 Current_Pending_Sector  -O---K   100   100   000    -    0
198 Offline_Uncorrectable   ---R--   100   100   000    -    0
199 UDMA_CRC_Error_Count    -O-R--   100   100   000    -    0
                            ||||||_ K auto-keep
                            |||||__ C event count
                            ||||___ R error rate
                            |||____ S speed/performance
                            ||_____ O updated online
                            |______ P prefailure warning

General Purpose Log Directory Version 1
SMART           Log Directory Version 1 [multi-sector log support]
Address    Access  R/W   Size  Description
0x00       GPL,SL  R/O      1  Log Directory
0x01           SL  R/O      1  Summary SMART error log
0x02           SL  R/O      1  Comprehensive SMART error log
0x03       GPL     R/O      1  Ext. Comprehensive SMART error log
0x04       GPL     R/O    256  Device Statistics log
0x04       SL      R/O    255  Device Statistics log
0x06           SL  R/O      1  SMART self-test log
0x07       GPL     R/O      1  Extended self-test log
0x08       GPL     R/O      2  Power Conditions log
0x09           SL  R/W      1  Selective self-test log
0x0c       GPL     R/O  30001  Pending Defects log
0x10       GPL     R/O      1  NCQ Command Error log
0x11       GPL     R/O      1  SATA Phy Event Counters log
0x12       GPL     R/O      1  SATA NCQ Non-Data log
0x13       GPL     R/O      1  SATA NCQ Send and Receive log
0x15       GPL     R/W      1  Rebuild Assist log
0x21       GPL     R/O      1  Write stream error log
0x22       GPL     R/O      1  Read stream error log
0x24       GPL     R/O    256  Current Device Internal Status Data log
0x25       GPL     R/O    256  Saved Device Internal Status Data log
0x2f       GPL     R/O      1  Set Sector Configuration
0x30       GPL,SL  R/O      9  IDENTIFY DEVICE data log
0x80-0x9f  GPL,SL  R/W     16  Host vendor specific log
0xb7           SL  VS       1  Device vendor specific log
0xd8       GPL,SL  VS       1  Device vendor specific log
0xe0       GPL,SL  R/W      1  SCT Command/Status
0xe1       GPL,SL  R/W      1  SCT Data Transfer

SMART Extended Comprehensive Error Log Version: 1 (1 sectors)
No Errors Logged

SMART Extended Self-test Log Version: 1 (1 sectors)
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Interrupted (host reset)      40%     12601         -
# 2  Extended offline    Completed without error       00%     12463         -
# 3  Extended offline    Interrupted (host reset)      20%     12199         -
# 4  Extended offline    Completed without error       00%     12037         -
# 5  Extended offline    Completed without error       00%     11869         -
# 6  Extended offline    Completed without error       00%     11701         -
# 7  Extended offline    Completed without error       00%     11534         -
# 8  Extended offline    Completed without error       00%     11366         -
# 9  Extended offline    Interrupted (host reset)      10%     11194         -
#10  Extended offline    Completed without error       00%     11030         -
#11  Extended offline    Completed without error       00%     10862         -
#12  Extended offline    Completed without error       00%     10694         -
#13  Extended offline    Completed without error       00%     10526         -
#14  Extended offline    Aborted by host               30%     10349         -
#15  Extended offline    Completed without error       00%     10308         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

SCT Status Version:                  3
SCT Version (vendor specific):       256 (0x0100)
Device State:                        Active (0)
Current Temperature:                    49 Celsius
Power Cycle Min/Max Temperature:     34/59 Celsius
Lifetime    Min/Max Temperature:     19/68 Celsius
Under/Over Temperature Limit Count:   0/0
SMART Status:                        0xc24f (PASSED)
Minimum supported ERC Time Limit:    65 (6.5 seconds)

SCT Temperature History Version:     2
Temperature Sampling Period:         1 minute
Temperature Logging Interval:        1 minute
Min/Max recommended Temperature:      0/60 Celsius
Min/Max Temperature Limit:           -40/70 Celsius
Temperature History Size (Index):    128 (27)

Index    Estimated Time   Temperature Celsius
  28    2025-08-03 17:00    53  **********************************
 ...    ..( 78 skipped).    ..  **********************************
 107    2025-08-03 18:19    53  **********************************
 108    2025-08-03 18:20    52  *********************************
 ...    ..( 10 skipped).    ..  *********************************
 119    2025-08-03 18:31    52  *********************************
 120    2025-08-03 18:32    51  ********************************
 ...    ..(  8 skipped).    ..  ********************************
   1    2025-08-03 18:41    51  ********************************
   2    2025-08-03 18:42    50  *******************************
 ...    ..( 14 skipped).    ..  *******************************
  17    2025-08-03 18:57    50  *******************************
  18    2025-08-03 18:58    49  ******************************
  19    2025-08-03 18:59    50  *******************************
  20    2025-08-03 19:00    49  ******************************
 ...    ..(  5 skipped).    ..  ******************************
  26    2025-08-03 19:06    49  ******************************
  27    2025-08-03 19:07    53  **********************************

SCT Error Recovery Control:
           Read: Disabled
          Write: Disabled

Device Statistics (GP Log 0x04)
Page  Offset Size        Value Flags Description
0x01  =====  =               =  ===  == General Statistics (rev 1) ==
0x01  0x008  4             381  ---  Lifetime Power-On Resets
0x01  0x010  4           14449  ---  Power-on Hours
0x01  0x018  6     85710890556  ---  Logical Sectors Written
0x01  0x020  6       375587685  ---  Number of Write Commands
0x01  0x028  6    162310505584  ---  Logical Sectors Read
0x01  0x030  6        94742837  ---  Number of Read Commands
0x01  0x038  6     52018471250  ---  Date and Time TimeStamp
0x03  =====  =               =  ===  == Rotating Media Statistics (rev 1) ==
0x03  0x008  4           14377  ---  Spindle Motor Power-on Hours
0x03  0x010  4           14377  ---  Head Flying Hours
0x03  0x018  4            1159  ---  Head Load Events
0x03  0x020  4               0  ---  Number of Reallocated Logical Sectors
0x03  0x028  4               0  ---  Read Recovery Attempts
0x03  0x030  4               0  ---  Number of Mechanical Start Failures
0x04  =====  =               =  ===  == General Errors Statistics (rev 1) ==
0x04  0x008  4               0  ---  Number of Reported Uncorrectable Errors
0x04  0x010  4               0  ---  Resets Between Cmd Acceptance and Completion
0x05  =====  =               =  ===  == Temperature Statistics (rev 1) ==
0x05  0x008  1              49  ---  Current Temperature
0x05  0x010  1              50  N--  Average Short Term Temperature
0x05  0x018  1              52  N--  Average Long Term Temperature
0x05  0x020  1              68  ---  Highest Temperature
0x05  0x028  1              19  ---  Lowest Temperature
0x05  0x030  1              62  N--  Highest Average Short Term Temperature
0x05  0x038  1              25  N--  Lowest Average Short Term Temperature
0x05  0x040  1              56  N--  Highest Average Long Term Temperature
0x05  0x048  1              25  N--  Lowest Average Long Term Temperature
0x05  0x050  4            7015  ---  Time in Over-Temperature
0x05  0x058  1              60  ---  Specified Maximum Operating Temperature
0x05  0x060  4               0  ---  Time in Under-Temperature
0x05  0x068  1               0  ---  Specified Minimum Operating Temperature
0x06  =====  =               =  ===  == Transport Statistics (rev 1) ==
0x06  0x008  4             848  ---  Number of Hardware Resets
0x06  0x010  4              37  ---  Number of ASR Events
0x06  0x018  4               0  ---  Number of Interface CRC Errors
0xff  =====  =               =  ===  == Vendor Specific Statistics (rev 1) ==
                                |||_ C monitored condition met
                                ||__ D supports DSN
                                |___ N normalized value

Pending Defects log (GP Log 0x0c)
No Defects Logged

SATA Phy Event Counters (GP Log 0x11)
ID      Size     Value  Description
0x0001  2            0  Command failed due to ICRC error
0x0002  2            0  R_ERR response for data FIS
0x0003  2            0  R_ERR response for device-to-host data FIS
0x0004  2            0  R_ERR response for host-to-device data FIS
0x0005  2            0  R_ERR response for non-data FIS
0x0006  2            0  R_ERR response for device-to-host non-data FIS
0x0007  2            0  R_ERR response for host-to-device non-data FIS
0x0008  2            0  Device-to-host non-data FIS retries
0x0009  2            3  Transition from drive PhyRdy to drive PhyNRdy
0x000a  2            2  Device-to-host register FISes sent due to a COMRESET
0x000b  2            0  CRC errors within host-to-device FIS
0x000d  2            0  Non-CRC errors within host-to-device FIS
