Setting permissions so apps can use Generic type datasets?

[RxgfHQBrmBlx]

I’m running SCALE/Community Goldeye on a UGREEN DXP4800+.

I’m trying to get Syncthing to work. Unfortunately, Syncthing doesn’t work properly on datasets set up using the Apps share type because the case-insensitive file system screws up its function. If I delete a file on my computer, Syncthing puts it right back as though I’d never deleted it. I have to delete it a second time before Syncthing properly recognizes the deletion. From posts I’ve found on forums, this is a known limitation of Syncthing caused by the case-insensitive file system, with no likely solution. I haven’t found a workaround anywhere.

I’m trying to get apps to work with a Generic share type dataset to avoid the case-insensitive problem. Unfortunately, 90% of help material seems to focus on SMB or Apps share type datasets, and the few I’ve found that cover POSIX permissions don’t talk much about using apps.

A file sync machine was one of the main reasons I purchased and set up a NAS. If the answer is just that apps will only work with SMB type permissions–aka, Syncthing won’t work properly–then I might as well just swap to Debian with OpenZFS. I’d rather stick to TrueNAS if possible so I don’t waste the hours I’ve made taking notes, lol.

I’m using Filebrowser as a convenient way to test this. I’ve added test_dataset to its Additional Storage, set the host path and given it the mount path of /test_dataset. test_dataset shows up as a folder in the Filebrowser home directory, so it seems to be set up correctly.

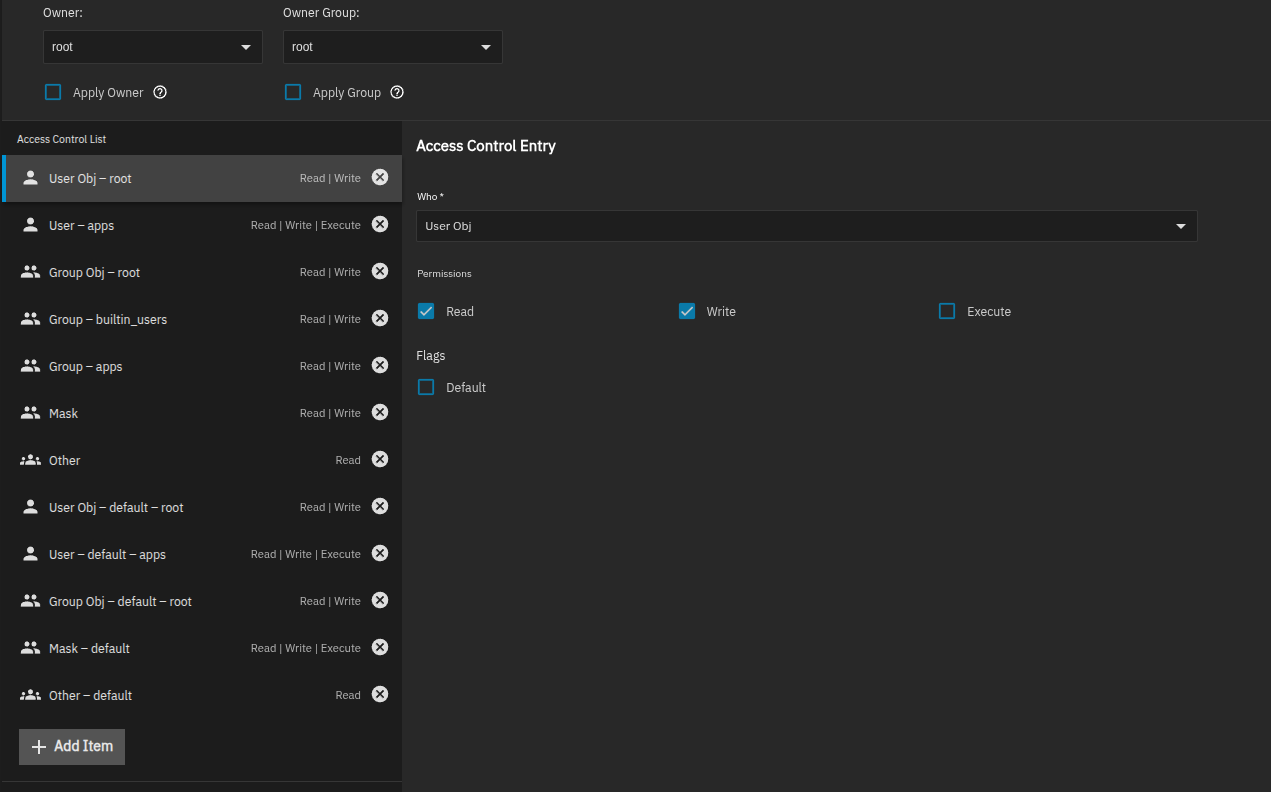

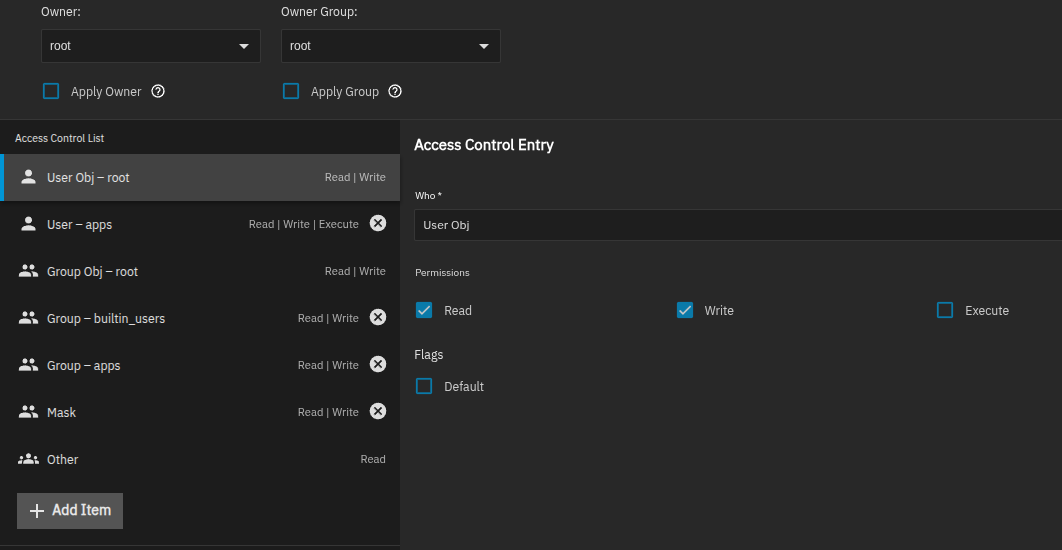

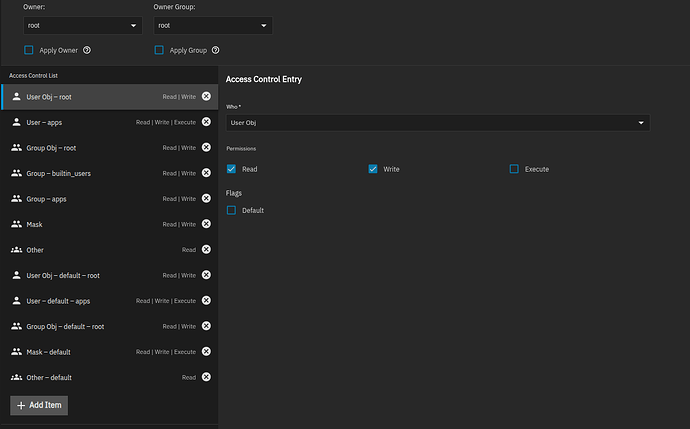

I’ve attached pictures of the current permissions lists I’ve been trying for a test dataset. Owner and Owner Group are left as root. On the second screenshot, I’ve deleted some of the default permissions in case they were causing conflicts. Both setups just lead to Error 403 when I try to upload a file to the dataset using Filebrowser.

Any insights or help in getting apps to work with Generic datasets? Does it even work, or am I just chasing my tail?

[zendnez]

Hi, @RxgfHQBrmBlx.

I’m relatively new to TrueNAS, so what I’m doing might not be a best practice. It works, though, so you might find it helpful.

I’ve installed Komodo as a TrueNAS app and everything else is a compose deployed using Komodo.

Here’s the rest of the story.

User/Group:

• I’ve created two user/group pairs as:
  • containersvc (PUID/GUID: 2000)
  • containersvc-admin (PUID/GUID: 2001)
• Services that need access to “data” datasets run as containersvc-admin (or as root if necessary). All other services run as containersvc (or as root if necessary)
• Examples of services that run as containersvc-admin are Syncthing, Duplicati, File Browser

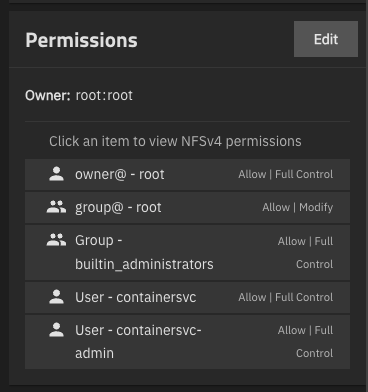

Each app gets its own “app” dataset. Every app’s dataset is ACL’d like this:

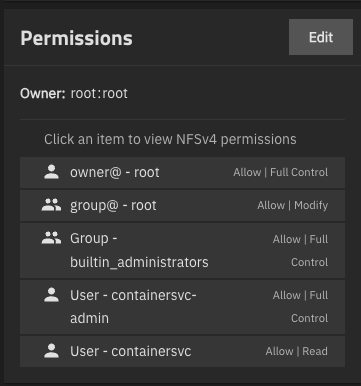

For the “data” datasets, including the datasets that Syncthing syncs, the ACLs are:

To create the “data” datasets, the pattern I’ve found that always works is to create them as “Multiprotocol” and then uncheck the “Create NFS Share” and “Create SMB Share” checkboxes. Then just set the ACLs.

In Syncthing’s compose, I set PUID and PGID to 2001 so it’s running as “containersvc-admin”. I map in the “data” datasets I want to sync. I map everything into Syncthing under a made-up path of /syncthing-folders. An example is:

       - /mnt/data/Music:/syncthing-folders/music

That’s really it. I run a couple of music systems as containers (Roon & Lyrion). Those don’t need write access, so they run as 2000 and then I map the same Music folder in. Because containersvc only has Read, that guarantees read only for those services.

File Browser was a little trick to get working in a way that made it easy to see and manage all of my app and data datasets. I ultimately did it with this bit in volumes in the File Browser compose:

    volumes:
      # File Browser’s own config/database
      - /mnt/apps/appdata/filebrowser/database:/database
      - /mnt/apps/appdata/filebrowser/config:/config

      # Datasets that contain child datasets (needs rshared)
      - type: bind
        source: /mnt/apps/appdata
        target: /srv/appdata
        bind:
          propagation: rshared
      - type: bind
        source: /mnt/data
        target: /srv/data
        bind:
          propagation: rshared

With the ACL model I showed you above, and File Browser running as containersvc-admin (2001), this gives me two root folders in File Browser and everything underneath is writeable.

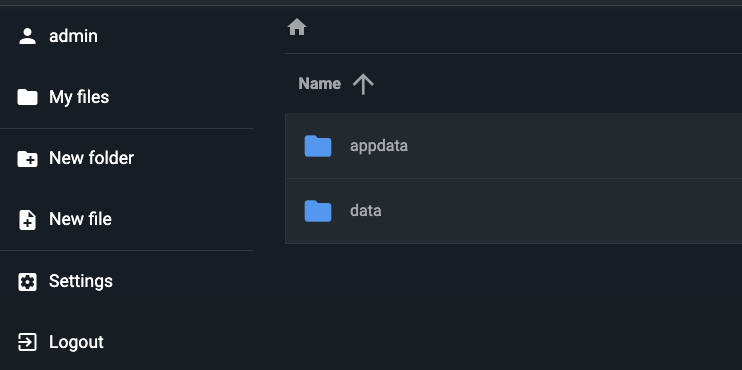

So in my case, it looks like this at the root, which may be what you want, too:

Hopefully something here gets you moving in the right direction!

[RxgfHQBrmBlx]

Hey, thanks! Really appreciate the help.

So you’re setting datasets up as Multiprotocol? From what I understand, Multiprotocol shares use SMB-type permissions but will work for both SMB and NFS. Do you know if that sets the dataset to use a case-insensitive filesystem like a typical SMB setup, or does it use normal case-sensitive filing and then sort of superimpose SMB permissions over the top?

[zendnez]

I did a quick test. I created new datasets, one with each option. The only changes I made duirng creation were to disable the creation of shares.

Here’s what ZFS has to say about their case sensitivity:

zfs get casesensitivity \
  data/test-apps \
  data/test-generic \
  data/test-multiprotocol \
  data/test-SMB

NAME                     PROPERTY         VALUE        SOURCE
data/test-SMB            casesensitivity  insensitive  -
data/test-apps           casesensitivity  sensitive    -
data/test-generic        casesensitivity  sensitive    -
data/test-multiprotocol  casesensitivity  sensitive    -

[LarsR]

The only thing the apps preset does is automatically add the apps user to the ACL list…

[awalkerix]

It sets NFSv4 acltype, sets aclmode to passthrough, and sets a default ACL that grants apps permissions. This allows apps in theory to chmod to their heart’s content, but apps user 568 will still have access to files (obviating a lot of permissions hurdles in theory – until users modify the ACL recursively for various reasons). We could in theory tweak it if there is conclusive feedback that some settings work best for apps that aren’t beneficial overall.

[RxgfHQBrmBlx]

Hmm, you’re right. When I query the case sensitivity on my test dataset, it comes back as sensitive. The error I was getting from Syncthing was error=“file modified but not rescanned; will try again later”. From a couple of threads I found, the Syncthing team seemed to think this error was mostly likely caused by a case-only rename. Based on the SMB case-insensitivity, I thought that might be the culprit. Apparently that’s not the case. (No pun intended.) Guess I’m back to square one, lol.

[zendnez]

@RxgfHQBrmBlx

The error I was getting from Syncthing was error=“file modified but not rescanned; will try again later”.

Was this a one-time error on a single file, or a group of files?

It sounds like you’ve already raised the issue on the Syncthing forum and gotten feedback, so you don’t have to go deep here. I’m a long-time Syncthing user and I don’t recall ever seeing that error though I think it’s typically caused by something having the file open/locked.

[RxgfHQBrmBlx]

Haven’t raised it in the Syncthing forums, but I found existing posts about that error message. I’m having issues with Syncthing putting a file back on the computer a few moments after I delete it. I’ve got a laptop and a desktop I’m trying to sync through the NAS. Both are running linux Mint. It wasn’t a problem when I was first testing it, but then I synced the Desktop folders on both machines and started having issues. I can create a file, like just a blank text file, wait for it to appear on the other machine, but then if I delete it, Syncthing just puts it back. If I delete it a second time, it stays gone and syncs through the whole setup. It’s not consistent, though. I’ve been playing around with it, trying to figure out what conditions cause it. Based on the log error message and the Syncthing forums, I thought it must be due to case insensitivity, but apparently that’s not the issued. I’m not editing the file when I delete it. For testing, I was just using Templates to make a new blank text file, then name it. I don’t know if that would create a lock file for a short time or not. I know Syncthing has problems with file renames where only the case is changed, but since I’m changing Blank Note File.txt to something.txt, I don’t know why that would cause an issue.

[zendnez]

So you have three machines: NAS, desktop, laptop. Did you set up your Syncthing topology such that the desktop and the laptop are paired and the desktop folder is synced between them?

In other words, is your NAS a hub or do you have a triangle? I don’t mean to imply that a triangle shouldn’t work. It should, and does, in most cases. But I’m wondering if there’s some race condition where the delete is being overwritten by an add. In other words:

Desktop → NAS : add this file
NAS → Laptop : Add this file
Desktop → NAS : Delete this file
Laptop → Desktop : Add this file
etc.

In Syncthing, when a conflict is an Add vs. a Delete, the Add wins. Always.

If you did set it up this way, you can test this theory by turning off the Desktop Folder between the Desktop and Laptop. You don’t have to delete that partnership, just turn off the folder.

Even if you didn’t set up a triangle, there’s still a possibility that the file is going Desktop → NAS → Laptop and the Mint is touching it or something on the Laptop. That creates a modify. And then the delete comes via the NAS, and the modify wins over the delete and gets converted to an Add.

That second scenario is possible in hub and triangle topologies - a mod vs. a delete creates an Add.

The theory behind Syncthings conflict resolution is conservatism. It would rather recreate a dead file than mistakenly delete one.

I’m just guessing, though. If you experiment a bit with what I’ve written, and you don’t figure out what’s happening, I suggest you do bring it up on the Sync forum. In most cases, those guys figure it out pretty quickly.

[RxgfHQBrmBlx]

It could be a conflict issue. I have the NAS set up to be a central hub, but the laptop and tower are also connected by their own sync. The folders don’t overlap: the two computers just share a folder called Sync (leftover from before I set up TrueNAS), with no overlap to Desktop or any of the other folders I’m testing through the hub. Worth checking, though. I’ll check with the ST team and see if they have any insight. Thanks for all your help, really appreciate it!

[zendnez]

@RxgfHQBrmBlx

It could be a conflict issue. I have the NAS set up to be a central hub, but the laptop and tower are also connected by their own sync. The folders don’t overlap: the two computers just share a folder called Sync (leftover from before I set up TrueNAS), with no overlap to Desktop or any of the other folders I’m testing through the hub.

I’m not sure I’m following what you’re saying. I didn’t mean to suggest anything about overlapping. What I’m talking about is partnerships. If you have overlapping syncing folders, that’s an entirely different, and problematic, situation.

With respect to the topology - and I hope you read this closely :

Architecturally, Syncthing is peer to peer as opposed to hub and spoke. Examples of hub and spoke are Google Drive or OneDrive. With those products, all sync data flows through the “hub” which, in these cases, are the cloud services.

Syncthing is different because any two devices that have been connected will always attempt to remain in sync. So if you connect NAS - Tower, NAS - Laptop, Tower - Laptop, then changes will flow across each of those connections and will ultimately quiesce.

With Syncthing, you’re control of the partnerships, though, and you don’t have to connect everything to everything. You can, for example, not connect Tower - Laptop. If you do that, you’ve basically created a hub and spoke topology like OneDrive or Google Drive.

It sounds to me that you’ve created a fully connected topology where everything is connected to everything. To test whether that’s the issue, open the UI on your Tower or Laptop (not the NAS). In the Folders list, look for “Desktop” assuming you’ve set that up as its own sync folder, which is probably the best approach for your situation. Open and Edit the settings, go to Sharing, and disable the sharing between Tower and Laptop. You can leave the device partnership in place.

Now that you’ve done that, no changes will flow directly between Laptop and Tower. They will all go through the NAS.

In that state, see if you can replicate the problem. You might or you might not, but you’ll learn something either way and you’ll want to know this before you post on the Syncthing forum. That way, you can include the info in your post and, if it happens with Sync disabled between Tower and Laptop, you can explain that you’ve configured a hub and spoke topology as opposed to fully connected. This will help greatly in having that community assist you.

Anyhow, best of luck. I think you’ll get this working in the ned.

FWIW, because your NAS is likely to be always on, it’s not terrible to run without Tower and Laptop connected if that solves your problem. Plenty of people do run this way for at least some of their replicated folders for various reasons.

[RxgfHQBrmBlx]

There’s no triangle, or at least there shouldn’t be.

Before setting up the NAS, I had one sync between the laptop and desktop: Laptop Sync < - > Tower Sync. This sync is still active until I get the NAS working the way I want it, just as a convenient way to transfer files. These synced folders don’t sync to the NAS at all.

With the NAS, it will be Laptop Desktop < - > NAS Dataset < - > Tower Desktop. I’ll add other folders like Documents, but they’ll all use the NAS as a hub.

The two folders I had setup to sync directly from computer to computer will be deactivated and deleted. There shouldn’t be any overlap between the two setups, but now idk.

[zendnez]

I provided a sample volume mapping a few posts up that uses bind mounts to bind data sets and their children.

There’s an issue with the sample I provided - I’m unfortunately not able to edit it.

The “propogation” model, for both of the examples, should be “rslave”, not “rshared”. “rshared” causes bi-directional propogation, which can result in the creation of additional, unnecessary mounts. “rslave” is one way.

I hope anyone reading this thread sees this before using the example I gave.
