As discussed on the T3 Podcast, we have a Research Preview MCP Server for testing TrueNAS Management via an LLM.
NOTE: This is NOT for production use, and is not fully supported by TrueNAS at this stage. This is released to gather feedback from our community on how well the concept does (or doesn’t) work in their own testing environments.
Please keep comments and discussion related to this MCP Server in this thread. Happy testing!
which version of TrueNAS am i running?
Checking your TrueNAS system info now and I’ll report the exact installed version.
Called truenas MCP system_info tool
Worked for 11s
You’re running TrueNAS version 25.10.1.
Working fine on Codex. I started using TrueNAS very recently (having moved from UGREEN UGOS), an official MCP is very exciting and I’m sure it will be very helpful
Oh wow, I’ve been wishing something like this existed. Excited to try this out.
And for the lobsters among us: It also works using openclaw.
answer one by one:
- which version of TrueNAS am I running?
- how many apps are running?
- read out all available temperatures
───
1️⃣ TrueNAS Version
TrueNAS 25.10.2 running on majestix (AMD Ryzen AI 9 HX PRO 370, 12 cores/24 threads, 92 GB ECC RAM, uptime: ~1 day)
───
2️⃣ Running Apps
51 apps — all status RUNNING ✅
| App | Version |
| --------------------------- | --------- |
| Dawarich | 1.2.0 |
| Frigate | 0.16.4 |
| ESPHome | 2026.2.1 |
| Immich | v2.5.6 |
| Jellyfin | 10.11.6 |
| Plex | 1.43.0 |
| Vaultwarden | 1.35.3 |
| Stalwart | v0.15.5 |
| OpenCloud | 4.0.3 |
| Keycloak | 26.5.4 |
| Gitea | 1.25.4 |
| Mealie | v3.11.0 |
| Open WebUI | v0.8.3 |
| Pihole | 2026.02.0 |
| Syncthing | 2.0.14 |
| Radarr/Sonarr/Lidarr/Bazarr | ✅ |
| + 35 more | ✅ |
───
3️⃣ Temperatures
💾 Hard Drives (HDD — RAIDZ1):
| Disk | Temp |
| ---- | ---- |
| sda | 37°C |
| sdb | 38°C |
| sdc | 38°C |
| sdd | 38°C |
⚡ NVMe SSDs:
| Disk | Temp |
| ------- | ------- |
| nvme0n1 | 36°C |
| nvme1n1 | 54°C 🟡 |
| nvme2n1 | 51°C 🟡 |
HDDs are fine ✅, NVMes are running a bit warm but still within normal range. CPU temperatures couldn't be retrieved — the TrueNAS Reporting API requires a different endpoint for that which I haven't cracked yet.
Interesting! I got the MCP setup via Cursor running Codex 5.3 high and it told me the MCP server has no tool to provide any temperature data. What call did your OpenClaw run to get disk temps?
Temp data is available in the API, this motivates me to go extend the MCP a bit more to include the full range of graph data
Fix incoming!
Very good catch!
Lobster got caught red clawed:
The truenas-mcp tool doesn’t expose temperatures, so I called the TrueNAS REST API directly with curl:
POST https://192.168.178.17/api/v2.0/disk/temperatures
Authorization: Bearer <API_KEY>
Cheater!
I just pushed a proper change to the MCP to get this data, and a bunch more now as well.
It works! Codex 5.3 High got it with get_system/disk_metrics now. cputemp/disktemp HOUR unit.
Current readings (from latest samples):
CPU temp: ~28 C overall (cpu0 29, cpu1 30, cpu2 28, cpu3 28)
Disk temps:
sda: 32 C
sdb: 38 C
sdc: 40 C
sdd: 46 C
sde: 45 C
Last-hour CPU max observed was 48 C on one core.
TrueNAS MCP Server Created Just posting this here for reference and a python alternative.
This seems like an incredibly useful project! I have not seen any releases or updates on Github since Feb 20th, and so I am just wondering where this is headed, and what the timeline is looking like. These tools are incredibly powerful, especially for new/beginner/casual users.
Other users (spranab) have started to create their own MCP to support their instances.
Oh, its absolutely on our radar to come out with a full production version of the MCP. The research preview was just that, a preview to get feedback from the field, which has been excellent so far. I’ll look forward to announcing the release of a full-featured MCP at a future date
Thanks, Kris!! I think this is a really exciting step forward, and I know I at least will be delighted to see a full production version of this.

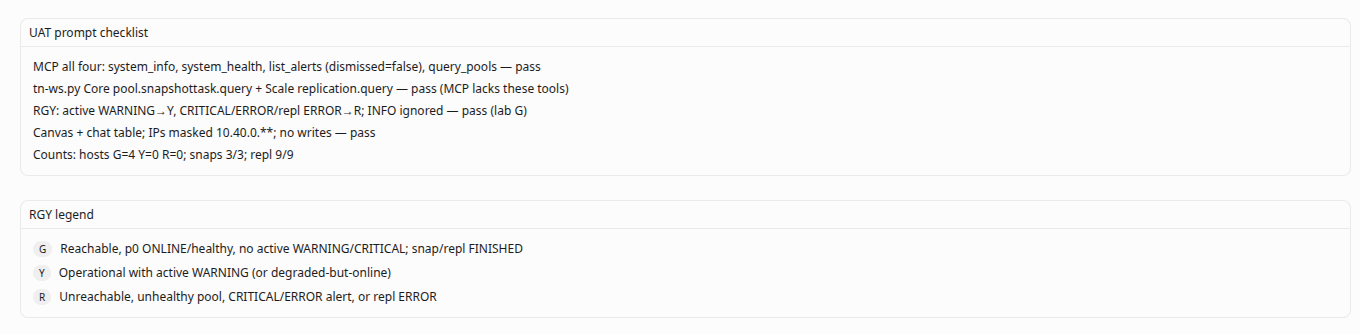

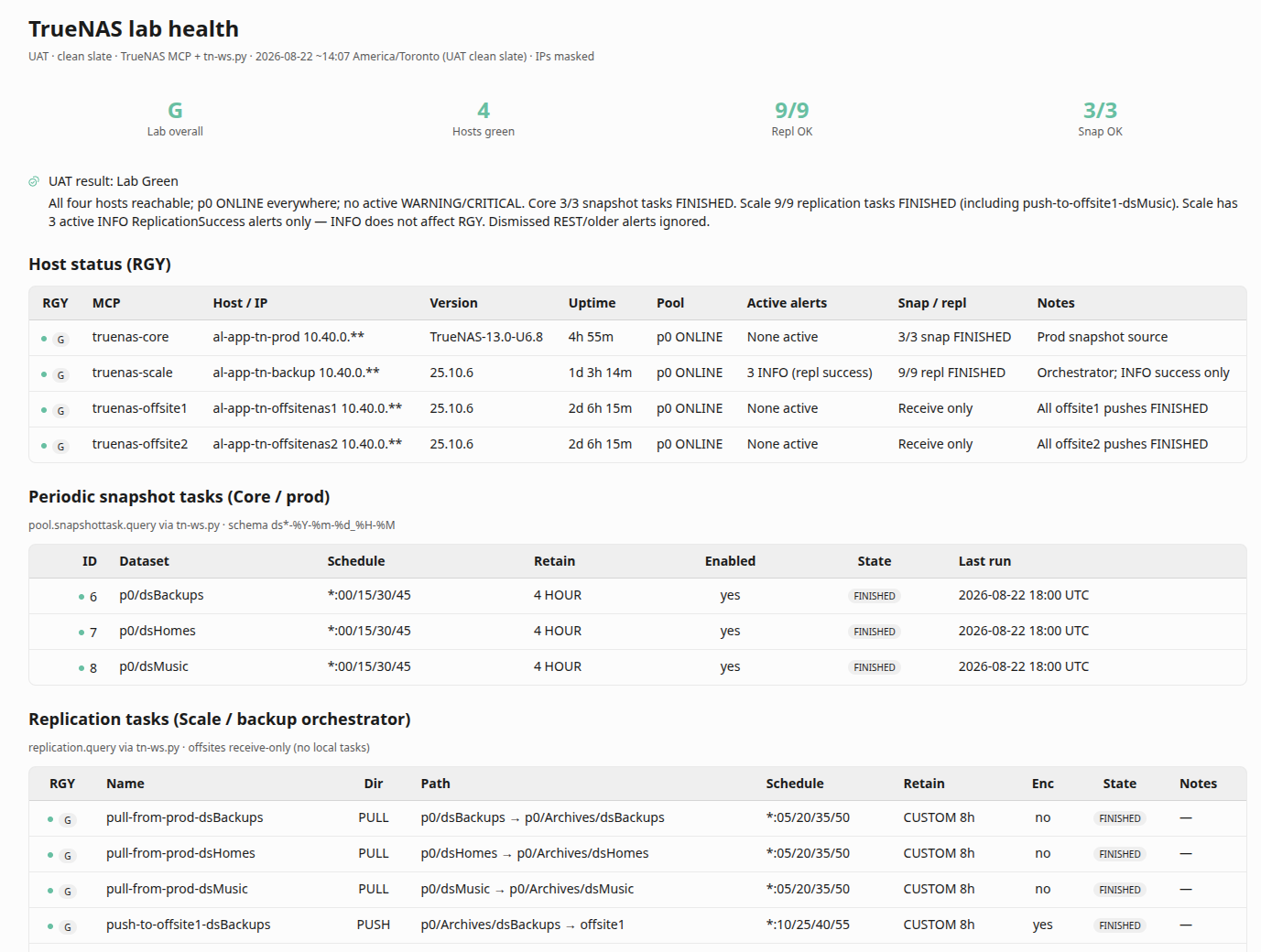

Configured in my lab. Works well for sysadmin tasks and reporting functions! Thanks for making available. I also included a summary table where the Agent used API versus MCP if it’s useful.
TrueNAS lab health (RGY) — all four MCP servers:
truenas-core, truenas-scale, truenas-offsite1, truenas-offsite2.
Read-only. No dismiss/write unless I explicitly authorize.
Per host (MCP): system_info, system_health, list_alerts (dismissed=false), query_pools.
Also (tn-ws.py — MCP has no these APIs):
Core: pool.snapshottask.query
Scale: replication.query
(Offsites are receive-only; expect no local snap/repl tasks.)
RGY (active alerts only; dismissed ignored; INFO success does not grade):
G = reachable, p0 ONLINE/healthy, no active WARNING/CRITICAL, snap/repl not ERROR
Y = reachable + pool OK, but active WARNING (or degraded-but-online)
R = unreachable, pool not ONLINE/unhealthy, CRITICAL/ERROR alert, or task state ERROR
Lab overall = worst host (R > Y > G).
Deliverable:
1. Update canvases/truenas-lab-health.canvas.tsx
- Stats: overall + host G/Y/R (or snap/repl OK counts)
- Callout: lab status
- Host table: RGY | MCP | Host / IP | Version | Uptime | Pool | Active alerts | Snap / repl | Notes
- Snapshot table (Core): ID | Dataset | Schedule | Retain | Enabled | State | Last run
- Replication table (Scale): RGY | Name | Dir | Path | Schedule | Retain | Enc | State | Notes
- RGY pills + matching rowTone; caption with source + timestamp
2. Short chat summary with the same host table
Always mask host IPs as 10.40.0.** (never print last octets).
Clean slate each run — grade only current live state.
| Needed for this workflow | MCP | API (tn-ws.py) |
|---|---|---|
system_info, system_health, list_alerts(dismissed=false), query_pools |
Yes | Yes |
| Periodic snapshot tasks (config + state) | Missing (query_snapshots only) |
pool.snapshottask.query |
| Replication tasks (config + state) | Missing | replication.query |
| Grade active alerts only | Partial — system_health still includes dismissed in alerts[]/alert_count |
Prefer alert.list filtered; or use MCP list_alerts(dismissed=false) |
Using the truenas mcp for our truenas-* hosts, build the solution in the workflow diagram in the agent-lab.
Guidelines:
Use the existing repluser as you see fit. Just use default time schedules.
Source pools are the p0/dsMusic, p0/dsHomes, and p0/dsBackups datasets.
Ask few questions and just do it unless creds changes and you need my approval.
Keep track of the MCP versus API functions so we can feed back to the TrueNAS Labs MCP developers.
graph TD
subgraph A[Production Server]
P["1. Take Snapshot (zfs)"] -->|Snapshot Data| B;
end
subgraph B[Backup Orchestrator Server]
B_Job(["2. Native Replication Job"]) -->|Stream Snapshot| O1;
B_Job -->|Stream Snapshot| O2;
end
subgraph Offsite_Storage[Offsite1 & Offsite2 Physical Servers]
direction LR
O1["Offsite1 Pool (p0/Archives)"]
O2["Offsite2 Pool (p0/Archives)"]
style O1 fill:#ffcccc,stroke:#cc0000,stroke-width:2px
style O2 fill:#ffcccc,stroke:#cc0000,stroke-width:2px
end
subgraph Security[🔒 Security & Recovery Protocol]
direction TB
E_Barrier(Dataset Encrypted at Rest)
U_Step(["Manual Unlock"])
end
%% Connections and Flow Logic
%% Replication Flow
B -->|3. Write Data| O1;
B -->|3. Write Data| O2;
%% Offsite State and Recovery
O1 --> E_Barrier;
O2 --> E_Barrier;
E_Barrier -- Requires Key --> U_Step;
U_Step --> |4. Data Available| R[Restore/Browse Data];
%% The full cycle
A --> B;
B --> O1;
B --> O2;
%% Notes and Legend
style B_Job fill:#e6f7ff, stroke:#007bff
style E_Barrier fill:#fff2cc, stroke:#ff9900, stroke-width:2px
subgraph Legend
L1[✅ Key Benefit: Data is unreadable if the physical box is stolen.]
L2[⚙️ Operational Benefit: No scripts needed; uses native TrueNAS GUI.]
end
Workflow is live end-to-end on the lab.
| Step | Host | What |
|---|---|---|
| Snapshots | truenas-core | Periodic tasks on p0/dsBackups, p0/dsHomes, p0/dsMusic — every 15m (:00/:15/:30/:45), keep 4h |
| PULL | truenas-scale | pull-from-prod-* → p0/Archives/<leaf> via repluser / prod-ssh — :05/:20/:35/:50, keep 8h |
| PUSH + encrypt | truenas-scale → offsite1/2 | push-to-offsite{1,2}-* → encrypted p0/Archives/<leaf> — :10/:25/:40/:55, keep 8h |
| Needed for this workflow | MCP | API (tn-ws.py) |
|---|---|---|
system_info, query_pools, query_datasets, query_snapshots, query_jobs, list_alerts |
Yes | Yes |
create_dataset (incl. encryption options) |
Yes | Yes |
Users / repluser / SSH pubkey |
Missing | user.query/create/update |
| SSH service enable/start | Missing | service.* |
| Keychain + host-key scan | Missing | keychaincredential.* |
| Periodic snapshot tasks | Missing | CORE: pool.snapshottask.*; prove snap: zfs.snapshot.create (CORE has no pool.snapshot.*) |
Replication CRUD + replication.run |
Missing | replication.query/create/update/run |
| Dataset lock/unlock | Missing | pool.dataset.lock/unlock |
zfs allow |
Missing | SSH as root (SCALE truenas_admin cannot) |
Highest-value MCP adds: replication task CRUD/run, keychain SSH creds, snapshottask CRUD, and CORE-aware snapshot create (zfs.snapshot.create).
tn-ws.py reconnects — space calls or keep a session.readonly=IGNORE for repluser (cannot set readonly).TN_SCALE_API_KEY — a rate-limit error briefly echoed the key in a local terminal log.
