Tuenas core 13.0-U6.3 - replace disk - help please

TrueNAS General
1

truenas core
TrueNAS-13.0-U6.3

disk ada1 was failing

pool was:
ada0
ada1
ada2
ada3

offline ada1
power off
replace disk ada1
power on

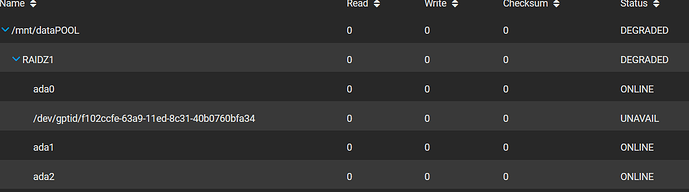

pool status now says:
ada0
/dev/gptid/f102ccfe-63a9-11ed-8c31-40b0760bfa34 - status unavail
ada1
ada2

how do I proceed?
if I click ‘replace’ on the dev disk - there are no options for ‘member disk’

2

If you mean that you’ve physically replaced the drive which was ‘ada1’—having tracked it by serial number—and installed a new drive in its place, you now go to Storage > Pool > Status, (gtid…UNAVAIL) > (3-dot) > Replace.

3

Yep - did that, no options in the drop-down dialog box for 'replacing disk

4

Is the new drive blank? If not, wipe it.

5

Disk doesn’t show up on Storage | Disks
only seen on Storage | Pools | Status

6

How sure are you that you pulled the right disk from the server?

What does the pool status say?

What about camcontrol devlist in an SSH terminal?

7
camcontrol devlist
<WDC WD40EFRX-68N32N0 82.00A82>    at scbus0 target 0 lun 0 (ada0,pass0)
<WDC WD40EFRX-68N32N0 82.00A82>    at scbus2 target 0 lun 0 (ada1,pass1)
<WDC WD40EFRX-68N32N0 82.00A82>    at scbus3 target 0 lun 0 (ada2,pass2)
<AHCI SGPIO Enclosure 2.00 0001>   at scbus4 target 0 lun 0 (ses0,pass3)

disk not showing in camcontrol

  pool: boot-pool
 state: ONLINE
  scan: scrub repaired 0B in 00:00:25 with 0 errors on Tue Dec  3 03:45:25 2024
config:

        NAME        STATE     READ WRITE CKSUM
        boot-pool   ONLINE       0     0     0
          nvd0p2    ONLINE       0     0     0
  pool: dataPOOL
 state: DEGRADED
status: One or more devices has been taken offline by the administrator.
        Sufficient replicas exist for the pool to continue functioning in a
        degraded state.
action: Online the device using 'zpool online' or replace the device with
        'zpool replace'.
  scan: scrub repaired 0B in 05:36:13 with 0 errors on Sun Nov 24 05:36:13 2024
config:

        NAME                                            STATE     READ WRITE CKSUM
        dataPOOL                                        DEGRADED     0     0     0
          raidz1-0                                      DEGRADED     0     0     0
            gptid/f11955d3-63a9-11ed-8c31-40b0760bfa34  ONLINE       0     0     0
            15591353490559573936                        OFFLINE      0     0     0  was /dev/gptid/f102ccfe-63a9-11ed-8c31-40b0760bfa34
            gptid/f12e0ed3-63a9-11ed-8c31-40b0760bfa34  ONLINE       0     0     0
            gptid/f123fe49-63a9-11ed-8c31-40b0760bfa34  ONLINE       0     0     0

errors: No known data errors
8

… and yes, I’m sure I pulled the correct drive - it was a Seagate, all the others were WD

9

image1268×353 16 KB

10

Model of the new drive?

11

Seagate ironwolf pro 4tb (new hdd)

12

Check the cables, data and power. camcontrol should show this drive.

1 Like
13

yet, the disk is seen in zpool status

14

If it is a new drive and not yet part of the pool it should appear under Devices but not (yet) under zpool status.
What is what as it stands?

15

You never showed this yet.

zpool status is showing you the last known disk identifier for the removed disk.

camcontrol confirms that only three disks are detected by the operating system.

16

looks like a motherboard issue. Took it out of the rack to check connections (again). Bench test - won’t boot. Damn!
Total strip down to come, to identify the problem.

17

Solved …
Faulty network card prevented boot process
removed card, boot, replace disk, now re-silvering

2 Likes
