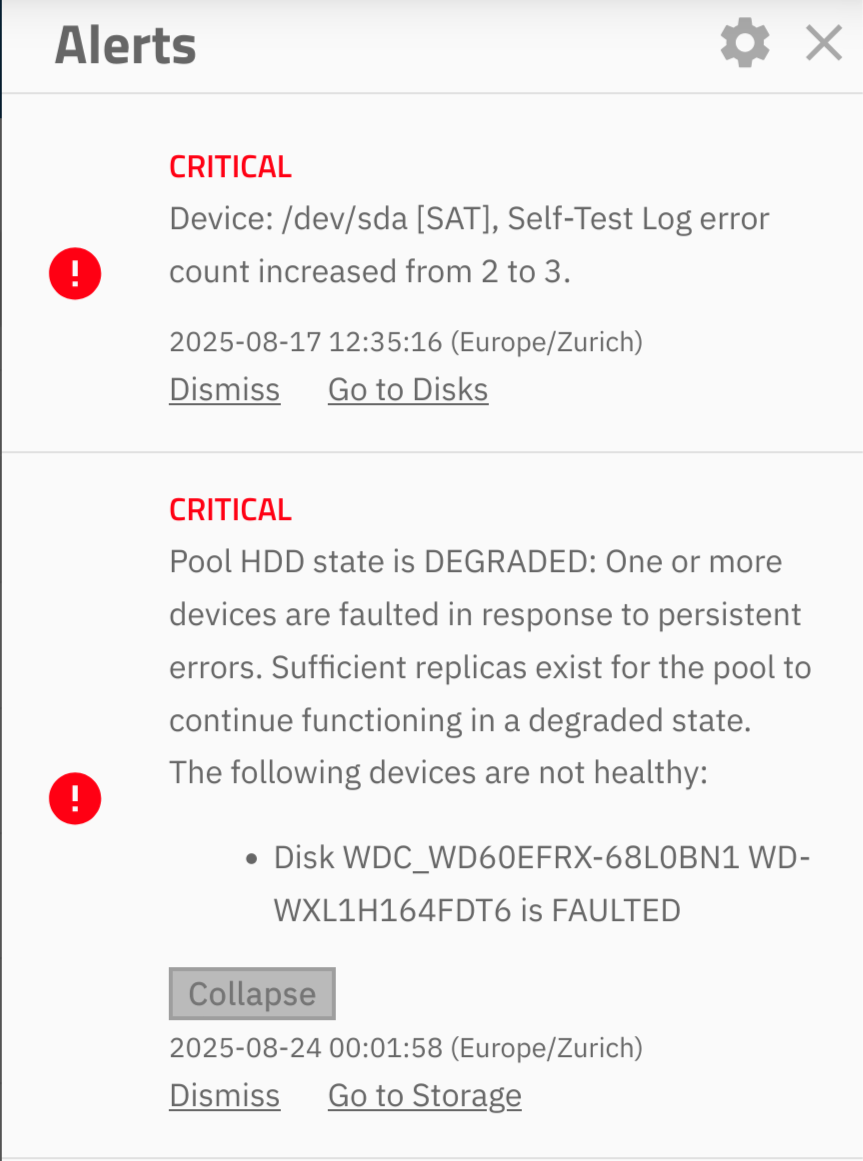

Device: /dev/sda [SAT], Self-Test Log error count increased: shows wrong disc

[Haldi]

Greetings,

I’m Running 25.04.2.1 with 4x6tb Raid-Z1. Had issues a few weeks ago and once again got greeted by this error message.

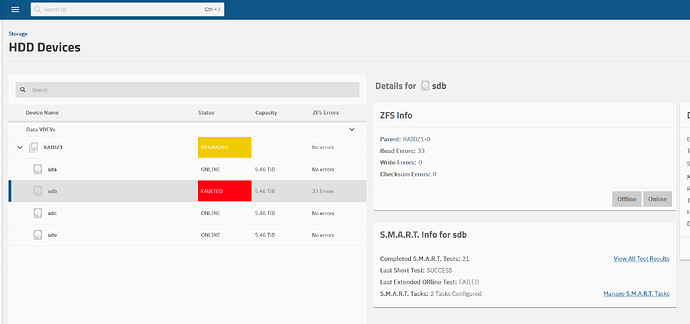

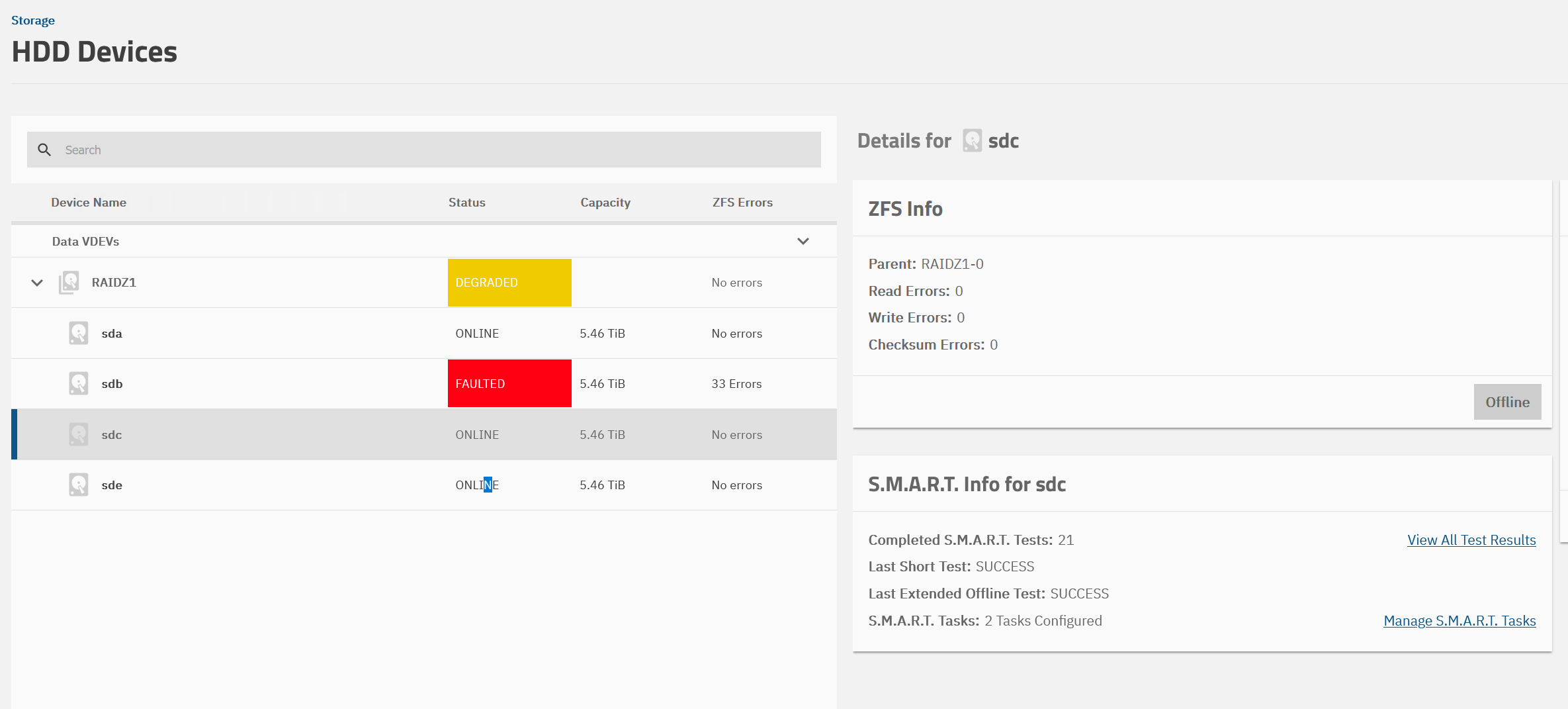

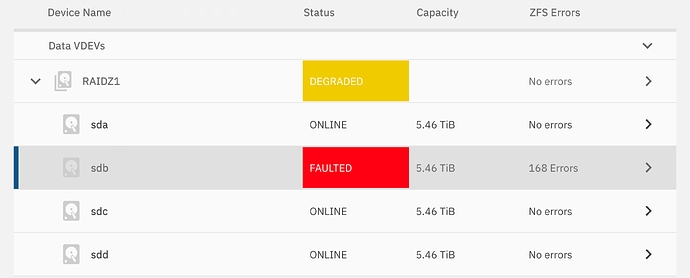

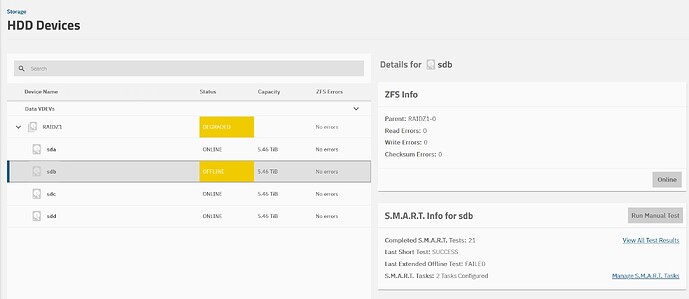

But as you can see by the drive Storage tab the faulty drive is not actually sda but sdb instead. Device 68L0BN1 as correctly named in the 2nd notification.

That’s a bug right?

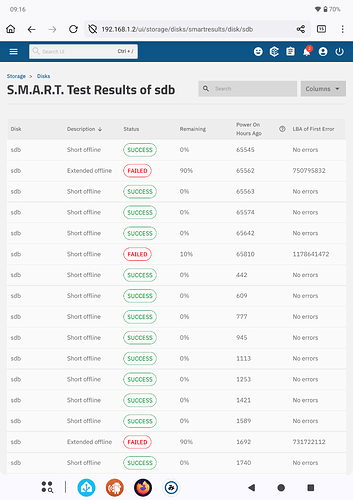

Also if you look at the Smart tests for sdb you can see the “power on hours ago” just jumping up to 65’000

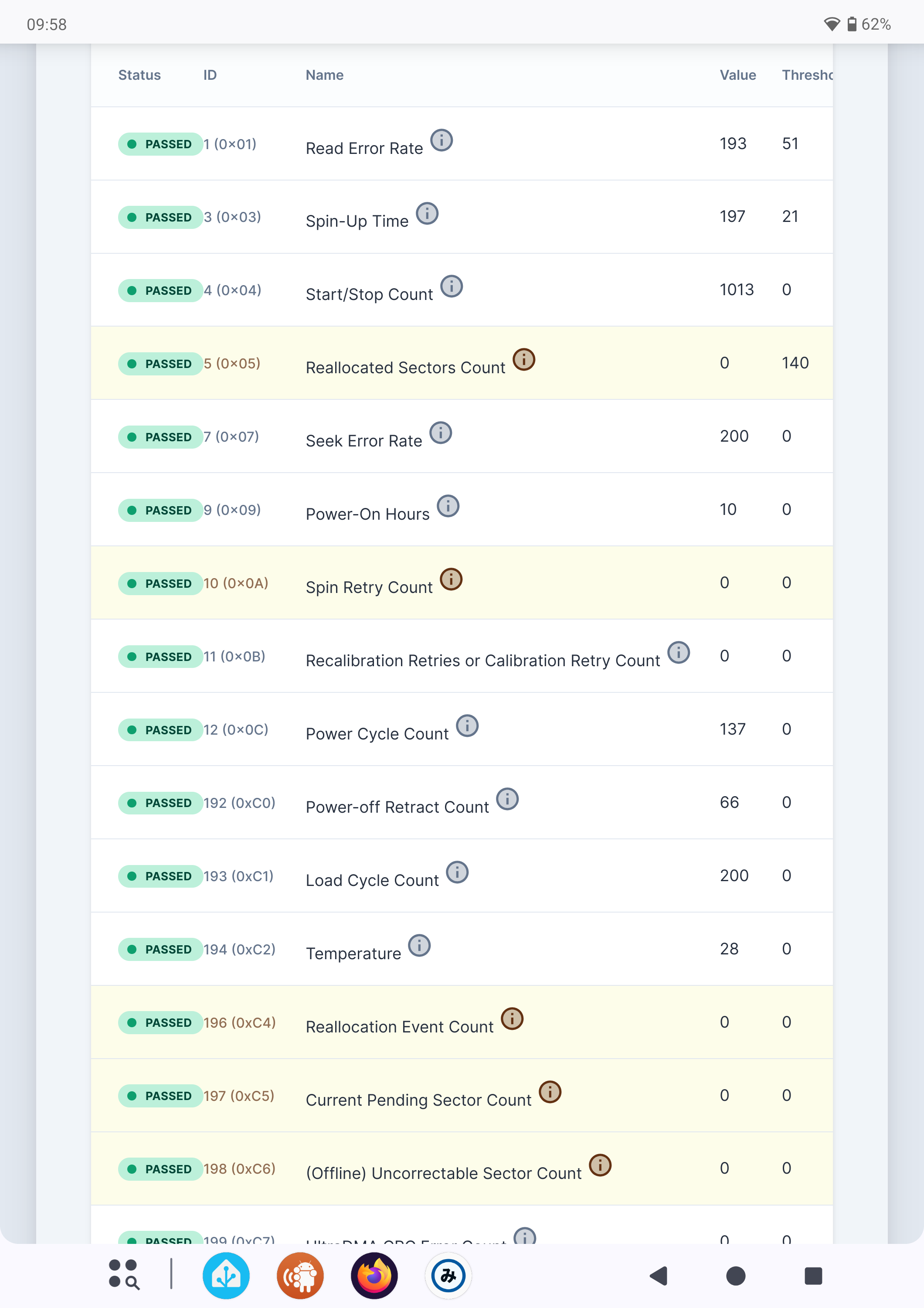

Few days ago I installed scrutinity because you can’t read the smart values from the web interface.
Sadly the export function doesn’t work yet.

But same as the last one shown in the devices tab there are no errors.

[NugentS]

The two error messages are not nessesarily related.

Can you post your hardware spec please, especially how the disks are connected to the motherboard. Also the results of
“zpool status ‘poolname’” in code blocks

[joeschmuck]

While you are at is, from the command line please run smartctl -x /dev/sda and post using the ‘</>’ icon (code blocks) as well. Then do the same for sdb smartctl -x /dev/sdb.

Next, the output of lsblk -o NAME,MODEL,TYPE,SIZE,PARTTYPENAME,PARTUUID

This will provide all the data we need from a hardware perspective of the drives.

You have a WD drive and normally you will not have high Read Rate or Seek Rate numbers for a WD drive.

The Power On Hours has rolled over, this happens to many drives, but not all drives, and this can be confusing.

If you rebooted the system, drives sda and sdb can change positions, this is why we need all this data. At face value, the two error messages are not related, however we need more data to be certain.

[Haldi]

@joeschmuck

If you rebooted the system, drives sda and sdb can change positions, this is why we need all this data.

Right… i heard about that before. You think that’s what happend here? Seeing as those 2 messages are 7 days appart, and i did upgrade BMC Firmware during that time so a reboot was involved, that does sound legit.

BTW; one of my WD drive died already and i got a Seagate Replacement drive because that was cheaper and i don’t trust WD anymore after the SMR/CMR scandal.

Drive A:

smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.12.15-production+truenas] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST6000VN001-2BB186
Serial Number:    WCT2WJL6
LU WWN Device Id: 5 000c50 0cd3fce9a
Firmware Version: SC60
User Capacity:    6,001,175,126,016 bytes [6.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5425 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database 7.3/5528
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Sun Aug 24 17:02:51 2025 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is:   Unavailable
APM feature is:   Unavailable
Rd look-ahead is: Enabled
Write cache is:   Enabled
DSN feature is:   Unavailable
ATA Security is:  Disabled, frozen [SEC2]
Wt Cache Reorder: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (    0) seconds.
Offline data collection
capabilities:                    (0x73) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        No Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 711) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x70bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAGS    VALUE WORST THRESH FAIL RAW_VALUE
  1 Raw_Read_Error_Rate     POSR--   076   064   006    -    41109742
  3 Spin_Up_Time            PO----   094   091   000    -    0
  4 Start_Stop_Count        -O--CK   099   099   020    -    1435
  5 Reallocated_Sector_Ct   PO--CK   100   100   010    -    0
  7 Seek_Error_Rate         POSR--   091   060   045    -    1282463690
  9 Power_On_Hours          -O--CK   049   049   000    -    44709
 10 Spin_Retry_Count        PO--C-   100   100   097    -    0
 12 Power_Cycle_Count       -O--CK   100   100   020    -    92
183 Runtime_Bad_Block       -O--CK   100   100   000    -    0
184 End-to-End_Error        -O--CK   100   100   099    -    0
187 Reported_Uncorrect      -O--CK   100   100   000    -    0
188 Command_Timeout         -O--CK   100   100   000    -    0
189 High_Fly_Writes         -O-RCK   100   100   000    -    0
190 Airflow_Temperature_Cel -O---K   055   042   040    -    45 (Min/Max 37/45)
191 G-Sense_Error_Rate      -O--CK   100   100   000    -    3
192 Power-Off_Retract_Count -O--CK   100   100   000    -    1599
193 Load_Cycle_Count        -O--CK   099   099   000    -    3237
194 Temperature_Celsius     -O---K   045   058   000    -    45 (0 25 0 0 0)
195 Hardware_ECC_Recovered  -O-RC-   076   064   000    -    41109742
197 Current_Pending_Sector  -O--C-   100   100   000    -    0
198 Offline_Uncorrectable   ----C-   100   100   000    -    0
199 UDMA_CRC_Error_Count    -OSRCK   200   200   000    -    0
240 Head_Flying_Hours       ------   100   253   000    -    43853h+44m+33.444s
241 Total_LBAs_Written      ------   100   253   000    -    74983865791
242 Total_LBAs_Read         ------   100   253   000    -    179940261475
                            ||||||_ K auto-keep
                            |||||__ C event count
                            ||||___ R error rate
                            |||____ S speed/performance
                            ||_____ O updated online
                            |______ P prefailure warning

General Purpose Log Directory Version 1
SMART           Log Directory Version 1 [multi-sector log support]
Address    Access  R/W   Size  Description
0x00       GPL,SL  R/O      1  Log Directory
0x01           SL  R/O      1  Summary SMART error log
0x02           SL  R/O      5  Comprehensive SMART error log
0x03       GPL     R/O      5  Ext. Comprehensive SMART error log
0x04       GPL,SL  R/O      8  Device Statistics log
0x06           SL  R/O      1  SMART self-test log
0x07       GPL     R/O      1  Extended self-test log
0x08       GPL     R/O      2  Power Conditions log
0x09           SL  R/W      1  Selective self-test log
0x0c       GPL     R/O   2048  Pending Defects log
0x10       GPL     R/O      1  NCQ Command Error log
0x11       GPL     R/O      1  SATA Phy Event Counters log
0x21       GPL     R/O      1  Write stream error log
0x22       GPL     R/O      1  Read stream error log
0x24       GPL     R/O    512  Current Device Internal Status Data log
0x30       GPL,SL  R/O      9  IDENTIFY DEVICE data log
0x80-0x9f  GPL,SL  R/W     16  Host vendor specific log
0xa1       GPL,SL  VS      24  Device vendor specific log
0xa2       GPL     VS    8160  Device vendor specific log
0xa6       GPL     VS     192  Device vendor specific log
0xa8-0xa9  GPL,SL  VS     136  Device vendor specific log
0xab       GPL     VS       1  Device vendor specific log
0xb0       GPL     VS    9048  Device vendor specific log
0xbd       GPL     VS       8  Device vendor specific log
0xbe-0xbf  GPL     VS   65535  Device vendor specific log
0xc0       GPL,SL  VS       1  Device vendor specific log
0xc1       GPL,SL  VS      16  Device vendor specific log
0xc3       GPL,SL  VS       8  Device vendor specific log
0xc4       GPL,SL  VS      24  Device vendor specific log
0xd1       GPL     VS     264  Device vendor specific log
0xd3       GPL     VS    1920  Device vendor specific log
0xe0       GPL,SL  R/W      1  SCT Command/Status
0xe1       GPL,SL  R/W      1  SCT Data Transfer

SMART Extended Comprehensive Error Log Version: 1 (5 sectors)
No Errors Logged

SMART Extended Self-test Log Version: 1 (1 sectors)
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%     44692         -
# 2  Short offline       Completed without error       00%     44524         -
# 3  Short offline       Completed without error       00%     44356         -
# 4  Short offline       Completed without error       00%     44188         -
# 5  Short offline       Completed without error       00%     44020         -
# 6  Short offline       Completed without error       00%     43852         -
# 7  Short offline       Completed without error       00%     43684         -
# 8  Short offline       Completed without error       00%     43516         -
# 9  Short offline       Completed without error       00%     43348         -
#10  Short offline       Completed without error       00%     43180         -
#11  Short offline       Completed without error       00%     43012         -
#12  Short offline       Completed without error       00%     42844         -
#13  Extended offline    Completed without error       00%     42735         -
#14  Short offline       Completed without error       00%     42675         -
#15  Short offline       Completed without error       00%     42508         -
#16  Short offline       Completed without error       00%     42340         -
#17  Short offline       Completed without error       00%     42172         -
#18  Short offline       Completed without error       00%     42004         -
#19  Short offline       Completed without error       00%     41836         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

SCT Status Version:                  3
SCT Version (vendor specific):       522 (0x020a)
Device State:                        Active (0)
Current Temperature:                    45 Celsius
Power Cycle Min/Max Temperature:     37/45 Celsius
Lifetime    Min/Max Temperature:     25/58 Celsius
Under/Over Temperature Limit Count:   0/0

SCT Temperature History Version:     2
Temperature Sampling Period:         3 minutes
Temperature Logging Interval:        94 minutes
Min/Max recommended Temperature:      1/61 Celsius
Min/Max Temperature Limit:            2/60 Celsius
Temperature History Size (Index):    128 (91)

Index    Estimated Time   Temperature Celsius
  92    2025-08-16 08:32    48  *****************************
  93    2025-08-16 10:06    48  *****************************
  94    2025-08-16 11:40    50  *******************************
  95    2025-08-16 13:14    52  *********************************
  96    2025-08-16 14:48    52  *********************************
  97    2025-08-16 16:22    49  ******************************
  98    2025-08-16 17:56    48  *****************************
  99    2025-08-16 19:30    48  *****************************
 100    2025-08-16 21:04    48  *****************************
 101    2025-08-16 22:38    47  ****************************
 102    2025-08-17 00:12    47  ****************************
 103    2025-08-17 01:46    46  ***************************
 104    2025-08-17 03:20    46  ***************************
 105    2025-08-17 04:54    45  **************************
 106    2025-08-17 06:28    46  ***************************
 107    2025-08-17 08:02    47  ****************************
 108    2025-08-17 09:36    56  *************************************
 109    2025-08-17 11:10    57  **************************************
 110    2025-08-17 12:44    57  **************************************
 111    2025-08-17 14:18    56  *************************************
 112    2025-08-17 15:52    51  ********************************
 113    2025-08-17 17:26    50  *******************************
 114    2025-08-17 19:00    49  ******************************
 115    2025-08-17 20:34    46  ***************************
 116    2025-08-17 22:08    45  **************************
 117    2025-08-17 23:42    44  *************************
 118    2025-08-18 01:16    44  *************************
 119    2025-08-18 02:50    43  ************************
 120    2025-08-18 04:24    43  ************************
 121    2025-08-18 05:58    44  *************************
 122    2025-08-18 07:32    46  ***************************
 123    2025-08-18 09:06    46  ***************************
 124    2025-08-18 10:40    47  ****************************
 125    2025-08-18 12:14    47  ****************************
 126    2025-08-18 13:48    47  ****************************
 127    2025-08-18 15:22    48  *****************************
   0    2025-08-18 16:56    48  *****************************
   1    2025-08-18 18:30    47  ****************************
   2    2025-08-18 20:04    45  **************************
   3    2025-08-18 21:38    44  *************************
   4    2025-08-18 23:12    43  ************************
   5    2025-08-19 00:46    43  ************************
   6    2025-08-19 02:20    42  ***********************
   7    2025-08-19 03:54    43  ************************
   8    2025-08-19 05:28    44  *************************
   9    2025-08-19 07:02    45  **************************
  10    2025-08-19 08:36    46  ***************************
  11    2025-08-19 10:10    47  ****************************
 ...    ..(  6 skipped).    ..  ****************************
  18    2025-08-19 21:08    47  ****************************
  19    2025-08-19 22:42    46  ***************************
 ...    ..(  5 skipped).    ..  ***************************
  25    2025-08-20 08:06    46  ***************************
  26    2025-08-20 09:40    47  ****************************
 ...    ..(  2 skipped).    ..  ****************************
  29    2025-08-20 14:22    47  ****************************
  30    2025-08-20 15:56    46  ***************************
 ...    ..(  4 skipped).    ..  ***************************
  35    2025-08-20 23:46    46  ***************************
  36    2025-08-21 01:20    45  **************************
 ...    ..(  7 skipped).    ..  **************************
  44    2025-08-21 13:52    45  **************************
  45    2025-08-21 15:26    46  ***************************
 ...    ..(  2 skipped).    ..  ***************************
  48    2025-08-21 20:08    46  ***************************
  49    2025-08-21 21:42    45  **************************
 ...    ..(  6 skipped).    ..  **************************
  56    2025-08-22 08:40    45  **************************
  57    2025-08-22 10:14    46  ***************************
 ...    ..(  4 skipped).    ..  ***************************
  62    2025-08-22 18:04    46  ***************************
  63    2025-08-22 19:38    45  **************************
  64    2025-08-22 21:12    45  **************************
  65    2025-08-22 22:46    45  **************************
  66    2025-08-23 00:20    44  *************************
  67    2025-08-23 01:54    44  *************************
  68    2025-08-23 03:28    44  *************************
  69    2025-08-23 05:02     ?  -
  70    2025-08-23 06:36    44  *************************
 ...    ..(  2 skipped).    ..  *************************
  73    2025-08-23 11:18    44  *************************
  74    2025-08-23 12:52    45  **************************
  75    2025-08-23 14:26    44  *************************
 ...    ..(  2 skipped).    ..  *************************
  78    2025-08-23 19:08    44  *************************
  79    2025-08-23 20:42    43  ************************
  80    2025-08-23 22:16    42  ***********************
  81    2025-08-23 23:50    42  ***********************
  82    2025-08-24 01:24    40  *********************
  83    2025-08-24 02:58    39  ********************
  84    2025-08-24 04:32    38  *******************
  85    2025-08-24 06:06    38  *******************
  86    2025-08-24 07:40    39  ********************
  87    2025-08-24 09:14    42  ***********************
  88    2025-08-24 10:48    42  ***********************
  89    2025-08-24 12:22    43  ************************
  90    2025-08-24 13:56    44  *************************
  91    2025-08-24 15:30    45  **************************

SCT Error Recovery Control:
           Read: Disabled
          Write: Disabled

Device Statistics (GP Log 0x04)
Page  Offset Size        Value Flags Description
0x01  =====  =               =  ===  == General Statistics (rev 1) ==
0x01  0x008  4              92  ---  Lifetime Power-On Resets
0x01  0x010  4           44709  ---  Power-on Hours
0x01  0x018  6     74987711606  ---  Logical Sectors Written
0x01  0x020  6      1637921095  ---  Number of Write Commands
0x01  0x028  6    179944998807  ---  Logical Sectors Read
0x01  0x030  6      1164573853  ---  Number of Read Commands
0x01  0x038  6               -  ---  Date and Time TimeStamp
0x03  =====  =               =  ===  == Rotating Media Statistics (rev 1) ==
0x03  0x008  4           44158  ---  Spindle Motor Power-on Hours
0x03  0x010  4           44153  ---  Head Flying Hours
0x03  0x018  4            3237  ---  Head Load Events
0x03  0x020  4               0  ---  Number of Reallocated Logical Sectors
0x03  0x028  4               0  ---  Read Recovery Attempts
0x03  0x030  4               0  ---  Number of Mechanical Start Failures
0x03  0x038  4               0  ---  Number of Realloc. Candidate Logical Sectors
0x03  0x040  4            1599  ---  Number of High Priority Unload Events
0x04  =====  =               =  ===  == General Errors Statistics (rev 1) ==
0x04  0x008  4               0  ---  Number of Reported Uncorrectable Errors
0x04  0x010  4               0  ---  Resets Between Cmd Acceptance and Completion
0x05  =====  =               =  ===  == Temperature Statistics (rev 1) ==
0x05  0x008  1              45  ---  Current Temperature
0x05  0x010  1              41  ---  Average Short Term Temperature
0x05  0x018  1              44  ---  Average Long Term Temperature
0x05  0x020  1              58  ---  Highest Temperature
0x05  0x028  1               0  ---  Lowest Temperature
0x05  0x030  1              49  ---  Highest Average Short Term Temperature
0x05  0x038  1              32  ---  Lowest Average Short Term Temperature
0x05  0x040  1              44  ---  Highest Average Long Term Temperature
0x05  0x048  1              34  ---  Lowest Average Long Term Temperature
0x05  0x050  4               0  ---  Time in Over-Temperature
0x05  0x058  1              70  ---  Specified Maximum Operating Temperature
0x05  0x060  4               0  ---  Time in Under-Temperature
0x05  0x068  1               0  ---  Specified Minimum Operating Temperature
0x06  =====  =               =  ===  == Transport Statistics (rev 1) ==
0x06  0x008  4             881  ---  Number of Hardware Resets
0x06  0x010  4             316  ---  Number of ASR Events
0x06  0x018  4               0  ---  Number of Interface CRC Errors
                                |||_ C monitored condition met
                                ||__ D supports DSN
                                |___ N normalized value

Pending Defects log (GP Log 0x0c)
No Defects Logged

SATA Phy Event Counters (GP Log 0x11)
ID      Size     Value  Description
0x000a  2            3  Device-to-host register FISes sent due to a COMRESET
0x0001  2            0  Command failed due to ICRC error
0x0003  2            0  R_ERR response for device-to-host data FIS
0x0004  2            0  R_ERR response for host-to-device data FIS
0x0006  2            0  R_ERR response for device-to-host non-data FIS
0x0007  2            0  R_ERR response for host-to-device non-data FIS

Seagate FARM log (GP Log 0xa6) supported [try: -l farm]

Drive B:

smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.12.15-production+truenas] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD60EFRX-68L0BN1
Serial Number:    WD-WXL1H164FDT6
LU WWN Device Id: 5 0014ee 2632650ae
Firmware Version: 82.00A82
User Capacity:    6,001,175,126,016 bytes [6.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5700 rpm
Device is:        In smartctl database 7.3/5528
ATA Version is:   ACS-2, ACS-3 T13/2161-D revision 3b
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Sun Aug 24 17:04:53 2025 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is:   Unavailable
APM feature is:   Unavailable
Rd look-ahead is: Enabled
Write cache is:   Enabled
DSN feature is:   Unavailable
ATA Security is:  Disabled, frozen [SEC2]
Wt Cache Reorder: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                ( 5024) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 703) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x303d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAGS    VALUE WORST THRESH FAIL RAW_VALUE
  1 Raw_Read_Error_Rate     POSR-K   193   193   051    -    319
  3 Spin_Up_Time            POS--K   197   196   021    -    9141
  4 Start_Stop_Count        -O--CK   099   099   000    -    1015
  5 Reallocated_Sector_Ct   PO--CK   200   200   140    -    0
  7 Seek_Error_Rate         -OSR-K   200   200   000    -    0
  9 Power_On_Hours          -O--CK   010   010   000    -    65913
 10 Spin_Retry_Count        -O--CK   100   100   000    -    0
 11 Calibration_Retry_Count -O--CK   100   100   000    -    0
 12 Power_Cycle_Count       -O--CK   100   100   000    -    137
192 Power-Off_Retract_Count -O--CK   200   200   000    -    66
193 Load_Cycle_Count        -O--CK   200   200   000    -    2543
194 Temperature_Celsius     -O---K   119   094   000    -    33
196 Reallocated_Event_Count -O--CK   200   200   000    -    0
197 Current_Pending_Sector  -O--CK   200   200   000    -    0
198 Offline_Uncorrectable   ----CK   100   253   000    -    0
199 UDMA_CRC_Error_Count    -O--CK   200   200   000    -    0
200 Multi_Zone_Error_Rate   ---R--   200   200   000    -    116
                            ||||||_ K auto-keep
                            |||||__ C event count
                            ||||___ R error rate
                            |||____ S speed/performance
                            ||_____ O updated online
                            |______ P prefailure warning

General Purpose Log Directory Version 1
SMART           Log Directory Version 1 [multi-sector log support]
Address    Access  R/W   Size  Description
0x00       GPL,SL  R/O      1  Log Directory
0x01           SL  R/O      1  Summary SMART error log
0x02           SL  R/O      5  Comprehensive SMART error log
0x03       GPL     R/O      6  Ext. Comprehensive SMART error log
0x06           SL  R/O      1  SMART self-test log
0x07       GPL     R/O      1  Extended self-test log
0x09           SL  R/W      1  Selective self-test log
0x10       GPL     R/O      1  NCQ Command Error log
0x11       GPL     R/O      1  SATA Phy Event Counters log
0x21       GPL     R/O      1  Write stream error log
0x22       GPL     R/O      1  Read stream error log
0x30       GPL,SL  R/O      9  IDENTIFY DEVICE data log
0x80-0x9f  GPL,SL  R/W     16  Host vendor specific log
0xa0-0xa7  GPL,SL  VS      16  Device vendor specific log
0xa8-0xb6  GPL,SL  VS       1  Device vendor specific log
0xb7       GPL,SL  VS      54  Device vendor specific log
0xbd       GPL,SL  VS       1  Device vendor specific log
0xc0       GPL,SL  VS       1  Device vendor specific log
0xc1       GPL     VS      93  Device vendor specific log
0xe0       GPL,SL  R/W      1  SCT Command/Status
0xe1       GPL,SL  R/W      1  SCT Data Transfer

SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
Device Error Count: 78 (device log contains only the most recent 24 errors)
        CR     = Command Register
        FEATR  = Features Register
        COUNT  = Count (was: Sector Count) Register
        LBA_48 = Upper bytes of LBA High/Mid/Low Registers ]  ATA-8
        LH     = LBA High (was: Cylinder High) Register    ]   LBA
        LM     = LBA Mid (was: Cylinder Low) Register      ] Register
        LL     = LBA Low (was: Sector Number) Register     ]
        DV     = Device (was: Device/Head) Register
        DC     = Device Control Register
        ER     = Error register
        ST     = Status register
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.

Error 78 [5] occurred at disk power-on lifetime: 360 hours (15 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 50 de 20 00 40 00  Error: WP at LBA = 0x50de2000 = 1356734464

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 00 10 00 60 00 00 50 de 0c b0 40 08     16:25:23.974  WRITE FPDMA QUEUED
  61 00 70 00 e0 00 00 50 de 0d a0 40 08     16:25:23.974  WRITE FPDMA QUEUED
  61 00 68 00 d8 00 00 50 de 0c 08 40 08     16:25:23.914  WRITE FPDMA QUEUED
  61 00 20 00 b8 00 00 50 de 0b 88 40 08     16:25:23.914  WRITE FPDMA QUEUED
  61 00 20 00 d0 00 00 50 de 0b 30 40 08     16:25:23.914  WRITE FPDMA QUEUED

Error 77 [4] occurred at disk power-on lifetime: 360 hours (15 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 50 de 18 40 40 00  Error: WP at LBA = 0x50de1840 = 1356732480

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 00 10 00 70 00 02 ba a0 ee 10 40 08     16:25:16.785  WRITE FPDMA QUEUED
  60 02 a8 00 a8 00 00 50 de 1b a0 40 08     16:25:16.785  READ FPDMA QUEUED
  60 02 00 00 38 00 00 50 de 18 10 40 08     16:25:16.785  READ FPDMA QUEUED
  60 00 a0 00 18 00 00 50 de 1a b0 40 08     16:25:16.785  READ FPDMA QUEUED
  61 00 10 00 68 00 02 ba a0 ec 10 40 08     16:25:16.785  WRITE FPDMA QUEUED

Error 76 [3] occurred at disk power-on lifetime: 360 hours (15 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 50 de 17 80 40 00  Error: WP at LBA = 0x50de1780 = 1356732288

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 01 b8 00 28 00 02 0e 87 1f 28 40 08     16:25:11.483  WRITE FPDMA QUEUED
  61 00 20 00 08 00 00 50 de 02 30 40 08     16:25:11.483  WRITE FPDMA QUEUED
  61 00 48 00 c0 00 00 50 de 02 a8 40 08     16:25:11.407  WRITE FPDMA QUEUED
  61 01 30 00 10 00 00 50 dd ff e8 40 08     16:25:11.407  WRITE FPDMA QUEUED
  61 04 20 00 b8 00 00 4e d8 7a f0 40 08     16:25:11.407  WRITE FPDMA QUEUED

Error 75 [2] occurred at disk power-on lifetime: 360 hours (15 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 50 de 13 c0 40 00  Error: WP at LBA = 0x50de13c0 = 1356731328

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 00 e8 00 68 00 00 50 de 01 20 40 08     16:24:59.804  WRITE FPDMA QUEUED
  61 00 10 00 98 00 00 00 00 12 10 40 08     16:24:59.803  WRITE FPDMA QUEUED
  60 02 80 00 38 00 00 50 de 13 90 40 08     16:24:59.803  READ FPDMA QUEUED
  60 00 48 00 30 00 00 50 de 17 78 40 08     16:24:59.803  READ FPDMA QUEUED
  61 00 20 00 78 00 00 50 de 02 80 40 08     16:24:59.803  WRITE FPDMA QUEUED

Error 74 [1] occurred at disk power-on lifetime: 360 hours (15 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 50 de 10 90 40 00  Error: UNC at LBA = 0x50de1090 = 1356730512

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  60 02 40 00 60 00 00 50 de 0f d0 40 08     16:24:52.765  READ FPDMA QUEUED
  47 00 00 00 01 00 00 00 00 00 30 e0 08     16:24:52.764  READ LOG DMA EXT
  47 00 00 00 01 00 00 00 00 00 00 e0 08     16:24:52.764  READ LOG DMA EXT
  ef 00 10 00 02 00 00 00 00 00 00 a0 08     16:24:52.764  SET FEATURES [Enable SATA feature]
  27 00 00 00 00 00 00 00 00 00 00 e0 08     16:24:52.764  READ NATIVE MAX ADDRESS EXT [OBS-ACS-3]

Error 73 [0] occurred at disk power-on lifetime: 360 hours (15 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 50 de 0d b0 40 00  Error: UNC at LBA = 0x50de0db0 = 1356729776

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  60 02 40 00 f0 00 00 50 de 0f d0 40 08     16:24:45.702  READ FPDMA QUEUED
  60 03 70 00 e8 00 00 50 de 0c 10 40 08     16:24:45.702  READ FPDMA QUEUED
  47 00 00 00 01 00 00 00 00 00 30 e0 08     16:24:45.701  READ LOG DMA EXT
  47 00 00 00 01 00 00 00 00 00 00 e0 08     16:24:45.701  READ LOG DMA EXT
  ef 00 10 00 02 00 00 00 00 00 00 a0 08     16:24:45.701  SET FEATURES [Enable SATA feature]

Error 72 [23] occurred at disk power-on lifetime: 360 hours (15 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 50 de 12 a8 40 00  Error: WP at LBA = 0x50de12a8 = 1356731048

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 00 58 00 78 00 00 4e d8 7a 98 40 08     16:24:38.672  WRITE FPDMA QUEUED
  61 00 a8 00 70 00 00 51 c9 4c 40 40 08     16:24:38.672  WRITE FPDMA QUEUED
  61 04 20 00 b0 00 00 4e d8 76 78 40 08     16:24:38.671  WRITE FPDMA QUEUED
  61 05 80 00 08 00 00 4e d8 70 f8 40 08     16:24:38.670  WRITE FPDMA QUEUED
  61 01 08 00 70 00 02 0e 87 1e 20 40 08     16:24:38.669  WRITE FPDMA QUEUED

Error 71 [22] occurred at disk power-on lifetime: 360 hours (15 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 50 de 04 48 40 00  Error: WP at LBA = 0x50de0448 = 1356727368

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 07 38 00 38 00 00 4e d8 69 c0 40 08     16:24:31.574  WRITE FPDMA QUEUED
  61 07 e8 00 30 00 00 4e d8 61 d8 40 08     16:24:31.572  WRITE FPDMA QUEUED
  61 00 10 00 60 00 02 ba a0 ee 10 40 08     16:24:31.572  WRITE FPDMA QUEUED
  61 02 c0 00 b8 00 02 0e 87 16 38 40 08     16:24:31.568  WRITE FPDMA QUEUED
  61 07 e8 00 e8 00 02 0e 87 0e 50 40 08     16:24:31.560  WRITE FPDMA QUEUED

SMART Extended Self-test Log Version: 1 (1 sectors)
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%       360         -
# 2  Extended offline    Completed: read failure       90%       343         750795832
# 3  Short offline       Completed without error       00%       342         -
# 4  Short offline       Completed without error       00%       331         -
# 5  Short offline       Completed without error       00%       263         -
# 6  Short offline       Completed: read failure       10%        95         1178641472
# 7  Short offline       Completed without error       00%     65463         -
# 8  Short offline       Completed without error       00%     65296         -
# 9  Short offline       Completed without error       00%     65128         -
#10  Short offline       Completed without error       00%     64960         -
#11  Short offline       Completed without error       00%     64792         -
#12  Short offline       Completed without error       00%     64652         -
#13  Short offline       Completed without error       00%     64484         -
#14  Short offline       Completed without error       00%     64316         -
#15  Extended offline    Completed: read failure       90%     64213         731722112
#16  Short offline       Completed without error       00%     64165         -
#17  Short offline       Completed without error       00%     64088         -
#18  Short offline       Completed without error       00%     64088         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

SCT Status Version:                  3
SCT Version (vendor specific):       258 (0x0102)
Device State:                        Stand-by (1)
Current Temperature:                    33 Celsius
Power Cycle Min/Max Temperature:     24/35 Celsius
Lifetime    Min/Max Temperature:     20/58 Celsius
Under/Over Temperature Limit Count:   0/0
Vendor specific:
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SCT Temperature History Version:     2
Temperature Sampling Period:         1 minute
Temperature Logging Interval:        1 minute
Min/Max recommended Temperature:      0/60 Celsius
Min/Max Temperature Limit:           -41/85 Celsius
Temperature History Size (Index):    478 (355)

Index    Estimated Time   Temperature Celsius
 356    2025-08-24 09:07    31  ************
 ...    ..( 14 skipped).    ..  ************
 371    2025-08-24 09:22    31  ************
 372    2025-08-24 09:23    32  *************
 ...    ..( 55 skipped).    ..  *************
 428    2025-08-24 10:19    32  *************
 429    2025-08-24 10:20    33  **************
 ...    ..( 57 skipped).    ..  **************
   9    2025-08-24 11:18    33  **************
  10    2025-08-24 11:19     ?  -
  11    2025-08-24 11:20    26  *******
  12    2025-08-24 11:21    27  ********
 ...    ..(  2 skipped).    ..  ********
  15    2025-08-24 11:24    27  ********
  16    2025-08-24 11:25    28  *********
  17    2025-08-24 11:26    28  *********
  18    2025-08-24 11:27    29  **********
  19    2025-08-24 11:28    29  **********
  20    2025-08-24 11:29    29  **********
  21    2025-08-24 11:30    30  ***********
 ...    ..(  2 skipped).    ..  ***********
  24    2025-08-24 11:33    30  ***********
  25    2025-08-24 11:34    31  ************
 ...    ..( 13 skipped).    ..  ************
  39    2025-08-24 11:48    31  ************
  40    2025-08-24 11:49    30  ***********
 ...    ..( 11 skipped).    ..  ***********
  52    2025-08-24 12:01    30  ***********
  53    2025-08-24 12:02     ?  -
  54    2025-08-24 12:03    30  ***********
 ...    ..(  4 skipped).    ..  ***********
  59    2025-08-24 12:08    30  ***********
  60    2025-08-24 12:09    31  ************
 ...    ..(  2 skipped).    ..  ************
  63    2025-08-24 12:12    31  ************
  64    2025-08-24 12:13    32  *************
 ...    ..( 12 skipped).    ..  *************
  77    2025-08-24 12:26    32  *************
  78    2025-08-24 12:27    31  ************
 ...    ..(  9 skipped).    ..  ************
  88    2025-08-24 12:37    31  ************
  89    2025-08-24 12:38    30  ***********
 ...    ..( 27 skipped).    ..  ***********
 117    2025-08-24 13:06    30  ***********
 118    2025-08-24 13:07    29  **********
 ...    ..(121 skipped).    ..  **********
 240    2025-08-24 15:09    29  **********
 241    2025-08-24 15:10    30  ***********
 ...    ..( 88 skipped).    ..  ***********
 330    2025-08-24 16:39    30  ***********
 331    2025-08-24 16:40    31  ************
 ...    ..( 23 skipped).    ..  ************
 355    2025-08-24 17:04    31  ************

SCT Error Recovery Control:
           Read:     70 (7.0 seconds)
          Write:     70 (7.0 seconds)

Device Statistics (GP/SMART Log 0x04) not supported

Pending Defects log (GP Log 0x0c) not supported

SATA Phy Event Counters (GP Log 0x11)
ID      Size     Value  Description
0x0001  2            0  Command failed due to ICRC error
0x0002  2            0  R_ERR response for data FIS
0x0003  2            0  R_ERR response for device-to-host data FIS
0x0004  2            0  R_ERR response for host-to-device data FIS
0x0005  2            0  R_ERR response for non-data FIS
0x0006  2            0  R_ERR response for device-to-host non-data FIS
0x0007  2            0  R_ERR response for host-to-device non-data FIS
0x0008  2            0  Device-to-host non-data FIS retries
0x0009  2            2  Transition from drive PhyRdy to drive PhyNRdy
0x000a  2            4  Device-to-host register FISes sent due to a COMRESET
0x000b  2            0  CRC errors within host-to-device FIS
0x000d  2            0  Non-CRC errors within host-to-device FIS
0x000f  2            0  R_ERR response for host-to-device data FIS, CRC
0x0012  2            0  R_ERR response for host-to-device non-data FIS, CRC
0x8000  4       120443  Vendor specific

admin@NAS[~]$ lsblk -o NAME,MODEL,TYPE,SIZE,PARTTYPENAME,PARTUUID
NAME        MODEL                      TYPE   SIZE PARTTYPENAME             PARTUUID
sda         ST6000VN001-2BB186         disk   5.5T
└─sda1                                 part   5.5T Solaris /usr & Apple ZFS feea6654-9a6e-443f-acc0-b11b462a9624
sdb         WDC WD60EFRX-68L0BN1       disk   5.5T
└─sdb1                                 part   5.5T Solaris /usr & Apple ZFS de0f3b0f-36aa-4754-a883-f806565c35a2
sdc         WDC WD60EFRX-68L0BN1       disk   5.5T
└─sdc1                                 part   5.5T Solaris /usr & Apple ZFS 2cec057d-a57c-4285-bc57-32156e1e6ae0
sdd         WDC WD60EFRX-68L0BN1       disk   5.5T
└─sdd1                                 part   5.5T Solaris /usr & Apple ZFS 72fe2c50-bbc5-4e5d-9670-f0d165fdd940
sde         Samsung SSD 840 PRO Series disk 238.5G
├─sde1                                 part     1M BIOS boot                ced8ff32-79b5-40f4-a7cc-4321670b69d3
├─sde2                                 part   512M EFI System               3b151835-9922-491b-97fe-202a8ba6d56c
├─sde3                                 part   222G Solaris /usr & Apple ZFS 4d60e445-89d6-4853-8817-54e77b18d428
└─sde4                                 part    16G Linux swap               e4fc891e-2b23-4859-a70a-a929162441b8
zd0                                    disk    10G
zd16                                   disk    35G
zd32                                   disk    35G
nvme0n1     ADATA SX8200PNP            disk   1.9T
└─nvme0n1p1                            part   1.9T Solaris /usr & Apple ZFS df0be91b-3660-4ed9-8f4c-3c1ae6303df4

About the Hardware:
AMD Ryzen 5600 on a Gigabyte MC12LE0 Mainboard, all Sata Drives are connected to the Mainboard as it has 6 Ports.

admin@NAS[~]$ sudo zpool status HDD
  pool: HDD
 state: DEGRADED
status: One or more devices are faulted in response to persistent errors.
        Sufficient replicas exist for the pool to continue functioning in a
        degraded state.
action: Replace the faulted device, or use 'zpool clear' to mark the device
        repaired.
  scan: resilvered 3.16G in 00:00:44 with 0 errors on Sat Aug 23 07:38:08 2025
config:

        NAME                                      STATE     READ WRITE CKSUM
        HDD                                       DEGRADED     0     0     0
          raidz1-0                                DEGRADED     0     0     0
            feea6654-9a6e-443f-acc0-b11b462a9624  ONLINE       0     0     0
            72fe2c50-bbc5-4e5d-9670-f0d165fdd940  ONLINE       0     0     0
            2cec057d-a57c-4285-bc57-32156e1e6ae0  ONLINE       0     0     0
            de0f3b0f-36aa-4754-a883-f806565c35a2  FAULTED    168     0     0  too many errors

errors: No known data errors

[Haldi]

I was thinking about replacing those 4 6TB drives for 2 24TB drives.
Seagate Barracude Dekstop Drives ST24000DM001 for 265.- a piece as i’m only using the HDD Pool for Cold storage. Daily Backup and some other data that rarely get’s accessed. They do have terrible official values for longetivity… but they might holde out longer right? any any new Seagat drive you buy might be a refurbished anyway.
But then again i also have a Daily incremental Offshore Backup. So maybe i should just sit it out until the HDD truly dies.

[NugentS]

One of your drives has failed. This needs to be replaced as you currently have no parity

Another one of your drives seems too hot to me (45)

Do not buy a Seagate Barracuda desktop drive - they tend to be SMR

[etorix]

These 24+ TB Barracuda may actually be the same HAMR platform as Exos/Ironwolf of the same capacities. CMR.
Careful check required!

@Haldi

They do have terrible official values for longetivity… but they might holde out longer right?

They might. Or not.
Drives wear out, and should be accounted for as expendable.

[Haldi]

@NugentS

One of your drives has failed. This needs to be replaced as you currently have no parity

I see the pool stated degraded and the device faulted.
But no Smart values or any other indicators that the device is fully broken and parity doesn’t work at the moment. Which specific values indicates this?

@NugentS

Do not buy a Seagate Barracuda desktop drive - they tend to be SMR

Are there 24TB SMR drives? I though in that size they should all be CMR.
But buying from digitec.ch I can easily, return them if they are falsely advertised.
11.-/TB is a pretty damn good price… IF they work.

[joeschmuck]

I believe HAMR is also an SMR drive. It just records differently. MAMR is also slightly different, it will cook a hotdog for you while you write your data. I do not know if this will be shingled also however I suspect it will. How else will you fit 40TB per square inch, or so I’ve read. That could be a theoretical value.

[NugentS]

@Haldi

Model Family:     Western Digital Red
Device Model:     WDC WD60EFRX-68L0BN1
Serial Number:    WD-WXL1H164FDT6

This is the failed drive - its failing an extended test which means that at the very least you need to remove it from the pool, run badblocks on it and then consider if its potentially useable

[etorix]

@Haldi

Are there 24TB SMR drives? I though in that size they should all be CMR.

There are SMR drives in these capacities as well, but basically no longer in consumer lines.

[Haldi]

So… i just assume the device is offline because it’s in Faulted state?

The only difference to another HDD is the “online” button there.

If press the “Offline” button again nothing happens.

[Haldi]

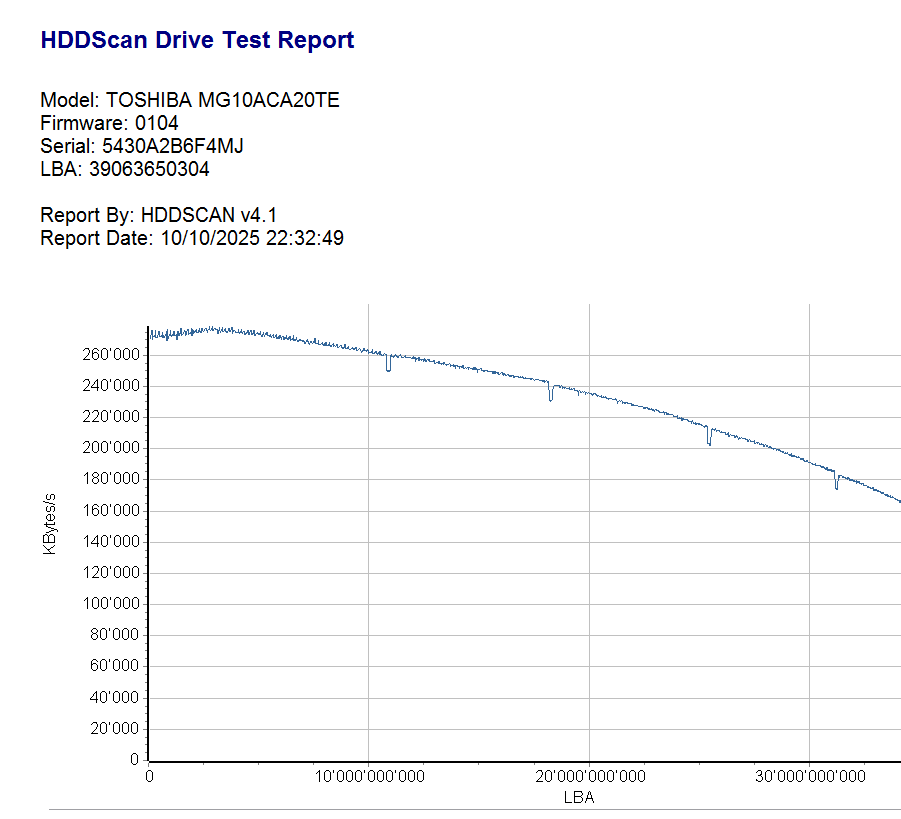

had the chance to get a 20tb Toshiba MG10
for 220 CHF used. Waranty until 2029

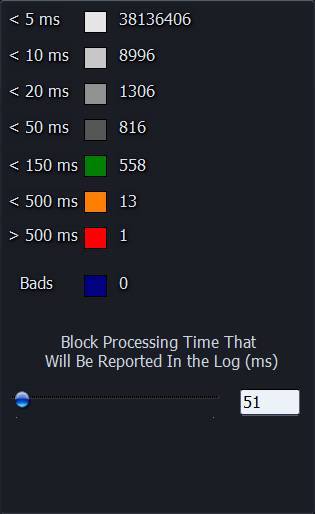

Did a quick ched but everything seems to be okay.

[Haldi]

@Haldi

If press the “Offline” button again nothing happens.

i see it takes quite a while for a device to actually become “offline”

[joeschmuck]

@Haldi

WD-WXL1H164FDT6

Did you replace this drive as @NugentS has said?
This is a failed drive, no question about it. I don’t want to assume anything since you are testing a Toshiba drive now.

ZFS and Drive errors, could be related, but often are not and a ZFS error can lead a person down the wrong path of thinking a drive failure exists. in my signature is a Drive Troubleshooting Guide, take a look, answer the questions and you should be closer to having an answer, or just correcting the problem.

Right now I think ZFS, not drive failure, not until you can prove drive failure.

[Haldi]

@joeschmuck

Did you replace this drive

Yes
After the thoshiba fully tested and seems to work fine I’ve replaced the drive.
Now I can wipe and troughly these the 6TB WD Red.
I agree with drive failure as 1/4 of those drives already failed and had to be replaced by a Seagate 5 years ago!

[Haldi]

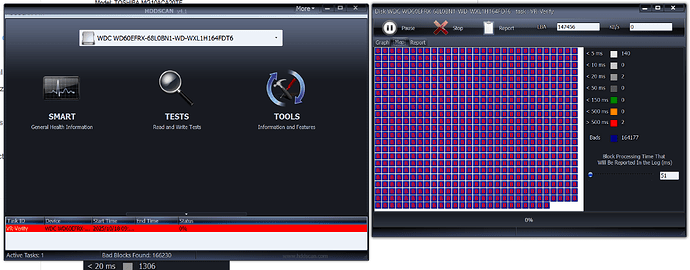

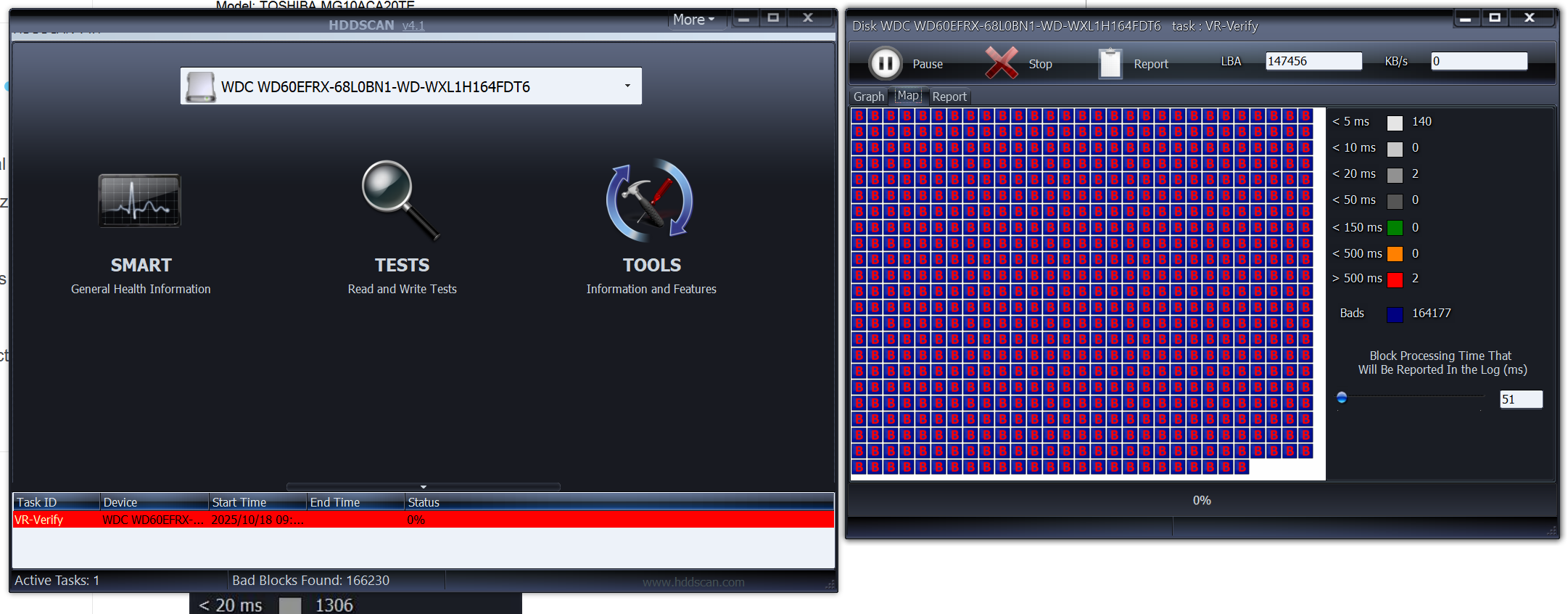

Yeah… i think the WD Drive might be gone…
