I set up my APC SMX750i with Scale and all seems well:
root@truenas-e3-1220[/]# upsc apc5E7BDD@localhost
Init SSL without certificate database
battery.charge: 100
battery.date: 06/15/2019
battery.packs: 0
battery.runtime: 2943
battery.runtime.low: 120
battery.voltage: 54.50
device.contact: Unknown
device.description: APC Web/SNMP Management Card (MB:v4.1.0 PF:v6.7.2 PN:apc_hw05_aos_672.bin AF1:v6.7.2 AN1:apc_hw05_sumx_672.bin MN:AP9631 HR:05
device.location: Unknown
device.mfr: APC
device.model: Smart-UPS X 750
device.serial: AS1021120861
device.type: ups
driver.name: snmp-ups
driver.parameter.pollinterval: 2
driver.parameter.port: 192.168.1.237
driver.parameter.privProtocol: AES
driver.parameter.synchronous: auto
driver.version: 2.8.0
driver.version.data: apcc MIB 1.6
driver.version.internal: 1.21
input.frequency: 49.90
input.sensitivity: medium
input.transfer.high: 257
input.transfer.low: 203
input.transfer.reason: smallMomentarySpike
input.voltage: 232.10
input.voltage.maximum: 233
input.voltage.minimum: 231.30
output.current: 1
output.frequency: 49.90
output.voltage: 232.10
output.voltage.nominal: 230
ups.firmware: UPS 03.8 (ID11)
ups.id: APC Smart-UPS
ups.load: 34.80
ups.mfr: APC
ups.mfr.date: 05/17/2010
ups.model: Smart-UPS X 750
ups.power: 261
ups.realpower: 207
ups.serial: AS1021120861
ups.status: OL
ups.temperature: 22.90
ups.test.date: 03/07/2025
ups.test.result: Ok
However, in the /reporting/ups, everything is blank. Is this a known bug or is something wrong with my UPS config?
LarsR
March 25, 2025, 9:29pm
2
I donât know if itâs still the case but apparently the reporting expects the ups to be called âupsâ and wonât populate the reporting tab if the identifier is changed.
1 Like
Bingo! That did the trick. I just donât understand why Scale allows you to change the identifier if it screws up the reporting.
How did you set the driver?
I still get this in logs
Apr 23 10:24:56 truenas systemd[1]: nut-driver@ups.service: Failed with result âexit-codeâ.
upsc ups@192.168.1.236:3493
Init SSL without certificate database
battery.capacity: 7.20
battery.charge: 100
battery.charge.low: 20
battery.charge.restart: 0
battery.charger.status: resting
battery.energysave: no
battery.energysave.delay: 300
battery.energysave.load: 5
battery.protection: yes
battery.runtime: 4500
battery.type: PbAc
battery.voltage: 26.2
battery.voltage.nominal: 24
device.mfr: EATON
device.model: 5P 850
device.serial: G115P13009
device.type: ups
driver.name: usbhid-ups
driver.parameter.pollfreq: 30
driver.parameter.pollinterval: 2
driver.parameter.port: auto
driver.parameter.productid: ffff
driver.parameter.synchronous: auto
driver.parameter.vendorid: 0463
driver.version: 2.8.0
driver.version.data: MGE HID 1.46
driver.version.internal: 0.47
driver.version.usb: libusb-1.0.26 (API: 0x1000109)
input.current: 0.60
input.frequency: 50.0
input.frequency.extended: no
input.frequency.nominal: 50
input.sensitivity: normal
input.transfer.boost.low: 184
input.transfer.high: 294
input.transfer.low: 160
input.transfer.trim.high: 265
input.voltage: 238.7
input.voltage.extended: no
input.voltage.nominal: 230
outlet.1.autoswitch.charge.low: 0
outlet.1.delay.shutdown: 65535
outlet.1.delay.start: 3
outlet.1.desc: PowerShare Outlet 1
outlet.1.id: 1
outlet.1.status: on
outlet.1.switchable: yes
outlet.2.autoswitch.charge.low: 0
outlet.2.delay.shutdown: 65535
outlet.2.delay.start: 6
outlet.2.desc: PowerShare Outlet 2
outlet.2.id: 2
outlet.2.status: on
outlet.2.switchable: yes
outlet.desc: Main Outlet
outlet.id: 0
outlet.switchable: no
output.current: 0.50
output.frequency: 50.0
output.frequency.nominal: 50
output.powerfactor: 0.40
output.voltage: 238.7
output.voltage.nominal: 230
ups.beeper.status: enabled
ups.delay.shutdown: 20
ups.delay.start: 30
ups.efficiency: 66
ups.firmware: 03.18.0035
ups.load: 14
ups.load.high: 105
ups.mfr: EATON
ups.model: 5P 850
ups.power: 119
ups.power.nominal: 850
ups.productid: ffff
ups.realpower: 48
ups.realpower.nominal: 600
ups.serial: G115P13009
ups.shutdown: enabled
ups.start.auto: yes
ups.start.battery: yes
ups.start.reboot: yes
ups.status: OL
ups.test.interval: 2592000
ups.test.result: Done and passed
ups.timer.shutdown: -1
ups.timer.start: -1
ups.type: offline / line interactive
ups.vendorid: 0463
That is dependant on your brand/type. It also took me a couple of attempts to find the right one.

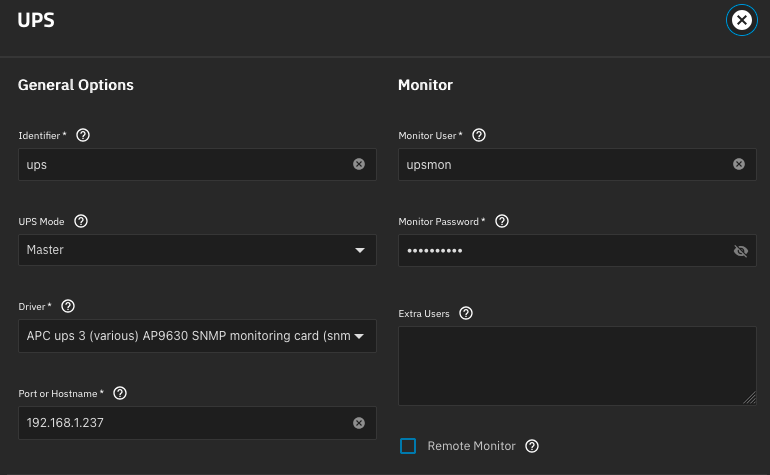

This is my config:
So do not use slave use master.
Still not working for me. On cli it works and reports but the ui or logs say it dsconnects again. I might need to log a bug.
