Using Beelink ME Mini with 6 NVME drives, only 4 are useable in TrueNAS Scale

TrueNAS General
, ,
102

Well, after some testing I could tune the BIOS a little bit more to get through a Scrub without setting the CPU to PIII speeds

First, I will correct my original Post, I’m on 303 BIOS, not 301 (I don’t think that one exists)

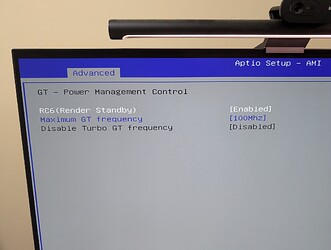

I set the GPU to the lower frequency possible, so it does not use more energy than required (PSA: I don't use any GPU in TrueNAS, if you use it for transcoding, better keep this one default)
I set the GPU to the lower frequency possible, so it does not use more energy than required (PSA: I don't use any GPU in TrueNAS, if you use it for transcoding, better keep this one default)1920×1446 84.1 KB

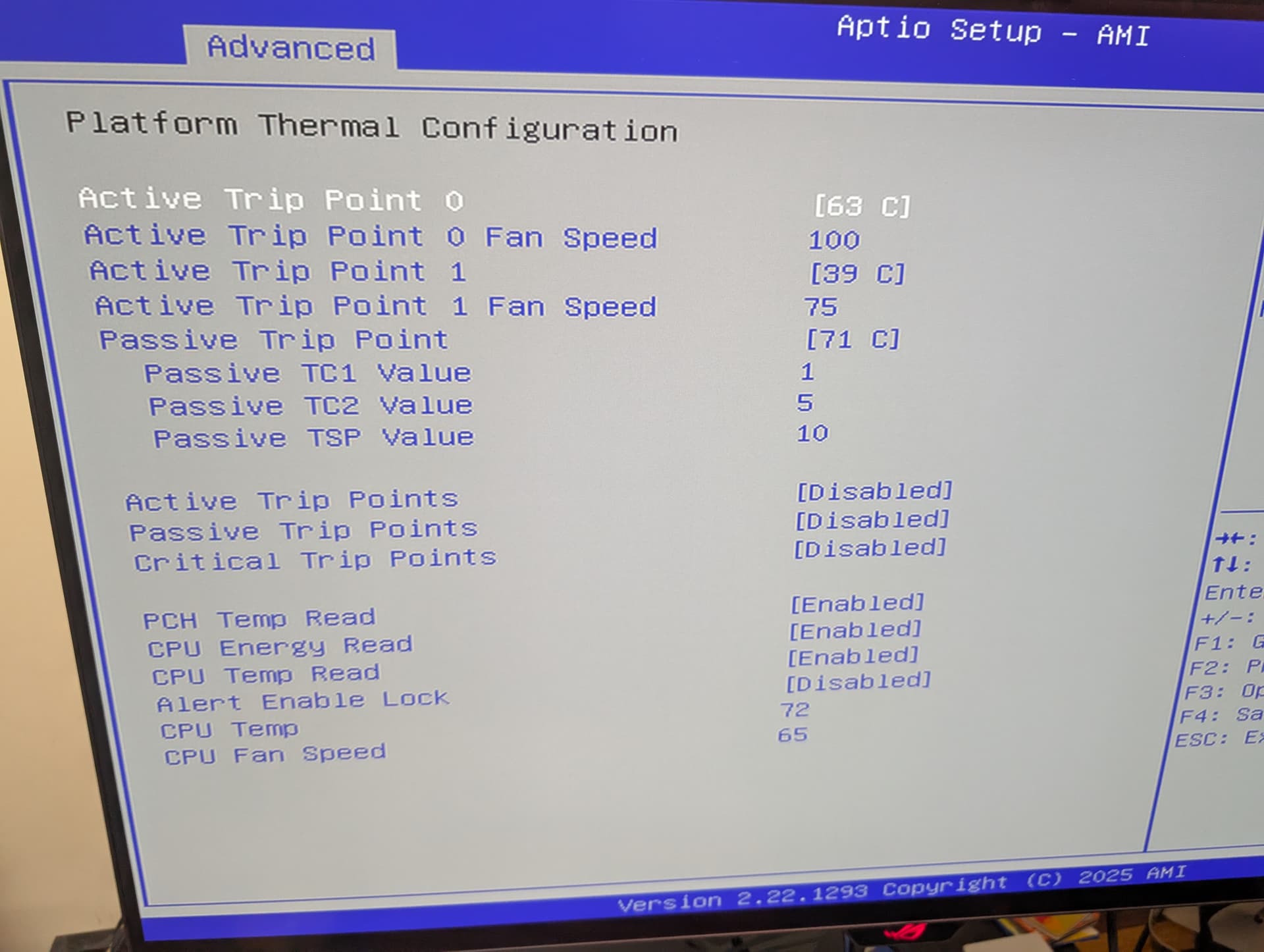

A more aggresive fan curve, did not spin up much, just for a minute at a time then went back down
A more aggresive fan curve, did not spin up much, just for a minute at a time then went back down1920×1446 147 KB

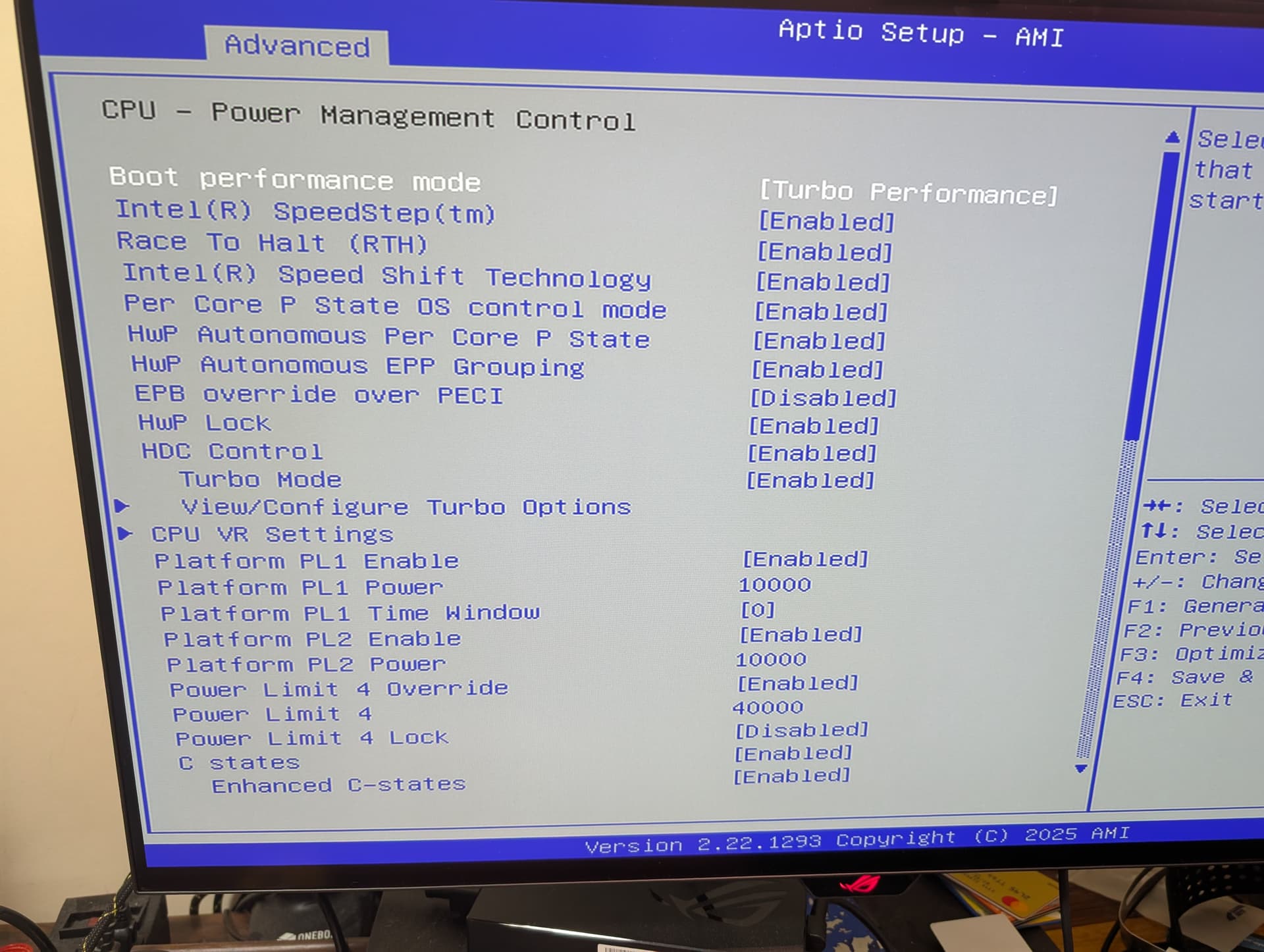

The changes here are PL1 Power from 15000 to 10000, the same with PL2 Power and Power Limit 4 to 40000 from 45000
The changes here are PL1 Power from 15000 to 10000, the same with PL2 Power and Power Limit 4 to 40000 from 450001920×1446 224 KB

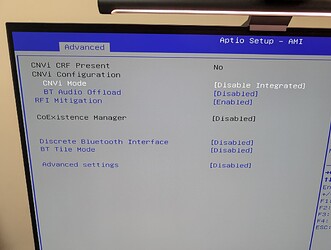

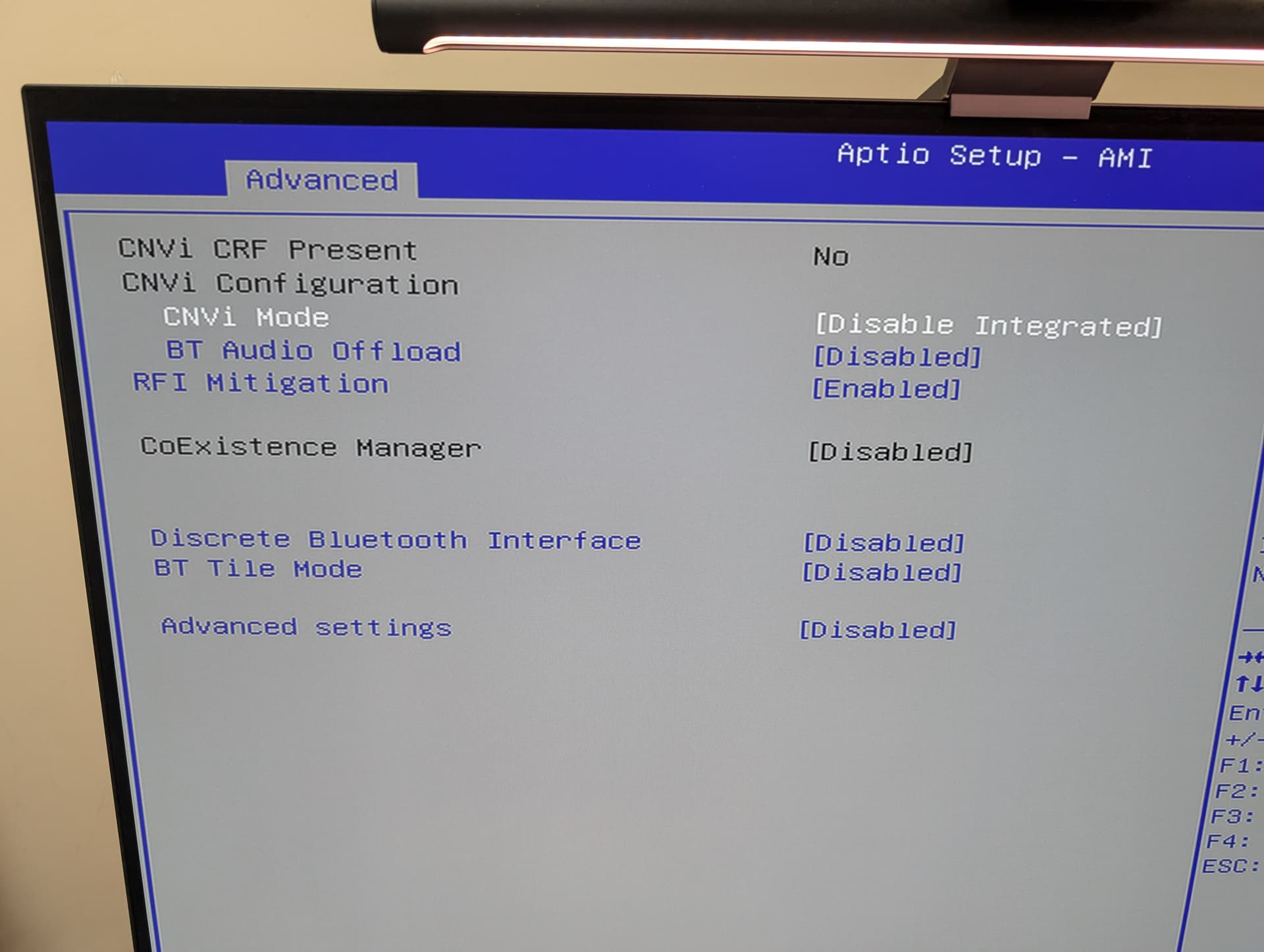

Even though I removed the WiFi card, I disabled everything related to CNVi, if maybe having this enabled sucked out power and introduced instability
Even though I removed the WiFi card, I disabled everything related to CNVi, if maybe having this enabled sucked out power and introduced instability1920×1446 113 KB

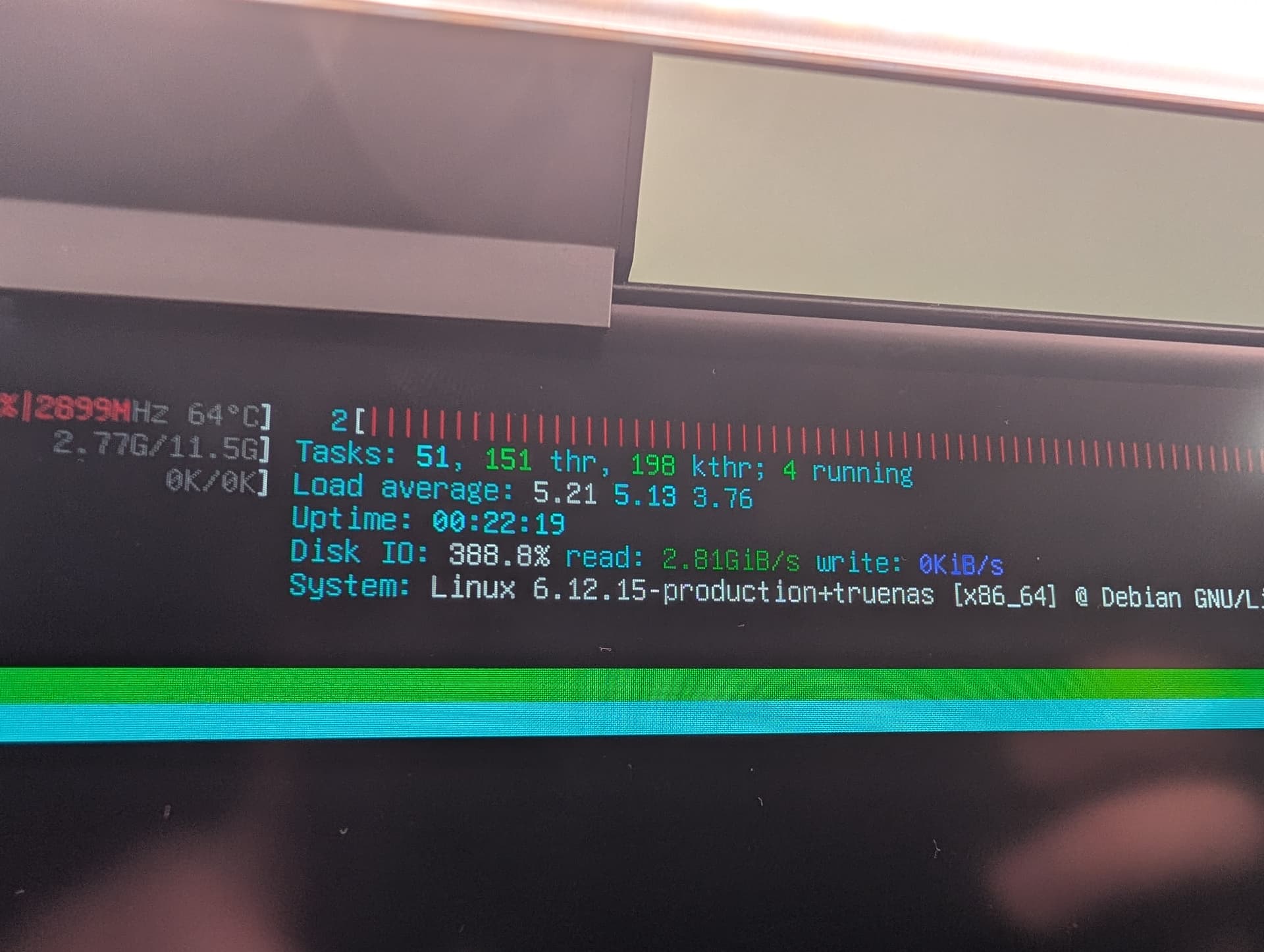

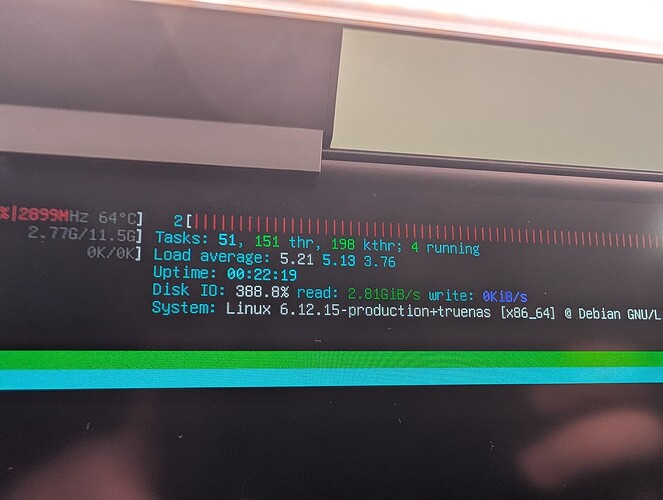

After those changes the Scrub finished in 25 minutes for almost 4TB of mixed data, the CPU was at 2.9Ghz for all the process and the fan did spin up a little for 30 seconds at a time, the temperature stable at 65 C for the CPU and around 55 C for all six NVMe drives

PXL_20250908_233824274
PXL_20250908_2338242741920×1446 161 KB

I set the scrub once a week on sundays (is it too much?) so I will report next week if the thing keep going well

Cheers
Alex
