I am running TrueNAS Scale 24.04.2.5. I have 2 zpools, a 2-vdev raidz2 of 12 spinning drives, and a newer pool of 6 2TB SSD’s, intended to run some vm’s off of. These were not the finest SSD’s, but my environment is not so critical that I needed expensive drives, I got mid-tier Amazon deals, and I understood the risks. This was fine for about a month, but the ssd’s began showing errors (initially within fault tolerance). I replaced one, but then errors started showing on the other drives, and as a precaution I moved all storage off of that pool. This was prudent, as it very quickly catastrophically failed and the pool and data would have been lost.
I completed a single drive replacement, and put the drive into an external enclosure for analysis…and the drive tested fine. No smart errors, wiped it, and it’s seemingly good as new. Meanwhile, the rest of the pool looks like this:

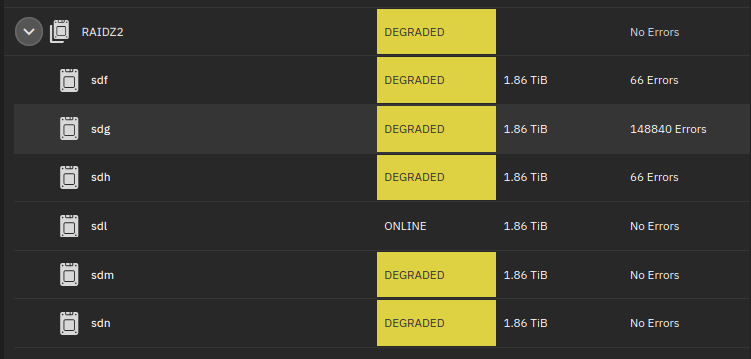

And the only fine drive is the one I replaced. Looking at the drive with the jillion errors, I put in a smart test, and got the following results:
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x02) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Disabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 33) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 85) minutes.
Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x0031) SCT Status supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 20
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
5 Reallocated_Sector_Ct 0x0013 100 100 050 Pre-fail Always - 0
9 Power_On_Hours 0x0012 100 100 000 Old_age Always - 1157
12 Power_Cycle_Count 0x0012 100 100 000 Old_age Always - 6
167 Unknown_Attribute 0x0022 100 100 000 Old_age Always - 0
168 Unknown_Attribute 0x0012 100 100 000 Old_age Always - 0
169 Unknown_Attribute 0x0013 100 100 010 Pre-fail Always - 0
171 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0
172 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0
173 Unknown_Attribute 0x0012 200 200 000 Old_age Always - 21479555094
174 Unknown_Attribute 0x0022 100 100 000 Old_age Always - 15
175 Program_Fail_Count_Chip 0x0022 100 100 010 Old_age Always - 0
180 Unused_Rsvd_Blk_Cnt_Tot 0x0033 092 092 000 Pre-fail Always - 405
187 Reported_Uncorrect 0x0032 092 000 000 Old_age Always - 4
192 Power-Off_Retract_Count 0x0012 100 100 000 Old_age Always - 5
194 Temperature_Celsius 0x0022 025 025 000 Old_age Always - 25 (Min/Max 24/33)
206 Unknown_SSD_Attribute 0x0032 200 200 000 Old_age Always - 5
207 Unknown_SSD_Attribute 0x0032 200 200 000 Old_age Always - 72
208 Unknown_SSD_Attribute 0x0032 200 200 000 Old_age Always - 22
209 Unknown_SSD_Attribute 0x0032 200 200 000 Old_age Always - 1
210 Unknown_Attribute 0x0032 200 200 000 Old_age Always - 1951
211 Unknown_Attribute 0x0032 200 200 000 Old_age Always - 999
231 Unknown_SSD_Attribute 0x0023 093 093 005 Pre-fail Always - 1794
241 Total_LBAs_Written 0x0032 100 100 000 Old_age Always - 12590
242 Total_LBAs_Read 0x0032 100 100 000 Old_age Always - 1295
243 Unknown_Attribute 0x0032 050 050 000 Old_age Always - 327685
245 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 25
SMART Error Log Version: 1
No Errors Logged
SMART Self-test log structure revision number 1
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 1154 -
# 2 Short offline Completed without error 00% 1092 -
# 3 Extended offline Completed without error 00% 900 -
# 4 Short offline Completed without error 00% 803 -
# 5 Short offline Completed without error 00% 707 -
# 6 Short offline Completed without error 00% 611 -
# 7 Extended offline Completed without error 00% 516 -
# 8 Short offline Completed without error 00% 419 -
# 9 Short offline Completed without error 00% 251 -
#10 Extended offline Completed without error 00% 156 -
#11 Short offline Completed without error 00% 59 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
128 0 65535 Read_scanning was completed without error
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
The above only provides legacy SMART information - try 'smartctl -x' for more
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x02) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Disabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 33) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 85) minutes.
Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x0031) SCT Status supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 20
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
5 Reallocated_Sector_Ct PO--C- 100 100 050 - 0
9 Power_On_Hours -O--C- 100 100 000 - 1157
12 Power_Cycle_Count -O--C- 100 100 000 - 6
167 Unknown_Attribute -O---K 100 100 000 - 0
168 Unknown_Attribute -O--C- 100 100 000 - 0
169 Unknown_Attribute PO--C- 100 100 010 - 0
171 Unknown_Attribute -O--CK 100 100 000 - 0
172 Unknown_Attribute -O--CK 100 100 000 - 0
173 Unknown_Attribute -O--C- 200 200 000 - 21479555094
174 Unknown_Attribute -O---K 100 100 000 - 15
175 Program_Fail_Count_Chip -O---K 100 100 010 - 0
180 Unused_Rsvd_Blk_Cnt_Tot PO--CK 092 092 000 - 405
187 Reported_Uncorrect -O--CK 092 000 000 - 4
192 Power-Off_Retract_Count -O--C- 100 100 000 - 5
194 Temperature_Celsius -O---K 025 025 000 - 25 (Min/Max 24/33)
206 Unknown_SSD_Attribute -O--CK 200 200 000 - 5
207 Unknown_SSD_Attribute -O--CK 200 200 000 - 72
208 Unknown_SSD_Attribute -O--CK 200 200 000 - 22
209 Unknown_SSD_Attribute -O--CK 200 200 000 - 1
210 Unknown_Attribute -O--CK 200 200 000 - 1951
211 Unknown_Attribute -O--CK 200 200 000 - 999
231 Unknown_SSD_Attribute PO---K 093 093 005 - 1794
241 Total_LBAs_Written -O--CK 100 100 000 - 12590
242 Total_LBAs_Read -O--CK 100 100 000 - 1295
243 Unknown_Attribute -O--CK 050 050 000 - 327685
245 Unknown_Attribute -O--CK 100 100 000 - 25
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 51 Comprehensive SMART error log
0x03 GPL R/O 64 Ext. Comprehensive SMART error log
0x04 GPL,SL R/O 8 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (64 sectors)
Device Error Count: 4
CR = Command Register
FEATR = Features Register
COUNT = Count (was: Sector Count) Register
LBA_48 = Upper bytes of LBA High/Mid/Low Registers ] ATA-8
LH = LBA High (was: Cylinder High) Register ] LBA
LM = LBA Mid (was: Cylinder Low) Register ] Register
LL = LBA Low (was: Sector Number) Register ]
DV = Device (was: Device/Head) Register
DC = Device Control Register
ER = Error register
ST = Status register
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 4 [3] occurred at disk power-on lifetime: 1024 hours (42 days + 16 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 41 00 28 00 00 ee 77 4e 10 40 00 Error:
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 00 00 00 00 00 00 02 67 38 08 40 00 00:05:59.500 NOP [Abort queued commands]
2f 00 00 00 01 00 00 00 00 00 10 00 80 00:05:56.600 READ LOG EXT
00 00 00 00 00 00 00 02 67 37 c0 40 01 00:05:56.600 NOP [Abort queued commands]
ea 00 00 00 00 00 00 00 00 00 00 00 80 00:05:50.000 FLUSH CACHE EXT
ea 00 00 00 00 00 00 00 00 00 00 00 80 00:05:50.000 FLUSH CACHE EXT
Error 3 [2] occurred at disk power-on lifetime: 1024 hours (42 days + 16 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 41 00 10 00 00 02 67 39 00 40 00 Error:
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 00 00 00 00 00 00 02 67 37 c0 40 01 00:05:56.600 NOP [Abort queued commands]
ea 00 00 00 00 00 00 00 00 00 00 00 80 00:05:50.000 FLUSH CACHE EXT
ea 00 00 00 00 00 00 00 00 00 00 00 80 00:05:50.000 FLUSH CACHE EXT
ea 00 00 00 00 00 00 00 00 00 00 00 80 00:05:40.000 FLUSH CACHE EXT
ea 00 00 00 00 00 00 00 00 00 00 00 80 00:05:40.000 FLUSH CACHE EXT
Error 2 [1] occurred at disk power-on lifetime: 1017 hours (42 days + 9 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 41 00 30 00 00 cf 30 ab 90 40 00 Error:
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
00 00 00 00 00 00 00 02 67 38 08 40 00 42d+09:01:13.500 NOP [Abort queued commands]
ea 00 00 00 00 00 00 00 00 00 00 00 80 42d+09:01:10.800 FLUSH CACHE EXT
2f 00 00 00 01 00 00 00 00 00 10 00 80 42d+09:01:10.800 READ LOG EXT
60 00 00 00 00 00 00 02 67 37 c0 00 80 42d+09:01:10.800 READ FPDMA QUEUED
ea 00 00 00 00 00 00 00 00 00 00 00 80 42d+09:01:08.100 FLUSH CACHE EXT
Error 1 [0] occurred at disk power-on lifetime: 1017 hours (42 days + 9 hours)
When the command that caused the error occurred, the device was in an unknown state.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 41 01 00 00 00 02 67 36 d8 40 00 Error: UNC at LBA = 0x026736d8 = 40318680
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 00 00 00 00 00 02 67 37 c0 00 80 42d+09:01:10.800 READ FPDMA QUEUED
ea 00 00 00 00 00 00 00 00 00 00 00 80 42d+09:01:08.100 FLUSH CACHE EXT
ea 00 00 00 00 00 00 00 00 00 00 00 80 42d+09:01:08.100 FLUSH CACHE EXT
ea 00 00 00 00 00 00 00 00 00 00 00 80 42d+09:01:08.100 FLUSH CACHE EXT
ea 00 00 00 00 00 00 00 00 00 00 00 80 42d+09:01:08.100 FLUSH CACHE EXT
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 1154 -
# 2 Short offline Completed without error 00% 1092 -
# 3 Extended offline Completed without error 00% 900 -
# 4 Short offline Completed without error 00% 803 -
# 5 Short offline Completed without error 00% 707 -
# 6 Short offline Completed without error 00% 611 -
# 7 Extended offline Completed without error 00% 516 -
# 8 Short offline Completed without error 00% 419 -
# 9 Short offline Completed without error 00% 251 -
#10 Extended offline Completed without error 00% 156 -
#11 Short offline Completed without error 00% 59 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
128 0 65535 Read_scanning was completed without error
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 1 (0x0001)
Device State: Active (0)
Current Temperature: 28 Celsius
Power Cycle Min/Max Temperature: ?/31 Celsius
Lifetime Min/Max Temperature: ?/ ? Celsius
Under/Over Temperature Limit Count: 0/0
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: -127/127 Celsius
Min/Max Temperature Limit: -127/127 Celsius
Temperature History Size (Index): 478 (87)
Index Estimated Time Temperature Celsius
88 2025-03-07 10:10 28 *********
... ..( 5 skipped). .. *********
94 2025-03-07 10:16 28 *********
95 2025-03-07 10:17 27 ********
96 2025-03-07 10:18 28 *********
... ..( 3 skipped). .. *********
100 2025-03-07 10:22 28 *********
101 2025-03-07 10:23 27 ********
102 2025-03-07 10:24 28 *********
103 2025-03-07 10:25 27 ********
104 2025-03-07 10:26 28 *********
... ..( 48 skipped). .. *********
153 2025-03-07 11:15 28 *********
154 2025-03-07 11:16 27 ********
155 2025-03-07 11:17 28 *********
... ..( 15 skipped). .. *********
171 2025-03-07 11:33 28 *********
172 2025-03-07 11:34 27 ********
173 2025-03-07 11:35 28 *********
... ..( 7 skipped). .. *********
181 2025-03-07 11:43 28 *********
182 2025-03-07 11:44 27 ********
183 2025-03-07 11:45 28 *********
... ..( 11 skipped). .. *********
195 2025-03-07 11:57 28 *********
196 2025-03-07 11:58 27 ********
197 2025-03-07 11:59 28 *********
... ..( 5 skipped). .. *********
203 2025-03-07 12:05 28 *********
204 2025-03-07 12:06 27 ********
205 2025-03-07 12:07 27 ********
206 2025-03-07 12:08 28 *********
... ..( 6 skipped). .. *********
213 2025-03-07 12:15 28 *********
214 2025-03-07 12:16 27 ********
215 2025-03-07 12:17 28 *********
... ..( 4 skipped). .. *********
220 2025-03-07 12:22 28 *********
221 2025-03-07 12:23 27 ********
... ..( 3 skipped). .. ********
225 2025-03-07 12:27 27 ********
226 2025-03-07 12:28 28 *********
... ..( 21 skipped). .. *********
248 2025-03-07 12:50 28 *********
249 2025-03-07 12:51 27 ********
250 2025-03-07 12:52 28 *********
251 2025-03-07 12:53 28 *********
252 2025-03-07 12:54 28 *********
253 2025-03-07 12:55 27 ********
254 2025-03-07 12:56 28 *********
... ..( 11 skipped). .. *********
266 2025-03-07 13:08 28 *********
267 2025-03-07 13:09 27 ********
268 2025-03-07 13:10 28 *********
... ..( 4 skipped). .. *********
273 2025-03-07 13:15 28 *********
274 2025-03-07 13:16 27 ********
275 2025-03-07 13:17 27 ********
276 2025-03-07 13:18 28 *********
277 2025-03-07 13:19 27 ********
278 2025-03-07 13:20 28 *********
... ..( 2 skipped). .. *********
281 2025-03-07 13:23 28 *********
282 2025-03-07 13:24 27 ********
283 2025-03-07 13:25 28 *********
284 2025-03-07 13:26 27 ********
285 2025-03-07 13:27 27 ********
286 2025-03-07 13:28 27 ********
287 2025-03-07 13:29 28 *********
288 2025-03-07 13:30 28 *********
289 2025-03-07 13:31 28 *********
290 2025-03-07 13:32 27 ********
... ..( 2 skipped). .. ********
293 2025-03-07 13:35 27 ********
294 2025-03-07 13:36 28 *********
... ..( 2 skipped). .. *********
297 2025-03-07 13:39 28 *********
298 2025-03-07 13:40 27 ********
... ..( 2 skipped). .. ********
301 2025-03-07 13:43 27 ********
302 2025-03-07 13:44 28 *********
... ..( 4 skipped). .. *********
307 2025-03-07 13:49 28 *********
308 2025-03-07 13:50 27 ********
309 2025-03-07 13:51 27 ********
310 2025-03-07 13:52 28 *********
... ..( 5 skipped). .. *********
316 2025-03-07 13:58 28 *********
317 2025-03-07 13:59 27 ********
... ..( 3 skipped). .. ********
321 2025-03-07 14:03 27 ********
322 2025-03-07 14:04 28 *********
323 2025-03-07 14:05 28 *********
324 2025-03-07 14:06 28 *********
325 2025-03-07 14:07 27 ********
326 2025-03-07 14:08 27 ********
327 2025-03-07 14:09 28 *********
... ..( 3 skipped). .. *********
331 2025-03-07 14:13 28 *********
332 2025-03-07 14:14 27 ********
... ..( 4 skipped). .. ********
337 2025-03-07 14:19 27 ********
338 2025-03-07 14:20 28 *********
... ..( 11 skipped). .. *********
350 2025-03-07 14:32 28 *********
351 2025-03-07 14:33 30 ***********
352 2025-03-07 14:34 28 *********
353 2025-03-07 14:35 27 ********
354 2025-03-07 14:36 27 ********
355 2025-03-07 14:37 28 *********
... ..( 14 skipped). .. *********
370 2025-03-07 14:52 28 *********
371 2025-03-07 14:53 27 ********
372 2025-03-07 14:54 28 *********
... ..( 6 skipped). .. *********
379 2025-03-07 15:01 28 *********
380 2025-03-07 15:02 27 ********
381 2025-03-07 15:03 27 ********
382 2025-03-07 15:04 27 ********
383 2025-03-07 15:05 28 *********
... ..( 2 skipped). .. *********
386 2025-03-07 15:08 28 *********
387 2025-03-07 15:09 27 ********
388 2025-03-07 15:10 27 ********
389 2025-03-07 15:11 28 *********
... ..( 3 skipped). .. *********
393 2025-03-07 15:15 28 *********
394 2025-03-07 15:16 27 ********
... ..( 4 skipped). .. ********
399 2025-03-07 15:21 27 ********
400 2025-03-07 15:22 28 *********
... ..( 3 skipped). .. *********
404 2025-03-07 15:26 28 *********
405 2025-03-07 15:27 27 ********
406 2025-03-07 15:28 27 ********
407 2025-03-07 15:29 27 ********
408 2025-03-07 15:30 28 *********
... ..( 2 skipped). .. *********
411 2025-03-07 15:33 28 *********
412 2025-03-07 15:34 27 ********
... ..( 3 skipped). .. ********
416 2025-03-07 15:38 27 ********
417 2025-03-07 15:39 28 *********
418 2025-03-07 15:40 28 *********
419 2025-03-07 15:41 28 *********
420 2025-03-07 15:42 27 ********
... ..( 4 skipped). .. ********
425 2025-03-07 15:47 27 ********
426 2025-03-07 15:48 28 *********
... ..( 2 skipped). .. *********
429 2025-03-07 15:51 28 *********
430 2025-03-07 15:52 27 ********
431 2025-03-07 15:53 27 ********
432 2025-03-07 15:54 27 ********
433 2025-03-07 15:55 28 *********
... ..( 2 skipped). .. *********
436 2025-03-07 15:58 28 *********
437 2025-03-07 15:59 27 ********
438 2025-03-07 16:00 28 *********
439 2025-03-07 16:01 27 ********
440 2025-03-07 16:02 28 *********
441 2025-03-07 16:03 27 ********
442 2025-03-07 16:04 28 *********
... ..( 2 skipped). .. *********
445 2025-03-07 16:07 28 *********
446 2025-03-07 16:08 27 ********
447 2025-03-07 16:09 28 *********
448 2025-03-07 16:10 27 ********
449 2025-03-07 16:11 27 ********
450 2025-03-07 16:12 27 ********
451 2025-03-07 16:13 28 *********
... ..( 5 skipped). .. *********
457 2025-03-07 16:19 28 *********
458 2025-03-07 16:20 27 ********
459 2025-03-07 16:21 27 ********
460 2025-03-07 16:22 28 *********
... ..( 6 skipped). .. *********
467 2025-03-07 16:29 28 *********
468 2025-03-07 16:30 27 ********
469 2025-03-07 16:31 28 *********
... ..( 7 skipped). .. *********
477 2025-03-07 16:39 28 *********
0 2025-03-07 16:40 27 ********
1 2025-03-07 16:41 27 ********
2 2025-03-07 16:42 28 *********
... ..( 3 skipped). .. *********
6 2025-03-07 16:46 28 *********
7 2025-03-07 16:47 27 ********
... ..( 2 skipped). .. ********
10 2025-03-07 16:50 27 ********
11 2025-03-07 16:51 28 *********
... ..( 3 skipped). .. *********
15 2025-03-07 16:55 28 *********
16 2025-03-07 16:56 27 ********
17 2025-03-07 16:57 27 ********
18 2025-03-07 16:58 27 ********
19 2025-03-07 16:59 28 *********
20 2025-03-07 17:00 27 ********
21 2025-03-07 17:01 27 ********
22 2025-03-07 17:02 28 *********
... ..( 2 skipped). .. *********
25 2025-03-07 17:05 28 *********
26 2025-03-07 17:06 27 ********
27 2025-03-07 17:07 27 ********
28 2025-03-07 17:08 28 *********
... ..( 5 skipped). .. *********
34 2025-03-07 17:14 28 *********
35 2025-03-07 17:15 27 ********
36 2025-03-07 17:16 27 ********
37 2025-03-07 17:17 27 ********
38 2025-03-07 17:18 28 *********
39 2025-03-07 17:19 28 *********
40 2025-03-07 17:20 28 *********
41 2025-03-07 17:21 27 ********
... ..( 5 skipped). .. ********
47 2025-03-07 17:27 27 ********
48 2025-03-07 17:28 28 *********
... ..( 2 skipped). .. *********
51 2025-03-07 17:31 28 *********
52 2025-03-07 17:32 27 ********
... ..( 3 skipped). .. ********
56 2025-03-07 17:36 27 ********
57 2025-03-07 17:37 28 *********
... ..( 2 skipped). .. *********
60 2025-03-07 17:40 28 *********
61 2025-03-07 17:41 27 ********
... ..( 2 skipped). .. ********
64 2025-03-07 17:44 27 ********
65 2025-03-07 17:45 28 *********
... ..( 2 skipped). .. *********
68 2025-03-07 17:48 28 *********
69 2025-03-07 17:49 27 ********
... ..( 3 skipped). .. ********
73 2025-03-07 17:53 27 ********
74 2025-03-07 17:54 28 *********
75 2025-03-07 17:55 28 *********
76 2025-03-07 17:56 28 *********
77 2025-03-07 17:57 27 ********
... ..( 5 skipped). .. ********
83 2025-03-07 18:03 27 ********
84 2025-03-07 18:04 28 *********
... ..( 2 skipped). .. *********
87 2025-03-07 18:07 28 *********
SCT Error Recovery Control command not supported
Device Statistics (GP Log 0x04)
Page Offset Size Value Flags Description
0x01 ===== = = === == General Statistics (rev 1) ==
0x01 0x008 4 6 --- Lifetime Power-On Resets
0x01 0x010 4 1157 --- Power-on Hours
0x01 0x018 6 26404982330 --- Logical Sectors Written
0x01 0x020 6 998505594 --- Number of Write Commands
0x01 0x028 6 2717776180 --- Logical Sectors Read
0x01 0x030 6 37823576 --- Number of Read Commands
0x01 0x038 6 1065014793012 --- Date and Time TimeStamp
0x07 ===== = = === == Solid State Device Statistics (rev 1) ==
0x07 0x008 1 14 N-- Percentage Used Endurance Indicator
|||_ C monitored condition met
||__ D supports DSN
|___ N normalized value
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 4 Command failed due to ICRC error
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0008 2 0 Device-to-host non-data FIS retries
0x0009 4 0 Transition from drive PhyRdy to drive PhyNRdy
0x000a 4 1 Device-to-host register FISes sent due to a COMRESET
0x000f 2 0 R_ERR response for host-to-device data FIS, CRC
0x0010 2 0 R_ERR response for host-to-device data FIS, non-CRC
0x0012 2 0 R_ERR response for host-to-device non-data FIS, CRC
0x0013 2 0 R_ERR response for host-to-device non-data FIS, non-CRC
I see several errors in there, but the disk shows “4” errors which is a far cry from Truenas’ console reading of 150k.
Can someone help explain what the “Error” count is in the above screen, and how it translates to actual failing drives? I’m taking this pool out and figuring out how to fund ordering better drives, but I’m confused by the disconnect between smart and the errors displayed.
