New Intel nic, no shares nor Truenas webpage

TrueNAS General
82

I have now installed the 10Gb nic into my desktop and the file transfer speed is now just over 200 MB/s, and iperf3 shows speeds of over 8Gbits/sec.

I removed/deleted the init script which I used for 2.5Gb as I now want the full 10Gb

So that is much faster/better than just 75MB/s file transfer with a 1Gb nic.

Out of interest I connected the 2nd rj45 port on the nic in my desktop to the 2nd rj45 port on my TrueNAS server. I keep getting messages telling me that ‘the connection failed’. Do I have to do something like asign an ip address or??

After I read about doing what I did , I thought it would improve file transfer as bit more.

Thanks

83

Just use one 10Gbps connection per computer. 200 MB/s is just 1600 Mbps so you are nowhere near using up your 10Gbps connection

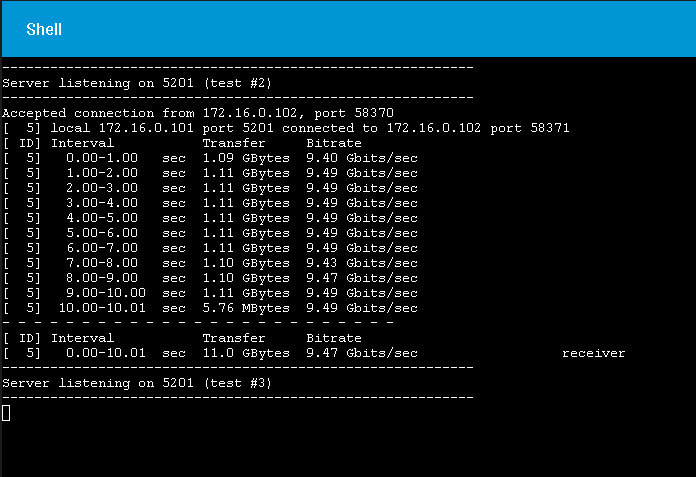

This is what I got with two computers connected over 10Gbps with fiber. This is default network settings. No messing with Jumbo frames, etc.

10GbpsNetwork
10GbpsNetwork696×477 3.72 KB

84

Ok, thanks for clearing that up.

This is my speeds with the 10Gb nics

root@freenas[~]# iperf3 -s 192.168.0.115
-----------------------------------------------------------
Server listening on 5201 (test #1)
-----------------------------------------------------------
Accepted connection from 192.168.0.182, port 43806
[  5] local 192.168.0.42 port 5201 connected to 192.168.0.182 port 43820
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  1.09 GBytes  9.40 Gbits/sec
[  5]   1.00-2.00   sec  1.10 GBytes  9.41 Gbits/sec
[  5]   2.00-3.00   sec  1.09 GBytes  9.39 Gbits/sec
[  5]   3.00-4.00   sec  1.10 GBytes  9.42 Gbits/sec
[  5]   4.00-5.00   sec  1.10 GBytes  9.42 Gbits/sec
[  5]   5.00-6.00   sec  1.10 GBytes  9.41 Gbits/sec
[  5]   6.00-7.00   sec  1.09 GBytes  9.41 Gbits/sec
[  5]   7.00-8.00   sec  1.10 GBytes  9.42 Gbits/sec
[  5]   8.00-9.00   sec  1.10 GBytes  9.41 Gbits/sec
[  5]   9.00-10.00  sec  1.10 GBytes  9.41 Gbits/sec
[  5]  10.00-10.00  sec  1.12 MBytes  9.26 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.00  sec  11.0 GBytes  9.41 Gbits/sec
85

Anyway now I just want to thank you for your help and time with my little problem with network cards for TrueNAS.

Much appreciated. Thanks again
