Pool imports, but not all disks get "pulled in"

tnast · July 16, 2025, 2:51pm

Hi all,
I recently had to reinstall TrueNAS because for some reason something on my install went bad from a power outage, and wouldn’t boot anymore. I know I should have a UPS, but it’s not a priority right now. Short downtime on this system is not a concern.

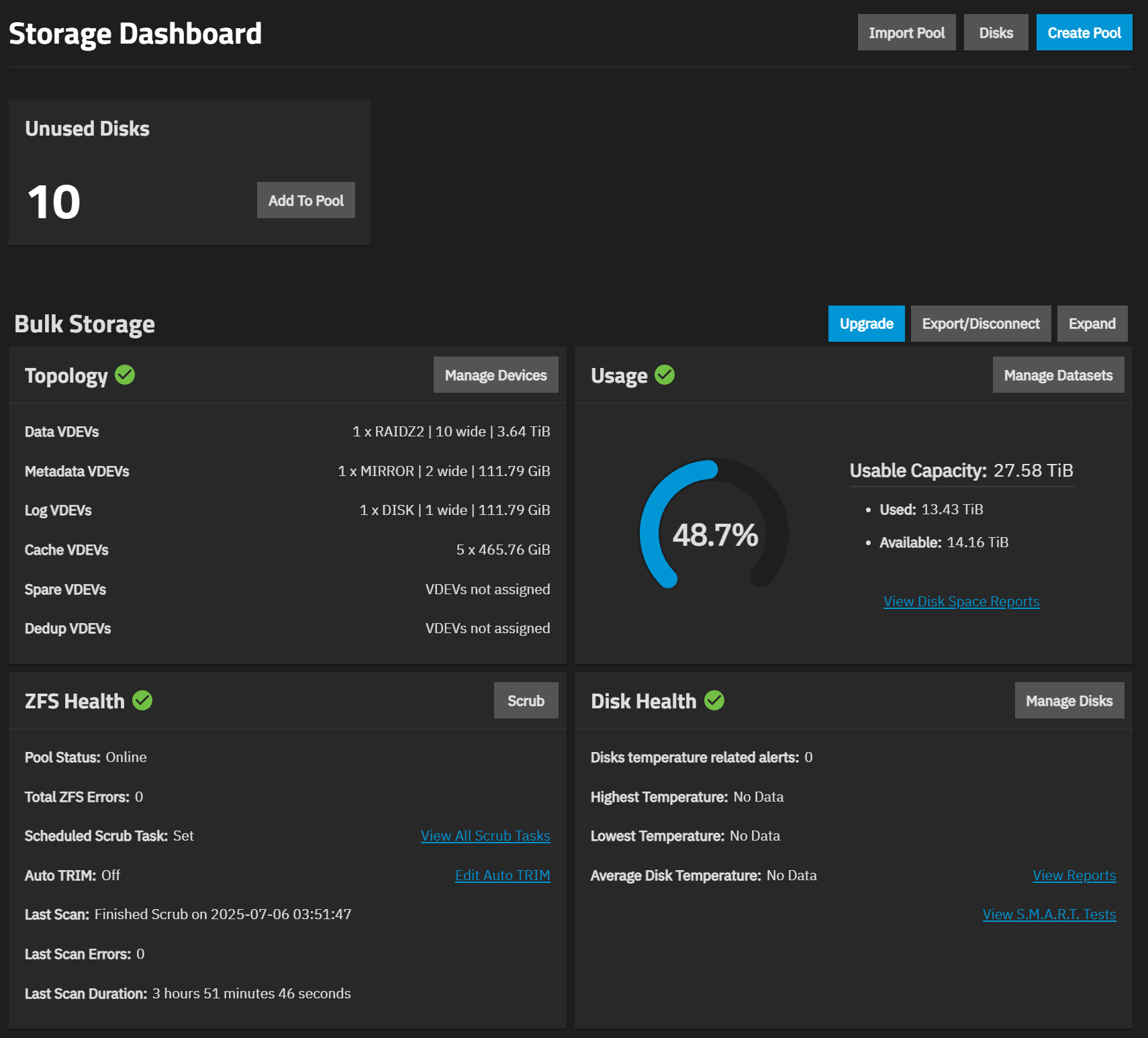

Once I got TrueNAS running, I went to import my pool. TrueNAS appears to import it perfectly fine- no errors or anything, but then looking through the storage and drives pages, not all of my storage drives are actually getting “pulled in” to the pool. For whatever reason, there will always be a couple storage drives that list “N/A” for their pool, and the drives (and quantity) that do will change on reboots.

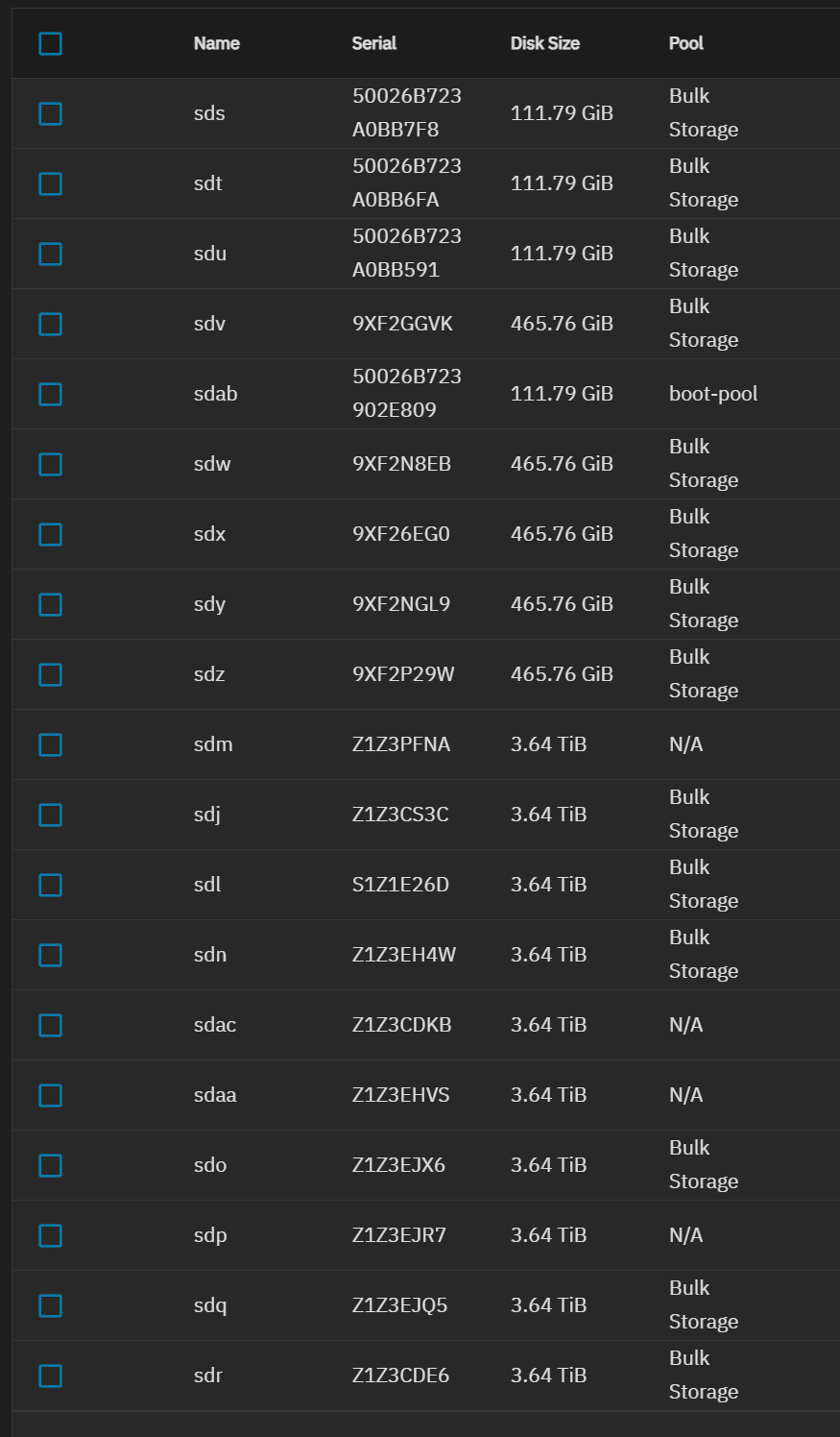

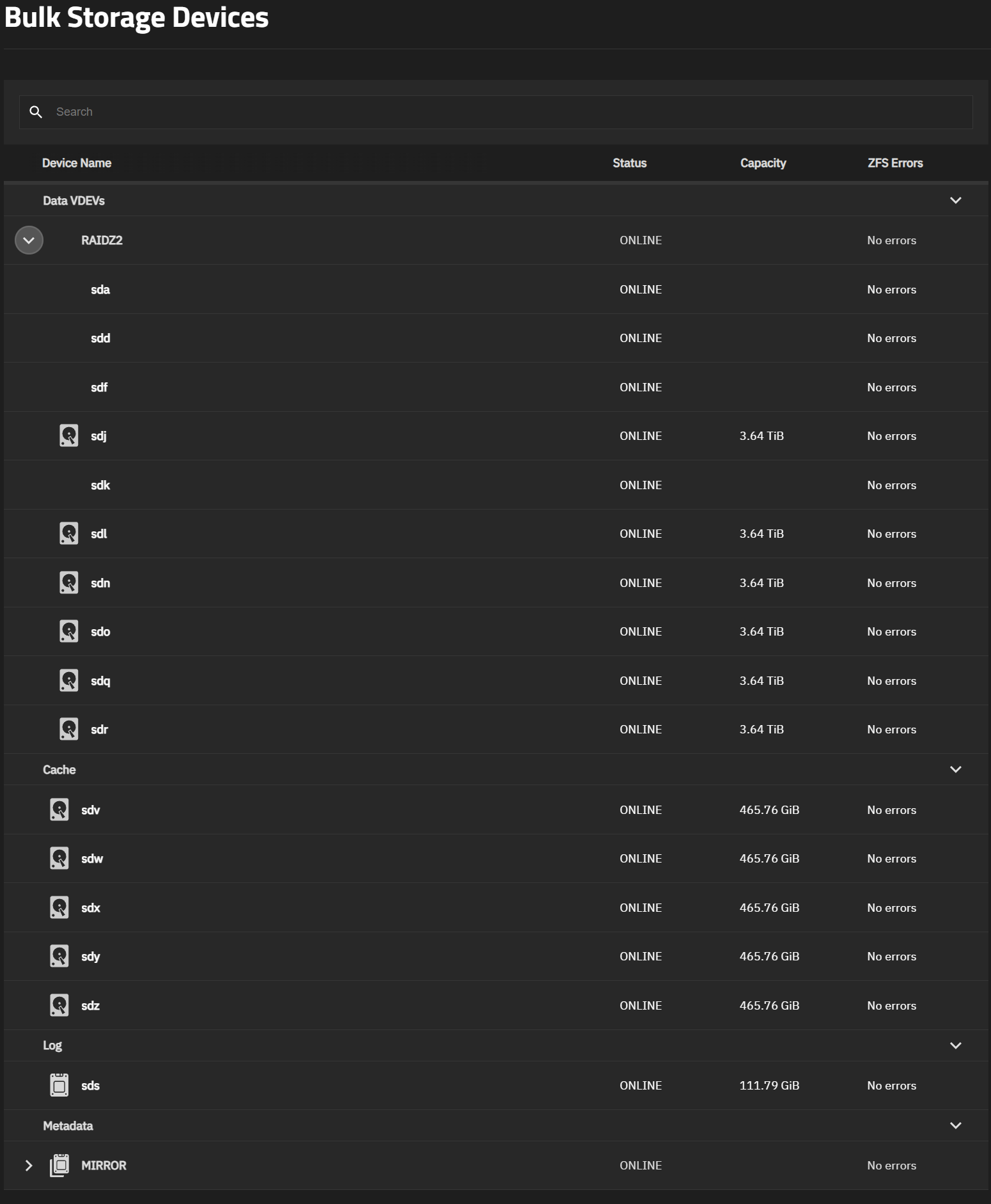

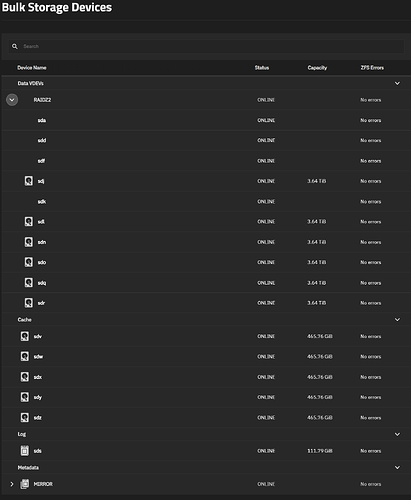

When looking at “manage devices” under the pool, the disks that list N/A on the other page are missing their HDD icon in the list, and don’t have a capacity listed. There’s a name for the disks (IE sda, sdh, etc), and that same name exists within the full system drive list.

What on earth could be going on here? I can run smart tests on every drive via the shell, and they all report back as though there’s no communication issue.

Here’s some relevant info:

Pool topology:
Data: 1x RAIDZ2 - 10 wide - 4 TB (shows as ? after rebooting, all mechanical SAS)
Metadata VDEV: 1x MIRROR - 2 wide - 128 GB (SATA SSD)
Log VDEV: 1 x DISK - 1 wide - 128 GB (SATA SSD)
Cache VDEV: 5 x 500 GB (SATA HDD)

Pool usage: 13.43 TiB used, 14.16 TiB available

ZFS health: Online, 0 ZFS errors, 0 errors on last scrub, completed 10 days ago, took 3 hours, 51 minutes

PK1048 · July 16, 2025, 3:34pm

Do you happen to have SAS Multi-Pathing (MPT)?

I have seen this if MPT is enabled. The fact that the pool is ONLINE says that all the top level vdevs of the pool were imported. The N/A disks must be extra, and MPT is one way to get extra devices.

Protopia · July 16, 2025, 4:34pm

If @PK1048 Paul’s idea doesn’t match your environment, then some detailed diagnostics might help us - so please run the following commands and post the results of each in a separate </> box:

lsblk -bo NAME,LABEL,MAJ:MIN,TRAN,ROTA,ZONED,VENDOR,MODEL,SERIAL,PARTUUID,START,SIZE,PARTTYPENAME
sudo ZPOOL_SCRIPTS_AS_ROOT=1 zpool status -vLtsc lsblk,serial,smartx,smart
sudo zpool import
lspci
sudo sas2flash -list
sudo sas3flash -list
sudo storcli show all

I can’t tell in advance which of these will be useful, but asking for all at once spares a lot of back and forth and should result in a faster answer.

tnast · July 27, 2025, 10:42pm

Sorry for the slow reply, I was on vacation and just got back. Unlucky timing.

Here’s the outputs from the commands:

lsblk:

NAME    LABEL        MAJ:MIN TRAN   ROTA ZONED VENDOR   MODEL                  SERIAL               PARTUUID                                START          SIZE PARTTYPENAME
sda                    8:0   sas       1 none  SEAGATE  ST4000NM0023           Z1Z3PFNA                                                           4000787030016
└─sda1  Bulk Storage   8:1             1 none                                                       c3081f81-2d58-4d90-acd5-b37bb8947368     4096 4000784056832 Solaris /usr & Apple ZFS
sdb                    8:16  sas       1 none  SEAGATE  ST4000NM0023           Z1Z3CDE6                                                           4000787030016
└─sdb1  Bulk Storage   8:17            1 none                                                       558a6530-6e04-4d26-9cec-ea3ef02f5774     4096 4000784056832 Solaris /usr & Apple ZFS
sdc                    8:32  sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EH4W                                                           4000787030016
└─sdc1  Bulk Storage   8:33            1 none                                                       806736be-3a4d-4d81-9257-4bf9bae47e59     4096 4000784056832 Solaris /usr & Apple ZFS
sdd                    8:48  sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EHVS                                                           4000787030016
└─sdd1  Bulk Storage   8:49            1 none                                                       caa09ea9-e901-42ba-a448-fc00e81c70c8     4096 4000784056832 Solaris /usr & Apple ZFS
sde                    8:64  sas       1 none  SEAGATE  ST4000NM0023           Z1Z3CS3C                                                           4000787030016
└─sde1  Bulk Storage   8:65            1 none                                                       7e2ae25d-cc23-4545-898d-004572a20966     4096 4000784056832 Solaris /usr & Apple ZFS
sdf                    8:80  sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EJR7                                                           4000787030016
└─sdf1  Bulk Storage   8:81            1 none                                                       08fdde29-18e4-4b79-96f3-5cc435a2c66a     4096 4000784056832 Solaris /usr & Apple ZFS
sdg                    8:96  sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EJX6                                                           4000787030016
└─sdg1  Bulk Storage   8:97            1 none                                                       5bda25a1-6270-4ea8-8ec4-9210c493f91f     4096 4000784056832 Solaris /usr & Apple ZFS
sdh                    8:112 sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EJQ5                                                           4000787030016
└─sdh1  Bulk Storage   8:113           1 none                                                       377d4773-6a17-466c-975f-8fe1b49efa36     4096 4000784056832 Solaris /usr & Apple ZFS
sdi                    8:128 sas       1 none  SEAGATE  ST4000NM0023           S1Z1E26D                                                           4000787030016
└─sdi1  Bulk Storage   8:129           1 none                                                       71e1f0a6-c166-4c24-85ad-ed2357c519b7     4096 4000784056832 Solaris /usr & Apple ZFS
sdj                    8:144 sas       1 none  SEAGATE  ST4000NM0023           Z1Z3CS3C                                                           4000787030016
└─sdj1  Bulk Storage   8:145           1 none                                                       7e2ae25d-cc23-4545-898d-004572a20966     4096 4000784056832 Solaris /usr & Apple ZFS
sdk                    8:160 sas       1 none  SEAGATE  ST4000NM0023           Z1Z3CDKB                                                           4000787030016
└─sdk1  Bulk Storage   8:161           1 none                                                       23518637-855f-4806-b52f-301fbcef76ce     4096 4000784056832 Solaris /usr & Apple ZFS
sdl                    8:176 sas       1 none  SEAGATE  ST4000NM0023           S1Z1E26D                                                           4000787030016
└─sdl1  Bulk Storage   8:177           1 none                                                       71e1f0a6-c166-4c24-85ad-ed2357c519b7     4096 4000784056832 Solaris /usr & Apple ZFS
sdm                    8:192 sas       1 none  SEAGATE  ST4000NM0023           Z1Z3PFNA                                                           4000787030016
└─sdm1  Bulk Storage   8:193           1 none                                                       c3081f81-2d58-4d90-acd5-b37bb8947368     4096 4000784056832 Solaris /usr & Apple ZFS
sdn                    8:208 sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EH4W                                                           4000787030016
└─sdn1  Bulk Storage   8:209           1 none                                                       806736be-3a4d-4d81-9257-4bf9bae47e59     4096 4000784056832 Solaris /usr & Apple ZFS
sdo                    8:224 sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EJX6                                                           4000787030016
└─sdo1  Bulk Storage   8:225           1 none                                                       5bda25a1-6270-4ea8-8ec4-9210c493f91f     4096 4000784056832 Solaris /usr & Apple ZFS
sdp                    8:240 sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EJR7                                                           4000787030016
└─sdp1  Bulk Storage   8:241           1 none                                                       08fdde29-18e4-4b79-96f3-5cc435a2c66a     4096 4000784056832 Solaris /usr & Apple ZFS
sr0                   11:0   sata      0 none  PLDS     PLDS DVD+/-RW DS-8ABSH 3N3MN7363961R61D5A04                                                  1073741312
sdq                   65:0   sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EJQ5                                                           4000787030016
└─sdq1  Bulk Storage  65:1             1 none                                                       377d4773-6a17-466c-975f-8fe1b49efa36     4096 4000784056832 Solaris /usr & Apple ZFS
sdr                   65:16  sas       1 none  SEAGATE  ST4000NM0023           Z1Z3CDE6                                                           4000787030016
└─sdr1  Bulk Storage  65:17            1 none                                                       558a6530-6e04-4d26-9cec-ea3ef02f5774     4096 4000784056832 Solaris /usr & Apple ZFS
sds                   65:32  sata      0 none  ATA      KINGSTON SH103S3120G   50026B723A0BB7F8                                                    120034123776
└─sds1  Bulk Storage  65:33            0 none                                                       cc751df4-31f1-4499-a247-220c783e06cb     4096  120031543808 Solaris /usr & Apple ZFS
sdt                   65:48  sata      0 none  ATA      KINGSTON SH103S3120G   50026B723A0BB6FA                                                    120034123776
└─sdt1  Bulk Storage  65:49            0 none                                                       eefc8c5e-f6f1-46a6-af9e-11c093af3954     4096  120031543808 Solaris /usr & Apple ZFS
sdu                   65:64  sata      0 none  ATA      KINGSTON SH103S3120G   50026B723A0BB591                                                    120034123776
└─sdu1  Bulk Storage  65:65            0 none                                                       444d5379-2982-462d-965c-9bc51191e8ba     4096  120031543808 Solaris /usr & Apple ZFS
sdv                   65:80  sata      1 none  ATA      ST9500620NS            9XF2GGVK                                                            500107862016
└─sdv1                65:81            1 none                                                       55a5799b-25f8-4b3a-9789-a9fd852cc590     4096  500105740800 Solaris /usr & Apple ZFS
sdw                   65:96  sata      1 none  ATA      ST9500620NS            9XF2N8EB                                                            500107862016
└─sdw1                65:97            1 none                                                       ea35050c-74ef-4db2-a095-a630891f7b24     4096  500105740800 Solaris /usr & Apple ZFS
sdx                   65:112 sata      1 none  ATA      ST9500620NS            9XF26EG0                                                            500107862016
└─sdx1                65:113           1 none                                                       ad1dfeb2-bb85-4932-abc8-c02d6f29eac2     4096  500105740800 Solaris /usr & Apple ZFS
sdy                   65:128 sata      1 none  ATA      ST9500620NS            9XF2NGL9                                                            500107862016
└─sdy1                65:129           1 none                                                       3f8f0ad5-2b20-447a-9bdf-c92601683548     4096  500105740800 Solaris /usr & Apple ZFS
sdz                   65:144 sata      1 none  ATA      ST9500620NS            9XF2P29W                                                            500107862016
└─sdz1                65:145           1 none                                                       84b7f0ea-4e98-44fd-b2fb-6882b45e0468     4096  500105740800 Solaris /usr & Apple ZFS
sdaa                  65:160 sas       1 none  SEAGATE  ST4000NM0023           Z1Z3EHVS                                                           4000787030016
└─sdaa1 Bulk Storage  65:161           1 none                                                       caa09ea9-e901-42ba-a448-fc00e81c70c8     4096 4000784056832 Solaris /usr & Apple ZFS
sdab                  65:176 sata      0 none  ATA      KINGSTON SH103S3120G   50026B723902E809                                                    120034123776
├─sdab1               65:177           0 none                                                       6b1d5de1-f510-4795-bc7d-4e105afb726f     4096       1048576 BIOS boot
├─sdab2 EFI           65:178           0 none                                                       ca69d877-81ae-4b03-9737-14b220b3504e     6144     536870912 EFI System
├─sdab3 boot-pool     65:179           0 none                                                       f874b85e-879b-4e80-9a0b-dd113a345ae2 34609152  102314221056 Solaris /usr & Apple ZFS
└─sdab4               65:180           0 none                                                       2d0876e1-83de-43f2-81b8-f94579e2a5d9  1054720   17179869184 Linux swap
sdac                  65:192 sas       1 none  SEAGATE  ST4000NM0023           Z1Z3CDKB                                                           4000787030016
└─sdac1 Bulk Storage  65:193           1 none                                                       23518637-855f-4806-b52f-301fbcef76ce     4096 4000784056832 Solaris /usr & Apple ZFS
zd0                  230:0             0 none                                                                                                       10737418240

zpool status:

  pool: Bulk Storage
 state: ONLINE
status: Some supported and requested features are not enabled on the pool.
        The pool can still be used, but some features are unavailable.
action: Enable all features using 'zpool upgrade'. Once this is done,
        the pool may no longer be accessible by software that does not support
        the features. See zpool-features(7) for details.
  scan: scrub repaired 0B in 03:51:46 with 0 errors on Sun Jul  6 00:51:47 2025
config:

        NAME          STATE     READ WRITE CKSUM  SLOW    size   vendor                 model            serial            hours_on  pwr_cyc  health  realloc  rep_ucor      cmd_to  temp  pend_sec  off_ucor  ata_err  defect       r_proc      w_proc    nonmed  r_ucor  w_ucor
        Bulk Storage  ONLINE       0     0     0     -
          raidz2-0    ONLINE       0     0     0     -
            sdn1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          Z1Z3EH4W            49261.88        -      OK        -         -           -    39         -         -        -       0    17742.388   29270.111   3040434       0       0  (trim unsupported)
            sdk1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          Z1Z3CDKB            49261.73        -      OK        -         -           -    39         -         -        -       0  1475729.982  343076.408   9223774       0       0  (trim unsupported)
            sdj1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          Z1Z3CS3C            49262.97        -      OK        -         -           -    39         -         -        -       0  1479742.450  344928.708  10261602       0       0  (trim unsupported)
            sdl1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          S1Z1E26D            35530.83        -      OK        -         -           -    39         -         -        -       0   643034.109   46362.474   3059604       0       0  (trim unsupported)
            sdd1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          Z1Z3EHVS            49263.33        -      OK        -         -           -    40         -         -        -       0  1480536.796  325328.863  10509543       0       0  (trim unsupported)
            sdf1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          Z1Z3EJR7            49262.67        -      OK        -         -           -    42         -         -        -       0  1473961.759  382966.063   9639989       0       0  (trim unsupported)
            sda1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          Z1Z3PFNA            51297.67        -      OK        -         -           -    41         -         -        -       0  1935997.194  297468.883  17268694       0       0  (trim unsupported)
            sdr1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          Z1Z3CDE6            49263.20        -      OK        -         -           -    39         -         -        -       0  1475507.225  348973.809   8968260       0       0  (trim unsupported)
            sdq1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          Z1Z3EJQ5            49077.33        -      OK        -         -           -    41         -         -        -       0  1472853.691  330453.465   8090634       0       0  (trim unsupported)
            sdo1      ONLINE       0     0     0     0    3.6T  SEAGATE          ST4000NM0023          Z1Z3EJX6            51112.40        -      OK        -         -           -    42         -         -        -       0  1935012.651  283582.212  17640081       0       0  (trim unsupported)
        special
          mirror-2    ONLINE       0     0     0     -
            sdu1      ONLINE       0     0     0     0  111.8G      ATA  KINGSTON SH103S3120G  50026B723A0BB591  80251h+54m+55.250s      397  PASSED        -         0           -    34         -         -        -       -            -           -         -       -       -  (untrimmed)
            sdt1      ONLINE       0     0     0     0  111.8G      ATA  KINGSTON SH103S3120G  50026B723A0BB6FA  86597h+51m+32.390s      383  PASSED        -         0           -    33         -         -        -       -            -           -         -       -       -  (untrimmed)
        logs
          sds1        ONLINE       0     0     0     0  111.8G      ATA  KINGSTON SH103S3120G  50026B723A0BB7F8  85617h+40m+52.280s      389  PASSED        -         0           -    33         -         -        -       -            -           -         -       -       -  (untrimmed)
        cache
          sdw1        ONLINE       0     0     0     0  465.8G      ATA           ST9500620NS          9XF2N8EB               72111      197  PASSED        0         0           0    37         0         0        -       -            -           -         -       -       -  (trim unsupported)
          sdv1        ONLINE       0     0     0     0  465.8G      ATA           ST9500620NS          9XF2GGVK               72368      243  PASSED        0         0           0    36         0         0        -       -            -           -         -       -       -  (trim unsupported)
          sdx1        ONLINE       0     0     0     0  465.8G      ATA           ST9500620NS          9XF26EG0               74452      186  PASSED        0         0  4295032833    36         0         0        -       -            -           -         -       -       -  (trim unsupported)
          sdy1        ONLINE       0     0     0     0  465.8G      ATA           ST9500620NS          9XF2NGL9               73117      254  PASSED        0         0           0    35         0         0        -       -            -           -         -       -       -  (trim unsupported)
          sdz1        ONLINE       0     0     0     0  465.8G      ATA           ST9500620NS          9XF2P29W               72268      255  PASSED        0         0           0    35         0         0        -       -            -           -         -       -       -  (trim unsupported)

errors: No known data errors

  pool: boot-pool
 state: ONLINE
  scan: scrub repaired 0B in 00:00:17 with 0 errors on Mon Jul 21 03:45:18 2025
config:

        NAME        STATE     READ WRITE CKSUM  SLOW    size   vendor                 model            serial            hours_on  pwr_cyc  health  realloc  rep_ucor      cmd_to  temp  pend_sec  off_ucor  ata_err  defect       r_proc      w_proc    nonmed  r_ucor  w_ucor
        boot-pool   ONLINE       0     0     0     -
          sdab3     ONLINE       0     0     0     0  111.8G      ATA  KINGSTON SH103S3120G  50026B723902E809  80223h+54m+01.040s      514  PASSED        -         0           -    34         -         -        -       -            -           -         -       -       -  (untrimmed)

errors: No known data errors

zpool import reports no pools available to import.

lspci:

00:00.0 Host bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DMI2 (rev 02)
00:01.0 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 1 (rev 02)
00:02.0 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 2 (rev 02)
00:02.2 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 2 (rev 02)
00:03.0 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 3 (rev 02)
00:03.2 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 3 (rev 02)
00:05.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Address Map, VTd_Misc, System Management (rev 02)
00:05.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Hot Plug (rev 02)
00:05.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 RAS, Control Status and Global Errors (rev 02)
00:05.4 PIC: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 I/O APIC (rev 02)
00:11.0 Unassigned class [ff00]: Intel Corporation C610/X99 series chipset SPSR (rev 05)
00:11.4 SATA controller: Intel Corporation C610/X99 series chipset sSATA Controller [AHCI mode] (rev 05)
00:14.0 USB controller: Intel Corporation C610/X99 series chipset USB xHCI Host Controller (rev 05)
00:16.0 Communication controller: Intel Corporation C610/X99 series chipset MEI Controller #1 (rev 05)
00:16.1 Communication controller: Intel Corporation C610/X99 series chipset MEI Controller #2 (rev 05)
00:1a.0 USB controller: Intel Corporation C610/X99 series chipset USB Enhanced Host Controller #2 (rev 05)
00:1c.0 PCI bridge: Intel Corporation C610/X99 series chipset PCI Express Root Port #1 (rev d5)
00:1c.7 PCI bridge: Intel Corporation C610/X99 series chipset PCI Express Root Port #8 (rev d5)
00:1d.0 USB controller: Intel Corporation C610/X99 series chipset USB Enhanced Host Controller #1 (rev 05)
00:1f.0 ISA bridge: Intel Corporation C610/X99 series chipset LPC Controller (rev 05)
00:1f.2 SATA controller: Intel Corporation C610/X99 series chipset 6-Port SATA Controller [AHCI mode] (rev 05)
01:00.0 Ethernet controller: Intel Corporation I350 Gigabit Network Connection (rev 01)
01:00.1 Ethernet controller: Intel Corporation I350 Gigabit Network Connection (rev 01)
01:00.2 Ethernet controller: Intel Corporation I350 Gigabit Network Connection (rev 01)
01:00.3 Ethernet controller: Intel Corporation I350 Gigabit Network Connection (rev 01)
07:00.0 PCI bridge: Renesas Technology Corp. SH7758 PCIe Switch [PS]
08:00.0 PCI bridge: Renesas Technology Corp. SH7758 PCIe Switch [PS]
09:00.0 PCI bridge: Renesas Technology Corp. SH7758 PCIe-PCI Bridge [PPB]
7f:08.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 0 (rev 02)
7f:08.2 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 0 (rev 02)
7f:08.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 0 (rev 02)
7f:09.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 1 (rev 02)
7f:09.2 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 1 (rev 02)
7f:09.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 1 (rev 02)
7f:0b.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 R3 QPI Link 0 & 1 Monitoring (rev 02)
7f:0b.1 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 R3 QPI Link 0 & 1 Monitoring (rev 02)
7f:0b.2 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 R3 QPI Link 0 & 1 Monitoring (rev 02)
7f:0c.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
7f:0c.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
7f:0c.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
7f:0c.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
7f:0c.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
7f:0c.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
7f:0c.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
7f:0c.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
7f:0f.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Buffered Ring Agent (rev 02)
7f:0f.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Buffered Ring Agent (rev 02)
7f:0f.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 System Address Decoder & Broadcast Registers (rev 02)
7f:0f.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 System Address Decoder & Broadcast Registers (rev 02)
7f:0f.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 System Address Decoder & Broadcast Registers (rev 02)
7f:10.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCIe Ring Interface (rev 02)
7f:10.1 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCIe Ring Interface (rev 02)
7f:10.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Scratchpad & Semaphore Registers (rev 02)
7f:10.6 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Scratchpad & Semaphore Registers (rev 02)
7f:10.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Scratchpad & Semaphore Registers (rev 02)
7f:12.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Home Agent 0 (rev 02)
7f:12.1 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Home Agent 0 (rev 02)
7f:12.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Home Agent 0 Debug (rev 02)
7f:13.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Target Address, Thermal & RAS Registers (rev 02)
7f:13.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Target Address, Thermal & RAS Registers (rev 02)
7f:13.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02)
7f:13.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02)
7f:13.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02)
7f:13.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02)
7f:13.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO Channel 0/1 Broadcast (rev 02)
7f:13.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO Global Broadcast (rev 02)
7f:14.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 0 Thermal Control (rev 02)
7f:14.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 1 Thermal Control (rev 02)
7f:14.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 0 ERROR Registers (rev 02)
7f:14.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 1 ERROR Registers (rev 02)
7f:14.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02)
7f:14.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02)
7f:14.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02)
7f:14.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02)
7f:15.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 2 Thermal Control (rev 02)
7f:15.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 3 Thermal Control (rev 02)
7f:15.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 2 ERROR Registers (rev 02)
7f:15.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 3 ERROR Registers (rev 02)
7f:16.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 1 Target Address, Thermal & RAS Registers (rev 02)
7f:16.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO Channel 2/3 Broadcast (rev 02)
7f:16.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO Global Broadcast (rev 02)
7f:17.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 1 Channel 0 Thermal Control (rev 02)
7f:17.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02)
7f:17.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02)
7f:17.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02)
7f:17.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02)
7f:1e.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
7f:1e.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
7f:1e.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
7f:1e.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
7f:1e.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
7f:1f.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 VCU (rev 02)
7f:1f.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 VCU (rev 02)
80:00.0 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 0 (rev 02)
80:01.0 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 1 (rev 02)
80:02.0 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 2 (rev 02)
80:03.0 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 3 (rev 02)
80:03.2 PCI bridge: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCI Express Root Port 3 (rev 02)
80:05.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Address Map, VTd_Misc, System Management (rev 02)
80:05.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Hot Plug (rev 02)
80:05.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 RAS, Control Status and Global Errors (rev 02)
80:05.4 PIC: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 I/O APIC (rev 02)
82:00.0 VGA compatible controller: NVIDIA Corporation GP107GL [Quadro P620] (rev a1)
82:00.1 Audio device: NVIDIA Corporation GP107GL High Definition Audio Controller (rev a1)
83:00.0 Ethernet controller: Broadcom Inc. and subsidiaries NetXtreme II BCM57810 10 Gigabit Ethernet (rev 10)
83:00.1 Ethernet controller: Broadcom Inc. and subsidiaries NetXtreme II BCM57810 10 Gigabit Ethernet (rev 10)
84:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] (rev 03)
ff:08.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 0 (rev 02)
ff:08.2 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 0 (rev 02)
ff:08.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 0 (rev 02)
ff:09.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 1 (rev 02)
ff:09.2 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 1 (rev 02)
ff:09.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 QPI Link 1 (rev 02)
ff:0b.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 R3 QPI Link 0 & 1 Monitoring (rev 02)
ff:0b.1 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 R3 QPI Link 0 & 1 Monitoring (rev 02)
ff:0b.2 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 R3 QPI Link 0 & 1 Monitoring (rev 02)
ff:0c.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
ff:0c.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
ff:0c.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
ff:0c.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
ff:0c.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
ff:0c.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
ff:0c.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
ff:0c.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Unicast Registers (rev 02)
ff:0f.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Buffered Ring Agent (rev 02)
ff:0f.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Buffered Ring Agent (rev 02)
ff:0f.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 System Address Decoder & Broadcast Registers (rev 02)
ff:0f.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 System Address Decoder & Broadcast Registers (rev 02)
ff:0f.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 System Address Decoder & Broadcast Registers (rev 02)
ff:10.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCIe Ring Interface (rev 02)
ff:10.1 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 PCIe Ring Interface (rev 02)
ff:10.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Scratchpad & Semaphore Registers (rev 02)
ff:10.6 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Scratchpad & Semaphore Registers (rev 02)
ff:10.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Scratchpad & Semaphore Registers (rev 02)
ff:12.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Home Agent 0 (rev 02)
ff:12.1 Performance counters: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Home Agent 0 (rev 02)
ff:12.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Home Agent 0 Debug (rev 02)
ff:13.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Target Address, Thermal & RAS Registers (rev 02)
ff:13.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Target Address, Thermal & RAS Registers (rev 02)
ff:13.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02)
ff:13.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02)
ff:13.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02)
ff:13.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02)
ff:13.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO Channel 0/1 Broadcast (rev 02)
ff:13.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO Global Broadcast (rev 02)
ff:14.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 0 Thermal Control (rev 02)
ff:14.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 1 Thermal Control (rev 02)
ff:14.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 0 ERROR Registers (rev 02)
ff:14.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 1 ERROR Registers (rev 02)
ff:14.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02)
ff:14.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02)
ff:14.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02)
ff:14.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02)
ff:15.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 2 Thermal Control (rev 02)
ff:15.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 3 Thermal Control (rev 02)
ff:15.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 2 ERROR Registers (rev 02)
ff:15.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 3 ERROR Registers (rev 02)
ff:16.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 1 Target Address, Thermal & RAS Registers (rev 02)
ff:16.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO Channel 2/3 Broadcast (rev 02)
ff:16.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO Global Broadcast (rev 02)
ff:17.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Integrated Memory Controller 1 Channel 0 Thermal Control (rev 02)
ff:17.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02)
ff:17.5 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02)
ff:17.6 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02)
ff:17.7 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02)
ff:1e.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
ff:1e.1 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
ff:1e.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
ff:1e.3 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
ff:1e.4 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 Power Control Unit (rev 02)
ff:1f.0 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 VCU (rev 02)
ff:1f.2 System peripheral: Intel Corporation Xeon E7 v3/Xeon E5 v3/Core i7 VCU (rev 02)

sas2flash:

LSI Corporation SAS2 Flash Utility
Version 20.00.00.00 (2014.09.18)
Copyright (c) 2008-2014 LSI Corporation. All rights reserved

        Adapter Selected is a LSI SAS: SAS2008(B2)

        Controller Number              : 0
        Controller                     : SAS2008(B2)
        PCI Address                    : 00:84:00:00
        SAS Address                    : 0000000-0-0000-0000
        NVDATA Version (Default)       : 07.00.00.19
        NVDATA Version (Persistent)    : 07.00.00.19
        Firmware Product ID            : 0x2713 (IR)
        Firmware Version               : 07.15.08.00
        NVDATA Vendor                  : Dell
        NVDATA Product ID              : 6GbpsSAS
        BIOS Version                   : N/A
        UEFI BSD Version               : N/A
        FCODE Version                  : N/A
        Board Name                     : 6Gbps SAS HBA
        Board Assembly                 : N/A
        Board Tracer Number            : N/A

        Finished Processing Commands Successfully.
        Exiting SAS2Flash.

sas3flash:

Avago Technologies SAS3 Flash Utility
Version 16.00.00.00 (2017.05.02)
Copyright 2008-2017 Avago Technologies. All rights reserved.

        No Avago SAS adapters found! Limited Command Set Available!
        ERROR: Command Not allowed without an adapter!
        ERROR: Couldn't Create Command -list
        Exiting Program.

storcli:

CLI Version = 007.2807.0000.0000 Dec 22, 2023
Operating system = Linux 6.12.15-production+truenas
Status Code = 0
Status = Success
Description = None

Number of Controllers = 0
Host Name = truenas
Operating System  = Linux 6.12.15-production+truenas
StoreLib IT Version = 07.2900.0200.0100

Some additional details on the machine are that it’s a Precision R7910, the 3.6T drives are in an SC220 enclosure connected via the SAS2008 (flashed from an H200E). All other drives are on the system’s embedded SATA controller.

I genuinely appreciate the help.

Protopia · July 28, 2025, 8:52am

I am unclear from the command output what you think is missing / the problem?

We can clearly see from lsblk that some of the drives appear twice (same serial number appears twice) which implies that you do indeed have dual paths. But I don’t have experience of this and so I’m going to leave it for the other Paul @PK1048 to give detailed advice.

However, aside from this the pool seems to have all the disks you would expect it to have and I can’t see any major pool issues from this output.

But I did spot a couple of minor things:

SSDs either do not have trim capability or don’t have trim enabled
I was expecting the HBA to have IT firmware not IR firmware.

As an unimportant aside, I also wonder whether you actually have a use case for an SLOG? Are you running VMs off these drives?

tnast · July 28, 2025, 6:21pm

Here’s some screenshots. At the very least the GUI indicates some discrepancies.

Storage dashboard shows 10 unused disks

“Manage Devices” for the Bulk Storage pool lists all disks. However, some lack icons, and don’t list a capacity

Clicking on the odd drives on the “Manage Devices” page for the pool fails to bring up any details on the drive

On the /storage/disks page, the nebulous drives list “N/A” as their pool

I’m willing to buy the idea that the dual paths make the drives show up twice, but I didn’t get any side-effects of that in the GUI in the previous install, so I’m not sure why it’d show up this way now.

I thought I did flash the H200E to IT mode, but I guess maybe something went wrong or I reverted back for some reason. I do know I had a fair bit of trouble during the process because of the machine. As for trim, I didn’t realize that was something we needed to manually enable on TrueNAS.

Edit: Interestingly, There’s only four drives that appear on the disks page as not having a pool, but the storage page says there’s 10 unused disks. What could be up with that?

SmallBarky · July 28, 2025, 6:41pm

A guess is the power problem reset your controller card mode or settings. I have no clue where to check the settings nor how to fix. Maybe check BIOS or controller settings sections?

Protopia · July 28, 2025, 8:01pm

I have no real idea how dual paths are supposed to show up in Linux - but I think I would expect them to be considered a single device, with the device driver dealing with deciding which path to use to the disk on an I/O by I/O basis.

If this is the case, then something is making the dual paths show up as separate devices - and I would think that this is going to be either a controller firmware setting or some sort of Linux device setting.

But the consequences would be likely to be as OP is actually experiencing because Linux and TrueNAS are seeing them as separate devices and not another path to the same device.

I think we really need to wait for someone e.g. @PK1048 who has a genuine understanding of dual paths (which isn’t me) who can speak from real knowledge.

HoneyBadger · July 29, 2025, 3:46pm

You’ve created a SAS multipath configuration as pointed out by others in this thread - there are ten physical Seagate ES.3 disks, and you have twenty showing up in your lsblk - SCALE/CE doesn’t support multipath in this manner.

I assume your H200e and SC200 are connected by two SAS cables, one to the “top controller” of the SC200, and one to the “bottom controller.”

The quick fix here is simple - shut down the system, disconnect the secondary (bottom) controller, have only the first port on the H200e connected to the primary (top) controller, therefore removing multipath. Boot up and it should be as expected.

I can’t speak to whether or not you could create a full SAS wideband (x8) connection by doing a complicated and/or vendor-approved loop topology with the SC200 enclosures.

tnast · July 29, 2025, 5:08pm

This wound up being the solution! I guess I may have always had one cable connected until I took things apart and reconnected when I reinstalled. I did attempt to run the shelf in split mode (it’s originally an MD3200), but I guess the SC200 controllers don’t support that, so a single link to the shelf will do for now.

Everything is now showing as I expected. Thank you!

Topic		Replies	Views
Imported pool from failed system not mounting TrueNAS General SCALE	15	108	May 16, 2025
25.04.1 migrate instance vm's hdd to new storage pool Apps and Virtualization SCALE , Apps , VM , ZFS	5	90	July 8, 2025
Help with loss of pool TrueNAS General SCALE	20	187	April 8, 2025
Bare Metal Install Issues TrueNAS General SCALE , Hardware , SAS	45	570	December 19, 2024
Large SMB write freezes all other client writes on TrueNAS Scale server TrueNAS General SCALE , SMB	8	366	December 9, 2024

Pool imports, but not all disks get "pulled in"

Related topics
