Server shuts down immediately when UPS goes to battery

TrueNAS General
1

Hi. I am using a CyperPower CP1000PFCLCD UPS on TrueNAS Core 13.0-U6.4. When the UPS goes to battery, the server begins shutting down after ~30 seconds, even though I’ve configured it to shut down after 15 minutes.

Below are screenshots of my config and the output of
‘upsc CyberPower_CP1000PFCLCD’:

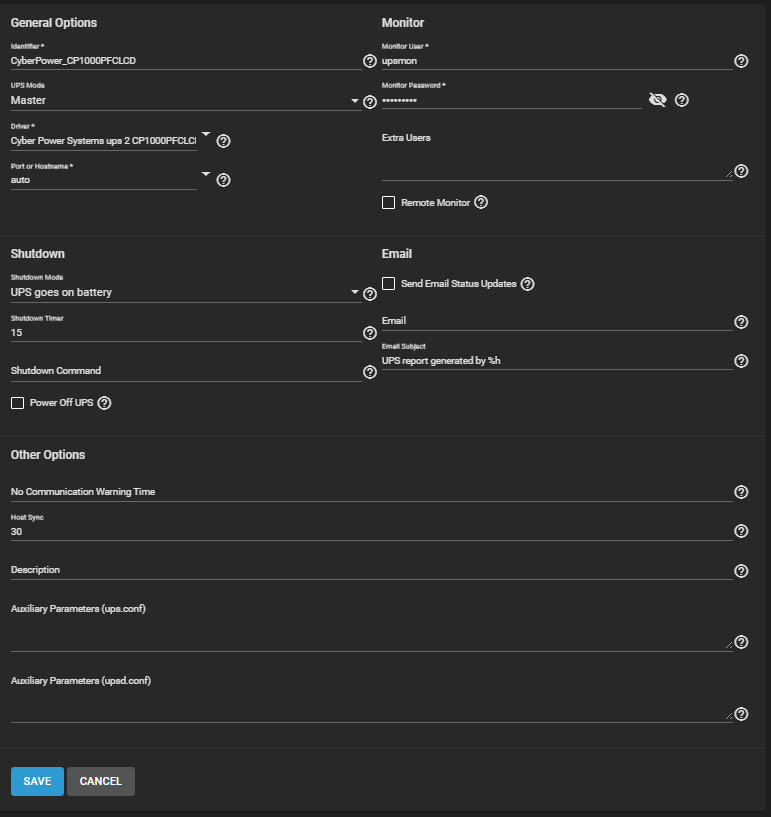

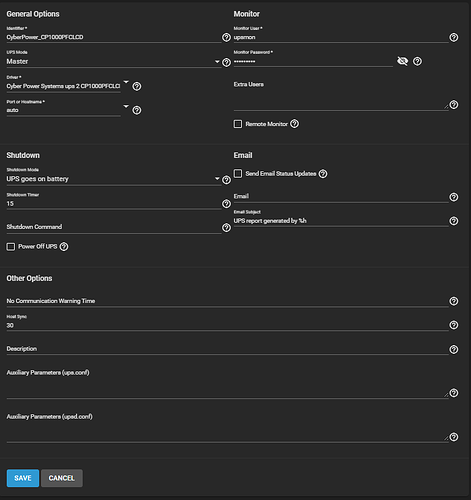

Capture
Capture771×817 28.6 KB

Capture1
Capture1502×515 14.5 KB

upsc_1
upsc_1313×367 6.25 KB

upsc_2
upsc_2290×249 4.52 KB

Any help would be appreciated, thanks!

2

You have the shutdown timer in the Truenas ups setup set to 15 seconds. 15 minutes would be 900 seconds. give that a try.

1 Like
3

Silly me, I didn’t read the tool-tip carefully. It’s working now, thank!

4

:grinning: Your welcome. Glad it was something easy.
