- The config file is named: truenas-Versionnumber-Stringofnumbers.tar
example of one of my saved configs is: truenas-25.10.0.1-20251123153621.tar - It should be under /var/db/configs-some-long-hex-id
- Your Storage is fine. All you have to redo is users, permissions, network and smb/nfs share settings
@JonnyAlpha When you boot up your current TrueNAS system do you show a list of previous Boot Environments? Previous versions of TrueNAS as you have upgraded? You can try booting one of those to see if that gets you in or gives you the same errors.
Had a search on my mac for a possible backup file and no joy. Pulled the SSD from the TrueNAS and plugged it in my Linux machine in the workshop using a SATA to USB cable. Doenāt show up in finder but was visible if I used:
sudo fdisk āl
I have it plugged into my mac and using:
diskutil -list
I get the following:
/dev/disk2 (external, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *40.0 GB disk2
1: Bios Boot Partition 1.0 MB disk2s1
2: EFI EFI 536.9 MB disk2s2
3: ZFS 39.5 GB disk2s3
Iāve tried installing openzfs on my mac and can see the boot-pool in Disk Utilities, I seem to be able to mount it but cannot list the contents.
I have just booted the SuperMicro Server using the USB I flashed with TrueNAS Scale iso, checkd the boot priority and it was set to and it has booted into Kubuntu?
Reflashed the USB using the same iso and this time I used F11 and selected USB.

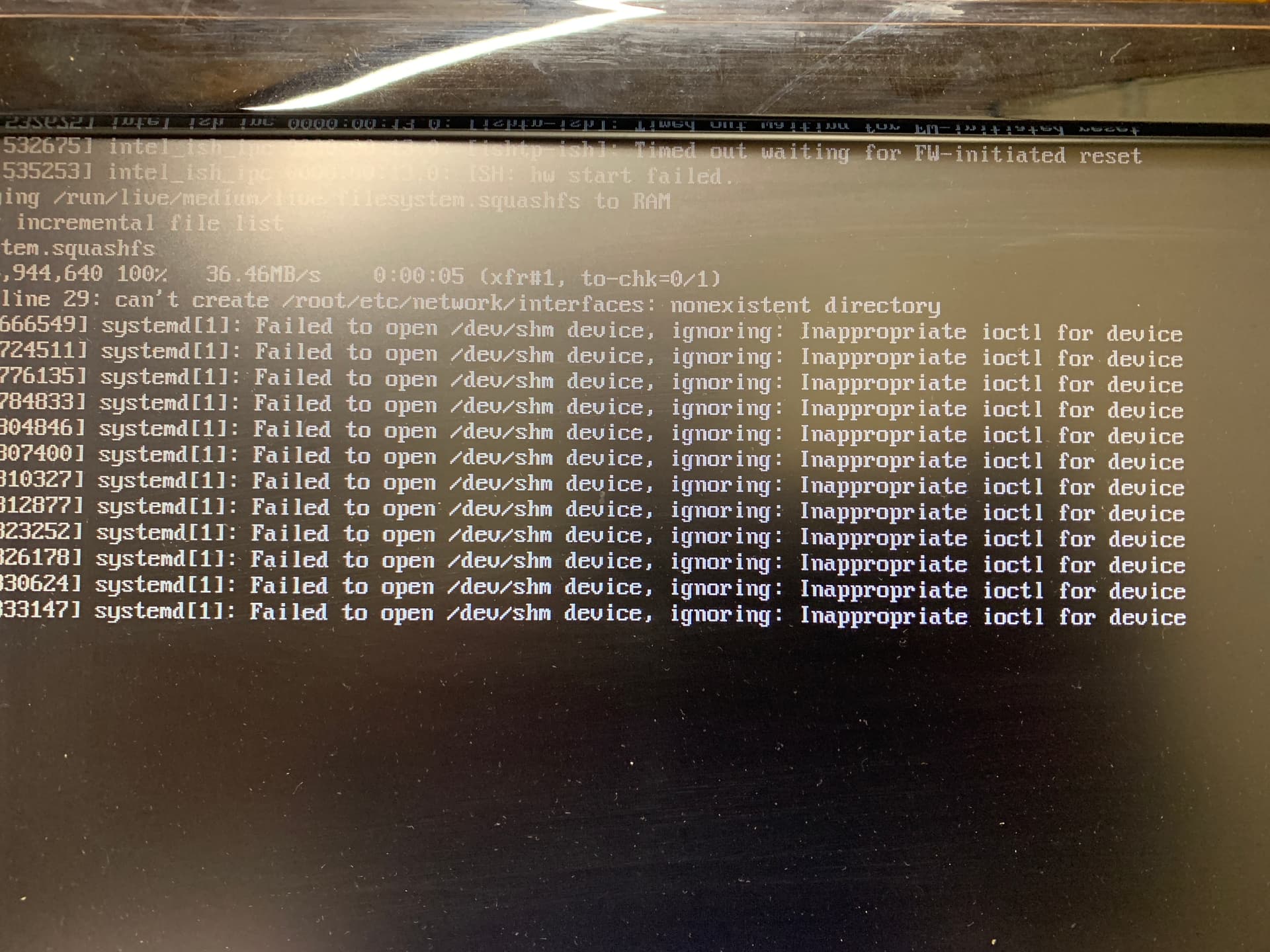

This time it booted into TrueNAS Scale, however there appeared to be a lot of errors before presenting the TruesNAS 24.10.1 Console Setup (see attached image).
One in the console I selected Install and noticed that the SSD drive that I am using has Kubuntu on it
so the boot order was wrong earlier
However there still appears to be a problem.
I managed to install TrueNAS and the IP address is the same as before. So I managed to get into the TrueNAS web interface. The guide I am following is either out of date or the problems I am having is causing me to see a different screen.

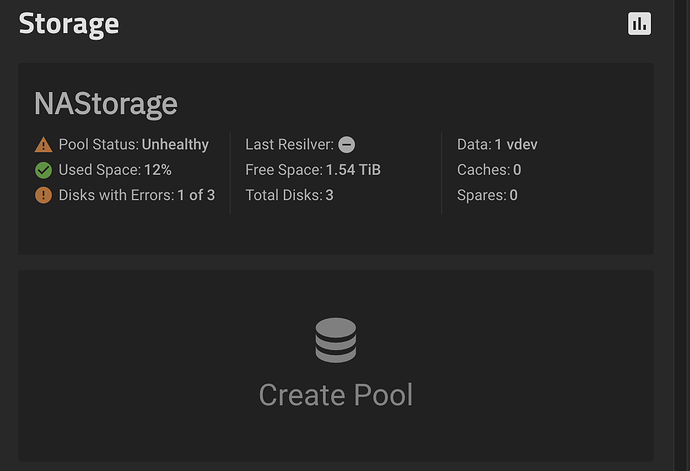

I am trying to import my pool and if I click on Storage, I donāt see any discs only the option to create or import a pool? So I selected import and after a while the name of my old storage came up NAS_Storage. However it just sits at pool.import_pool.
I am guessing you should post back the results from the following commands so we get an idea of the current status of your system and the pool import. Please post back using Preformatted Text mode (</>) or Ctrl+e on the toolbar. The āimportā command shouldnāt do anything but just report info. It might be a good idea to check on the health of your HDs. The last command and post each drive back in itās own Preformattted text window.
sudo zpool status -v
sudo zpool import
for disk in /dev/sd?; do; sudo smartctl -x $disk; done
sudo zpool status -v
pool: boot-pool
state: ONLINE
config:
NAME STATE READ WRITE CKSUM
boot-pool ONLINE 0 0 0
sda3 ONLINE 0 0 0
errors: No known data errors
sudo zpool import
pool: NAStorage
id: 4912350443082485417
state: ONLINE
action: The pool can be imported using its name or numeric identifier.
config:
NAStorage ONLINE
raidz1-0 ONLINE
acf6f3ee-1b35-4937-84ae-ddde6ae32d29 ONLINE
91982a55-003d-429a-b826-6c69b6b626fe ONLINE
530714ac-9045-4e49-9960-89440b4cfb87 ONLINE
sdb
truenas_admin@truenas[~]$ for disk in /dev/sdb; do; sudo smartctl -x $disk; done
[sudo] password for truenas_admin:
smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.6.44-production+truenas] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital Green
Device Model: WDC WD10EZRX-00A8LB0
Serial Number: WD-WMC1U6178752
LU WWN Device Id: 5 0014ee 6ad5e90f5
Firmware Version: 01.01A01
User Capacity: 1,000,204,886,016 bytes [1.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Device is: In smartctl database 7.3/5528
ATA Version is: ATA8-ACS (minor revision not indicated)
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Jan 18 11:30:19 2026 PST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 121) The previous self-test completed having
the read element of the test failed.
Total time to complete Offline
data collection: (13320) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 152) minutes.
Conveyance self-test routine
recommended polling time: ( 5) minutes.
SCT capabilities: (0x30b5) SCT Status supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 200 200 051 - 16
3 Spin_Up_Time POS--K 130 122 021 - 4458
4 Start_Stop_Count -O--CK 100 100 000 - 468
5 Reallocated_Sector_Ct PO--CK 200 200 140 - 5
7 Seek_Error_Rate -OSR-K 200 200 000 - 0
9 Power_On_Hours -O--CK 098 098 000 - 1724
10 Spin_Retry_Count -O--CK 100 100 000 - 0
11 Calibration_Retry_Count -O--CK 100 100 000 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 468
192 Power-Off_Retract_Count -O--CK 200 200 000 - 134
193 Load_Cycle_Count -O--CK 199 199 000 - 3641
194 Temperature_Celsius -O---K 120 103 000 - 23
196 Reallocated_Event_Count -O--CK 195 195 000 - 5
197 Current_Pending_Sector -O--CK 200 200 000 - 1
198 Offline_Uncorrectable ----CK 200 200 000 - 0
199 UDMA_CRC_Error_Count -O--CK 200 200 000 - 0
200 Multi_Zone_Error_Rate ---R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 6 Ext. Comprehensive SMART error log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa0-0xa7 GPL,SL VS 16 Device vendor specific log
0xa8-0xb7 GPL,SL VS 1 Device vendor specific log
0xbd GPL,SL VS 1 Device vendor specific log
0xc0 GPL,SL VS 1 Device vendor specific log
0xc1 GPL VS 93 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
Device Error Count: 4
CR = Command Register
FEATR = Features Register
COUNT = Count (was: Sector Count) Register
LBA_48 = Upper bytes of LBA High/Mid/Low Registers ] ATA-8
LH = LBA High (was: Cylinder High) Register ] LBA
LM = LBA Mid (was: Cylinder Low) Register ] Register
LL = LBA Low (was: Sector Number) Register ]
DV = Device (was: Device/Head) Register
DC = Device Control Register
ER = Error register
ST = Status register
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 4 [3] occurred at disk power-on lifetime: 1723 hours (71 days + 19 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 62 aa d6 f8 40 00 Error: UNC at LBA = 0x62aad6f8 = 1655363320
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 70 00 b8 00 00 62 aa d6 d0 40 08 00:11:27.342 READ FPDMA QUEUED
60 00 70 00 a0 00 00 62 00 2c 28 40 08 00:11:26.307 READ FPDMA QUEUED
60 00 08 00 78 00 00 62 00 2c 80 40 08 00:11:24.499 READ FPDMA QUEUED
60 00 18 00 20 00 00 24 aa d3 a8 40 08 00:11:24.497 READ FPDMA QUEUED
60 00 20 00 18 00 00 55 55 7d d0 40 08 00:11:22.659 READ FPDMA QUEUED
Error 3 [2] occurred at disk power-on lifetime: 1723 hours (71 days + 19 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5a aa e3 f8 40 00 Error: UNC at LBA = 0x5aaae3f8 = 1521148920
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 08 00 00 00 00 5a aa e3 f8 40 08 00:32:11.190 READ FPDMA QUEUED
60 00 18 00 f8 00 00 5a aa f2 a0 40 08 00:32:09.662 READ FPDMA QUEUED
60 00 08 00 b8 00 00 5a aa f2 c8 40 08 00:32:07.696 READ FPDMA QUEUED
60 00 08 00 b0 00 00 04 00 3d d8 40 08 00:32:06.811 READ FPDMA QUEUED
60 00 08 00 a8 00 00 00 aa d2 a8 40 08 00:32:04.965 READ FPDMA QUEUED
Error 2 [1] occurred at disk power-on lifetime: 1723 hours (71 days + 19 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5e aa d5 f8 40 00 Error: UNC at LBA = 0x5eaad5f8 = 1588254200
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 08 00 e0 00 00 20 00 5a c0 40 08 00:30:48.001 READ FPDMA QUEUED
60 00 60 00 c0 00 00 5e 00 29 20 40 08 00:30:48.000 READ FPDMA QUEUED
60 00 18 00 b8 00 00 24 aa d3 a8 40 08 00:30:48.000 READ FPDMA QUEUED
60 00 08 00 b0 00 00 5e aa e8 88 40 08 00:30:48.000 READ FPDMA QUEUED
60 00 08 00 a8 00 00 5e aa d5 f8 40 08 00:30:46.250 READ FPDMA QUEUED
Error 1 [0] occurred at disk power-on lifetime: 1723 hours (71 days + 19 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 61 55 7d 78 40 00 Error: WP at LBA = 0x61557d78 = 1632992632
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
61 00 08 00 78 00 00 60 aa d2 d8 40 08 00:30:18.892 WRITE FPDMA QUEUED
60 00 68 00 90 00 00 61 55 7d 50 40 08 00:30:17.424 READ FPDMA QUEUED
60 00 88 00 70 00 00 60 aa d2 a8 40 08 00:30:07.617 READ FPDMA QUEUED
60 00 18 00 38 00 00 5f 55 89 48 40 08 00:30:05.318 READ FPDMA QUEUED
60 00 10 00 30 00 00 5f 55 88 f0 40 08 00:30:03.324 READ FPDMA QUEUED
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Short offline Completed: read failure 90% 1723 1521143332
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 258 (0x0102)
Device State: Active (0)
Current Temperature: 23 Celsius
Power Cycle Min/Max Temperature: 23/23 Celsius
Lifetime Min/Max Temperature: 2/40 Celsius
Under/Over Temperature Limit Count: 0/0
Vendor specific:
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -41/85 Celsius
Temperature History Size (Index): 478 (443)
Index Estimated Time Temperature Celsius
444 2026-01-18 03:33 22 ***
445 2026-01-18 03:34 23 ****
... ..( 2 skipped). .. ****
448 2026-01-18 03:37 23 ****
449 2026-01-18 03:38 ? -
450 2026-01-18 03:39 23 ****
... ..( 42 skipped). .. ****
15 2026-01-18 04:22 23 ****
16 2026-01-18 04:23 19 -
... ..( 7 skipped). .. -
24 2026-01-18 04:31 19 -
25 2026-01-18 04:32 18 -
26 2026-01-18 04:33 18 -
27 2026-01-18 04:34 18 -
28 2026-01-18 04:35 19 -
... ..( 12 skipped). .. -
41 2026-01-18 04:48 19 -
42 2026-01-18 04:49 18 -
43 2026-01-18 04:50 18 -
44 2026-01-18 04:51 19 -
... ..( 26 skipped). .. -
71 2026-01-18 05:18 19 -
72 2026-01-18 05:19 ? -
73 2026-01-18 05:20 8 -
74 2026-01-18 05:21 9 -
75 2026-01-18 05:22 9 -
76 2026-01-18 05:23 10 -
77 2026-01-18 05:24 10 -
78 2026-01-18 05:25 10 -
79 2026-01-18 05:26 11 -
80 2026-01-18 05:27 12 -
81 2026-01-18 05:28 12 -
82 2026-01-18 05:29 13 -
... ..( 6 skipped). .. -
89 2026-01-18 05:36 13 -
90 2026-01-18 05:37 14 -
91 2026-01-18 05:38 14 -
92 2026-01-18 05:39 15 -
93 2026-01-18 05:40 15 -
94 2026-01-18 05:41 15 -
95 2026-01-18 05:42 16 -
... ..( 8 skipped). .. -
104 2026-01-18 05:51 16 -
105 2026-01-18 05:52 17 -
... ..( 37 skipped). .. -
143 2026-01-18 06:30 17 -
144 2026-01-18 06:31 18 -
... ..( 30 skipped). .. -
175 2026-01-18 07:02 18 -
176 2026-01-18 07:03 ? -
177 2026-01-18 07:04 2 -
178 2026-01-18 07:05 2 -
179 2026-01-18 07:06 3 -
180 2026-01-18 07:07 4 -
181 2026-01-18 07:08 4 -
182 2026-01-18 07:09 5 -
183 2026-01-18 07:10 5 -
184 2026-01-18 07:11 6 -
185 2026-01-18 07:12 7 -
... ..( 2 skipped). .. -
188 2026-01-18 07:15 7 -
189 2026-01-18 07:16 8 -
190 2026-01-18 07:17 8 -
191 2026-01-18 07:18 8 -
192 2026-01-18 07:19 9 -
193 2026-01-18 07:20 9 -
194 2026-01-18 07:21 10 -
... ..( 6 skipped). .. -
201 2026-01-18 07:28 10 -
202 2026-01-18 07:29 11 -
... ..( 5 skipped). .. -
208 2026-01-18 07:35 11 -
209 2026-01-18 07:36 12 -
... ..( 8 skipped). .. -
218 2026-01-18 07:45 12 -
219 2026-01-18 07:46 13 -
... ..( 64 skipped). .. -
284 2026-01-18 08:51 13 -
285 2026-01-18 08:52 ? -
286 2026-01-18 08:53 3 -
287 2026-01-18 08:54 4 -
288 2026-01-18 08:55 4 -
289 2026-01-18 08:56 5 -
290 2026-01-18 08:57 6 -
291 2026-01-18 08:58 6 -
292 2026-01-18 08:59 7 -
293 2026-01-18 09:00 7 -
294 2026-01-18 09:01 7 -
295 2026-01-18 09:02 8 -
296 2026-01-18 09:03 8 -
297 2026-01-18 09:04 9 -
298 2026-01-18 09:05 9 -
299 2026-01-18 09:06 10 -
... ..( 3 skipped). .. -
303 2026-01-18 09:10 10 -
304 2026-01-18 09:11 11 -
... ..( 7 skipped). .. -
312 2026-01-18 09:19 11 -
313 2026-01-18 09:20 12 -
... ..( 2 skipped). .. -
316 2026-01-18 09:23 12 -
317 2026-01-18 09:24 13 -
318 2026-01-18 09:25 12 -
319 2026-01-18 09:26 13 -
... ..( 9 skipped). .. -
329 2026-01-18 09:36 13 -
330 2026-01-18 09:37 14 -
331 2026-01-18 09:38 ? -
332 2026-01-18 09:39 2 -
333 2026-01-18 09:40 4 -
334 2026-01-18 09:41 4 -
335 2026-01-18 09:42 5 -
336 2026-01-18 09:43 5 -
337 2026-01-18 09:44 6 -
338 2026-01-18 09:45 7 -
... ..( 2 skipped). .. -
341 2026-01-18 09:48 7 -
342 2026-01-18 09:49 8 -
343 2026-01-18 09:50 8 -
344 2026-01-18 09:51 9 -
345 2026-01-18 09:52 9 -
346 2026-01-18 09:53 10 -
... ..( 5 skipped). .. -
352 2026-01-18 09:59 10 -
353 2026-01-18 10:00 11 -
... ..( 2 skipped). .. -
356 2026-01-18 10:03 11 -
357 2026-01-18 10:04 12 -
... ..( 3 skipped). .. -
361 2026-01-18 10:08 12 -
362 2026-01-18 10:09 ? -
363 2026-01-18 10:10 8 -
364 2026-01-18 10:11 8 -
365 2026-01-18 10:12 9 -
366 2026-01-18 10:13 10 -
367 2026-01-18 10:14 10 -
368 2026-01-18 10:15 10 -
369 2026-01-18 10:16 11 -
370 2026-01-18 10:17 12 -
371 2026-01-18 10:18 12 -
372 2026-01-18 10:19 13 -
... ..( 3 skipped). .. -
376 2026-01-18 10:23 13 -
377 2026-01-18 10:24 14 -
378 2026-01-18 10:25 14 -
379 2026-01-18 10:26 15 -
380 2026-01-18 10:27 15 -
381 2026-01-18 10:28 15 -
382 2026-01-18 10:29 ? -
383 2026-01-18 10:30 5 -
384 2026-01-18 10:31 6 -
385 2026-01-18 10:32 7 -
386 2026-01-18 10:33 7 -
387 2026-01-18 10:34 ? -
388 2026-01-18 10:35 10 -
389 2026-01-18 10:36 10 -
390 2026-01-18 10:37 ? -
391 2026-01-18 10:38 5 -
392 2026-01-18 10:39 ? -
393 2026-01-18 10:40 7 -
394 2026-01-18 10:41 7 -
395 2026-01-18 10:42 7 -
396 2026-01-18 10:43 9 -
397 2026-01-18 10:44 9 -
398 2026-01-18 10:45 10 -
399 2026-01-18 10:46 10 -
400 2026-01-18 10:47 11 -
401 2026-01-18 10:48 11 -
402 2026-01-18 10:49 12 -
403 2026-01-18 10:50 12 -
404 2026-01-18 10:51 13 -
405 2026-01-18 10:52 13 -
406 2026-01-18 10:53 13 -
407 2026-01-18 10:54 14 -
408 2026-01-18 10:55 14 -
409 2026-01-18 10:56 15 -
410 2026-01-18 10:57 16 -
... ..( 2 skipped). .. -
413 2026-01-18 11:00 16 -
414 2026-01-18 11:01 ? -
415 2026-01-18 11:02 17 -
... ..( 3 skipped). .. -
419 2026-01-18 11:06 17 -
420 2026-01-18 11:07 18 -
421 2026-01-18 11:08 18 -
422 2026-01-18 11:09 18 -
423 2026-01-18 11:10 19 -
424 2026-01-18 11:11 19 -
425 2026-01-18 11:12 19 -
426 2026-01-18 11:13 20 *
... ..( 6 skipped). .. *
433 2026-01-18 11:20 20 *
434 2026-01-18 11:21 21 **
... ..( 3 skipped). .. **
438 2026-01-18 11:25 21 **
439 2026-01-18 11:26 22 ***
... ..( 3 skipped). .. ***
443 2026-01-18 11:30 22 ***
SCT Error Recovery Control command not supported
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0008 2 0 Device-to-host non-data FIS retries
0x0009 2 5 Transition from drive PhyRdy to drive PhyNRdy
0x000a 2 4 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x000f 2 0 R_ERR response for host-to-device data FIS, CRC
0x0012 2 0 R_ERR response for host-to-device non-data FIS, CRC
0x8000 4 2642 Vendor speci
sdc
truenas_admin@truenas[~]$ for disk in /dev/sdc; do; sudo smartctl -x $disk; done
[sudo] password for truenas_admin:
smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.6.44-production+truenas] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital Green
Device Model: WDC WD10EZRX-00A8LB0
Serial Number: WD-WMC1U6106599
LU WWN Device Id: 5 0014ee 602b3f0d1
Firmware Version: 01.01A01
User Capacity: 1,000,204,886,016 bytes [1.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Device is: In smartctl database 7.3/5528
ATA Version is: ATA8-ACS (minor revision not indicated)
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Jan 18 11:32:14 2026 PST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: (13440) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 153) minutes.
Conveyance self-test routine
recommended polling time: ( 5) minutes.
SCT capabilities: (0x30b5) SCT Status supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 200 200 051 - 0
3 Spin_Up_Time POS--K 126 116 021 - 4691
4 Start_Stop_Count -O--CK 100 100 000 - 473
5 Reallocated_Sector_Ct PO--CK 200 200 140 - 0
7 Seek_Error_Rate -OSR-K 200 200 000 - 0
9 Power_On_Hours -O--CK 098 098 000 - 1723
10 Spin_Retry_Count -O--CK 100 100 000 - 0
11 Calibration_Retry_Count -O--CK 100 100 000 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 473
192 Power-Off_Retract_Count -O--CK 200 200 000 - 141
193 Load_Cycle_Count -O--CK 199 199 000 - 3642
194 Temperature_Celsius -O---K 122 103 000 - 21
196 Reallocated_Event_Count -O--CK 200 200 000 - 0
197 Current_Pending_Sector -O--CK 200 200 000 - 0
198 Offline_Uncorrectable ----CK 200 200 000 - 0
199 UDMA_CRC_Error_Count -O--CK 200 200 000 - 0
200 Multi_Zone_Error_Rate ---R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 6 Ext. Comprehensive SMART error log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa0-0xa7 GPL,SL VS 16 Device vendor specific log
0xa8-0xb7 GPL,SL VS 1 Device vendor specific log
0xbd GPL,SL VS 1 Device vendor specific log
0xc0 GPL,SL VS 1 Device vendor specific log
0xc1 GPL VS 93 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Short offline Completed without error 00% 33 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 258 (0x0102)
Device State: Active (0)
Current Temperature: 21 Celsius
Power Cycle Min/Max Temperature: 21/23 Celsius
Lifetime Min/Max Temperature: 3/40 Celsius
Under/Over Temperature Limit Count: 0/0
Vendor specific:
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -41/85 Celsius
Temperature History Size (Index): 478 (399)
Index Estimated Time Temperature Celsius
400 2026-01-18 03:35 23 ****
401 2026-01-18 03:36 23 ****
402 2026-01-18 03:37 23 ****
403 2026-01-18 03:38 ? -
404 2026-01-18 03:39 23 ****
... ..( 30 skipped). .. ****
435 2026-01-18 04:10 23 ****
436 2026-01-18 04:11 22 ***
... ..( 3 skipped). .. ***
440 2026-01-18 04:15 22 ***
441 2026-01-18 04:16 21 **
... ..( 7 skipped). .. **
449 2026-01-18 04:24 21 **
450 2026-01-18 04:25 20 *
... ..( 33 skipped). .. *
6 2026-01-18 04:59 20 *
7 2026-01-18 05:00 21 **
... ..( 11 skipped). .. **
19 2026-01-18 05:12 21 **
20 2026-01-18 05:13 ? -
21 2026-01-18 05:14 8 -
22 2026-01-18 05:15 9 -
23 2026-01-18 05:16 10 -
24 2026-01-18 05:17 10 -
25 2026-01-18 05:18 11 -
26 2026-01-18 05:19 11 -
27 2026-01-18 05:20 12 -
28 2026-01-18 05:21 13 -
... ..( 2 skipped). .. -
31 2026-01-18 05:24 13 -
32 2026-01-18 05:25 14 -
... ..( 2 skipped). .. -
35 2026-01-18 05:28 14 -
36 2026-01-18 05:29 15 -
37 2026-01-18 05:30 15 -
38 2026-01-18 05:31 16 -
... ..( 6 skipped). .. -
45 2026-01-18 05:38 16 -
46 2026-01-18 05:39 17 -
... ..( 13 skipped). .. -
60 2026-01-18 05:53 17 -
61 2026-01-18 05:54 18 -
... ..( 16 skipped). .. -
78 2026-01-18 06:11 18 -
79 2026-01-18 06:12 19 -
... ..( 38 skipped). .. -
118 2026-01-18 06:51 19 -
119 2026-01-18 06:52 20 *
... ..( 3 skipped). .. *
123 2026-01-18 06:56 20 *
124 2026-01-18 06:57 ? -
125 2026-01-18 06:58 2 -
126 2026-01-18 06:59 3 -
127 2026-01-18 07:00 4 -
128 2026-01-18 07:01 4 -
129 2026-01-18 07:02 5 -
130 2026-01-18 07:03 6 -
131 2026-01-18 07:04 7 -
132 2026-01-18 07:05 7 -
133 2026-01-18 07:06 7 -
134 2026-01-18 07:07 8 -
135 2026-01-18 07:08 8 -
136 2026-01-18 07:09 9 -
137 2026-01-18 07:10 9 -
138 2026-01-18 07:11 10 -
... ..( 3 skipped). .. -
142 2026-01-18 07:15 10 -
143 2026-01-18 07:16 11 -
... ..( 2 skipped). .. -
146 2026-01-18 07:19 11 -
147 2026-01-18 07:20 12 -
... ..( 2 skipped). .. -
150 2026-01-18 07:23 12 -
151 2026-01-18 07:24 13 -
... ..( 17 skipped). .. -
169 2026-01-18 07:42 13 -
170 2026-01-18 07:43 14 -
... ..( 61 skipped). .. -
232 2026-01-18 08:45 14 -
233 2026-01-18 08:46 ? -
234 2026-01-18 08:47 4 -
235 2026-01-18 08:48 4 -
236 2026-01-18 08:49 5 -
237 2026-01-18 08:50 6 -
238 2026-01-18 08:51 7 -
239 2026-01-18 08:52 7 -
240 2026-01-18 08:53 7 -
241 2026-01-18 08:54 8 -
242 2026-01-18 08:55 9 -
243 2026-01-18 08:56 9 -
244 2026-01-18 08:57 10 -
... ..( 2 skipped). .. -
247 2026-01-18 09:00 10 -
248 2026-01-18 09:01 11 -
... ..( 2 skipped). .. -
251 2026-01-18 09:04 11 -
252 2026-01-18 09:05 12 -
253 2026-01-18 09:06 12 -
254 2026-01-18 09:07 12 -
255 2026-01-18 09:08 13 -
... ..( 4 skipped). .. -
260 2026-01-18 09:13 13 -
261 2026-01-18 09:14 14 -
... ..( 15 skipped). .. -
277 2026-01-18 09:30 14 -
278 2026-01-18 09:31 15 -
279 2026-01-18 09:32 ? -
280 2026-01-18 09:33 3 -
281 2026-01-18 09:34 4 -
282 2026-01-18 09:35 5 -
283 2026-01-18 09:36 6 -
284 2026-01-18 09:37 7 -
285 2026-01-18 09:38 7 -
286 2026-01-18 09:39 7 -
287 2026-01-18 09:40 8 -
288 2026-01-18 09:41 8 -
289 2026-01-18 09:42 9 -
290 2026-01-18 09:43 9 -
291 2026-01-18 09:44 10 -
... ..( 2 skipped). .. -
294 2026-01-18 09:47 10 -
295 2026-01-18 09:48 11 -
296 2026-01-18 09:49 11 -
297 2026-01-18 09:50 11 -
298 2026-01-18 09:51 12 -
... ..( 2 skipped). .. -
301 2026-01-18 09:54 12 -
302 2026-01-18 09:55 13 -
... ..( 6 skipped). .. -
309 2026-01-18 10:02 13 -
310 2026-01-18 10:03 ? -
311 2026-01-18 10:04 8 -
312 2026-01-18 10:05 9 -
313 2026-01-18 10:06 10 -
314 2026-01-18 10:07 10 -
315 2026-01-18 10:08 10 -
316 2026-01-18 10:09 11 -
317 2026-01-18 10:10 12 -
318 2026-01-18 10:11 12 -
319 2026-01-18 10:12 13 -
320 2026-01-18 10:13 13 -
321 2026-01-18 10:14 13 -
322 2026-01-18 10:15 14 -
323 2026-01-18 10:16 14 -
324 2026-01-18 10:17 14 -
325 2026-01-18 10:18 15 -
326 2026-01-18 10:19 15 -
327 2026-01-18 10:20 16 -
328 2026-01-18 10:21 16 -
329 2026-01-18 10:22 16 -
330 2026-01-18 10:23 ? -
331 2026-01-18 10:24 5 -
332 2026-01-18 10:25 6 -
333 2026-01-18 10:26 7 -
334 2026-01-18 10:27 8 -
335 2026-01-18 10:28 8 -
336 2026-01-18 10:29 9 -
337 2026-01-18 10:30 ? -
338 2026-01-18 10:31 11 -
... ..( 2 skipped). .. -
341 2026-01-18 10:34 11 -
342 2026-01-18 10:35 12 -
343 2026-01-18 10:36 12 -
344 2026-01-18 10:37 13 -
345 2026-01-18 10:38 13 -
346 2026-01-18 10:39 ? -
347 2026-01-18 10:40 5 -
348 2026-01-18 10:41 ? -
349 2026-01-18 10:42 8 -
350 2026-01-18 10:43 8 -
351 2026-01-18 10:44 8 -
352 2026-01-18 10:45 10 -
353 2026-01-18 10:46 10 -
354 2026-01-18 10:47 10 -
355 2026-01-18 10:48 11 -
356 2026-01-18 10:49 12 -
357 2026-01-18 10:50 13 -
358 2026-01-18 10:51 13 -
359 2026-01-18 10:52 13 -
360 2026-01-18 10:53 14 -
361 2026-01-18 10:54 14 -
362 2026-01-18 10:55 14 -
363 2026-01-18 10:56 15 -
364 2026-01-18 10:57 15 -
365 2026-01-18 10:58 16 -
366 2026-01-18 10:59 ? -
367 2026-01-18 11:00 18 -
... ..( 2 skipped). .. -
370 2026-01-18 11:03 18 -
371 2026-01-18 11:04 19 -
372 2026-01-18 11:05 19 -
373 2026-01-18 11:06 19 -
374 2026-01-18 11:07 20 *
... ..( 6 skipped). .. *
381 2026-01-18 11:14 20 *
382 2026-01-18 11:15 21 **
... ..( 6 skipped). .. **
389 2026-01-18 11:22 21 **
390 2026-01-18 11:23 22 ***
... ..( 5 skipped). .. ***
396 2026-01-18 11:29 22 ***
397 2026-01-18 11:30 23 ****
398 2026-01-18 11:31 23 ****
399 2026-01-18 11:32 23 ****
SCT Error Recovery Control command not supported
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0008 2 0 Device-to-host non-data FIS retries
0x0009 2 5 Transition from drive PhyRdy to drive PhyNRdy
0x000a 2 4 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x000f 2 0 R_ERR response for host-to-device data FIS, CRC
0x0012 2 0 R_ERR response for host-to-device non-data FIS, CRC
0x8000 4 2756 Vendor specific
sdc
truenas_admin@truenas[~]$ for disk in /dev/sdd; do; sudo smartctl -x $disk; done
smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.6.44-production+truenas] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Toshiba 3.5" DT01ACA... Desktop HDD
Device Model: TOSHIBA DT01ACA100
Serial Number: 23S0ZEMNS
LU WWN Device Id: 5 000039 ff6c07244
Firmware Version: MS2OA750
User Capacity: 1,000,204,886,016 bytes [1.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database 7.3/5528
ATA Version is: ATA8-ACS T13/1699-D revision 4
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Jan 18 11:35:39 2026 PST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Disabled
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x80) Offline data collection activity
was never started.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 7604) seconds.
Offline data collection
capabilities: (0x5b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: ( 127) minutes.
SCT capabilities: (0x003d) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate PO-R-- 100 100 016 - 0
2 Throughput_Performance P-S--- 141 141 054 - 72
3 Spin_Up_Time POS--- 124 124 024 - 182 (Average 187)
4 Start_Stop_Count -O--C- 100 100 000 - 345
5 Reallocated_Sector_Ct PO--CK 100 100 005 - 0
7 Seek_Error_Rate PO-R-- 100 100 067 - 0
8 Seek_Time_Performance P-S--- 113 113 020 - 35
9 Power_On_Hours -O--C- 100 100 000 - 1371
10 Spin_Retry_Count PO--C- 100 100 060 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 345
192 Power-Off_Retract_Count -O--CK 100 100 000 - 367
193 Load_Cycle_Count -O--C- 100 100 000 - 367
194 Temperature_Celsius -O---- 240 240 000 - 25 (Min/Max 1/40)
196 Reallocated_Event_Count -O--CK 100 100 000 - 0
197 Current_Pending_Sector -O---K 100 100 000 - 0
198 Offline_Uncorrectable ---R-- 100 100 000 - 0
199 UDMA_CRC_Error_Count -O-R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x03 GPL R/O 1 Ext. Comprehensive SMART error log
0x04 GPL R/O 7 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x08 GPL R/O 2 Power Conditions log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x20 GPL R/O 1 Streaming performance log
0x21 GPL R/O 1 Write stream error log
0x22 GPL R/O 1 Read stream error log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (1 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
No self-tests have been logged. [To run self-tests, use: smartctl -t]
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 256 (0x0100)
Device State: Active (0)
Current Temperature: 25 Celsius
Power Cycle Min/Max Temperature: 25/26 Celsius
Lifetime Min/Max Temperature: 1/40 Celsius
Under/Over Temperature Limit Count: 0/0
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -40/70 Celsius
Temperature History Size (Index): 128 (64)
Index Estimated Time Temperature Celsius
65 2026-01-18 09:28 12 -
66 2026-01-18 09:29 12 -
67 2026-01-18 09:30 13 -
68 2026-01-18 09:31 14 -
69 2026-01-18 09:32 14 -
70 2026-01-18 09:33 15 -
71 2026-01-18 09:34 16 -
72 2026-01-18 09:35 16 -
73 2026-01-18 09:36 16 -
74 2026-01-18 09:37 17 -
75 2026-01-18 09:38 17 -
76 2026-01-18 09:39 18 -
77 2026-01-18 09:40 18 -
78 2026-01-18 09:41 18 -
79 2026-01-18 09:42 19 -
80 2026-01-18 09:43 19 -
81 2026-01-18 09:44 19 -
82 2026-01-18 09:45 ? -
83 2026-01-18 09:46 7 -
84 2026-01-18 09:47 ? -
85 2026-01-18 09:48 ? -
86 2026-01-18 09:49 7 -
87 2026-01-18 09:50 ? -
88 2026-01-18 09:51 10 -
89 2026-01-18 09:52 11 -
90 2026-01-18 09:53 12 -
91 2026-01-18 09:54 12 -
92 2026-01-18 09:55 13 -
93 2026-01-18 09:56 14 -
94 2026-01-18 09:57 14 -
95 2026-01-18 09:58 15 -
96 2026-01-18 09:59 15 -
97 2026-01-18 10:00 16 -
98 2026-01-18 10:01 17 -
99 2026-01-18 10:02 17 -
100 2026-01-18 10:03 17 -
101 2026-01-18 10:04 18 -
102 2026-01-18 10:05 18 -
103 2026-01-18 10:06 19 -
104 2026-01-18 10:07 19 -
105 2026-01-18 10:08 20 *
106 2026-01-18 10:09 20 *
107 2026-01-18 10:10 ? -
108 2026-01-18 10:11 22 ***
... ..( 3 skipped). .. ***
112 2026-01-18 10:15 22 ***
113 2026-01-18 10:16 23 ****
... ..( 5 skipped). .. ****
119 2026-01-18 10:22 23 ****
120 2026-01-18 10:23 24 *****
... ..( 5 skipped). .. *****
126 2026-01-18 10:29 24 *****
127 2026-01-18 10:30 25 ******
... ..( 10 skipped). .. ******
10 2026-01-18 10:41 25 ******
11 2026-01-18 10:42 26 *******
... ..( 2 skipped). .. *******
14 2026-01-18 10:45 26 *******
15 2026-01-18 10:46 ? -
16 2026-01-18 10:47 25 ******
17 2026-01-18 10:48 26 *******
... ..( 9 skipped). .. *******
27 2026-01-18 10:58 26 *******
28 2026-01-18 10:59 25 ******
... ..( 6 skipped). .. ******
35 2026-01-18 11:06 25 ******
36 2026-01-18 11:07 26 *******
37 2026-01-18 11:08 25 ******
... ..( 26 skipped). .. ******
64 2026-01-18 11:35 25 ******
SCT Error Recovery Control:
Read: Disabled
Write: Disabled
Device Statistics (GP Log 0x04)
Page Offset Size Value Flags Description
0x01 ===== = = === == General Statistics (rev 1) ==
0x01 0x008 4 345 --- Lifetime Power-On Resets
0x01 0x010 4 1371 --- Power-on Hours
0x01 0x018 6 3653040148 --- Logical Sectors Written
0x01 0x020 6 39776860 --- Number of Write Commands
0x01 0x028 6 139290179001 --- Logical Sectors Read
0x01 0x030 6 66131884 --- Number of Read Commands
0x03 ===== = = === == Rotating Media Statistics (rev 1) ==
0x03 0x008 4 1370 --- Spindle Motor Power-on Hours
0x03 0x010 4 1370 --- Head Flying Hours
0x03 0x018 4 367 --- Head Load Events
0x03 0x020 4 0 --- Number of Reallocated Logical Sectors
0x03 0x028 4 3 --- Read Recovery Attempts
0x03 0x030 4 2 --- Number of Mechanical Start Failures
0x04 ===== = = === == General Errors Statistics (rev 1) ==
0x04 0x008 4 0 --- Number of Reported Uncorrectable Errors
0x04 0x010 4 0 --- Resets Between Cmd Acceptance and Completion
0x05 ===== = = === == Temperature Statistics (rev 1) ==
0x05 0x008 1 25 --- Current Temperature
0x05 0x010 1 20 N-- Average Short Term Temperature
0x05 0x018 1 21 N-- Average Long Term Temperature
0x05 0x020 1 40 --- Highest Temperature
0x05 0x028 1 1 --- Lowest Temperature
0x05 0x030 1 36 N-- Highest Average Short Term Temperature
0x05 0x038 1 16 N-- Lowest Average Short Term Temperature
0x05 0x040 1 30 N-- Highest Average Long Term Temperature
0x05 0x048 1 17 N-- Lowest Average Long Term Temperature
0x05 0x050 4 0 --- Time in Over-Temperature
0x05 0x058 1 60 --- Specified Maximum Operating Temperature
0x05 0x060 4 0 --- Time in Under-Temperature
0x05 0x068 1 0 --- Specified Minimum Operating Temperature
0x06 ===== = = === == Transport Statistics (rev 1) ==
0x06 0x008 4 1386 --- Number of Hardware Resets
0x06 0x010 4 715 --- Number of ASR Events
0x06 0x018 4 0 --- Number of Interface CRC Errors
|||_ C monitored condition met
||__ D supports DSN
|___ N normalized value
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0009 2 5 Transition from drive PhyRdy to drive PhyNRdy
0x000a 2 6 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x000d 2 0 Non-CRC errors within host-to-device FIS
And I have just tried importing the pool NAS_Storage again and after a short while this page appeared:
What do I do now?
Yes, your drive with the serial number WD-WMC1U6178752 is showing errors:
It also failed its recent (and only) short SMART test.
You are missing the Toshiba from the āsmartctrlā data. I only see the two WD Green. One has 5 reallocated_sector_ct. Your dashboard is showing a failed SMART test. I donāt know if that is your boot drive or the HD with the sectors.
It looks like you have your pool back, right now. Do you have a backup of all your data from that pool?
Get a backup of your system configuration file in case the boot-pool dies and we need to install again.
It would be good to run SMART Long tests on all your drives and post back the results. Your alerts show two critical alerts on different drives.
As a side note, I donāt know if I would trust WD Green drives for NAS use. Consumer type drives have different firmware etc and sometime behave in unexpected ways to the NAS software. You can search interet for articles explaining why to use NAS type drives.
āNAS hard drives are generally recommended, as their firmware is tuned for server workloads,
with desktop-oriented features disabled or set to more appropriate timingsā Snip-it from the TrueNAS hardware guide 2021 R2 PDF.
Here you go:
truenas_admin@truenas[~]$ for disk in /dev/sdd; do; sudo smartctl -x $disk; done
[sudo] password for truenas_admin:
smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.6.44-production+truenas] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Toshiba 3.5" DT01ACA... Desktop HDD
Device Model: TOSHIBA DT01ACA100
Serial Number: 23S0ZEMNS
LU WWN Device Id: 5 000039 ff6c07244
Firmware Version: MS2OA750
User Capacity: 1,000,204,886,016 bytes [1.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database 7.3/5528
ATA Version is: ATA8-ACS T13/1699-D revision 4
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Jan 18 12:12:35 2026 PST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Disabled
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x80) Offline data collection activity
was never started.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 7604) seconds.
Offline data collection
capabilities: (0x5b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: ( 127) minutes.
SCT capabilities: (0x003d) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate PO-R-- 100 100 016 - 0
2 Throughput_Performance P-S--- 141 141 054 - 72
3 Spin_Up_Time POS--- 124 124 024 - 182 (Average 187)
4 Start_Stop_Count -O--C- 100 100 000 - 345
5 Reallocated_Sector_Ct PO--CK 100 100 005 - 0
7 Seek_Error_Rate PO-R-- 100 100 067 - 0
8 Seek_Time_Performance P-S--- 113 113 020 - 35
9 Power_On_Hours -O--C- 100 100 000 - 1371
10 Spin_Retry_Count PO--C- 100 100 060 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 345
192 Power-Off_Retract_Count -O--CK 100 100 000 - 367
193 Load_Cycle_Count -O--C- 100 100 000 - 367
194 Temperature_Celsius -O---- 240 240 000 - 25 (Min/Max 1/40)
196 Reallocated_Event_Count -O--CK 100 100 000 - 0
197 Current_Pending_Sector -O---K 100 100 000 - 0
198 Offline_Uncorrectable ---R-- 100 100 000 - 0
199 UDMA_CRC_Error_Count -O-R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x03 GPL R/O 1 Ext. Comprehensive SMART error log
0x04 GPL R/O 7 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x08 GPL R/O 2 Power Conditions log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x20 GPL R/O 1 Streaming performance log
0x21 GPL R/O 1 Write stream error log
0x22 GPL R/O 1 Read stream error log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (1 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
No self-tests have been logged. [To run self-tests, use: smartctl -t]
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 256 (0x0100)
Device State: Active (0)
Current Temperature: 25 Celsius
Power Cycle Min/Max Temperature: 25/26 Celsius
Lifetime Min/Max Temperature: 1/40 Celsius
Under/Over Temperature Limit Count: 0/0
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -40/70 Celsius
Temperature History Size (Index): 128 (101)
Index Estimated Time Temperature Celsius
102 2026-01-18 10:05 18 -
103 2026-01-18 10:06 19 -
104 2026-01-18 10:07 19 -
105 2026-01-18 10:08 20 *
106 2026-01-18 10:09 20 *
107 2026-01-18 10:10 ? -
108 2026-01-18 10:11 22 ***
... ..( 3 skipped). .. ***
112 2026-01-18 10:15 22 ***
113 2026-01-18 10:16 23 ****
... ..( 5 skipped). .. ****
119 2026-01-18 10:22 23 ****
120 2026-01-18 10:23 24 *****
... ..( 5 skipped). .. *****
126 2026-01-18 10:29 24 *****
127 2026-01-18 10:30 25 ******
... ..( 10 skipped). .. ******
10 2026-01-18 10:41 25 ******
11 2026-01-18 10:42 26 *******
... ..( 2 skipped). .. *******
14 2026-01-18 10:45 26 *******
15 2026-01-18 10:46 ? -
16 2026-01-18 10:47 25 ******
17 2026-01-18 10:48 26 *******
... ..( 9 skipped). .. *******
27 2026-01-18 10:58 26 *******
28 2026-01-18 10:59 25 ******
... ..( 6 skipped). .. ******
35 2026-01-18 11:06 25 ******
36 2026-01-18 11:07 26 *******
37 2026-01-18 11:08 25 ******
... ..( 35 skipped). .. ******
73 2026-01-18 11:44 25 ******
74 2026-01-18 11:45 26 *******
... ..( 16 skipped). .. *******
91 2026-01-18 12:02 26 *******
92 2026-01-18 12:03 25 ******
... ..( 8 skipped). .. ******
101 2026-01-18 12:12 25 ******
SCT Error Recovery Control:
Read: Disabled
Write: Disabled
Device Statistics (GP Log 0x04)
Page Offset Size Value Flags Description
0x01 ===== = = === == General Statistics (rev 1) ==
0x01 0x008 4 345 --- Lifetime Power-On Resets
0x01 0x010 4 1371 --- Power-on Hours
0x01 0x018 6 3653091284 --- Logical Sectors Written
0x01 0x020 6 39779160 --- Number of Write Commands
0x01 0x028 6 139290207745 --- Logical Sectors Read
0x01 0x030 6 66132280 --- Number of Read Commands
0x03 ===== = = === == Rotating Media Statistics (rev 1) ==
0x03 0x008 4 1370 --- Spindle Motor Power-on Hours
0x03 0x010 4 1370 --- Head Flying Hours
0x03 0x018 4 367 --- Head Load Events
0x03 0x020 4 0 --- Number of Reallocated Logical Sectors
0x03 0x028 4 3 --- Read Recovery Attempts
0x03 0x030 4 2 --- Number of Mechanical Start Failures
0x04 ===== = = === == General Errors Statistics (rev 1) ==
0x04 0x008 4 0 --- Number of Reported Uncorrectable Errors
0x04 0x010 4 0 --- Resets Between Cmd Acceptance and Completion
0x05 ===== = = === == Temperature Statistics (rev 1) ==
0x05 0x008 1 25 --- Current Temperature
0x05 0x010 1 21 N-- Average Short Term Temperature
0x05 0x018 1 21 N-- Average Long Term Temperature
0x05 0x020 1 40 --- Highest Temperature
0x05 0x028 1 1 --- Lowest Temperature
0x05 0x030 1 36 N-- Highest Average Short Term Temperature
0x05 0x038 1 16 N-- Lowest Average Short Term Temperature
0x05 0x040 1 30 N-- Highest Average Long Term Temperature
0x05 0x048 1 17 N-- Lowest Average Long Term Temperature
0x05 0x050 4 0 --- Time in Over-Temperature
0x05 0x058 1 60 --- Specified Maximum Operating Temperature
0x05 0x060 4 0 --- Time in Under-Temperature
0x05 0x068 1 0 --- Specified Minimum Operating Temperature
0x06 ===== = = === == Transport Statistics (rev 1) ==
0x06 0x008 4 1386 --- Number of Hardware Resets
0x06 0x010 4 715 --- Number of ASR Events
0x06 0x018 4 0 --- Number of Interface CRC Errors
|||_ C monitored condition met
||__ D supports DSN
|___ N normalized value
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0009 2 5 Transition from drive PhyRdy to drive PhyNRdy
0x000a 2 6 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x000d 2 0 Non-CRC errors within host-to-device FIS
Nope - this was the backup
Done
Will do
Yes I agree - I keep meaning to invest in 3 x WD Red 2TB Drives
Double check any drives you will acquire to make sure they are not SMR types. We usually research the model numbers and double check.
SMR vs CMR ServeTheHome
TrueNAS Docs - WD Red SMR Drive Compatibility with ZFS
I have run the SMART test, where can I download the results?
This should bring up the test results for all your drives by using the CLI.
for disk in /dev/sd?; do; sudo smartctl -x $disk; done
If you want to do disk by disk, just do the sudo smartctl -x /dev/sdX and fix the drive name sdX for each drive.
Hereās the results:
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital Green
Device Model: WDC WD10EZRX-00A8LB0
Serial Number: WD-WMC1U6178752
LU WWN Device Id: 5 0014ee 6ad5e90f5
Firmware Version: 01.01A01
User Capacity: 1,000,204,886,016 bytes [1.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Device is: In smartctl database 7.3/5528
ATA Version is: ATA8-ACS (minor revision not indicated)
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Jan 18 15:36:23 2026 PST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 121) The previous self-test completed having
the read element of the test failed.
Total time to complete Offline
data collection: (13320) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 152) minutes.
Conveyance self-test routine
recommended polling time: ( 5) minutes.
SCT capabilities: (0x30b5) SCT Status supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 200 200 051 - 34
3 Spin_Up_Time POS--K 130 122 021 - 4458
4 Start_Stop_Count -O--CK 100 100 000 - 468
5 Reallocated_Sector_Ct PO--CK 200 200 140 - 6
7 Seek_Error_Rate -OSR-K 200 200 000 - 0
9 Power_On_Hours -O--CK 098 098 000 - 1728
10 Spin_Retry_Count -O--CK 100 100 000 - 0
11 Calibration_Retry_Count -O--CK 100 100 000 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 468
192 Power-Off_Retract_Count -O--CK 200 200 000 - 134
193 Load_Cycle_Count -O--CK 199 199 000 - 3643
194 Temperature_Celsius -O---K 123 103 000 - 20
196 Reallocated_Event_Count -O--CK 200 194 000 - 0
197 Current_Pending_Sector -O--CK 200 200 000 - 1
198 Offline_Uncorrectable ----CK 200 200 000 - 0
199 UDMA_CRC_Error_Count -O--CK 200 200 000 - 0
200 Multi_Zone_Error_Rate ---R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 6 Ext. Comprehensive SMART error log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa0-0xa7 GPL,SL VS 16 Device vendor specific log
0xa8-0xb7 GPL,SL VS 1 Device vendor specific log
0xbd GPL,SL VS 1 Device vendor specific log
0xc0 GPL,SL VS 1 Device vendor specific log
0xc1 GPL VS 93 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
Device Error Count: 13
CR = Command Register
FEATR = Features Register
COUNT = Count (was: Sector Count) Register
LBA_48 = Upper bytes of LBA High/Mid/Low Registers ] ATA-8
LH = LBA High (was: Cylinder High) Register ] LBA
LM = LBA Mid (was: Cylinder Low) Register ] Register
LL = LBA Low (was: Sector Number) Register ]
DV = Device (was: Device/Head) Register
DC = Device Control Register
ER = Error register
ST = Status register
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 13 [12] occurred at disk power-on lifetime: 1727 hours (71 days + 23 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5a aa f2 30 40 00 Error: UNC at LBA = 0x5aaaf230 = 1521152560
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 08 00 00 00 00 5a aa f2 30 40 08 03:38:08.444 READ FPDMA QUEUED
ea 00 00 00 00 00 00 00 00 00 00 e0 08 03:38:07.558 FLUSH CACHE EXT
61 00 08 00 28 00 00 74 70 67 60 40 08 03:38:07.556 WRITE FPDMA QUEUED
61 00 08 00 f0 00 00 74 70 65 60 40 08 03:38:07.556 WRITE FPDMA QUEUED
61 00 08 00 e8 00 00 00 00 0b 60 40 08 03:38:07.556 WRITE FPDMA QUEUED
Error 12 [11] occurred at disk power-on lifetime: 1725 hours (71 days + 21 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5a aa f2 50 40 00 Error: WP at LBA = 0x5aaaf250 = 1521152592
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
61 00 10 00 60 00 00 16 aa d8 d8 40 08 01:53:11.865 WRITE FPDMA QUEUED
60 00 08 00 d0 00 00 5a aa f2 50 40 08 01:53:11.863 READ FPDMA QUEUED
61 00 10 00 c8 00 00 16 aa d8 b8 40 08 01:53:10.072 WRITE FPDMA QUEUED
61 00 08 00 58 00 00 16 aa d8 a8 40 08 01:53:10.071 WRITE FPDMA QUEUED
61 00 08 00 50 00 00 66 aa f6 28 40 08 01:53:10.070 WRITE FPDMA QUEUED
Error 11 [10] occurred at disk power-on lifetime: 1725 hours (71 days + 21 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5a aa e4 d0 40 00 Error: WP at LBA = 0x5aaae4d0 = 1521149136
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
61 00 28 00 80 00 00 16 aa d8 28 40 08 01:51:43.236 WRITE FPDMA QUEUED
61 00 18 00 30 00 00 16 aa d8 08 40 08 01:51:43.235 WRITE FPDMA QUEUED
60 00 08 00 28 00 00 42 39 5b b0 40 08 01:51:43.234 READ FPDMA QUEUED
60 00 08 00 20 00 00 42 1b e6 90 40 08 01:51:43.234 READ FPDMA QUEUED
60 00 08 00 18 00 00 42 52 5a 58 40 08 01:51:43.234 READ FPDMA QUEUED
Error 10 [9] occurred at disk power-on lifetime: 1724 hours (71 days + 20 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5a aa e5 60 40 00 Error: UNC at LBA = 0x5aaae560 = 1521149280
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 20 00 98 00 00 5a aa e5 60 40 08 01:25:20.805 READ FPDMA QUEUED
b0 00 d5 00 01 00 00 00 c2 4f 09 00 08 01:24:48.110 SMART READ LOG
b0 00 d5 00 01 00 00 00 c2 4f 06 00 08 01:24:46.358 SMART READ LOG
b0 00 d5 00 01 00 00 00 c2 4f 01 00 08 01:24:45.550 SMART READ LOG
b0 00 d5 00 01 00 00 00 c2 4f 00 00 08 01:24:43.797 SMART READ LOG
Error 9 [8] occurred at disk power-on lifetime: 1724 hours (71 days + 20 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5a aa f4 18 40 00 Error: WP at LBA = 0x5aaaf418 = 1521153048
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
61 00 78 00 a8 00 00 66 aa e5 38 40 08 01:08:10.082 WRITE FPDMA QUEUED
61 00 b0 00 a0 00 00 66 00 43 50 40 08 01:08:10.081 WRITE FPDMA QUEUED
60 00 08 00 98 00 00 5a aa f4 18 40 08 01:08:10.081 READ FPDMA QUEUED
61 00 20 00 80 00 00 66 00 43 30 40 08 01:08:10.081 WRITE FPDMA QUEUED
b0 00 d5 00 01 00 00 00 c2 4f 00 00 08 01:08:10.077 SMART READ LOG
Error 8 [7] occurred at disk power-on lifetime: 1724 hours (71 days + 20 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5a aa f0 60 40 00 Error: UNC at LBA = 0x5aaaf060 = 1521152096
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 e0 00 10 00 00 74 70 68 20 40 08 01:08:07.105 READ FPDMA QUEUED
60 00 e0 00 08 00 00 00 00 02 20 40 08 01:08:07.104 READ FPDMA QUEUED
61 00 10 00 80 00 00 00 00 0a 10 40 08 01:08:07.101 WRITE FPDMA QUEUED
60 00 10 00 78 00 00 74 70 66 10 40 08 01:08:07.101 READ FPDMA QUEUED
60 00 10 00 70 00 00 74 70 64 10 40 08 01:08:07.101 READ FPDMA QUEUED
Error 7 [6] occurred at disk power-on lifetime: 1724 hours (71 days + 20 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5a aa e6 00 40 00 Error: UNC at LBA = 0x5aaae600 = 1521149440
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 e0 00 d0 00 00 74 70 6a 20 40 08 01:08:04.244 READ FPDMA QUEUED
60 00 e0 00 c8 00 00 74 70 66 20 40 08 01:08:04.237 READ FPDMA QUEUED
60 00 e0 00 b8 00 00 74 70 66 20 40 08 01:08:04.237 READ FPDMA QUEUED
60 00 08 00 c0 00 00 5a aa e6 00 40 08 01:08:04.229 READ FPDMA QUEUED
60 00 08 00 b0 00 00 5a aa f0 60 40 08 01:08:04.219 READ FPDMA QUEUED
Error 6 [5] occurred at disk power-on lifetime: 1724 hours (71 days + 20 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER -- ST COUNT LBA_48 LH LM LL DV DC
-- -- -- == -- == == == -- -- -- -- --
40 -- 51 00 00 00 00 5a aa d7 00 40 00 Error: UNC at LBA = 0x5aaad700 = 1521145600
Commands leading to the command that caused the error were:
CR FEATR COUNT LBA_48 LH LM LL DV DC Powered_Up_Time Command/Feature_Name
-- == -- == -- == == == -- -- -- -- -- --------------- --------------------
60 00 08 00 38 00 00 5a aa d7 00 40 08 01:07:59.114 READ FPDMA QUEUED
60 00 08 00 78 00 00 5a aa e6 70 40 08 01:07:57.261 READ FPDMA QUEUED
60 00 08 00 70 00 00 5a aa f3 b8 40 08 01:07:56.127 READ FPDMA QUEUED
60 00 08 00 68 00 00 09 a1 c0 70 40 08 01:07:56.084 READ FPDMA QUEUED
60 00 08 00 60 00 00 5a aa f4 08 40 08 01:07:55.834 READ FPDMA QUEUED
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed: read failure 90% 1727 1521143308
# 2 Extended offline Completed: read failure 90% 1725 1521143308
# 3 Short offline Completed: read failure 90% 1723 1521143332
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 258 (0x0102)
Device State: Active (0)
Current Temperature: 20 Celsius
Power Cycle Min/Max Temperature: 20/23 Celsius
Lifetime Min/Max Temperature: 2/40 Celsius
Under/Over Temperature Limit Count: 0/0
Vendor specific:
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -41/85 Celsius
Temperature History Size (Index): 478 (208)
Index Estimated Time Temperature Celsius
209 2026-01-18 07:40 20 *
... ..( 48 skipped). .. *
258 2026-01-18 08:29 20 *
259 2026-01-18 08:30 13 -
... ..( 24 skipped). .. -
284 2026-01-18 08:55 13 -
285 2026-01-18 08:56 ? -
286 2026-01-18 08:57 3 -
287 2026-01-18 08:58 4 -
288 2026-01-18 08:59 4 -
289 2026-01-18 09:00 5 -
290 2026-01-18 09:01 6 -
291 2026-01-18 09:02 6 -
292 2026-01-18 09:03 7 -
293 2026-01-18 09:04 7 -
294 2026-01-18 09:05 7 -
295 2026-01-18 09:06 8 -
296 2026-01-18 09:07 8 -
297 2026-01-18 09:08 9 -
298 2026-01-18 09:09 9 -
299 2026-01-18 09:10 10 -
... ..( 3 skipped). .. -
303 2026-01-18 09:14 10 -
304 2026-01-18 09:15 11 -
... ..( 7 skipped). .. -
312 2026-01-18 09:23 11 -
313 2026-01-18 09:24 12 -
... ..( 2 skipped). .. -
316 2026-01-18 09:27 12 -
317 2026-01-18 09:28 13 -
318 2026-01-18 09:29 12 -
319 2026-01-18 09:30 13 -
... ..( 9 skipped). .. -
329 2026-01-18 09:40 13 -
330 2026-01-18 09:41 14 -
331 2026-01-18 09:42 ? -
332 2026-01-18 09:43 2 -
333 2026-01-18 09:44 4 -
334 2026-01-18 09:45 4 -
335 2026-01-18 09:46 5 -
336 2026-01-18 09:47 5 -
337 2026-01-18 09:48 6 -
338 2026-01-18 09:49 7 -
... ..( 2 skipped). .. -
341 2026-01-18 09:52 7 -
342 2026-01-18 09:53 8 -
343 2026-01-18 09:54 8 -
344 2026-01-18 09:55 9 -
345 2026-01-18 09:56 9 -
346 2026-01-18 09:57 10 -
... ..( 5 skipped). .. -
352 2026-01-18 10:03 10 -
353 2026-01-18 10:04 11 -
... ..( 2 skipped). .. -
356 2026-01-18 10:07 11 -
357 2026-01-18 10:08 12 -
... ..( 3 skipped). .. -
361 2026-01-18 10:12 12 -
362 2026-01-18 10:13 ? -
363 2026-01-18 10:14 8 -
364 2026-01-18 10:15 8 -
365 2026-01-18 10:16 9 -
366 2026-01-18 10:17 10 -
367 2026-01-18 10:18 10 -
368 2026-01-18 10:19 10 -
369 2026-01-18 10:20 11 -
370 2026-01-18 10:21 12 -
371 2026-01-18 10:22 12 -
372 2026-01-18 10:23 13 -
... ..( 3 skipped). .. -
376 2026-01-18 10:27 13 -
377 2026-01-18 10:28 14 -
378 2026-01-18 10:29 14 -
379 2026-01-18 10:30 15 -
380 2026-01-18 10:31 15 -
381 2026-01-18 10:32 15 -
382 2026-01-18 10:33 ? -
383 2026-01-18 10:34 5 -
384 2026-01-18 10:35 6 -
385 2026-01-18 10:36 7 -
386 2026-01-18 10:37 7 -
387 2026-01-18 10:38 ? -
388 2026-01-18 10:39 10 -
389 2026-01-18 10:40 10 -
390 2026-01-18 10:41 ? -
391 2026-01-18 10:42 5 -
392 2026-01-18 10:43 ? -
393 2026-01-18 10:44 7 -
394 2026-01-18 10:45 7 -
395 2026-01-18 10:46 7 -
396 2026-01-18 10:47 9 -
397 2026-01-18 10:48 9 -
398 2026-01-18 10:49 10 -
399 2026-01-18 10:50 10 -
400 2026-01-18 10:51 11 -
401 2026-01-18 10:52 11 -
402 2026-01-18 10:53 12 -
403 2026-01-18 10:54 12 -
404 2026-01-18 10:55 13 -
405 2026-01-18 10:56 13 -
406 2026-01-18 10:57 13 -
407 2026-01-18 10:58 14 -
408 2026-01-18 10:59 14 -
409 2026-01-18 11:00 15 -
410 2026-01-18 11:01 16 -
... ..( 2 skipped). .. -
413 2026-01-18 11:04 16 -
414 2026-01-18 11:05 ? -
415 2026-01-18 11:06 17 -
... ..( 3 skipped). .. -
419 2026-01-18 11:10 17 -
420 2026-01-18 11:11 18 -
421 2026-01-18 11:12 18 -
422 2026-01-18 11:13 18 -
423 2026-01-18 11:14 19 -
424 2026-01-18 11:15 19 -
425 2026-01-18 11:16 19 -
426 2026-01-18 11:17 20 *
... ..( 6 skipped). .. *
433 2026-01-18 11:24 20 *
434 2026-01-18 11:25 21 **
... ..( 3 skipped). .. **
438 2026-01-18 11:29 21 **
439 2026-01-18 11:30 22 ***
... ..( 4 skipped). .. ***
444 2026-01-18 11:35 22 ***
445 2026-01-18 11:36 23 ****
... ..( 2 skipped). .. ****
448 2026-01-18 11:39 23 ****
449 2026-01-18 11:40 ? -
450 2026-01-18 11:41 23 ****
... ..( 64 skipped). .. ****
37 2026-01-18 12:46 23 ****
38 2026-01-18 12:47 22 ***
39 2026-01-18 12:48 23 ****
... ..( 30 skipped). .. ****
70 2026-01-18 13:19 23 ****
71 2026-01-18 13:20 22 ***
... ..( 23 skipped). .. ***
95 2026-01-18 13:44 22 ***
96 2026-01-18 13:45 21 **
... ..( 87 skipped). .. **
184 2026-01-18 15:13 21 **
185 2026-01-18 15:14 20 *
... ..( 22 skipped). .. *
208 2026-01-18 15:37 20 *
SCT Error Recovery Control command not supported
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0008 2 0 Device-to-host non-data FIS retries
0x0009 2 5 Transition from drive PhyRdy to drive PhyNRdy
0x000a 2 4 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x000f 2 0 R_ERR response for host-to-device data FIS, CRC
0x0012 2 0 R_ERR response for host-to-device non-data FIS, CRC
0x8000 4 17436 Vendor specific
smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.6.44-production+truenas] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital Green
Device Model: WDC WD10EZRX-00A8LB0
Serial Number: WD-WMC1U6106599
LU WWN Device Id: 5 0014ee 602b3f0d1
Firmware Version: 01.01A01
User Capacity: 1,000,204,886,016 bytes [1.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Device is: In smartctl database 7.3/5528
ATA Version is: ATA8-ACS (minor revision not indicated)
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Jan 18 15:37:08 2026 PST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 244) Self-test routine in progress...
40% of test remaining.
Total time to complete Offline
data collection: (13440) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 153) minutes.
Conveyance self-test routine
recommended polling time: ( 5) minutes.
SCT capabilities: (0x30b5) SCT Status supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 200 200 051 - 0
3 Spin_Up_Time POS--K 126 116 021 - 4691
4 Start_Stop_Count -O--CK 100 100 000 - 473
5 Reallocated_Sector_Ct PO--CK 200 200 140 - 0
7 Seek_Error_Rate -OSR-K 200 200 000 - 0
9 Power_On_Hours -O--CK 098 098 000 - 1727
10 Spin_Retry_Count -O--CK 100 100 000 - 0
11 Calibration_Retry_Count -O--CK 100 100 000 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 473
192 Power-Off_Retract_Count -O--CK 200 200 000 - 141
193 Load_Cycle_Count -O--CK 199 199 000 - 3648
194 Temperature_Celsius -O---K 122 103 000 - 21
196 Reallocated_Event_Count -O--CK 200 200 000 - 0
197 Current_Pending_Sector -O--CK 200 200 000 - 0
198 Offline_Uncorrectable ----CK 200 200 000 - 0
199 UDMA_CRC_Error_Count -O--CK 200 200 000 - 0
200 Multi_Zone_Error_Rate ---R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 6 Ext. Comprehensive SMART error log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa0-0xa7 GPL,SL VS 16 Device vendor specific log
0xa8-0xb7 GPL,SL VS 1 Device vendor specific log
0xbd GPL,SL VS 1 Device vendor specific log
0xc0 GPL,SL VS 1 Device vendor specific log
0xc1 GPL VS 93 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Short offline Completed without error 00% 33 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 258 (0x0102)
Device State: DST executing in background (3)
Current Temperature: 21 Celsius
Power Cycle Min/Max Temperature: 19/23 Celsius
Lifetime Min/Max Temperature: 19/40 Celsius
Under/Over Temperature Limit Count: 0/0
Vendor specific:
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -41/85 Celsius
Temperature History Size (Index): 478 (165)
Index Estimated Time Temperature Celsius
166 2026-01-18 07:40 22 ***
... ..( 33 skipped). .. ***
200 2026-01-18 08:14 22 ***
201 2026-01-18 08:15 21 **
... ..( 13 skipped). .. **
215 2026-01-18 08:29 21 **
216 2026-01-18 08:30 14 -
... ..( 15 skipped). .. -
232 2026-01-18 08:46 14 -
233 2026-01-18 08:47 ? -
234 2026-01-18 08:48 4 -
235 2026-01-18 08:49 4 -
236 2026-01-18 08:50 5 -
237 2026-01-18 08:51 6 -
238 2026-01-18 08:52 7 -
239 2026-01-18 08:53 7 -
240 2026-01-18 08:54 7 -
241 2026-01-18 08:55 8 -
242 2026-01-18 08:56 9 -
243 2026-01-18 08:57 9 -
244 2026-01-18 08:58 10 -
... ..( 2 skipped). .. -
247 2026-01-18 09:01 10 -
248 2026-01-18 09:02 11 -
... ..( 2 skipped). .. -
251 2026-01-18 09:05 11 -
252 2026-01-18 09:06 12 -
253 2026-01-18 09:07 12 -
254 2026-01-18 09:08 12 -
255 2026-01-18 09:09 13 -
... ..( 4 skipped). .. -
260 2026-01-18 09:14 13 -
261 2026-01-18 09:15 14 -
... ..( 15 skipped). .. -
277 2026-01-18 09:31 14 -
278 2026-01-18 09:32 15 -
279 2026-01-18 09:33 ? -
280 2026-01-18 09:34 3 -
281 2026-01-18 09:35 4 -
282 2026-01-18 09:36 5 -
283 2026-01-18 09:37 6 -
284 2026-01-18 09:38 7 -
285 2026-01-18 09:39 7 -
286 2026-01-18 09:40 7 -
287 2026-01-18 09:41 8 -
288 2026-01-18 09:42 8 -
289 2026-01-18 09:43 9 -
290 2026-01-18 09:44 9 -
291 2026-01-18 09:45 10 -
... ..( 2 skipped). .. -
294 2026-01-18 09:48 10 -
295 2026-01-18 09:49 11 -
296 2026-01-18 09:50 11 -
297 2026-01-18 09:51 11 -
298 2026-01-18 09:52 12 -
... ..( 2 skipped). .. -
301 2026-01-18 09:55 12 -
302 2026-01-18 09:56 13 -
... ..( 6 skipped). .. -
309 2026-01-18 10:03 13 -
310 2026-01-18 10:04 ? -
311 2026-01-18 10:05 8 -
312 2026-01-18 10:06 9 -
313 2026-01-18 10:07 10 -
314 2026-01-18 10:08 10 -
315 2026-01-18 10:09 10 -
316 2026-01-18 10:10 11 -
317 2026-01-18 10:11 12 -
318 2026-01-18 10:12 12 -
319 2026-01-18 10:13 13 -
320 2026-01-18 10:14 13 -
321 2026-01-18 10:15 13 -
322 2026-01-18 10:16 14 -
323 2026-01-18 10:17 14 -
324 2026-01-18 10:18 14 -
325 2026-01-18 10:19 15 -
326 2026-01-18 10:20 15 -
327 2026-01-18 10:21 16 -
328 2026-01-18 10:22 16 -
329 2026-01-18 10:23 16 -
330 2026-01-18 10:24 ? -
331 2026-01-18 10:25 5 -
332 2026-01-18 10:26 6 -
333 2026-01-18 10:27 7 -
334 2026-01-18 10:28 8 -
335 2026-01-18 10:29 8 -
336 2026-01-18 10:30 9 -
337 2026-01-18 10:31 ? -
338 2026-01-18 10:32 11 -
... ..( 2 skipped). .. -
341 2026-01-18 10:35 11 -
342 2026-01-18 10:36 12 -
343 2026-01-18 10:37 12 -
344 2026-01-18 10:38 13 -
345 2026-01-18 10:39 13 -
346 2026-01-18 10:40 ? -
347 2026-01-18 10:41 5 -
348 2026-01-18 10:42 ? -
349 2026-01-18 10:43 8 -
350 2026-01-18 10:44 8 -
351 2026-01-18 10:45 8 -
352 2026-01-18 10:46 10 -
353 2026-01-18 10:47 10 -
354 2026-01-18 10:48 10 -
355 2026-01-18 10:49 11 -
356 2026-01-18 10:50 12 -
357 2026-01-18 10:51 13 -
358 2026-01-18 10:52 13 -
359 2026-01-18 10:53 13 -
360 2026-01-18 10:54 14 -
361 2026-01-18 10:55 14 -
362 2026-01-18 10:56 14 -
363 2026-01-18 10:57 15 -
364 2026-01-18 10:58 15 -
365 2026-01-18 10:59 16 -
366 2026-01-18 11:00 ? -
367 2026-01-18 11:01 18 -
... ..( 2 skipped). .. -
370 2026-01-18 11:04 18 -
371 2026-01-18 11:05 19 -
372 2026-01-18 11:06 19 -
373 2026-01-18 11:07 19 -
374 2026-01-18 11:08 20 *
... ..( 6 skipped). .. *
381 2026-01-18 11:15 20 *
382 2026-01-18 11:16 21 **
... ..( 6 skipped). .. **
389 2026-01-18 11:23 21 **
390 2026-01-18 11:24 22 ***
... ..( 5 skipped). .. ***
396 2026-01-18 11:30 22 ***
397 2026-01-18 11:31 23 ****
... ..( 4 skipped). .. ****
402 2026-01-18 11:36 23 ****
403 2026-01-18 11:37 ? -
404 2026-01-18 11:38 23 ****
... ..( 30 skipped). .. ****
435 2026-01-18 12:09 23 ****
436 2026-01-18 12:10 22 ***
... ..( 3 skipped). .. ***
440 2026-01-18 12:14 22 ***
441 2026-01-18 12:15 21 **
... ..( 7 skipped). .. **
449 2026-01-18 12:23 21 **
450 2026-01-18 12:24 22 ***
... ..( 8 skipped). .. ***
459 2026-01-18 12:33 22 ***
460 2026-01-18 12:34 23 ****
... ..( 4 skipped). .. ****
465 2026-01-18 12:39 23 ****
466 2026-01-18 12:40 22 ***
... ..( 3 skipped). .. ***
470 2026-01-18 12:44 22 ***
471 2026-01-18 12:45 23 ****
... ..( 7 skipped). .. ****
1 2026-01-18 12:53 23 ****
2 2026-01-18 12:54 22 ***
... ..( 19 skipped). .. ***
22 2026-01-18 13:14 22 ***
23 2026-01-18 13:15 21 **
... ..( 57 skipped). .. **
81 2026-01-18 14:13 21 **
82 2026-01-18 14:14 20 *
... ..( 24 skipped). .. *
107 2026-01-18 14:39 20 *
108 2026-01-18 14:40 19 -
... ..( 23 skipped). .. -
132 2026-01-18 15:04 19 -
133 2026-01-18 15:05 20 *
... ..( 6 skipped). .. *
140 2026-01-18 15:12 20 *
141 2026-01-18 15:13 21 **
... ..( 11 skipped). .. **
153 2026-01-18 15:25 21 **
154 2026-01-18 15:26 22 ***
... ..( 10 skipped). .. ***
165 2026-01-18 15:37 22 ***
SCT Error Recovery Control command not supported
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0008 2 0 Device-to-host non-data FIS retries
0x0009 2 5 Transition from drive PhyRdy to drive PhyNRdy
0x000a 2 4 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x000f 2 0 R_ERR response for host-to-device data FIS, CRC
0x0012 2 0 R_ERR response for host-to-device non-data FIS, CRC
0x8000 4 17435 Vendor specific
smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.6.44-production+truenas] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Toshiba 3.5" DT01ACA... Desktop HDD
Device Model: TOSHIBA DT01ACA100
Serial Number: 23S0ZEMNS
LU WWN Device Id: 5 000039 ff6c07244
Firmware Version: MS2OA750
User Capacity: 1,000,204,886,016 bytes [1.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database 7.3/5528
ATA Version is: ATA8-ACS T13/1699-D revision 4
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Jan 18 15:37:08 2026 PST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Disabled
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x80) Offline data collection activity
was never started.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 243) Self-test routine in progress...
30% of test remaining.
Total time to complete Offline
data collection: ( 7604) seconds.
Offline data collection
capabilities: (0x5b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: ( 127) minutes.
SCT capabilities: (0x003d) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate PO-R-- 100 100 016 - 0
2 Throughput_Performance P-S--- 141 141 054 - 72
3 Spin_Up_Time POS--- 124 124 024 - 182 (Average 187)
4 Start_Stop_Count -O--C- 100 100 000 - 345
5 Reallocated_Sector_Ct PO--CK 100 100 005 - 0
7 Seek_Error_Rate PO-R-- 100 100 067 - 0
8 Seek_Time_Performance P-S--- 113 113 020 - 35
9 Power_On_Hours -O--C- 100 100 000 - 1375
10 Spin_Retry_Count PO--C- 100 100 060 - 0
12 Power_Cycle_Count -O--CK 100 100 000 - 345
192 Power-Off_Retract_Count -O--CK 100 100 000 - 367
193 Load_Cycle_Count -O--C- 100 100 000 - 367
194 Temperature_Celsius -O---- 240 240 000 - 25 (Min/Max 1/40)
196 Reallocated_Event_Count -O--CK 100 100 000 - 0
197 Current_Pending_Sector -O---K 100 100 000 - 0
198 Offline_Uncorrectable ---R-- 100 100 000 - 0
199 UDMA_CRC_Error_Count -O-R-- 200 200 000 - 0
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x03 GPL R/O 1 Ext. Comprehensive SMART error log
0x04 GPL R/O 7 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x08 GPL R/O 2 Power Conditions log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x20 GPL R/O 1 Streaming performance log
0x21 GPL R/O 1 Write stream error log
0x22 GPL R/O 1 Read stream error log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (1 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
No self-tests have been logged. [To run self-tests, use: smartctl -t]
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 256 (0x0100)
Device State: DST executing in background (3)
Current Temperature: 25 Celsius
Power Cycle Min/Max Temperature: 22/26 Celsius
Lifetime Min/Max Temperature: 1/40 Celsius
Under/Over Temperature Limit Count: 0/0
SCT Temperature History Version: 2
Temperature Sampling Period: 1 minute
Temperature Logging Interval: 1 minute
Min/Max recommended Temperature: 0/60 Celsius
Min/Max Temperature Limit: -40/70 Celsius
Temperature History Size (Index): 128 (49)
Index Estimated Time Temperature Celsius
50 2026-01-18 13:30 23 ****
... ..( 26 skipped). .. ****
77 2026-01-18 13:57 23 ****
78 2026-01-18 13:58 22 ***
79 2026-01-18 13:59 23 ****
80 2026-01-18 14:00 23 ****
81 2026-01-18 14:01 22 ***
... ..( 2 skipped). .. ***
84 2026-01-18 14:04 22 ***
85 2026-01-18 14:05 23 ****
86 2026-01-18 14:06 22 ***
... ..( 9 skipped). .. ***
96 2026-01-18 14:16 22 ***
97 2026-01-18 14:17 23 ****
98 2026-01-18 14:18 23 ****
99 2026-01-18 14:19 23 ****
100 2026-01-18 14:20 24 *****
... ..( 2 skipped). .. *****
103 2026-01-18 14:23 24 *****
104 2026-01-18 14:24 25 ******
... ..( 72 skipped). .. ******
49 2026-01-18 15:37 25 ******
SCT Error Recovery Control:
Read: Disabled
Write: Disabled
Device Statistics (GP Log 0x04)
Page Offset Size Value Flags Description
0x01 ===== = = === == General Statistics (rev 1) ==
0x01 0x008 4 345 --- Lifetime Power-On Resets
0x01 0x010 4 1375 --- Power-on Hours
0x01 0x018 6 3653518812 --- Logical Sectors Written
0x01 0x020 6 39799124 --- Number of Write Commands
0x01 0x028 6 140663857393 --- Logical Sectors Read
0x01 0x030 6 66163957 --- Number of Read Commands
0x03 ===== = = === == Rotating Media Statistics (rev 1) ==
0x03 0x008 4 1374 --- Spindle Motor Power-on Hours
0x03 0x010 4 1374 --- Head Flying Hours
0x03 0x018 4 367 --- Head Load Events
0x03 0x020 4 0 --- Number of Reallocated Logical Sectors
0x03 0x028 4 3 --- Read Recovery Attempts
0x03 0x030 4 2 --- Number of Mechanical Start Failures
0x04 ===== = = === == General Errors Statistics (rev 1) ==
0x04 0x008 4 0 --- Number of Reported Uncorrectable Errors
0x04 0x010 4 0 --- Resets Between Cmd Acceptance and Completion
0x05 ===== = = === == Temperature Statistics (rev 1) ==
0x05 0x008 1 25 --- Current Temperature
0x05 0x010 1 21 N-- Average Short Term Temperature
0x05 0x018 1 21 N-- Average Long Term Temperature
0x05 0x020 1 40 --- Highest Temperature
0x05 0x028 1 1 --- Lowest Temperature
0x05 0x030 1 36 N-- Highest Average Short Term Temperature
0x05 0x038 1 16 N-- Lowest Average Short Term Temperature
0x05 0x040 1 30 N-- Highest Average Long Term Temperature
0x05 0x048 1 17 N-- Lowest Average Long Term Temperature
0x05 0x050 4 0 --- Time in Over-Temperature
0x05 0x058 1 60 --- Specified Maximum Operating Temperature
0x05 0x060 4 0 --- Time in Under-Temperature
0x05 0x068 1 0 --- Specified Minimum Operating Temperature
0x06 ===== = = === == Transport Statistics (rev 1) ==
0x06 0x008 4 1386 --- Number of Hardware Resets
0x06 0x010 4 715 --- Number of ASR Events
0x06 0x018 4 0 --- Number of Interface CRC Errors
|||_ C monitored condition met
||__ D supports DSN
|___ N normalized value
Pending Defects log (GP Log 0x0c) not supported
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 2 0 Command failed due to ICRC error
0x0002 2 0 R_ERR response for data FIS
0x0003 2 0 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0005 2 0 R_ERR response for non-data FIS
0x0006 2 0 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
0x0009 2 5 Transition from drive PhyRdy to drive PhyNRdy
0x000a 2 6 Device-to-host register FISes sent due to a COMRESET
0x000b 2 0 CRC errors within host-to-device FIS
0x000d 2 0 Non-CRC errors within host-to-device FIS
truenas_admin@truenas[~]$
And hereās the zpool status:
truenas_admin@truenas[~]$ sudo zpool status
pool: NAStorage
state: ONLINE
status: One or more devices has experienced an unrecoverable error. An
attempt was made to correct the error. Applications are unaffected.
action: Determine if the device needs to be replaced, and clear the errors
using 'zpool clear' or replace the device with 'zpool replace'.
see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-9P
config:
NAME STATE READ WRITE CKSUM
NAStorage ONLINE 0 0 0
raidz1-0 ONLINE 0 0 0
acf6f3ee-1b35-4937-84ae-ddde6ae32d29 ONLINE 0 0 0
91982a55-003d-429a-b826-6c69b6b626fe ONLINE 0 0 0
530714ac-9045-4e49-9960-89440b4cfb87 ONLINE 9 0 0
errors: No known data errors
pool: boot-pool
state: ONLINE
config:
NAME STATE READ WRITE CKSUM
boot-pool ONLINE 0 0 0
sda3 ONLINE 0 0 0
errors: No known data errors
And this is showing on the main GUI
And this:
I am in the process of running a scrub, but what other steps should I take now?
This drive may need to be replaced. You got another Reallocated_Sector_Ct. I would keep a recent copy of your system configuration in case the boot drive dies. I didnāt see a SMART test for that but you did show a screenshot of the Alert with unreadable as SDA above.
You arenāt using much space so I would just make sure you have another copy of the data somewhere. You probably could clear the errors and just watch the system.
If you are planning on HD replacements, we suggest you stick to models meant for NAS use. WD Red Plus or Pros, Toshiba N300 and Seagate Ironwolf are a few examples. Those should all be CMR types. If you go with consumer models, you want to stay away from anything that uses SMR for recording.
SMR vs CMR ServeTheHome
TrueNAS Docs - WD Red SMR Drive Compatibility with ZFS
happened to me onceā¦. just hold the power button down it should turn off and the power on
